AMX7303- Professional Four-Channel Audio Mixer with USB and DSP Processor


FEATURES

AMX7303 FRONT VIEW

AMX7303 REAR VIEW



AMX7303 SIDE VIEW



SPECIFICATIONS



AMX7303 OWNER'S MANUAL



The Audio2000'S AMX7303 system is a truly user-friendly, yet pleasantly sounded, 4-channel audio mixerThe AMX7303 is configured with all the essential mixer features.



FEATURES:

  • 4-Channel Audio Mixer
  • Built-in DSP Processor
  • Built-in USB MP3 Player
  • PAN, AUX, and EFF Controls on All Channels
  • Ultra-Musical 3-Band EQ on All Channels
  • Microphone + Stereo Line Inputs
  • Peak LED Indicators on All Channels
  • High-Accuracy Level Indicator
  • Phantom Power Switch (+48V)
  • Sealed Rotary Control Knobs to Resist Dust and Grime
  • Rugged Steel Chassis
  • Multi-Voltage Power Supply for Worldwide Use


Back to Top

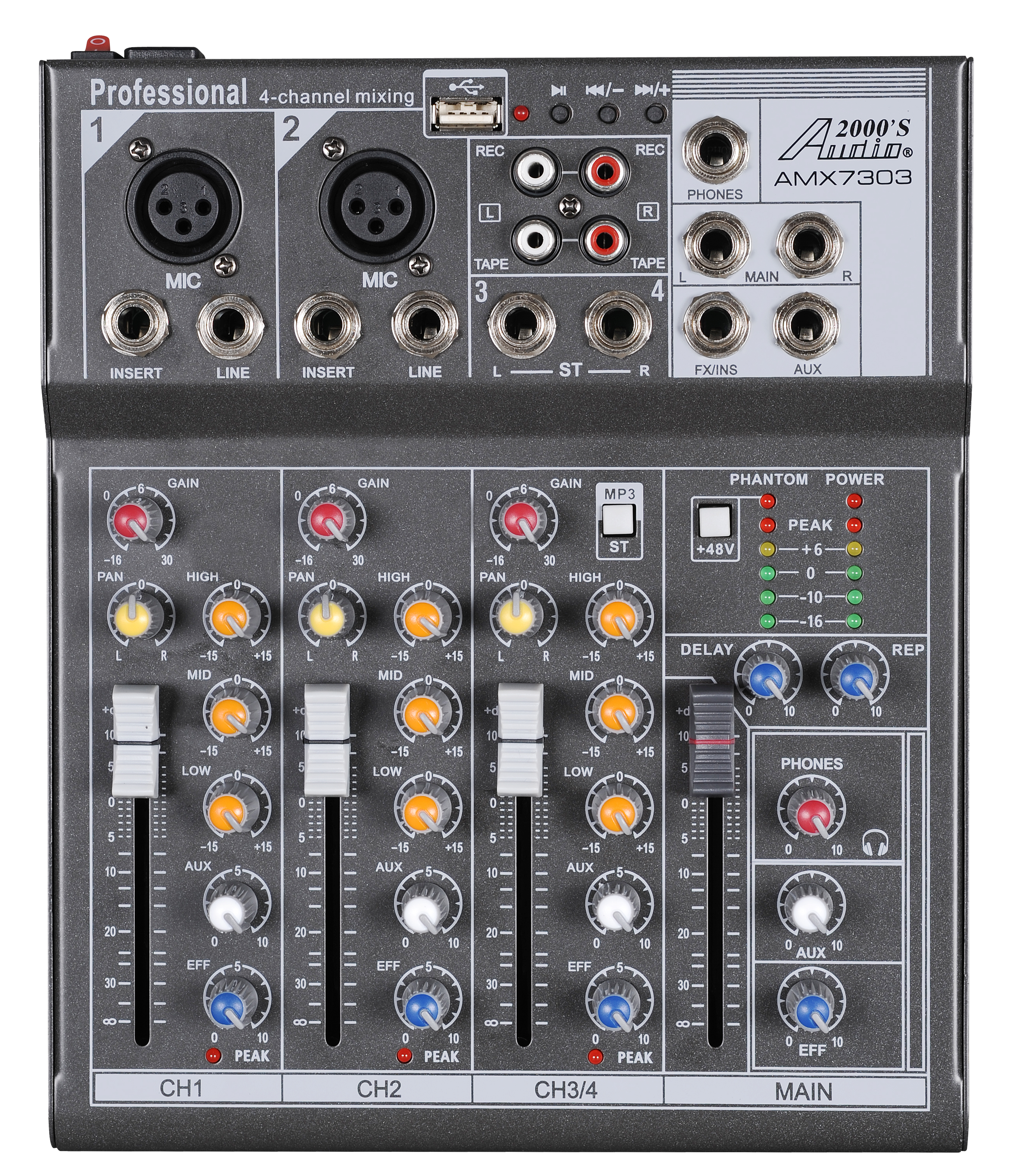

AMX7303 FRONT VIEW:

Click here to enlarge the above image.

Back to Top

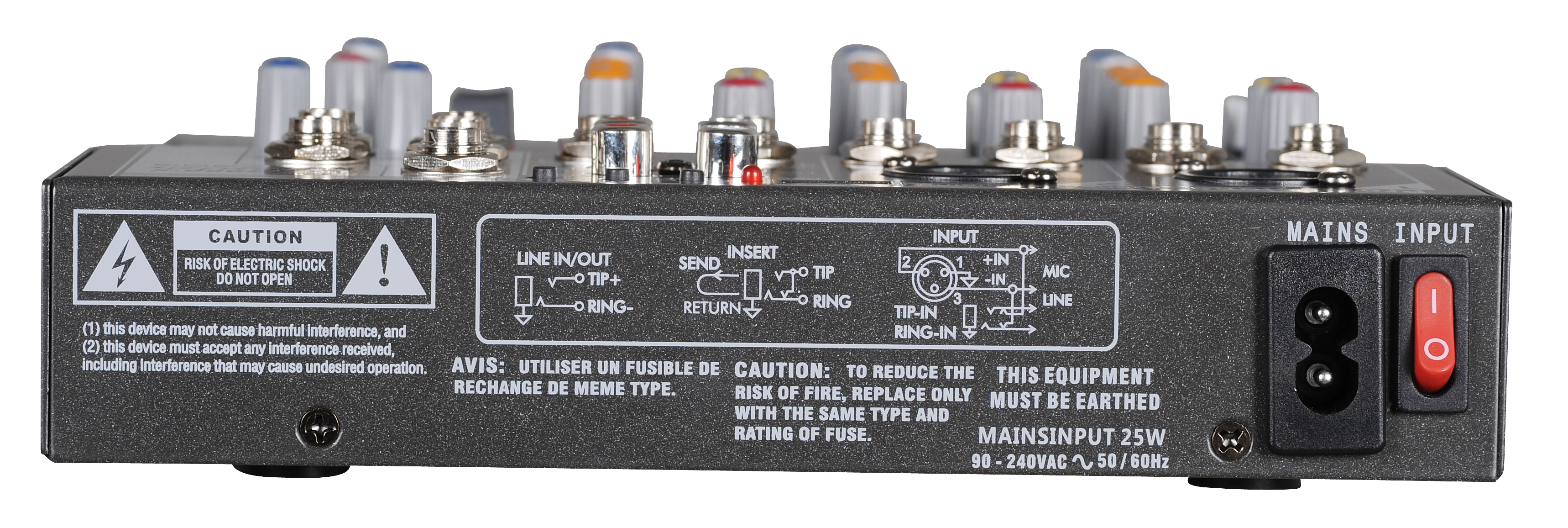

AMX7303 REAR VIEW:

Click here to enlarge the above image.

Back to Top

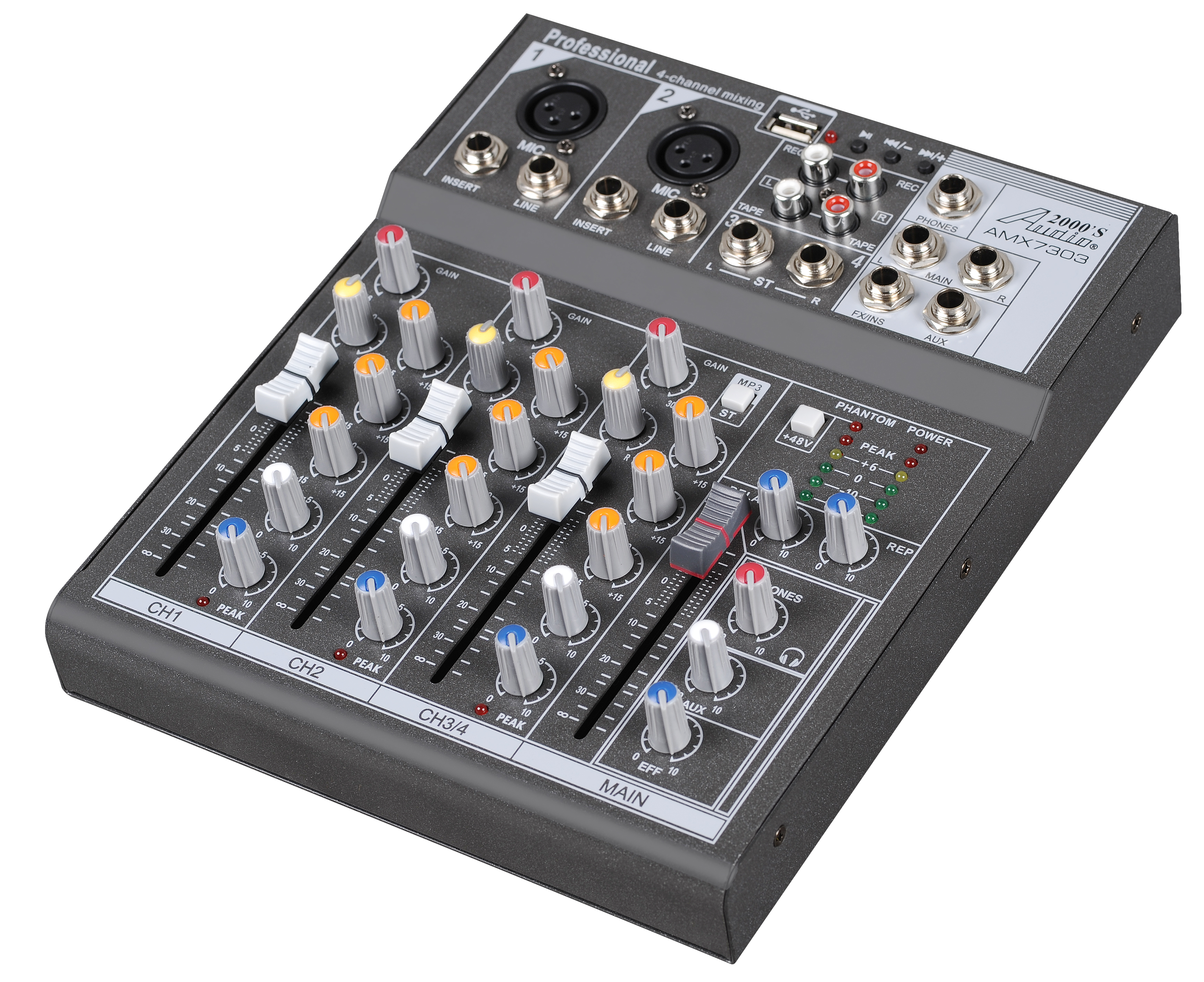

AMX7303 SIDE VIEW:

Click here to enlarge the above image.

Back to Top

SPECIFICATIONS:

INPUT CHANNELS

MONO: MIC/LINE

2

STEREO: LINE

1

USB

1

TAPE/CD INPUT

1

OUTPUT CHANNELS

MAIN OUT

1

PHONES

1

AUX OUT

1

REC OUT

1

BUS

MAIN OUT

1

AUX OUT

1

INPUT CHANNEL FUNCTION

PAD

26dB

EQ

HIGH: Gain +15dB/-15dB, Frequency: 12KHz Shelving

MID:  Gain +15dB/-15dB, Frequency: 2.5KHz Shelving

LOW:  Gain +15dB/-15dB, Frequency: 80Hz Shelving

PEAK LED

LED turns on when post EQ signal reaches 3dB below clipping point

LEVEL METER

2*5-Segment LED Meter (+6, +3, 0, -3, -10 dB)

EFFECTS

Built-in

PHANTOM POWER VOLTAGE

+48V

POWER REQUIREMENTS

AC 100-240V, 50/60Hz, DC +15V, -15V, +48V

POWER CONSUMPTION

11W



Back to Top

AMX7303 OWNER'S MANUAL:

Click here to extract the AMX7303 Owner's Manual.
