AMX7313-
Professional Eight-Channel
Audio Mixer with USB and DSP
Processor
The Audio2000'S® AMX7313 system is a
truly user-friendly, yet
pleasantly sounded, 8-channel audio mixer.
The AMX7313 is
configured with all the essential mixer features.
Back
to Top
FEATURES:
- 8-Channel Audio Mixer
- Built-in DSP Sound Effects Processor
- Built-in USB MP3 Player
- LED Display for Showing the Playing Status
- Ultra-Musical 3-Band EQ on All Channels
- Microphone + Line Inputs
- Peak LED Indicators on All Channels
- High-Accuracy Level Indicator
- Phantom Power Switch (+48V)
- Sealed Rotary Control Knobs to Resist Dust and Grime
- Rugged Steel Chassis
- Multi-Voltage Power Supply for
Worldwide Use
Back
to Top

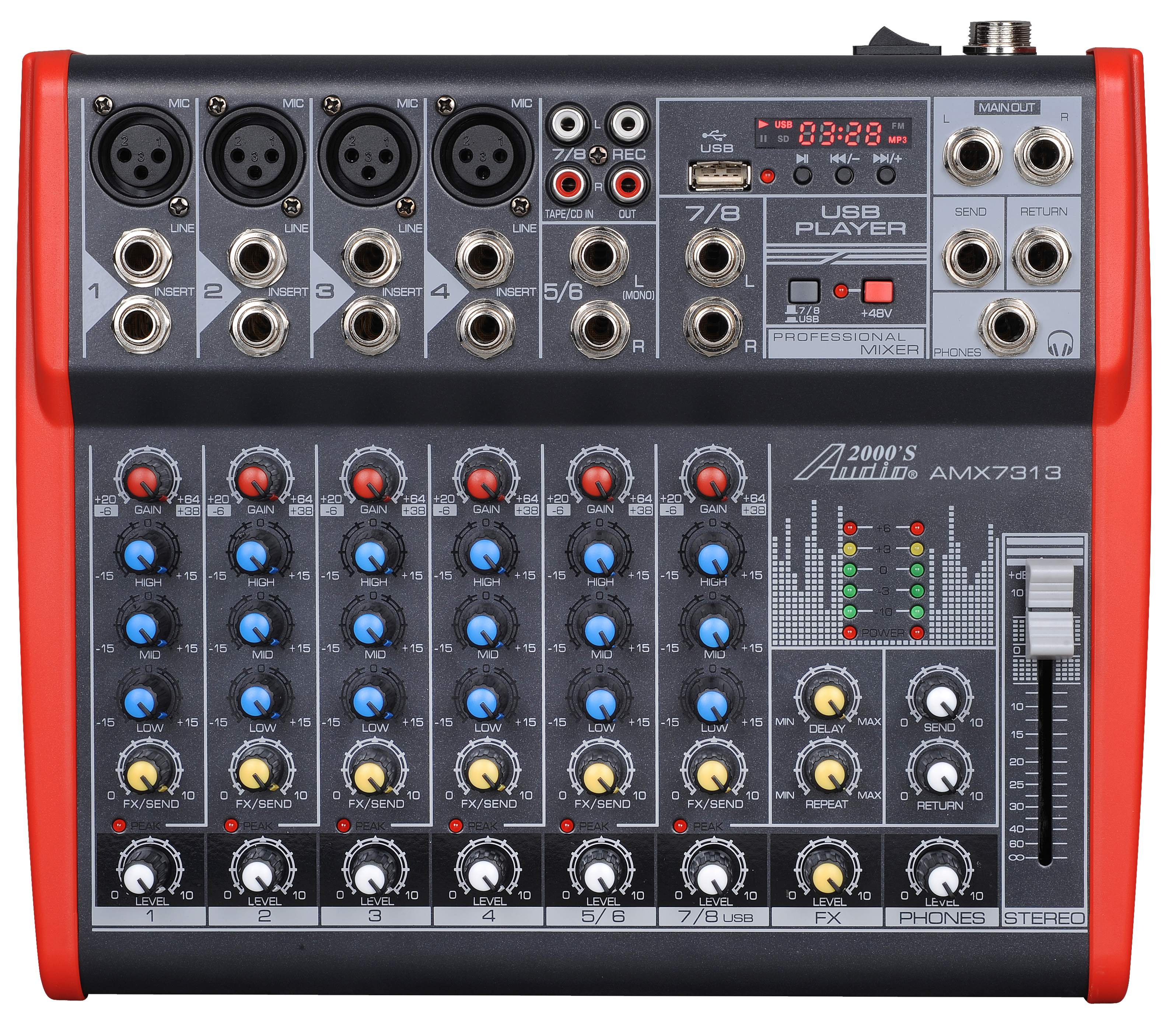

AMX7313 FRONT
VIEW:
Click here to enlarge the above image.
Back
to Top

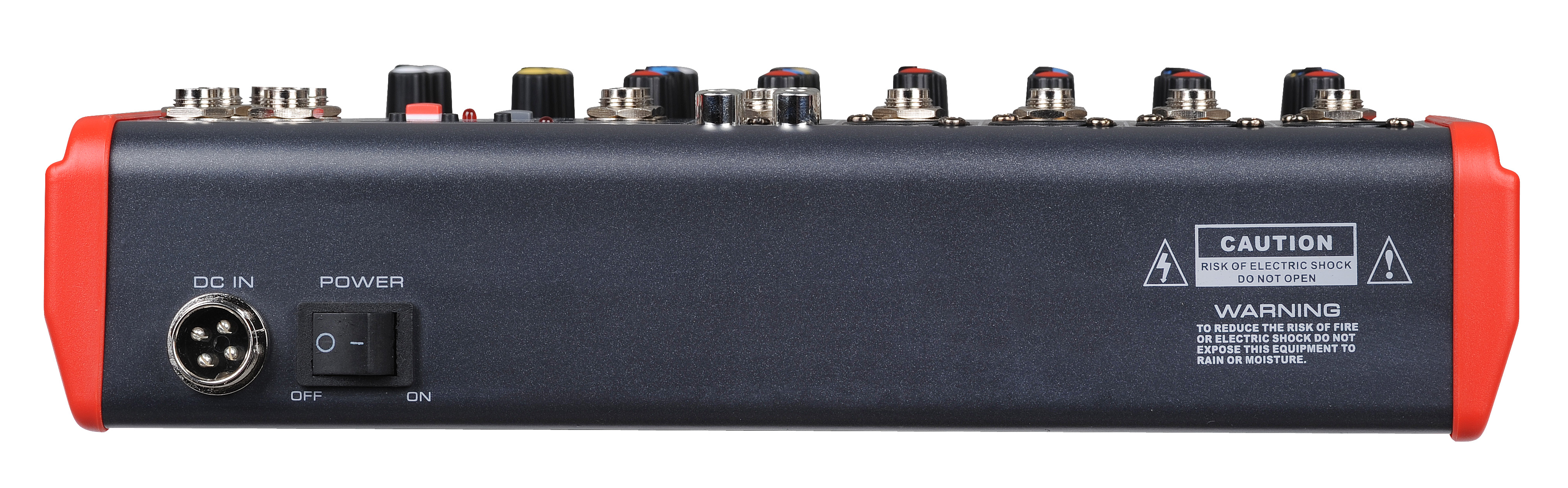

AMX7313
REAR VIEW:
Click here to enlarge the above image.
Back
to Top

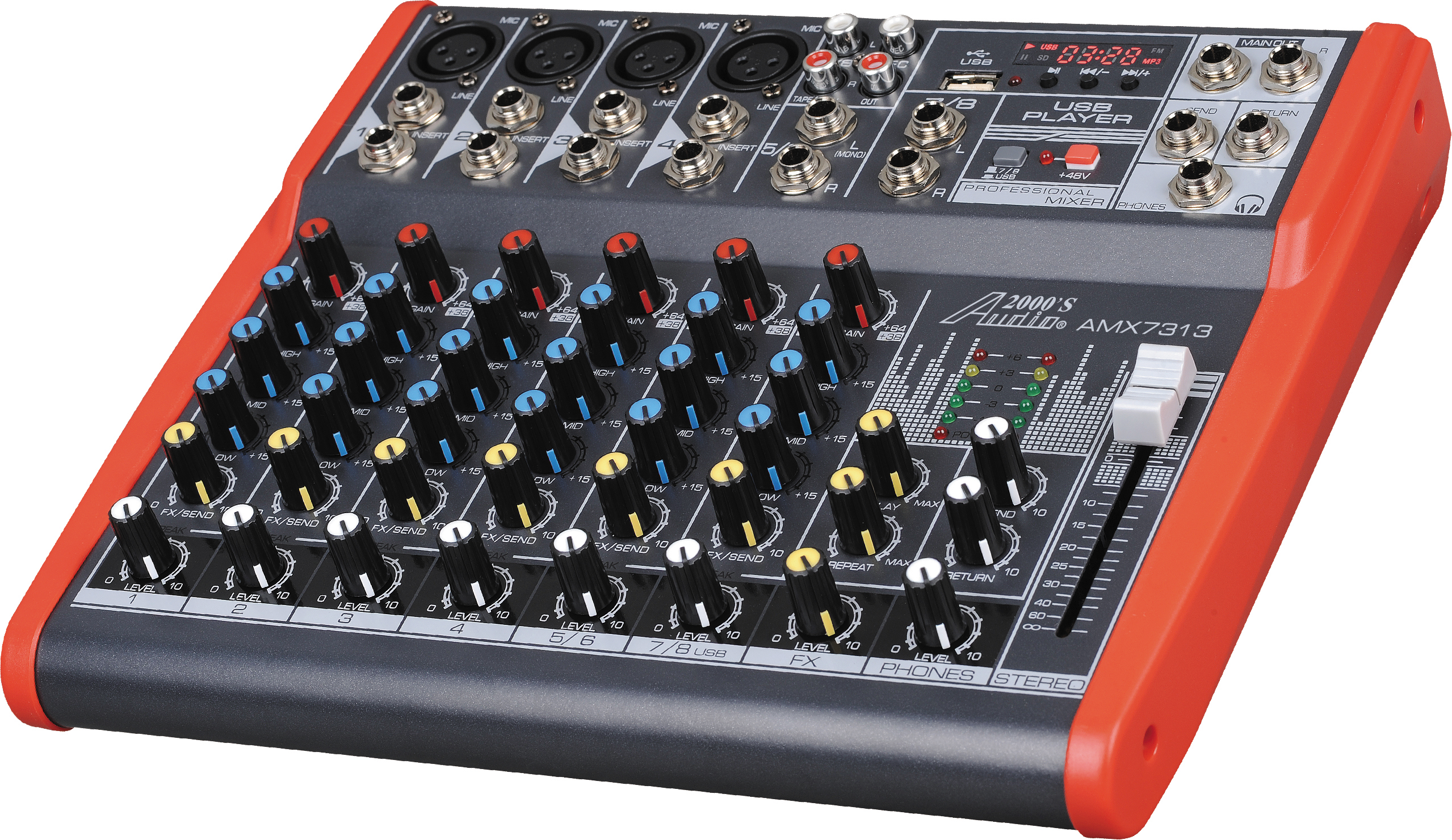

AMX7313
SIDE VIEW:
Click here to enlarge the above image.
Back
to Top
SPECIFICATIONS:
|
INPUT CHANNELS |
MONO: MIC/LINE |
4 |
|
STEREO: LINE |
2 |
|
USB |
1 |
|
TAPE/CD INPUT |
1 |
|
|
MAIN OUT |
1 |
|
PHONES |
1 |
|
RETURN |
- |
|
|
MAIN OUT |
1 |
|
SEND |
1 |
|
INPUT CHANNEL FUNCTION |
PAD |
26dB |
|
EQ |
HIGH: Gain
+15dB/-15dB, Frequency: 12KHz Shelving
MID: Gain
+15dB/-15dB, Frequency: 2.5KHz Shelving
LOW: Gain
+15dB/-15dB, Frequency: 80Hz Shelving |
|
PEAK LED |
LED turns on when post EQ signal
reaches 3dB below clipping point |
|
LEVEL METER |
2*5-Segment LED Meter (+6, +3, 0, -3, -10 dB) |
|
EFFECTS |
Built-in |
|
PHANTOM POWER VOLTAGE |
+48V |
|
POWER REQUIREMENTS |
AC 100-240V, 50/60Hz, DC +15V, -15V, +48V |
|
POWER CONSUMPTION |
17W |
Back
to Top
AMX7313 OWNER'S MANUAL:
Click here to extract the AMX7313
Owner's Manual.
