AMX7321-
Professional Four-Channel
Audio Mixer with USB Interface and DSP Sound Effects
The Audio2000'S® AMX7321 system is a
truly user-friendly, yet
pleasantly sounded, 4-channel audio mixer.
The AMX7321 is
configured with all the essential mixer features.
The capability of letting user connect a computer to the USB interface, the
AMX7321 allows the user to coordinate this audio mixer with a computer to record
and/or to perform the music replaying applications.
Back
to Top
FEATURES:
- 4-Channel Audio Mixer
- Built-in USB Interface to Computer for Recording and
Music Playing Applications
- Built-in DSP Sound Effects Processor
- Built-in Bluetooth Interface
- Built-in USB Recorder/Player Supporting
MP3 and WAV
Formats
- LED Display for Showing the Playing Status
- Ultra-Musical 3-Band EQ on All Channels
- Microphone + Stereo Line Inputs
- Peak LED Indicators on All Channels
- High-Accuracy Level Indicator
- Phantom Power Switch (+48V)
- Sealed Rotary Control Knobs to Resist Dust and Grime
- Rugged Steel Chassis
- Multi-Voltage Power Supply for
Worldwide Use
Back
to Top

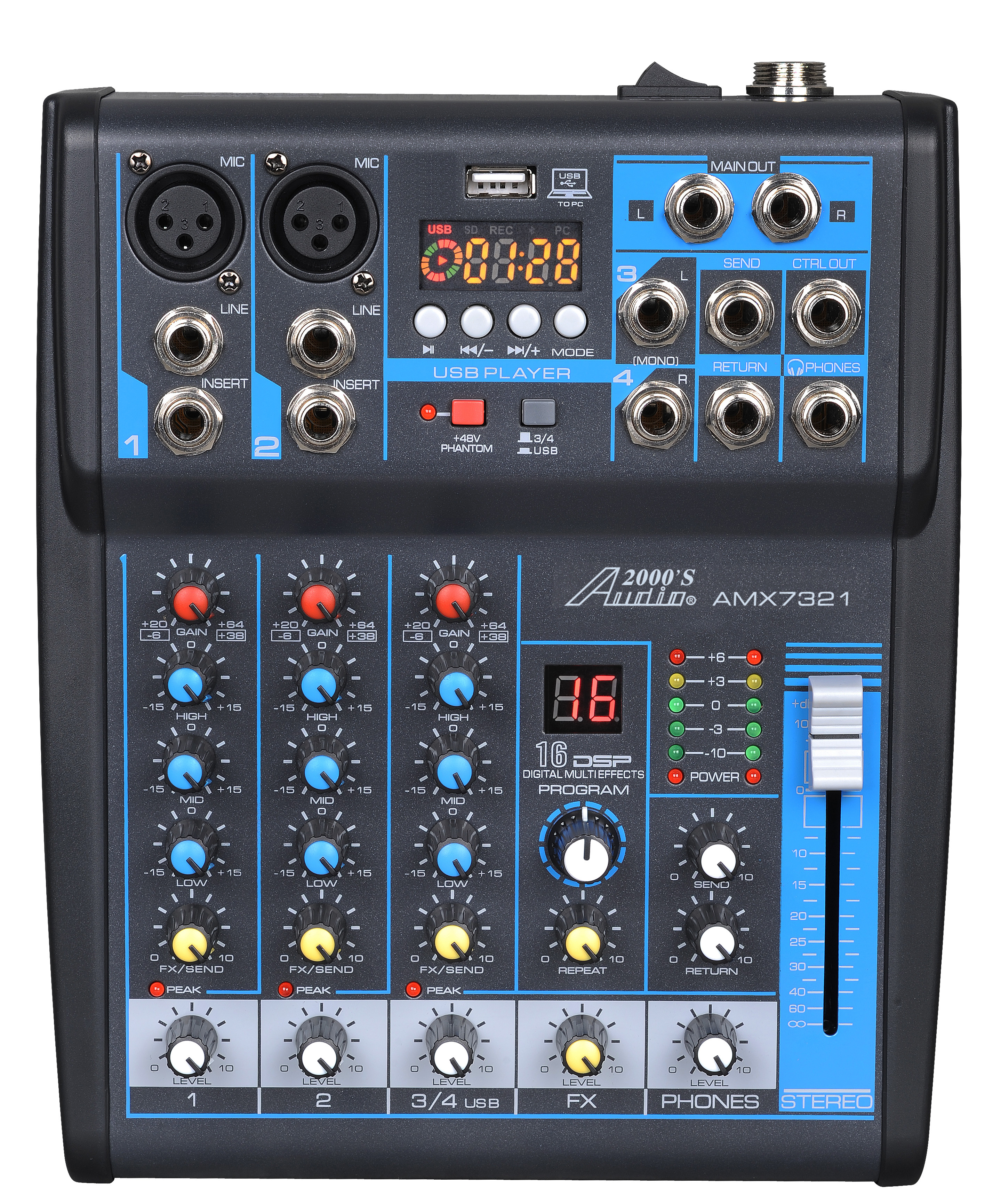

AMX7321 FRONT
VIEW:
Click here to enlarge the above image.
Back
to Top

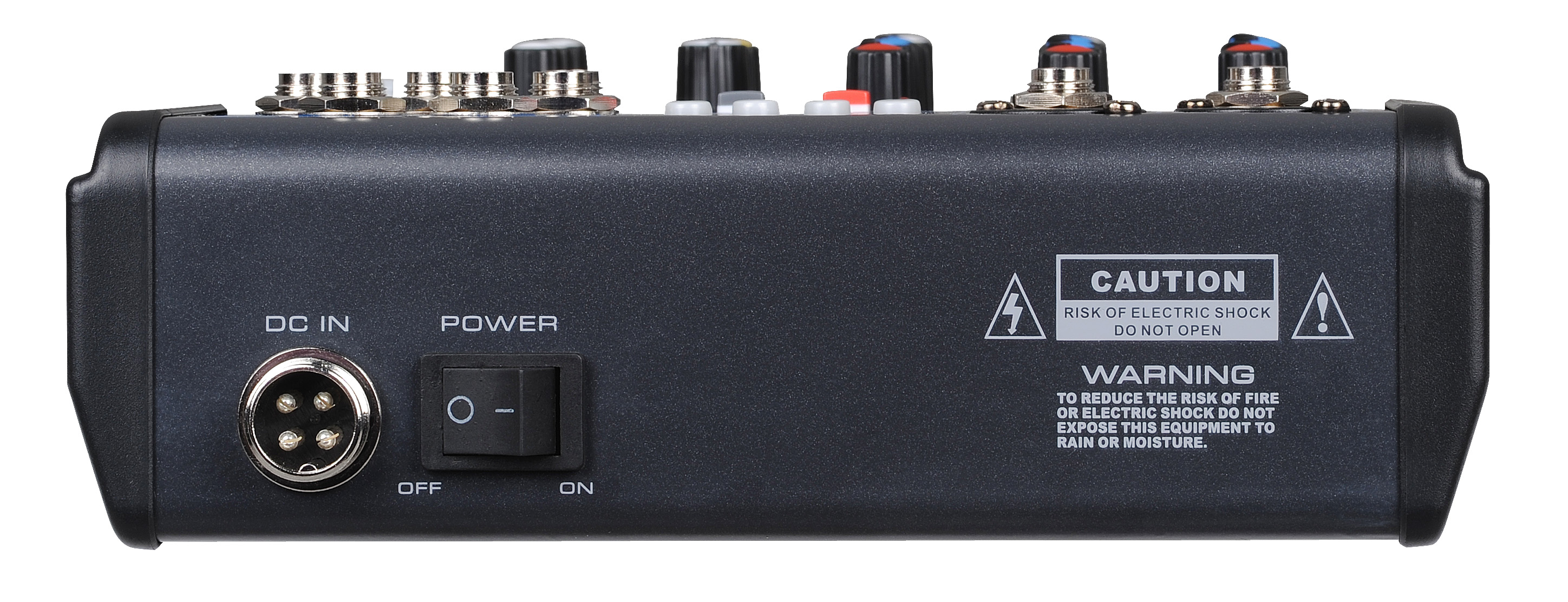

AMX7321
REAR VIEW:
Click here to enlarge the above image.
Back
to Top

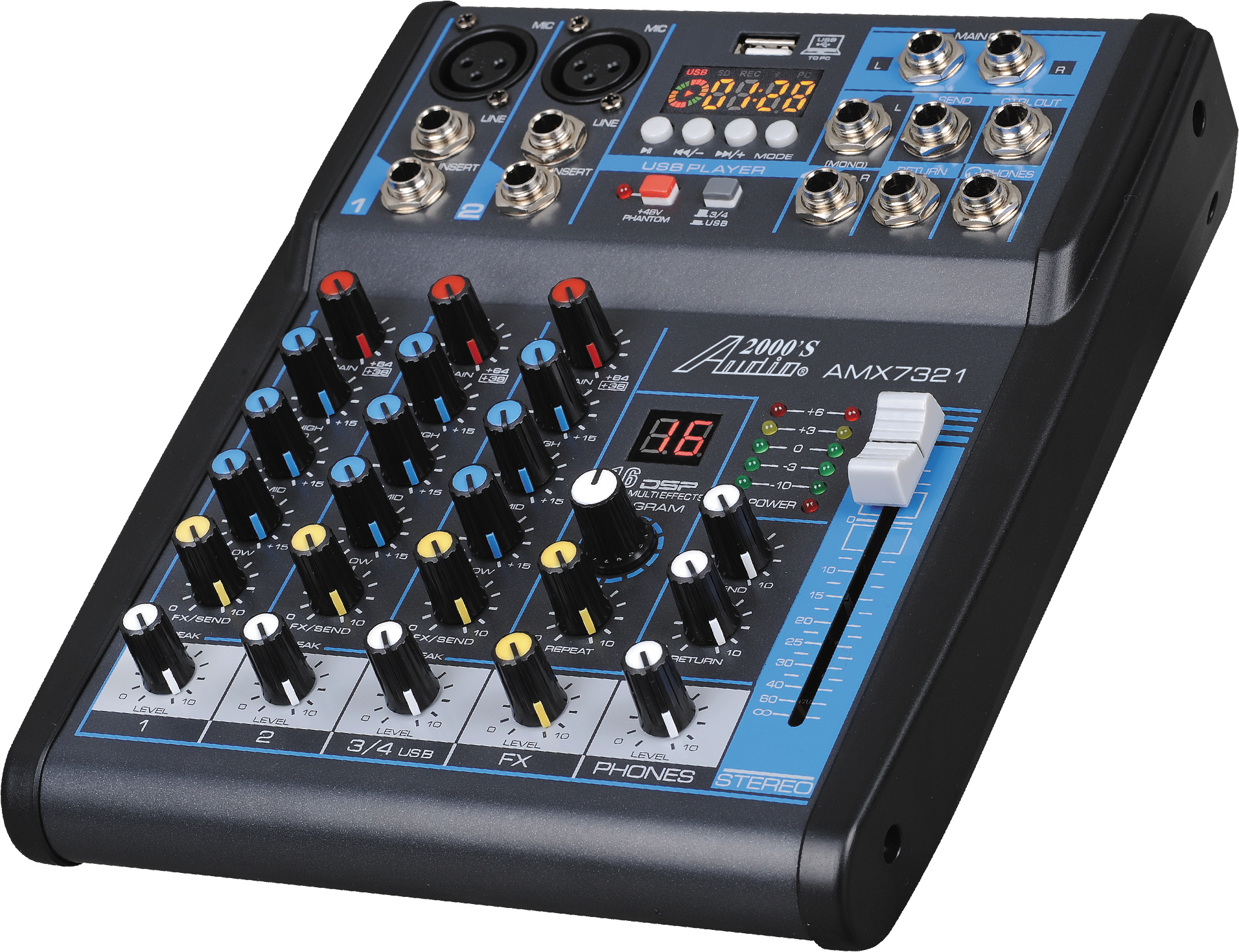

AMX7321
SIDE VIEW:
Click here to enlarge the above image.
Back
to Top
SPECIFICATIONS:
|
INPUT CHANNELS |
MONO: MIC/LINE |
2 |
|
STEREO: LINE |
1 |
|
USB SOUND CARD |
1 |
|
MP3 |
1 |
|
|
STEREO OUT |
1 |
|
PHONES |
1 |
|
RETURN |
1 |
|
|
STEREO |
1 |
|
SEND |
1 |
|
INPUT CHANNEL FUNCTION |
PAD |
26dB |
|
EQ |
HIGH: Gain
+15dB/-15dB, Frequency: 12KHz Shelving
MID: Gain
+15dB/-15dB, Frequency: 2.5KHz Shelving
LOW: Gain
+15dB/-15dB, Frequency: 80Hz Shelving |
|
PEAK LED |
LED turns on when post EQ signal
reaches 3dB below clipping point |
|
LEVEL METER |
2*5-Segment LED Meter (+6, +3, 0, -3, -10 dB) |
|
EFFECTS |
Built-in |
|
PHANTOM POWER VOLTAGE |
+48V |
|
POWER REQUIREMENTS |
AC 100-240V, 50/60Hz, DC +15V, -15V, +48V |
|
POWER CONSUMPTION |
11W |
AMX7321 OWNER'S MANUAL:
Click here to extract the AMX7321
Owner's Manual.
