AMX7323- Professional Eight-Channel Audio Mixer with USB Interface, Bluetooth, and DSP Sound Effects




FEATURES

AMX7323 FRONT VIEW

AMX7323 REAR VIEW



AMX7323 SIDE VIEW



SPECIFICATIONS



AMX7323 OWNER'S MANUAL



The Audio2000'S AMX7323 system is a truly user-friendly, yet pleasantly sounded, 8-channel audio mixerThe AMX7323 is configured with all the essential mixer features. The capability of letting user connect a computer to the USB interface, the AMX7323 allows the user to coordinate this audio mixer with a computer to record and/or to perform the music replaying applications.

Back to Top

FEATURES:

  • 8-Channel Audio Mixer
  • Built-in USB Interface to Computer for Recording and Music Playing Applications
  • Built-in DSP Sound Effects Processor
  • Built-in Bluetooth Interface
  • Built-in MP3 Player Supporting a Variety of Music Formats
  • LED Display for Showing the Playing Status
  • Ultra-Musical 3-Band EQ on All Channels
  • Microphone + Stereo Line Inputs
  • Peak LED Indicators on All Channels
  • High-Accuracy Level Indicator
  • Phantom Power Switch (+48V)
  • Sealed Rotary Control Knobs to Resist Dust and Grime
  • Rugged Steel Chassis
  • Multi-Voltage Power Supply for Worldwide Use


Back to Top

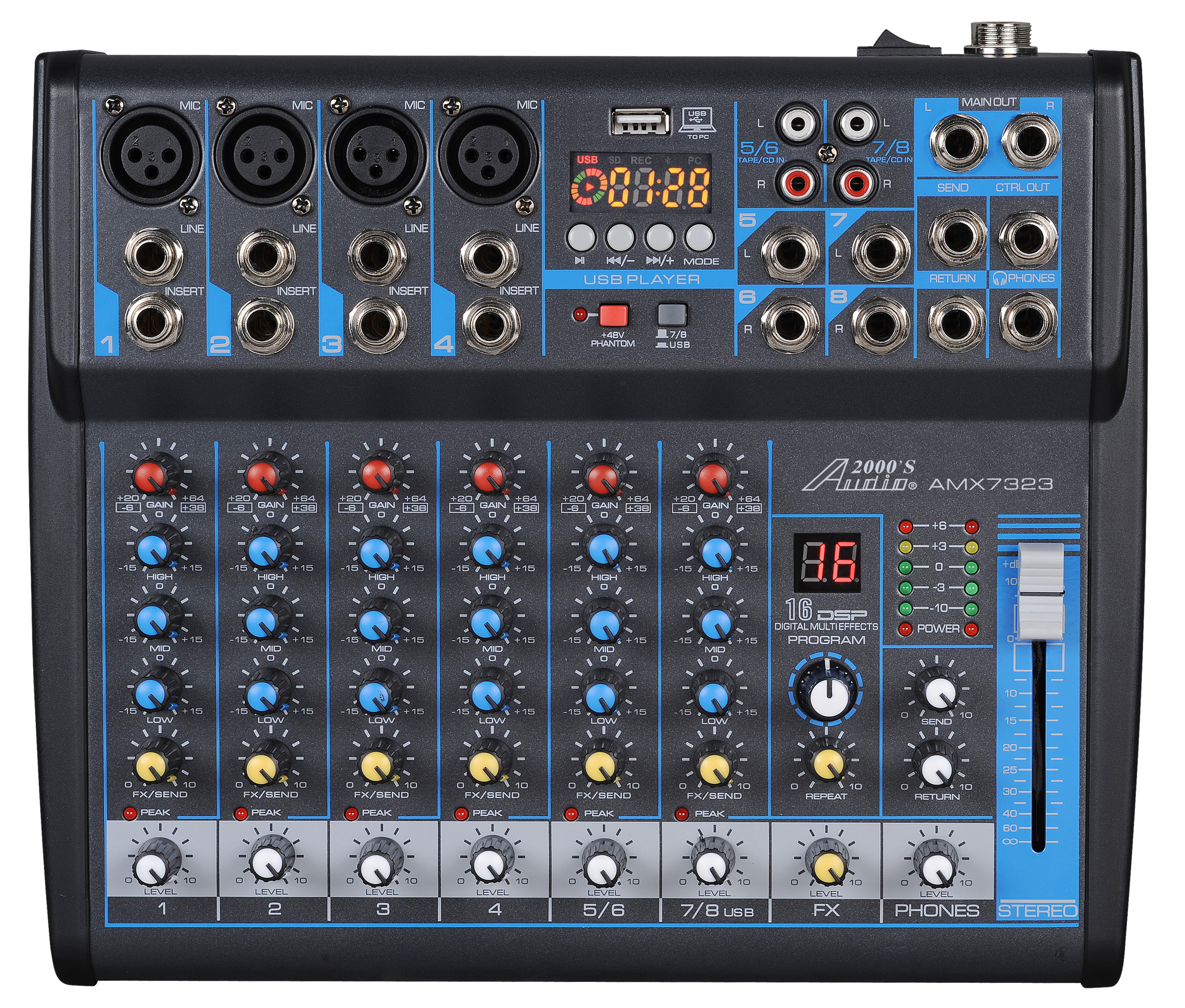

AMX7323 FRONT VIEW:

Click here to enlarge the above image.

Back to Top

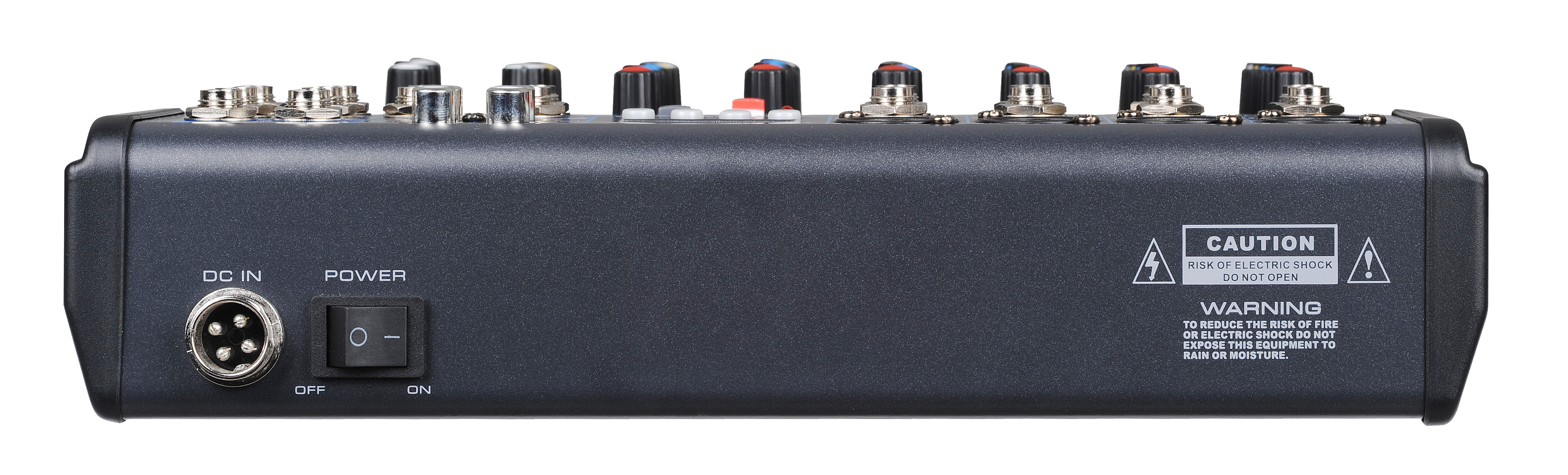

AMX7323 REAR VIEW:

Click here to enlarge the above image.

Back to Top

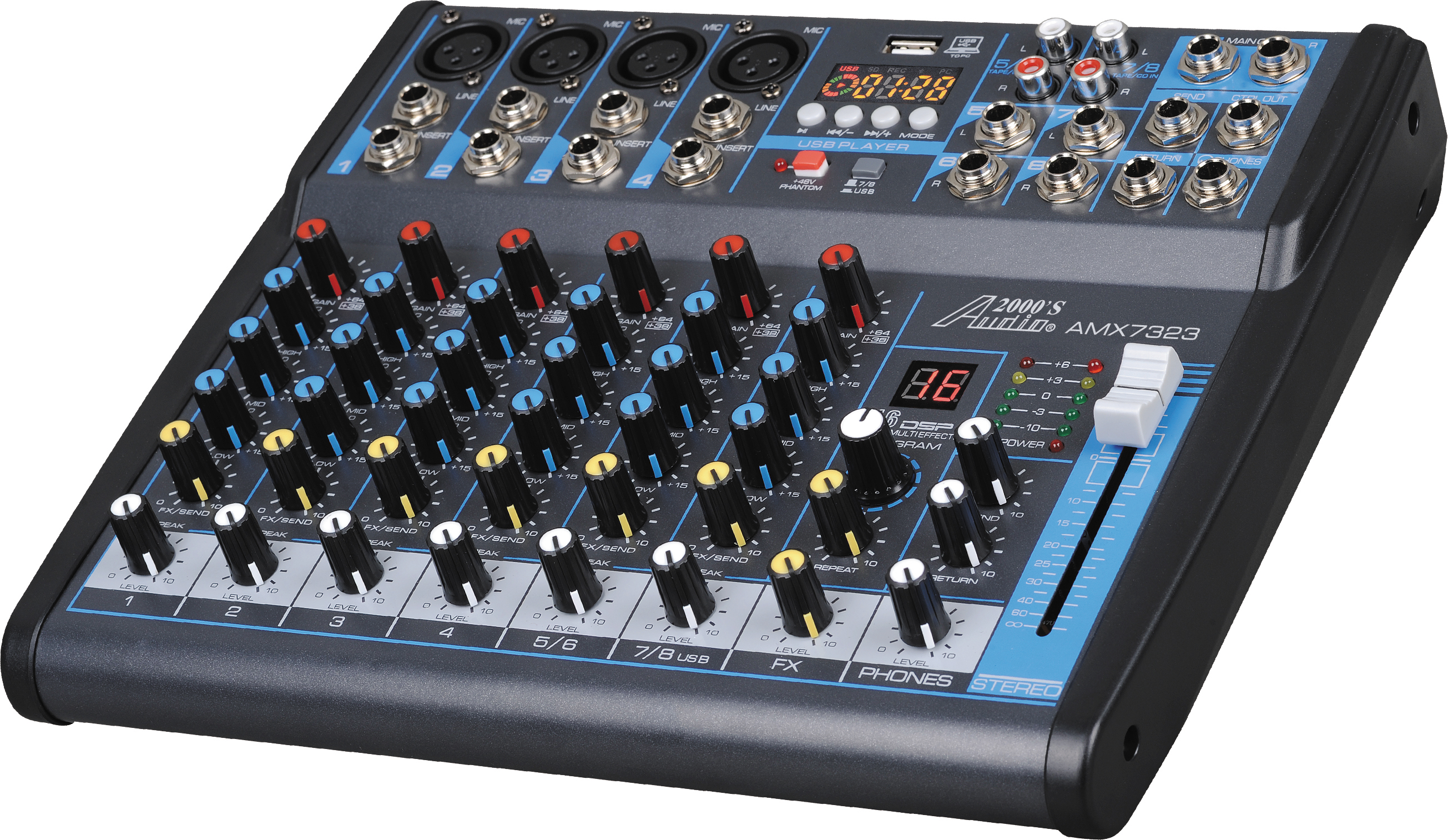

AMX7323 SIDE VIEW:

Click here to enlarge the above image.

Back to Top

SPECIFICATIONS:

INPUT CHANNELS

MONO: MIC/LINE

4

STEREO: LINE

2

USB SOUND CARD

1

MP3

1

OUTPUT CHANNELS

STEREO OUT

1

PHONES

1

RETURN

1

BUS

STEREO

1

SEND

1

INPUT CHANNEL FUNCTION

PAD

26dB

EQ

HIGH: Gain +15dB/-15dB, Frequency: 12KHz Shelving

MID:  Gain +15dB/-15dB, Frequency: 2.5KHz Shelving

LOW:  Gain +15dB/-15dB, Frequency: 80Hz Shelving

PEAK LED

LED turns on when post EQ signal reaches 3dB below clipping point

LEVEL METER

2*5-Segment LED Meter (+6, +3, 0, -3, -10 dB)

EFFECTS

Built-in

PHANTOM POWER VOLTAGE

+48V

POWER REQUIREMENTS

AC 100-240V, 50/60Hz, DC +15V, -15V, +48V

POWER CONSUMPTION

17W



AMX7323 OWNER'S MANUAL:

Click here to extract the AMX7323 Owner's Manual.
