AMX7343-
Eight-Channel
Audio Mixer with USB Interface
and DSP Sound Effects
The Audio2000'S® AMX7343 system is a
truly user-friendly, yet
pleasantly sounded, 8-channel audio mixer.
The AMX7343 is
configured with all the essential mixer features
and more.
Back
to Top
FEATURES:
- 8-Channel Audio Mixer
- Built-in DSP Sound Effects Processor
- Built-in USB Interface to Computer for Recording and
Music Playing Applications
- Ultra-Musical 3-Band EQ on All Channels
- Microphone + Line Inputs
- Peak LED Indicators on All Channels
- MUTE and PFL Control Buttons on All Channels
- AUX, EFF, and PAN Controls
on All Channels
- 5-Band Stereo Graphic Equalizer
- High-Accuracy Level Indicator
- EFFECT Level Control Slider
- AUX SEND and RETURN Level Controls
- Phantom Power Switch (+48V)
- Sealed Rotary Control Knobs to Resist Dust and Grime
- Rugged Steel Chassis
- Multi-Voltage Power Supply for
Worldwide Use
Back
to Top

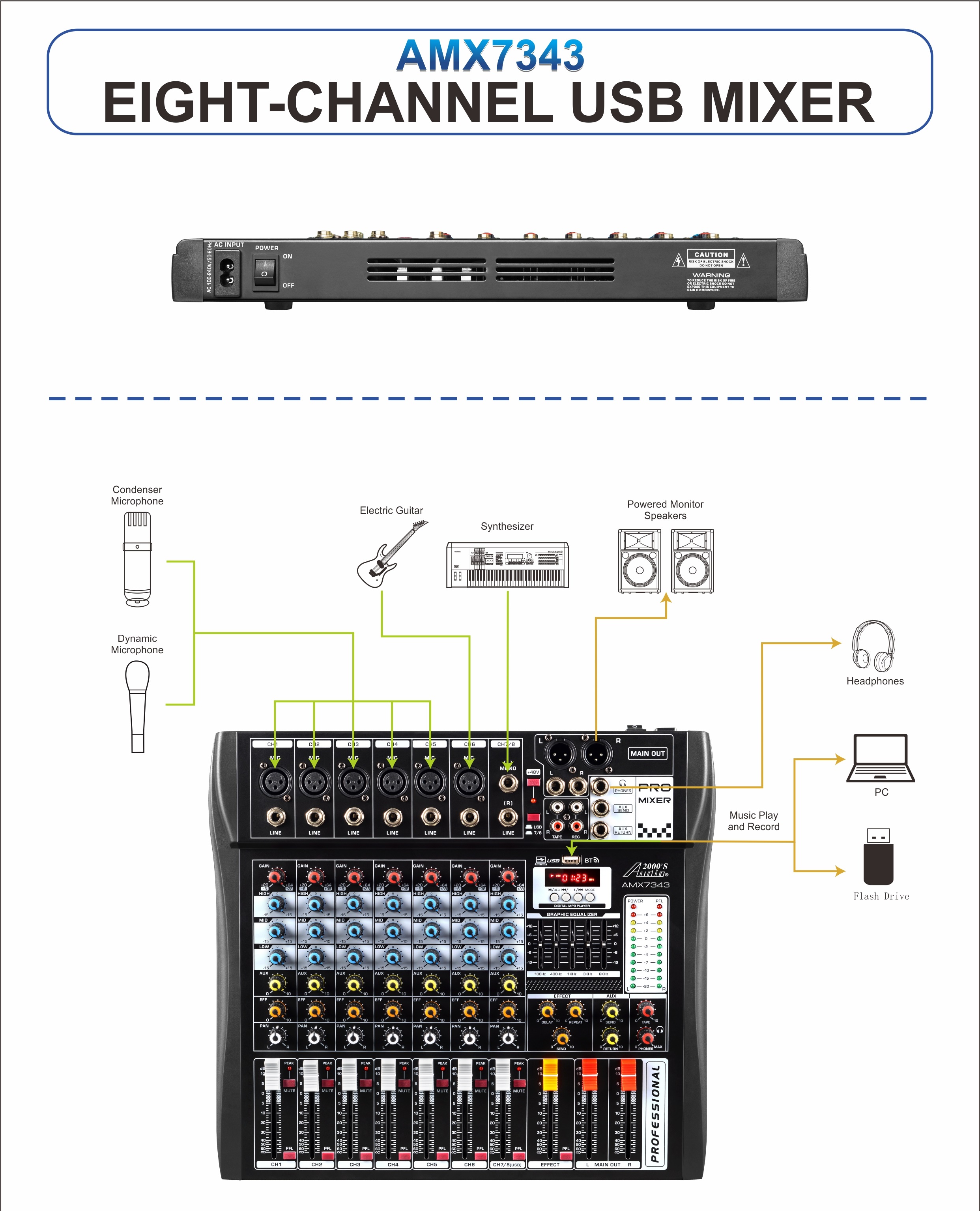

AMX7343 FUNCTIONS AND FEATURES
DIAGRAM:
Click here to display or download the above
diagram.
Click here to display or download the above
diagram.
Back
to Top

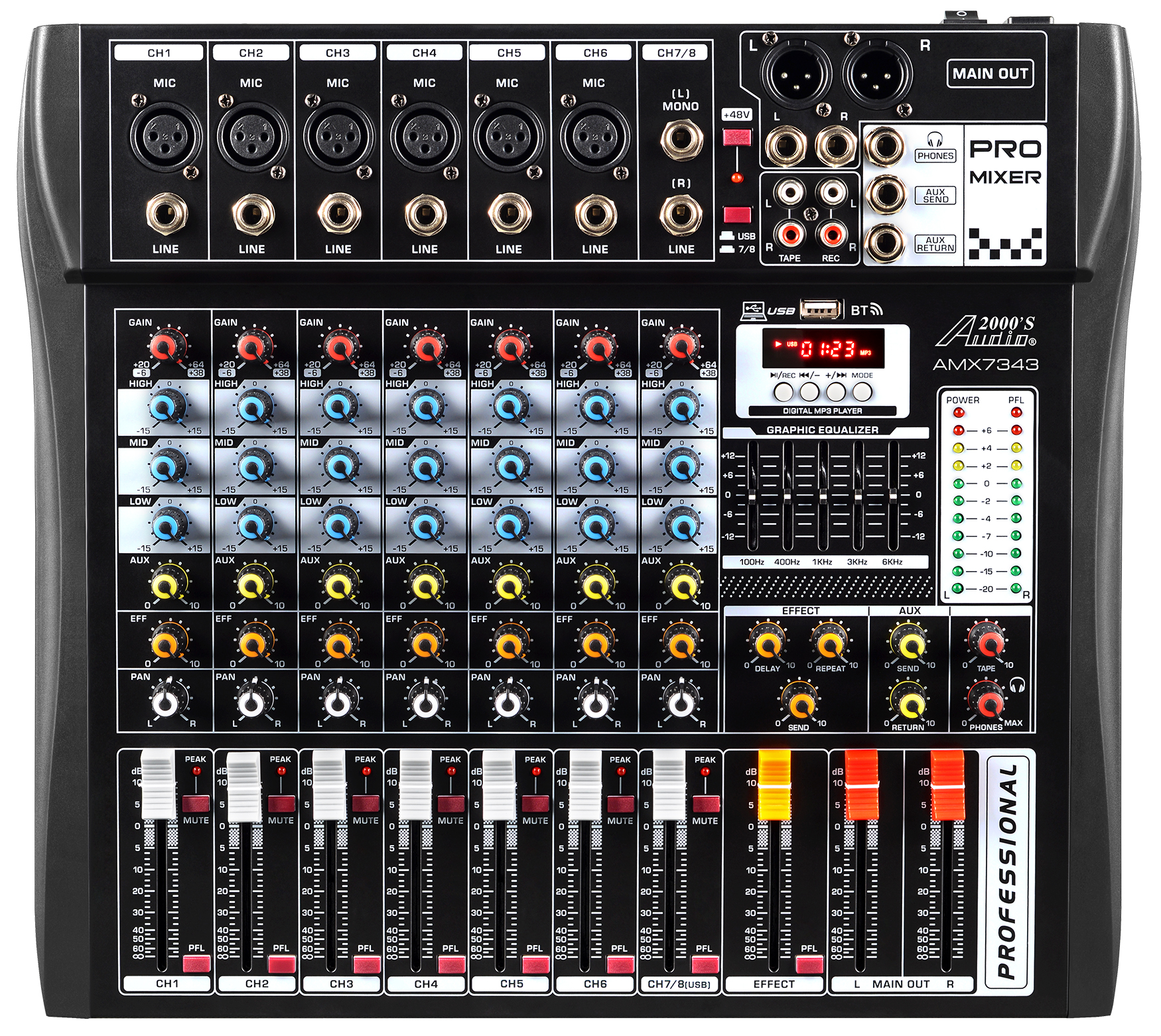

AMX7343 FRONT
VIEW:
Click here to enlarge the above image.
Back
to Top

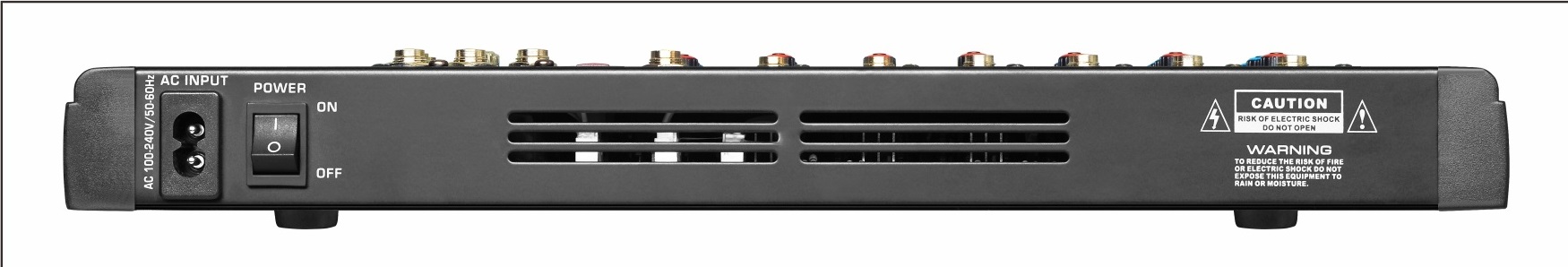

AMX7343
REAR VIEW:
Click here to enlarge the above image.
Back
to Top
SPECIFICATIONS:
|
INPUT CHANNEL SENSITIVITY |
MICROPHONE |
-60dB |
|
STEREO LINE INPUT |
-40dB |
|
EFF SEND |
-20dB |
|
EFF RETURN |
-20dB |
|
OUTPUTS |
4V
Max. |
|
SIGNAL
TO NOISE RATIO |
-80dB |
|
PARAMETRIC EQ |
HI |
+10dB/10KHz |
|
MID |
+10dB/250Hz-6KHz |
|
LOW |
+10dB/80Hz |
|
EFFECTS |
Built-in |
|
PHANTOM POWER VOLTAGE |
+48V |
|
POWER REQUIREMENTS |
AC 100-240V, 50/60Hz |
|
POWER CONSUMPTION |
20W |
Back
to Top
AMX7343 OWNER'S MANUAL:
Click here to extract the AMX7343
Owner's Manual.
