AKJ7302

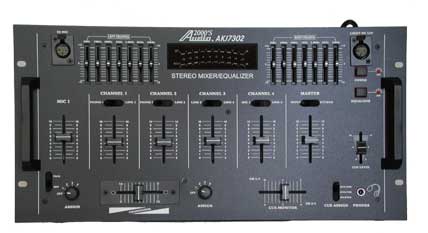

AKJ7302 - DJ Mixer with 7-Band Equalizer


The Audio2000'S^Ž AKJ7302 DJ mixer 7-band equalizer is specifically designed and optimized for the professional appications of the disc jockeys (DJ) and home users.

The AKJ7302 comprises three microphone inputs, four channels with seven audio inputs, two audio outputs, stereo 7-band equalizers, cross fader, talkover control, headphone output and headphone output controls.

The two microphone inputs include a DJ mic and Mic 1. The seven audio inputs include Phono 1, Line 1, Phono 2, Line 2, Line 3, Line 4, Mic 2 and Line 5. Phono 1 and Line 1 share the first audio channel with a selection switch. Phono 2 and Line 2 share the second audio channel with a selection switch. Line 3 and Line 4 share the third audio channel with a selection switch. Mic 2 and Line 5 share the fourth audio channel with a selection switch. The two audio outputs include the Amp and record outputs.

The talk-over feature is controlled by a Talk/Off switch. When this switch is switched to the Talk position, the talk-over feature is controlled by the Assign knob to select a channel that the talk-over function will be applied to. When this switch is switched to the OFF position, the talk-over feature is disabled.

An Equalizer Bypass button is used to bypass or select the 7-band equalizer effect. The headphone outlet can be connected to CH1/Ch2, CH3/Ch4 or Master directed by a three position switch and a CUE Monitor slide knob. An XLR 12V light socket is provided for the light fixture. A stereo LED level meter is for the DJ to visualize the sound performance conditions. The channels assigned to each side of the cross fader are controlled by two ASSIGN knobs.

The extraordinary features of quality sound, versatile performances, and rugged/delicate apprearance make the AKJ7302 DJ mixer an outstanding value in any critical DJ application.

APPLICATIONS

Disc jockey (DJ); home entertainment

Features Configured To Be User Friendly

No Power ON/OFF Popping Noise
2 Mic Inputs/2 Phono Inputs/5 Line Inputs
Microphones with XLR & ź” Jacks
TALK-OVER Control
7 Audio Inputs
Two Audio Outputs for REC &AMP
Output Level Indicator with Peak Holder
SEND and RETURN Functions

SPECIFICATIONS

Total Harmonic Distortion (@1KHz)	0.05%
Input Sensitivity/Impedance	Microphone - 3mV/10K Ohm Phono (RIAA) - 3mV/50KOhms LINE, RETURN - 150mV/50KOhm
Output Level/Impedance	AMP - 1V/600 Ohm RECORD, SEND - 500 mV/600 Ohm PHONES - 100 mV/8Ohm
Frequency Response	20 Hz to 20 KHz (+/- 1dB)
Signal/Noise Ratio	MICROPHONE, PHONO - 70 dB LINE,RETURN - 75 dB
Talk-Over	0 dB to -20 dB
Power Supply	110-120V/220-240V, 60/50Hz
Power Consumption	20W
Weight	8.8 lbs (4.0 Kgs)
Dimensions (W X D X H)	19.2" X 9.4" X 4.2" (482 X 240 X 110 mm)
