AKJ7402

AKJ7402 - Professional Karaoke Mixer with Digital Key Controls & Echo

The Audio2000'S^Ž AKJ7402 system is a rugged, yet pleasantly sounded, professional karaoke mixer. In order to provide a complete mastery on the control of a karaoke joy and karaoke performance, the AKJ7402 is configured with all the essential karaoke features: digital key controls, an echo volume control, an echo repeat adjustment, an echo speed adjustment, a video input/output routing, the multiplex vocal canceling, the simulated voice canceling and smooth vocal sound reinforcement capabilities.

In addition, the music balance/treble/bass controls and microphone treble/bass controls enable the users to master the music and microphone sound in a variety of acoustic environments. Five microphone inputs on the AKJ7402 are intended to be plentiful for multiple users. The microphone effector loop is separated from the music effector loop in order to achieve delicate vocal sound effects and accompanying music characteristics for extraordinary karaoke enjoyment.

As a performance extension of the AKJ7100 and AKJ7150 systems, the AKJ7402 enjoys the delicate engineering and the acoustic power of the market-proved AKJ7100 and AKJ7150 solid performance history. Also, the AKJ7402 inherits the Audio2000'S^{^Ž} product tradition of quality, reliability and versatility.

Features Configured To Be User Friendly

Remote Control
Five Microphone Inputs
Master Microphone Volume Control
Three (3) Individual Microphone Volume Controls
Microphone Tone Control (Treble/Bass)
Master Music Volume Control
Music Balance, Treble, and Bass Controls
Digital Key Controller (+/- 6 Steps)
Digital Echo Volume/Delay/Repeat Controls
Voice Canceling Function
VCM Automatic Control
Manual/automatic Input Channel Switching
Microphone Sound Effector Loop
Music Sound Effector Loop
Four Stereo Audio Inputs
Three Video Inputs and Outputs

SPECIFICATIONS

Total Harmonic Distortion 0.03% @ 1KHz, -3dB, 6 Ohms

Mic. Input Sensitivity 6mV / 600 Ohms

Input Sensitivity 300mV / 22 KOhms

Output Level (Pre-Out) 2.5V / 1 KOhms

Mic. Freq. Response 10 - 25,000 Hz

Music Freq. Response 10 - 40,000 Hz

Tone Control Char. (Bass) +/- 10 dB @ 100 Hz

Tone Control Char. (Treble) +/- 10 dB @ 10 KHz

Key Control Range 13 steps, +/- 3 Tones

Video Input Sensitivity 1Vp-p @ 75 Ohms

Video Output Sensitivity 1Vp-p @ 75 Ohms

Dimensions (W X H X D) 420 X 130 X 398mm (16.5" X 5.1" X 15.7")

Weight 8.9 Kg (19.5 lb)

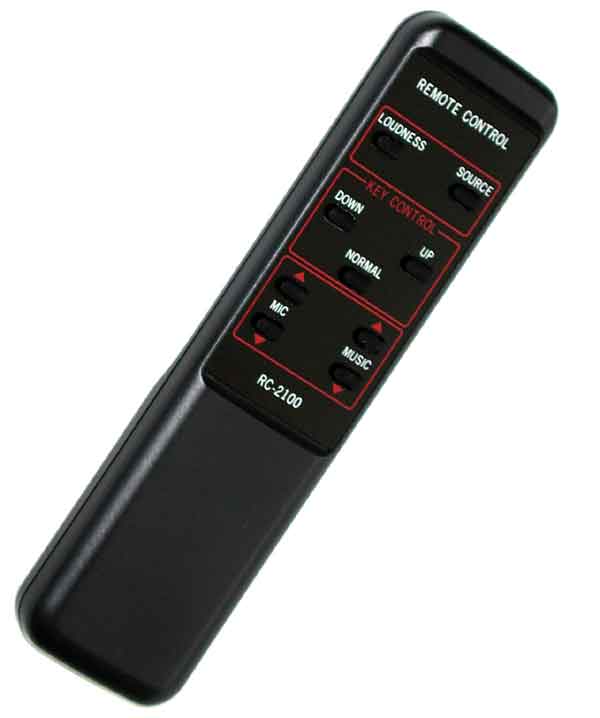

Accessories Remote Control Commander
