AMX7304- Four-Channel Audio Mixer with USB Interface and Sound Effect


FEATURES

AMX7304 FUNCTIONS AND FEATURES DIAGRAM

AMX7304 FRONT VIEW



AMX7304 REAR VIEW



SPECIFICATIONS



AMX7304 OWNER'S MANUAL



The Audio2000'S AMX7304 system is a truly user-friendly, yet pleasantly sounded, 4-channel audio mixerThe AMX7304 is configured with all the essential mixer features and more.

Back to Top

FEATURES:

  • 4-Channel USB Audio Mixer
  • Powered via USB Port
  • Built-in Sound Effects Processor
  • Built-in USB Interface to Computer for Recording and Music Playing Applications
  • LED Display for Showing the Playing Status
  • Ultra-Musical 2-Band EQ on Channel 1
  • Microphone + Line Inputs
  • Peak LED Indicator on Channel 1
  • Output Signal and Peak Indicators
  • Phantom Power Switch (+48V)
  • Sealed Rotary Control Knobs to Resist Dust and Grime
  • Rugged Steel Chassis



Back to Top

AMX7304 FUNCTIONS AND FEATURES DIAGRAM:

Click here to display or download the above diagram.



Back to Top

AMX7304 FRONT VIEW:

Click here to enlarge the above image.

Back to Top

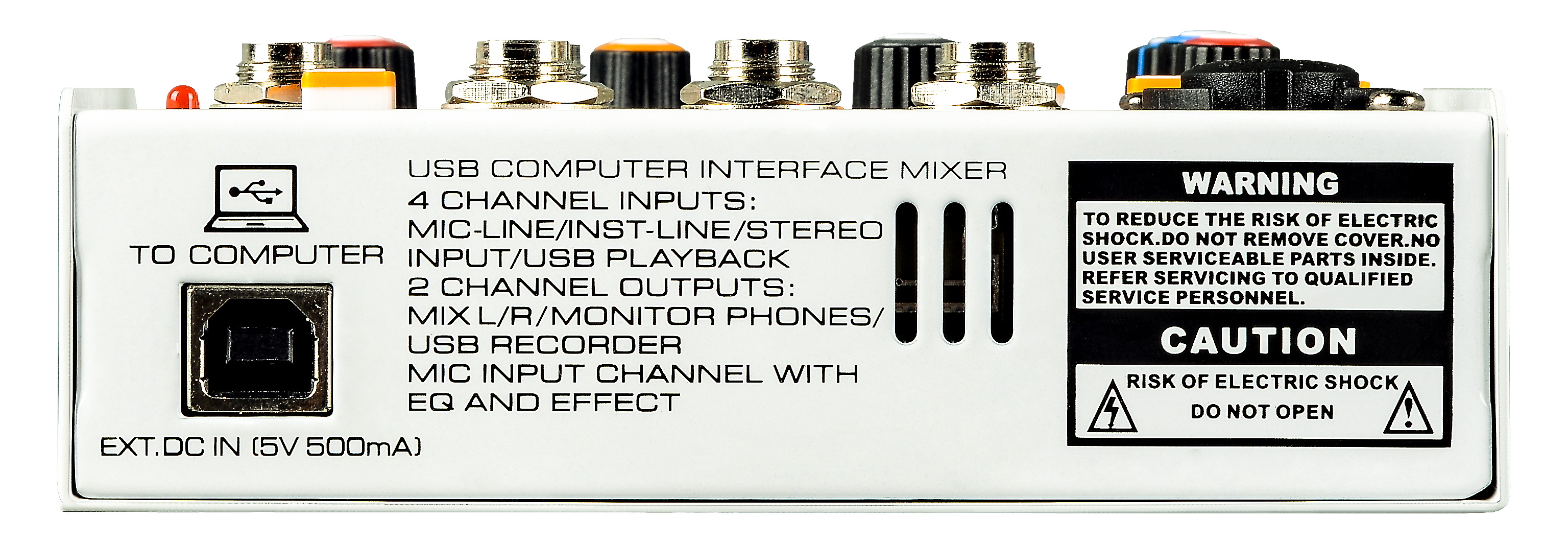

AMX7304 REAR VIEW:

Click here to enlarge the above image.

Back to Top

SPECIFICATIONS:

FREQUENCY RESPONSE

1dB, +4dBu@1KHz

T.H.D.

<0.5%@+4dBu (20Hz-20KHz)

INPUT CHANNELS

MONO: MIC/LINE

1 (Including Headset Mic with Plug-In Power and MUTE)

STEREO: LINE

1

USB PLAYBACK

1

MONO: GUITAR

1

OUTPUT CHANNELS

MONITOR L/R OUT

1

PHONES

2 (Including Headset Phones)

BUS

STEREO

1

INPUT CHANNEL FUNCTION

CH1 MIC/LINE

GAIN: -14 - +40 dB

PAD: 20 dB

+48V Phantom Power with LED

PEAK LED: LED turns on when the signal reaches 3 dB below clipping level.

2-BAND EQ: 80Hz, 12KHz (Gain +15dB/-15dB)

LEVEL Knob

EFFECT: Digital Echo (Delay, Level, Mute)

CH2 INST/LINE

IMPEDANCE Switch

SIGNAL LED, -3dB

LEVEL Knob

CH3/4 LINE

SIGNAL LED, -3dB

LEVEL Knob

USB AUDIO

Mono Input/Stereo Output

USB Audio Class 2.0 Compliant

Sampling Frequency: Max 48KHz, Bit Depth: 16-Bit

Type B Connector

SIGNAL LED, Playback, -3dB

Playback LEVEL Knob

LEVEL METER

2X2 Point LED Meter (PEAK, SIG)

EFFECTS

Built-in

PHANTOM POWER VOLTAGE

+48V

POWER REQUIREMENTS

DC 5V, >500mA

POWER CONSUMPTION

2.5W, Max.

DIMENSIONS

(W x H x D)

4.7 x 1.4 x 6.1 (120 x 36 x 154 mm)

NET WEIGHT

1.32 lbs (0.6Kg)



Back to Top

AMX7304 OWNER'S MANUAL:

Click here to extract the AMX7304 Owner's Manual.
