AMX7342- Six-Channel Audio Mixer with USB Interface and DSP Sound Effects


FEATURES

AMX7342 FUNCTIONS AND FEATURES DIAGRAM

AMX7342 FRONT VIEW



AMX7342 REAR VIEW



SPECIFICATIONS



AMX7342 OWNER'S MANUAL



The Audio2000'S AMX7342 system is a truly user-friendly, yet pleasantly sounded, 4-channel audio mixerThe AMX7342 is configured with all the essential mixer features and more.

Back to Top

FEATURES:

  • 6-Channel Audio Mixer
  • Built-in DSP Sound Effects Processor
  • Built-in USB Interface to Computer for Recording and Music Playing Applications
  • Ultra-Musical 3-Band EQ on All Channels
  • Microphone + Line Inputs
  • Peak LED Indicators on All Channels
  • MUTE and PFL Control Buttons on All Channels
  • AUX, EFF, and PAN Controls on All Channels
  • 5-Band Stereo Graphic Equalizer
  • High-Accuracy Level Indicator
  • EFFECT Level Control Slider
  • AUX SEND and RETURN Level Controls
  • Phantom Power Switch (+48V)
  • Sealed Rotary Control Knobs to Resist Dust and Grime
  • Rugged Steel Chassis
  • Multi-Voltage Power Supply for Worldwide Use


Back to Top

AMX7342 FUNCTIONS AND FEATURES DIAGRAM:

Click here to display or download the above diagram.

Back to Top

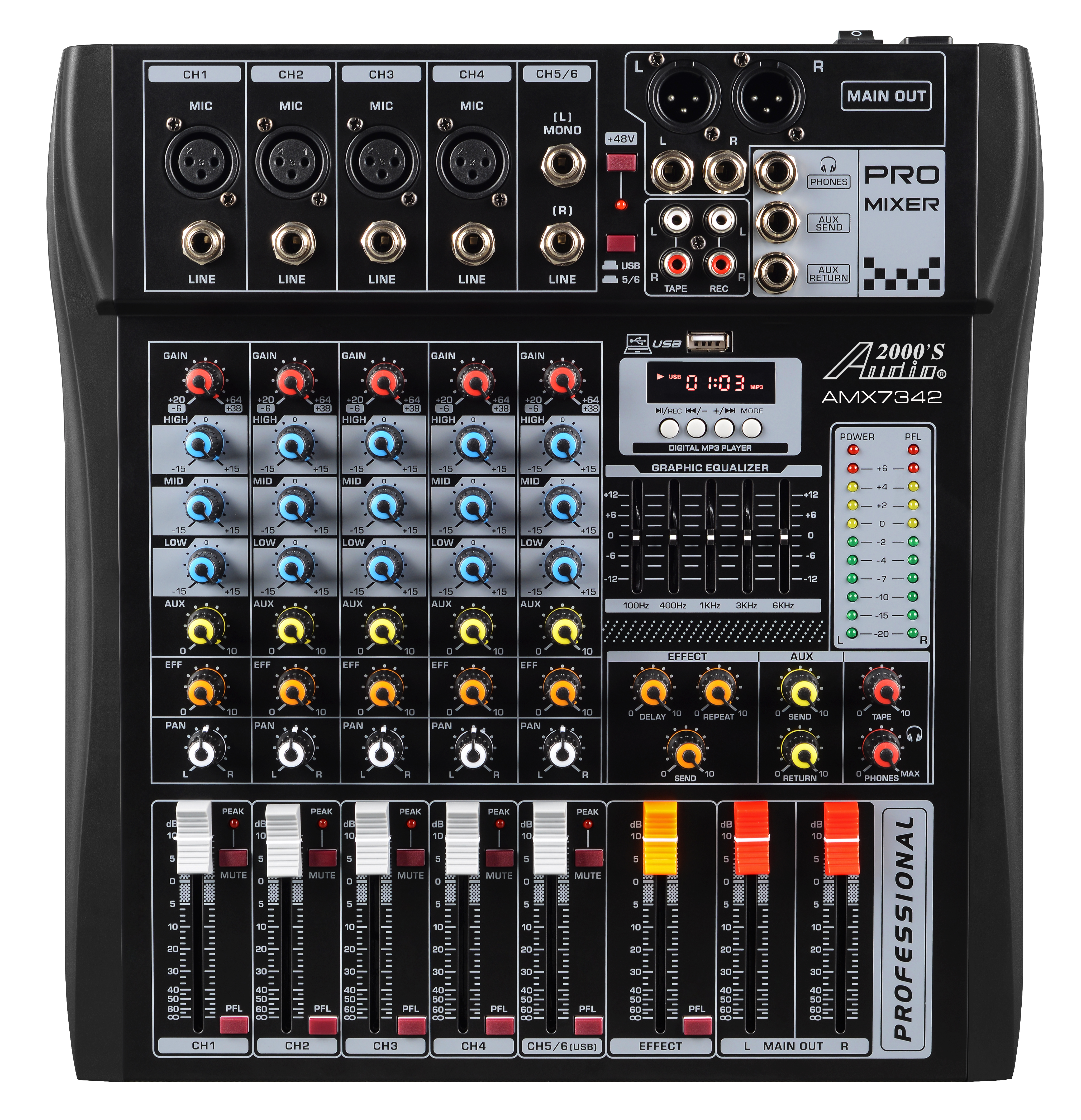

AMX7342 FRONT VIEW:

Click here to enlarge the above image.

Back to Top

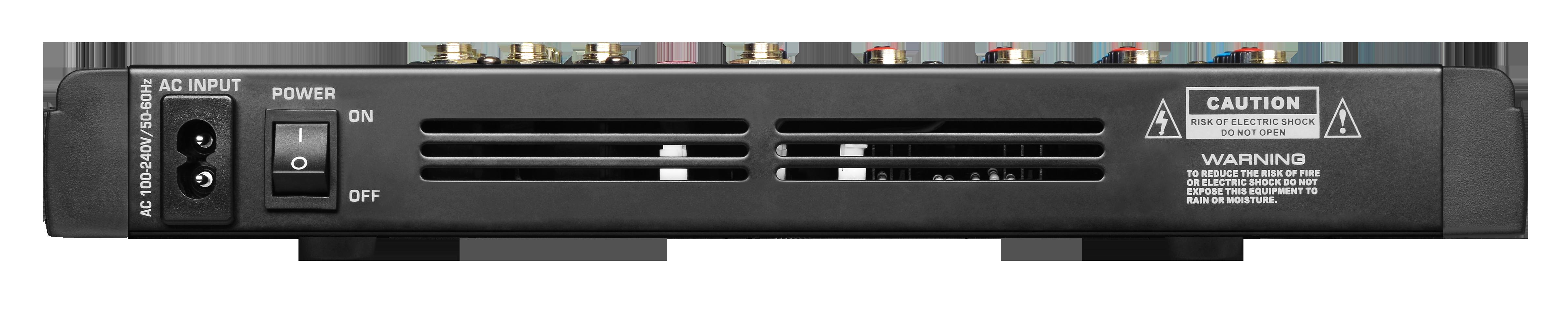

AMX7342 REAR VIEW:

Click here to enlarge the above image.

Back to Top

SPECIFICATIONS:

INPUT CHANNEL SENSITIVITY

MICROPHONE

-60dB

STEREO LINE INPUT

-40dB

EFF SEND

-20dB

EFF RETURN

-20dB

OUTPUTS

4V Max.

SIGNAL TO NOISE RATIO

-80dB

PARAMETRIC EQ

HI

+10dB/10KHz

MID

+10dB/250Hz-6KHz

LOW

+10dB/80Hz

EFFECTS

Built-in

PHANTOM POWER VOLTAGE

+48V

POWER REQUIREMENTS

AC 100-240V, 50/60Hz

POWER CONSUMPTION

20W



Back to Top

AMX7342 OWNER'S MANUAL:

Click here to extract the AMX7342 Owner's Manual.
