AMX7351- Five-Channel Audio Mixer with USB 5V Power Supply Input, USB Interface, and DSP Sound Effects


FEATURES

AMX7351 FUNCTIONS AND FEATURES DIAGRAMS

AMX7351 FRONT VIEW



AMX7351 REAR VIEW



SPECIFICATIONS



AMX7351 OWNER'S MANUAL



The Audio2000'S AMX7351 system is a truly user-friendly, yet pleasantly sounded, 5-channel audio mixerThe AMX7351 is configured with all the essential mixer features and more.

Back to Top

FEATURES:

  • 5-Channel Audio Mixer with USB 5V Power Supply Input
  • Built-in DSP Sound Effects Processor
  • Built-in USB Interface to Computer for Recording and Music Playing Applications
  • Two USB Inputs, the USB Interface on the Front Panel and the USB 5V Power Supply Input on the Rear Panel
  • Ultra-Musical HIGH/LOW 2-Band EQ on Channels 1 and 2
  • Microphone + Line Inputs
  • Peak LED Indicators on Channels 1 and 2
  • GAIN, FX, PAN, and LEVEL Controls on Channels 1 and 2
  • High-Accuracy Level Indicator
  • EFFECT Delay and Level Controls
  • RETURN Level Controls
  • Phantom Power Switch (+48V)
  • INST (HI-Z)/LINE Selection Button
  • Stereo PHONES Output Jack and PHONES Level Control
  • Sealed Rotary Control Knobs to Resist Dust and Grime
  • Rugged Steel Chassis
  • Multi-Voltage Power Supply for Worldwide Use


Back to Top

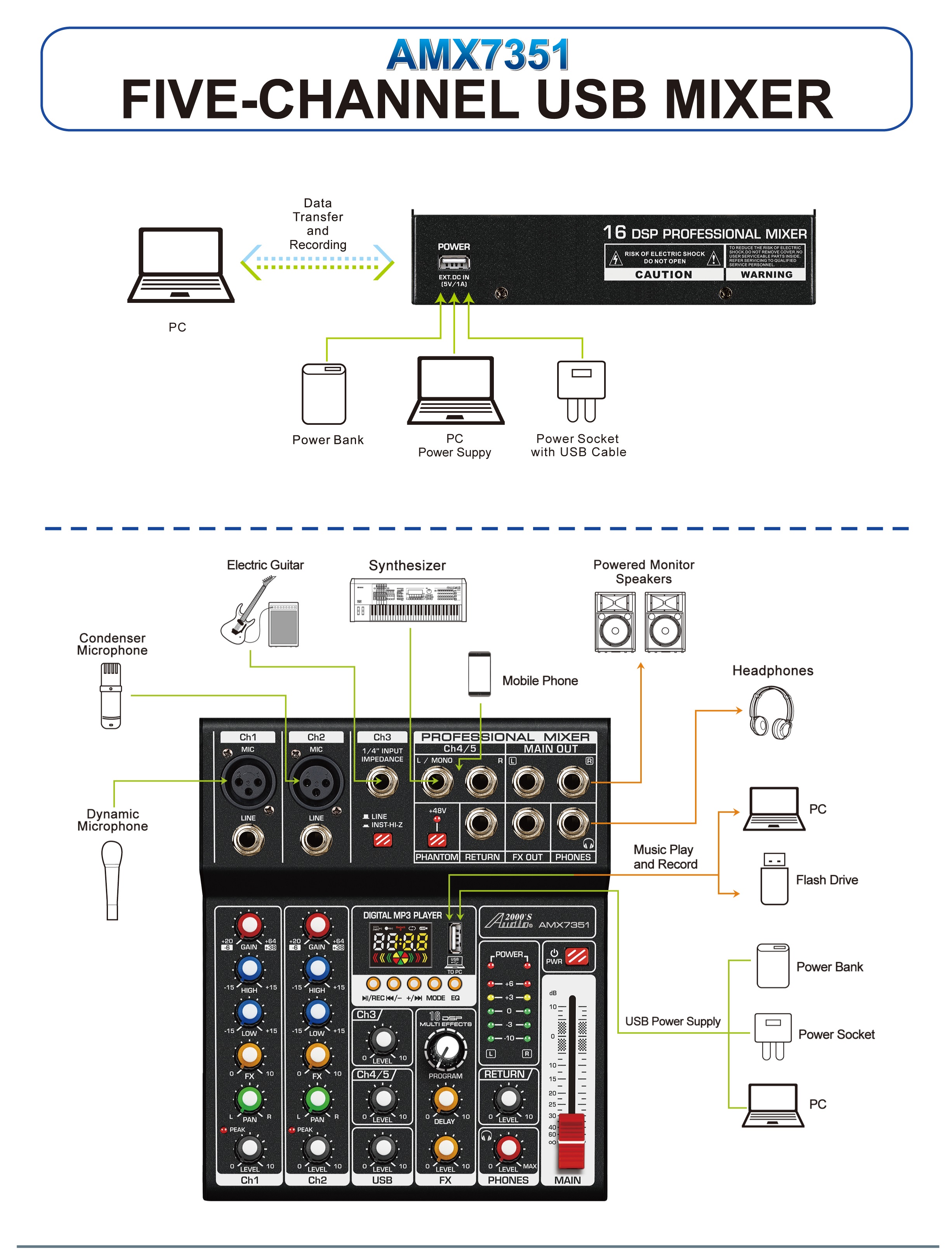

AMX7351 FUNCTIONS AND FEATURES DIAGRAMS:

Click here to display or download diagram 1.

Click here to display or download diagram 2.

Back to Top

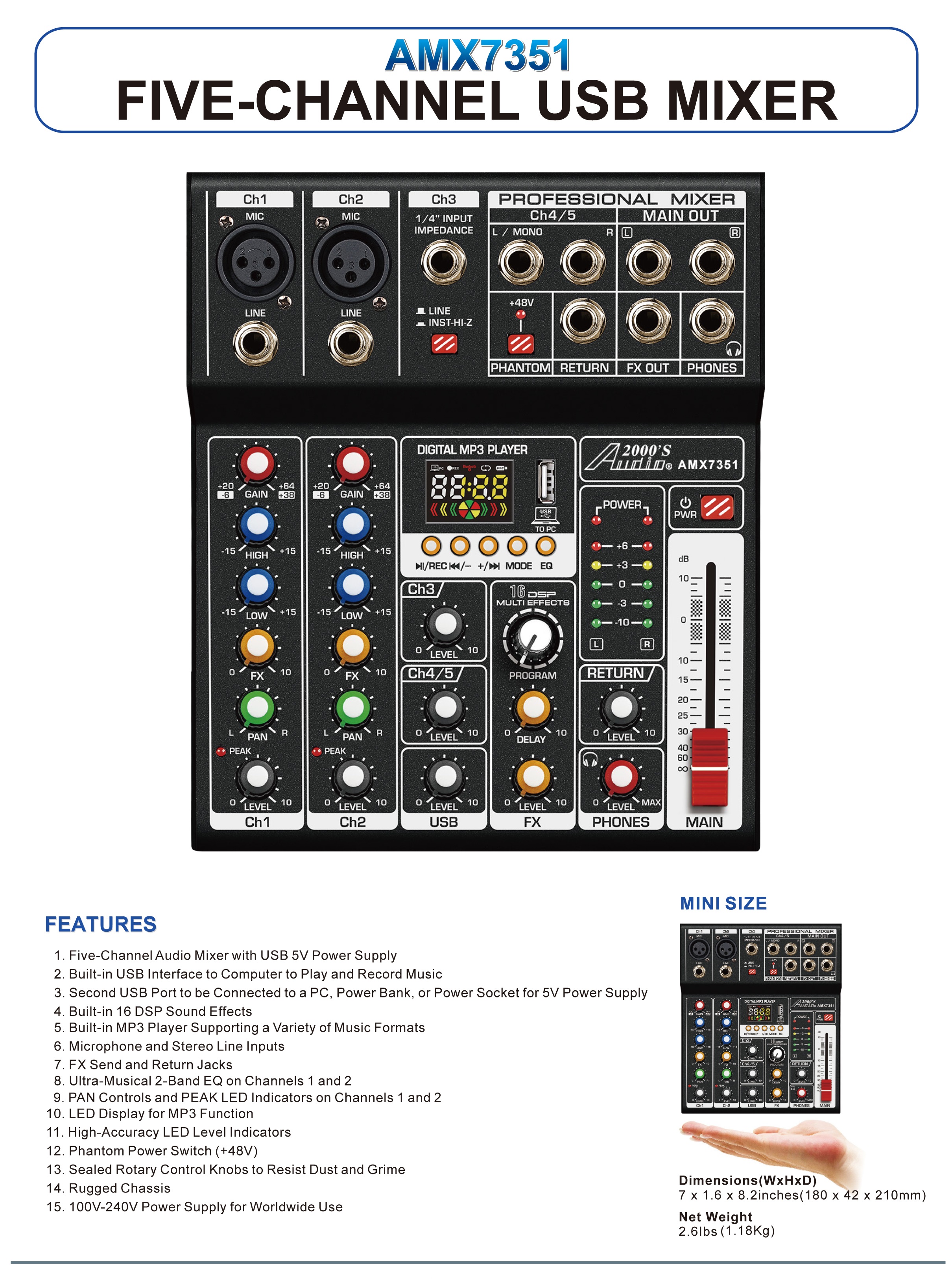

AMX7351 FRONT VIEW:

Click here to enlarge the above image.

Back to Top

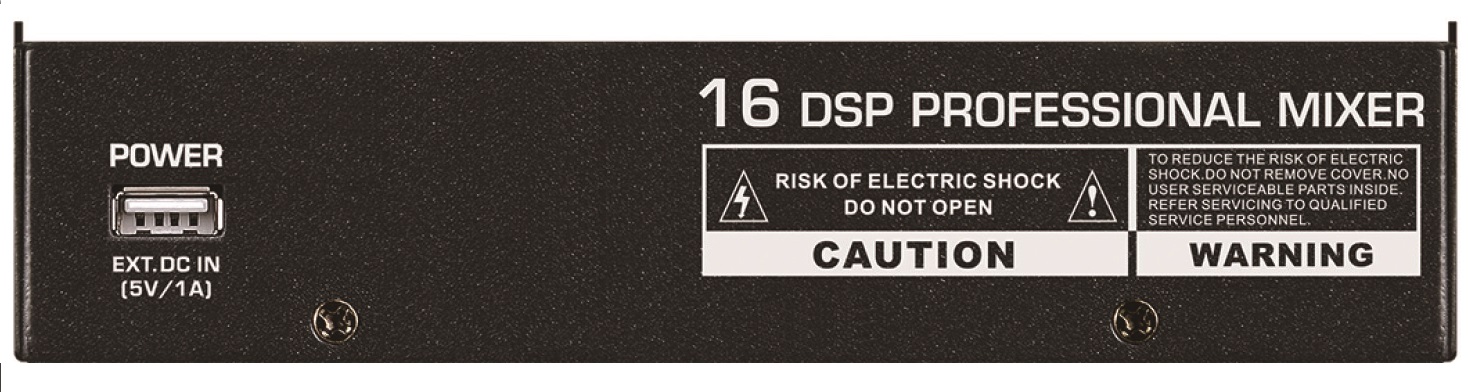

AMX7351 REAR VIEW:

Click here to enlarge the above image.

Back to Top

SPECIFICATIONS:

Frequency Response

20Hz 20KHz 1dB +4dBu@1KHz

Total harmonic Distortion

<0.5%@+4dBu(22Hz - 22KHz)

Channel

Five  Channels

Input Channels

MIC/LINE

2(XLR & TS)+1(1/4 TS)

Stereo Line Input

1 (Ch 4/5, TS)

MP3

1 (MP3/EQ)

USB Sound Card

2.0 Type-A

Bluetooth

1

Output Channels

MAIN OUT

L/R (1/4 TS)

PHONES OUT

1 (1/4 TRS)

Auxiliary

FX (OUT)

1

RETURN (IN)

1

Input Channel Function

EQ/2-Band

HIGH: Gain/15dB, Frequency: 12KHz shelving

LOW:  Gain/15dB, Frequency: 80Hz shelving

Peak LED

LED turns on when post EQ signal reaches 3dB below clipping level

Level Meter

2 X 5-segment LED meter (+6, +3, 0, -3, -10dB)

Effects/FX

Built-in 16 DSP

Phantom Power Voltage

+48V

Power Input

EXT. DC IN: 5V-1A/2.0 Type-A

Power Consumption

5W

Dimensions (WxHxD)

7x1.6x8.2

Net Weight

2.6lbs




Back to Top

AMX7351 OWNER'S MANUAL:

Click here to extract the AMX7351 Owner's Manual.
