AMX7372 - Six Channel Audio Mixer with USB Interface and 320 DSP Sound Effects


FEATURES

AMX7372 FUNCTIONS AND FEATURES DIAGRAM

AMX7372 FRONT VIEW



AMX7372 REAR VIEW



SPECIFICATIONS



AMX7372 OWNER'S MANUAL



The Audio2000'S AMX7372 system is a truly user-friendly, yet pleasantly sounded, 6-channel audio mixerThe AMX7372 is configured with all the essential mixer features and more.

Back to Top

FEATURES:

  • 6-Channel Audio Mixer
  • Built-in DSP Processor with 320 Sound Effects
  • Built-in USB Interface to Computer for Recording and Music Playing Applications
  • Built-in Bluetooth Interface
  • USB Record Buttons for Recording to USB Flash Drive
  • Input Level Control Faders on All Channels
  • Ultra-Musical 3-Band EQ on All Channels
  • Microphone + Line Inputs
  • Peak LED Indicators on All Channels
  • Dual-LED Display Panels for DSP and USB
  • MUTE and PFL Control Buttons on FX, MP3, and All Channels
  • FX and PAN Controls on All Channels
  • FX and MP3 Level Control Faders
  • MAIN OUT Stereo XLR Jacks and SUB OUT Stereo 1/4" Jacks
  • MAIN OUT and SUB OUT Level Control Faders
  • FX OUT 1/4" Output Jack and RETURN 1/4" Input Jack
  • CD/TAPE Input/Output Stereo RCA Jacks
  • RETURN and CD/TAPE Level Control Knobs
  • PHONES Stereo 1/4" Output Jack and Level Control Knob
  • High-Accuracy Level Indicator
  • Phantom Power (+48V) Button and LED Indicator
  • POWER-ON LED Indicator
  • Sealed Rotary Control Knobs to Resist Dust and Grime
  • Rugged Steel Chassis
  • Multi-Voltage Power Supply for Worldwide Use


Back to Top

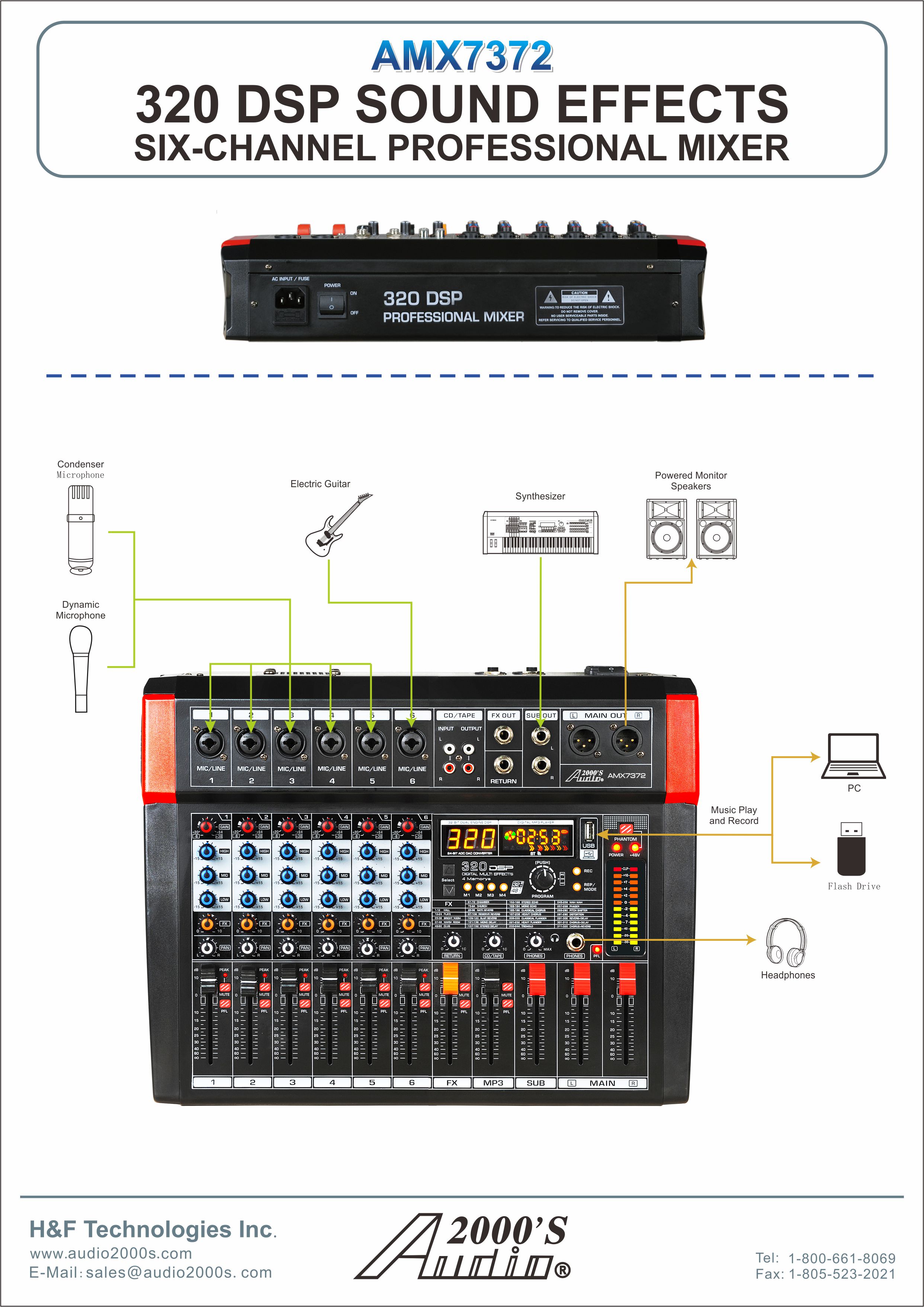

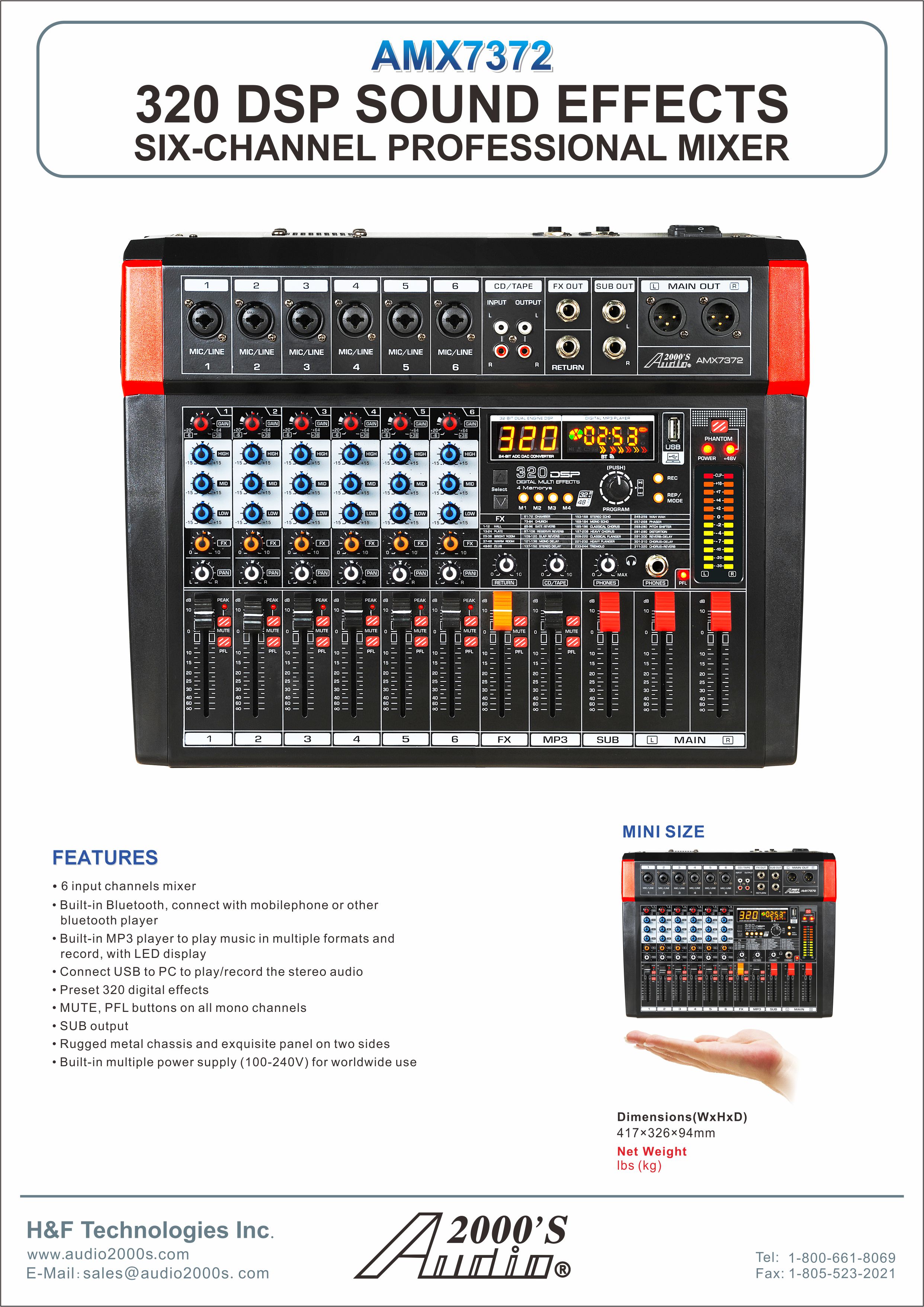

AMX7372 FUNCTIONS AND FEATURES DIAGRAM:

Click here to display or download the above diagram.



Click here to display or download the above diagram.



Back to Top

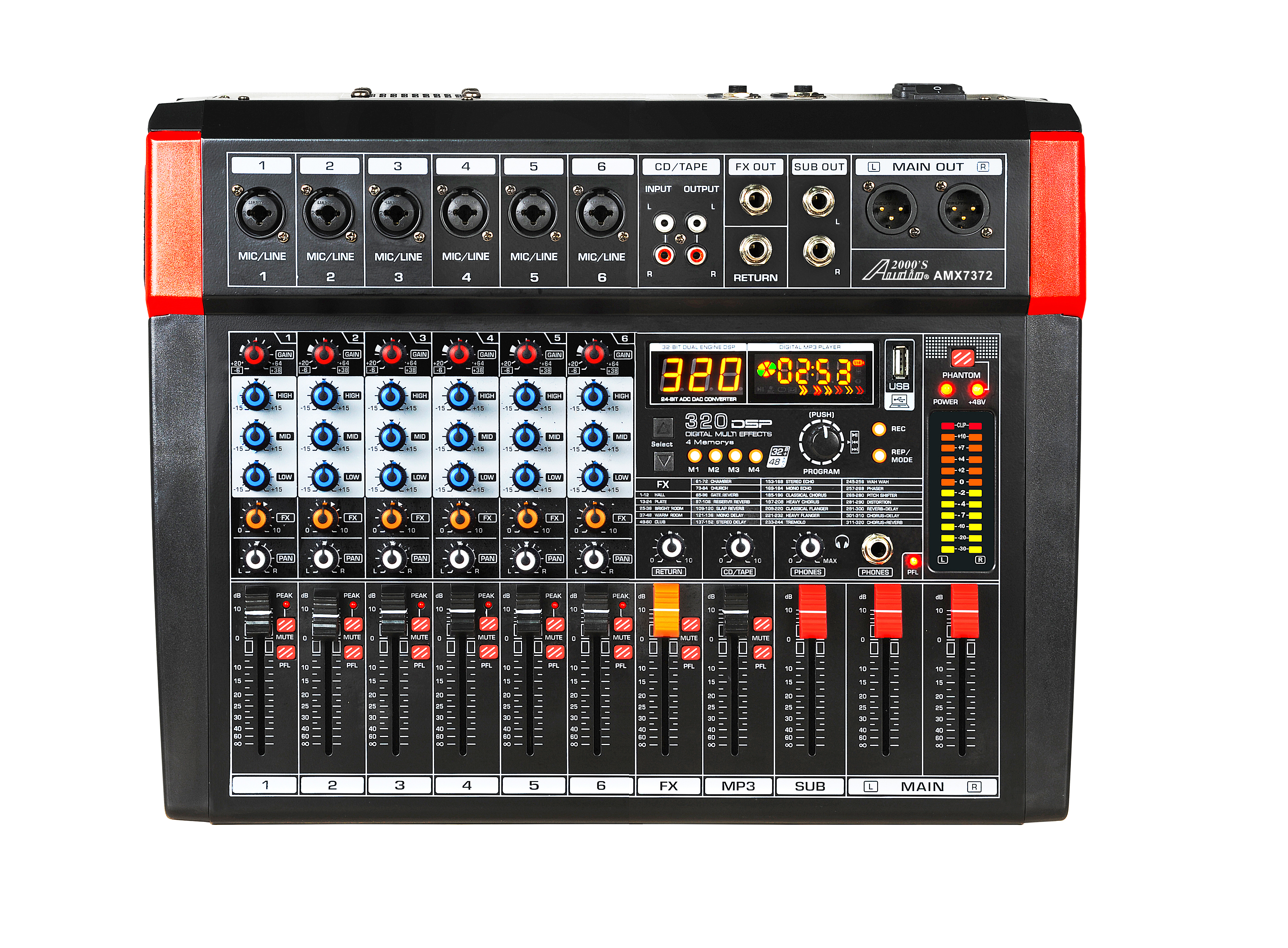

AMX7372 FRONT VIEW:

Click here to enlarge the above image.

Back to Top

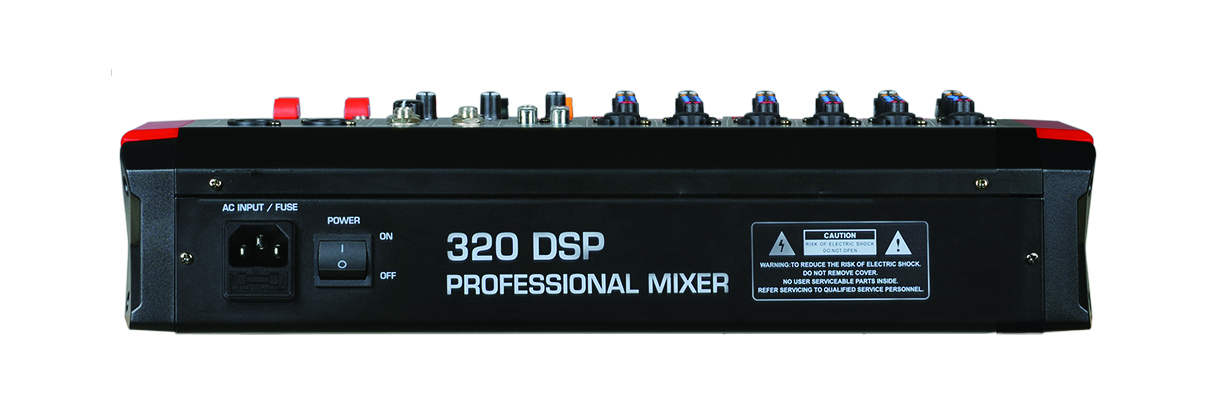

AMX7372 REAR VIEW:



Click here to enlarge the above image.

Back to Top

SPECIFICATIONS:

FREQUENCY RESPONSE

20Hz-20KHz 1dB+4dBμ@1KHz

TOTAL HARMONIC DISTORTION

<0.5%@+4dBμ (22Hz-22KHz)

CHANNEL

6 CHANNELS

INPUT CHANNELS

MIC/LINE

6 (XLR + 1/4-inch JACKS)

MP3

1

USB SOUND CARD

2.0Type-A

BLUETOOTH

1

OUTPUT CHANNELS

REC/RCA

1

MAIN/XLR

L/R

PHONES (1/4-inch JACK)

1

SUB

L/R

AUXILIARY

FX (OUT)

1

RETURN (IN)

1

INPUT CHANNEL FUNCTION

MUTE/PFL

MUTE and PFL for EACH CHANNEL

EQ (3-BAND)

HIGH: GAIN/15dB; FREQUENCY 12KHz shelving

MID: GAIN/15dB; FREQUENCY 2.5KHz shelving

LOW: GAIN/15dB; FREQUENCY 80Hz shelving

PEAK LED

LED turns on when post EQ signal reaches 3dB below clipping level.

LEVEL METER

2X12-segment LED meter (CLIP,+10,+7,+4,+2,0,-2,-4,-7,-10,-20,-30dB)

EFFECTS/FX

320 DIGITAL EFFECTS

PHANTOM POWER VOLTAGE

+48V

POWER SOURCE (50-60Hz)

AC 100-240V

POWER CONSUMPTION

20W



Back to Top

AMX7372 OWNER'S MANUAL:

Click here to extract the AMX7372 Owner's Manual.
