AMX7374
-
12 Channel
Audio Mixer with USB Interface
and 320 DSP Sound Effects
The Audio2000'S® AMX7374 system is a
truly user-friendly, yet
pleasantly sounded, 12-channel audio mixer.
The AMX7374 is
configured with all the essential mixer features
and more.
Back
to Top
FEATURES:
- 12-Channel Audio Mixer
- Built-in DSP Processor with 320
Sound Effects
- Built-in USB Interface to Computer for Recording and
Music Playing Applications
- Built-in Bluetooth Interface
- USB Record Buttons for Recording
to USB Flash Drive
- Input Level Control Faders on All
Channels
- Ultra-Musical 3-Band EQ on All Channels
- Microphone + Line Inputs
- Peak LED Indicators on All Channels
- Dual-LED Display Panels for DSP
and USB
- MUTE and PFL Control Buttons on
FX, MP3, and All Channels
- FX and PAN Controls
on All Channels
- FX and MP3 Level Control Faders
- MAIN OUT Stereo XLR Jacks and SUB
OUT Stereo 1/4" Jacks
- MAIN OUT and SUB OUT Level Control
Faders
- FX OUT 1/4" Output Jack and RETURN
1/4" Input Jack
- CD/TAPE Input/Output Stereo RCA
Jacks
- RETURN and CD/TAPE Level Control
Knobs
- PHONES Stereo 1/4" Output Jack and
Level Control Knob
- High-Accuracy Level Indicator
- Phantom Power (+48V) Button and
LED Indicator
- POWER-ON LED Indicator
- Sealed Rotary Control Knobs to Resist Dust and Grime
- Rugged Steel Chassis
- Multi-Voltage Power Supply for
Worldwide Use
Back
to Top

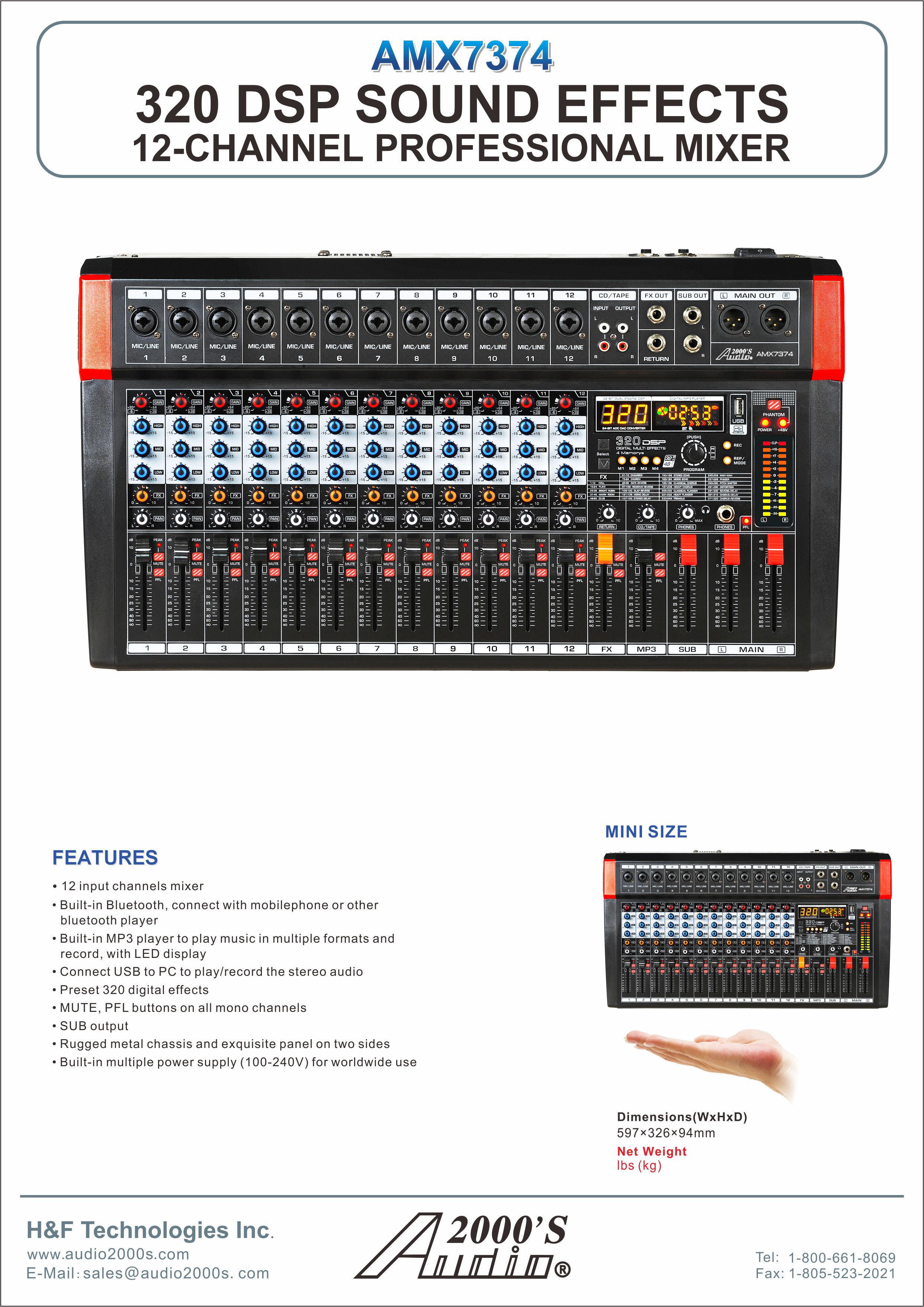

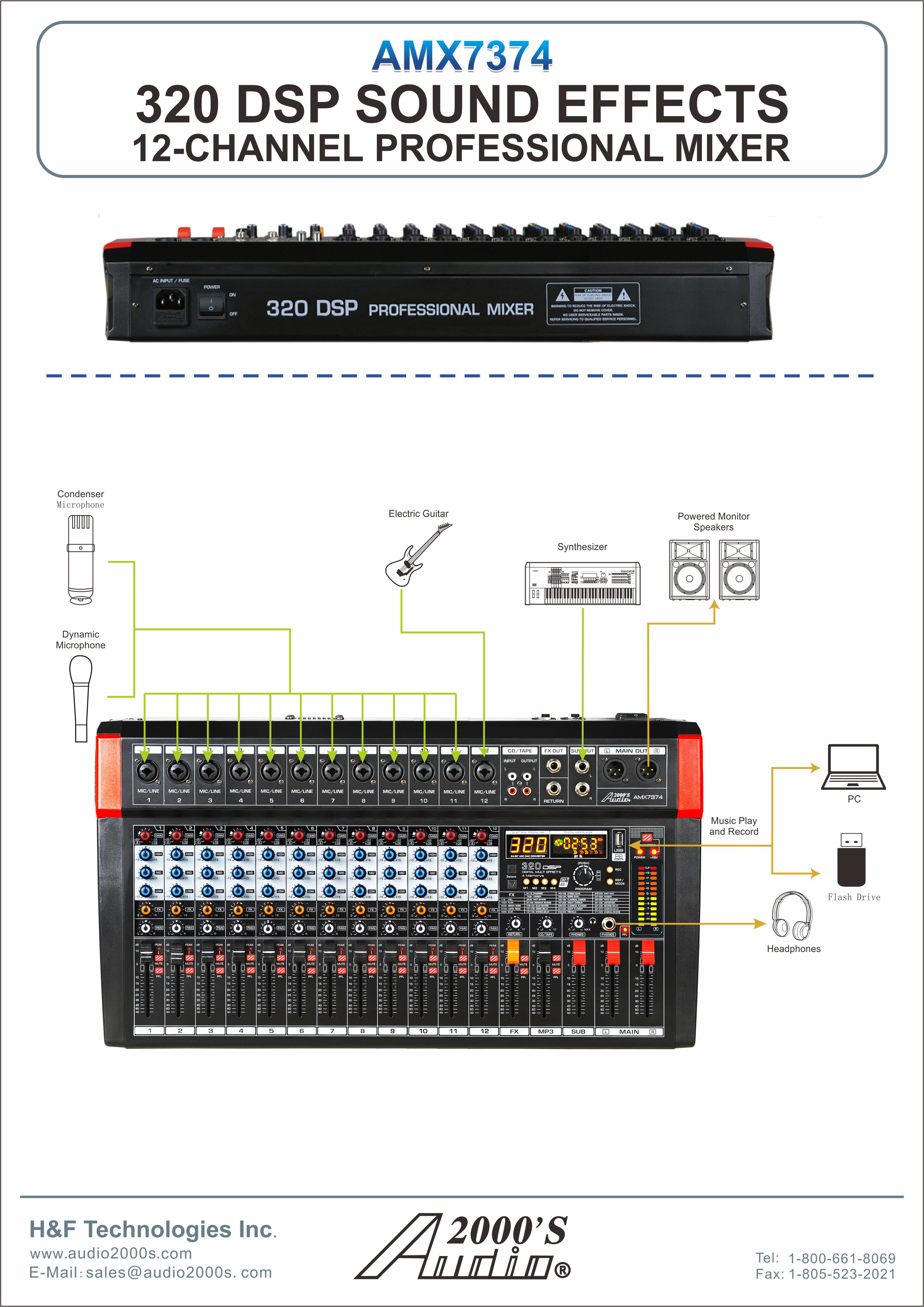

AMX7374 FUNCTIONS AND FEATURES
DIAGRAM:
Click here to display or download the above
diagram.
Click here to display or download the above
diagram.
Back
to Top

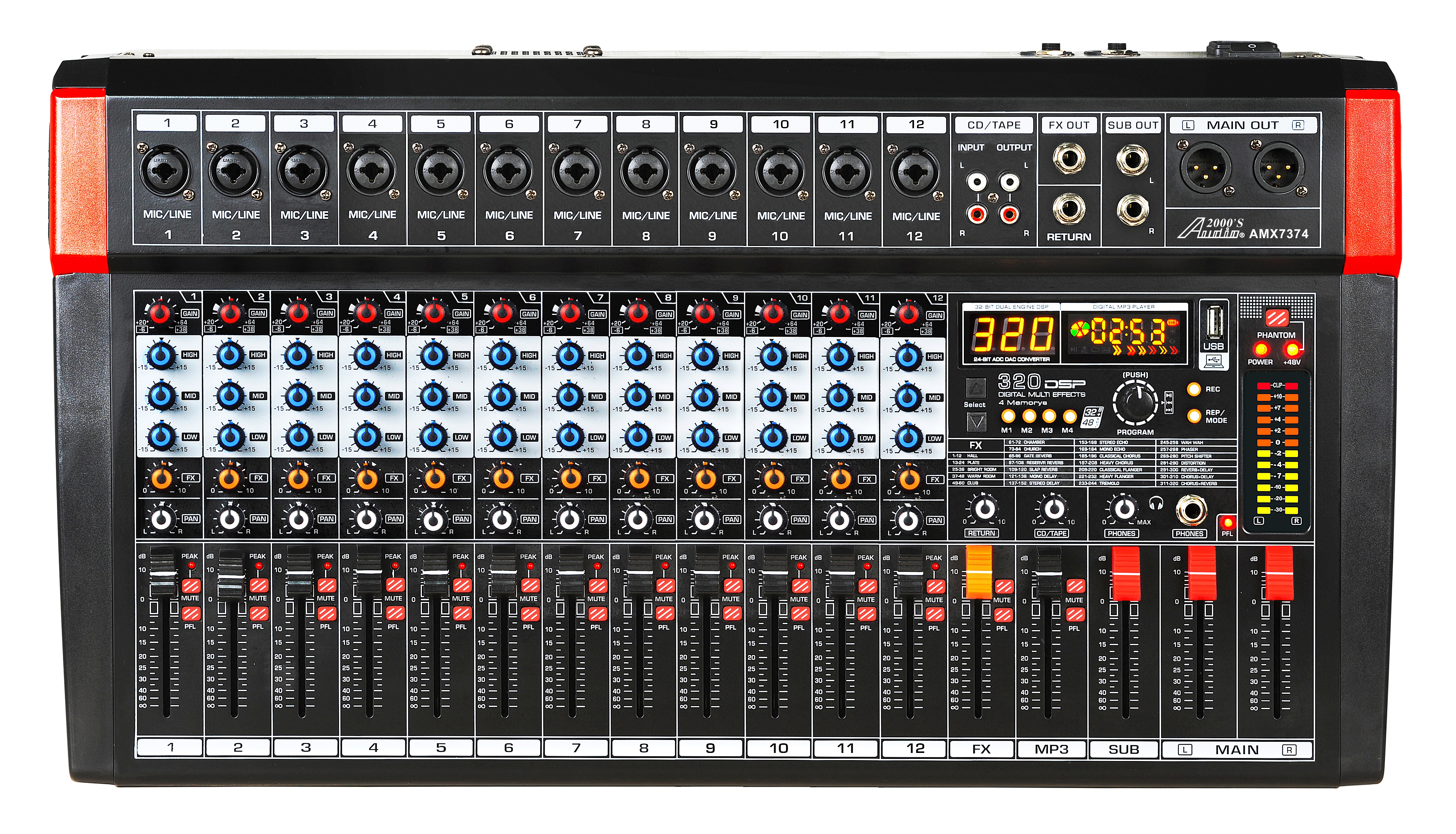

AMX7374 FRONT
VIEW:
Click here to enlarge the above image.
Back
to Top

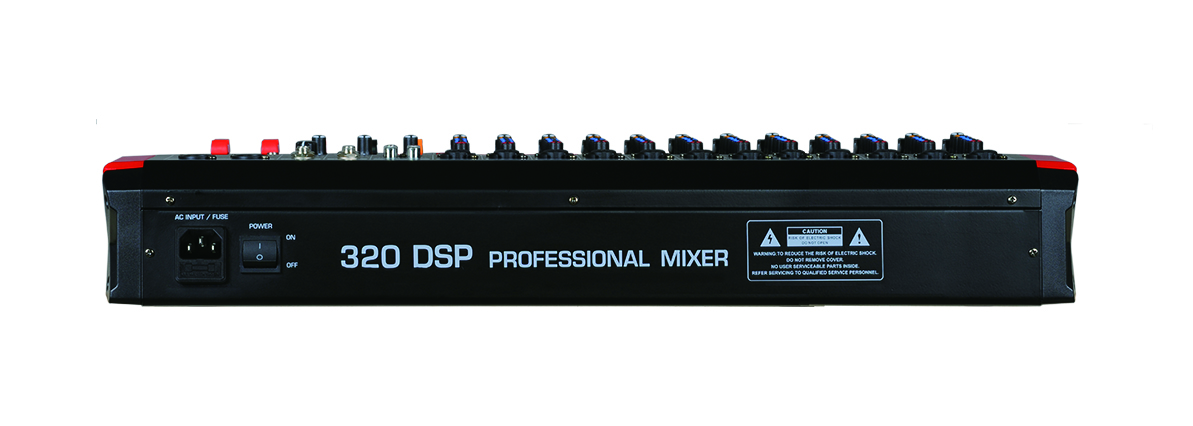

AMX7374
REAR VIEW:
Click here to enlarge the above image.
Back
to Top
SPECIFICATIONS:
|
FREQUENCY RESPONSE |
20Hz-20KHz ±1dB+4dBμ@1KHz |
|
TOTAL
HARMONIC DISTORTION |
<0.5%@+4dBμ (22Hz-22KHz) |
|
CHANNEL |
12
CHANNELS |
|
INPUT CHANNELS |
MIC/LINE |
12 (XLR + 1/4-inch
JACKS) |
|
MP3 |
1 |
|
USB SOUND CARD |
2.0Type-A |
|
BLUETOOTH |
1 |
|
OUTPUT CHANNELS |
REC/RCA |
1 |
|
MAIN/XLR |
L/R |
|
PHONES (1/4-inch JACK) |
1 |
|
SUB |
L/R |
|
AUXILIARY |
FX
(OUT) |
1 |
|
RETURN (IN) |
1 |
|
INPUT CHANNEL FUNCTION |
MUTE/PFL |
MUTE and PFL for EACH
CHANNEL |
|
EQ
(3-BAND) |
HIGH: GAIN/±15dB;
FREQUENCY 12KHz shelving
MID: GAIN/±15dB;
FREQUENCY 2.5KHz shelving
LOW: GAIN/±15dB;
FREQUENCY 80Hz shelving |
|
PEAK
LED |
LED turns on when post
EQ signal reaches 3dB below clipping level. |
|
LEVEL METER |
2X12-segment LED meter
(CLIP,+10,+7,+4,+2,0,-2,-4,-7,-10,-20,-30dB) |
|
EFFECTS/FX |
320 DIGITAL EFFECTS |
|
PHANTOM POWER VOLTAGE |
+48V |
|
POWER SOURCE (50-60Hz) |
AC 100-240V |
|
POWER CONSUMPTION |
30W |
Back
to Top
AMX7374 OWNER'S MANUAL:
Click here to extract the AMX7374
Owner's Manual.
