AMX7375 - 16 Channel Audio Mixer with USB Interface and 320 DSP Sound Effects


FEATURES

AMX7375 FUNCTIONS AND FEATURES DIAGRAM

AMX7375 FRONT VIEW



AMX7375 REAR VIEW



SPECIFICATIONS



AMX7375 OWNER'S MANUAL



The Audio2000'S® AMX7375 system is a truly user-friendly, yet pleasantly sounded, 16-channel audio mixerThe AMX7375 is configured with all the essential mixer features and more.

Back to Top

FEATURES:

  • 16-Channel Audio Mixer
  • Built-in DSP Processor with 320 Sound Effects
  • Built-in USB Interface to Computer for Recording and Music Playing Applications
  • Built-in Bluetooth Interface
  • USB Record Buttons for Recording to USB Flash Drive
  • Input Level Control Faders on All Channels
  • Ultra-Musical 3-Band EQ on All Channels
  • Microphone + Line Inputs
  • Peak LED Indicators on All Channels
  • Dual-LED Display Panels for DSP and USB
  • MUTE and PFL Control Buttons on FX, MP3, and All Channels
  • FX and PAN Controls on All Channels
  • FX and MP3 Level Control Faders
  • MAIN OUT Stereo XLR Jacks and SUB OUT Stereo 1/4" Jacks
  • MAIN OUT and SUB OUT Level Control Faders
  • FX OUT 1/4" Output Jack and RETURN 1/4" Input Jack
  • CD/TAPE Input/Output Stereo RCA Jacks
  • RETURN and CD/TAPE Level Control Knobs
  • PHONES Stereo 1/4" Output Jack and Level Control Knob
  • High-Accuracy Level Indicator
  • Phantom Power (+48V) Button and LED Indicator
  • POWER-ON LED Indicator
  • Sealed Rotary Control Knobs to Resist Dust and Grime
  • Rugged Steel Chassis
  • Multi-Voltage Power Supply for Worldwide Use


Back to Top

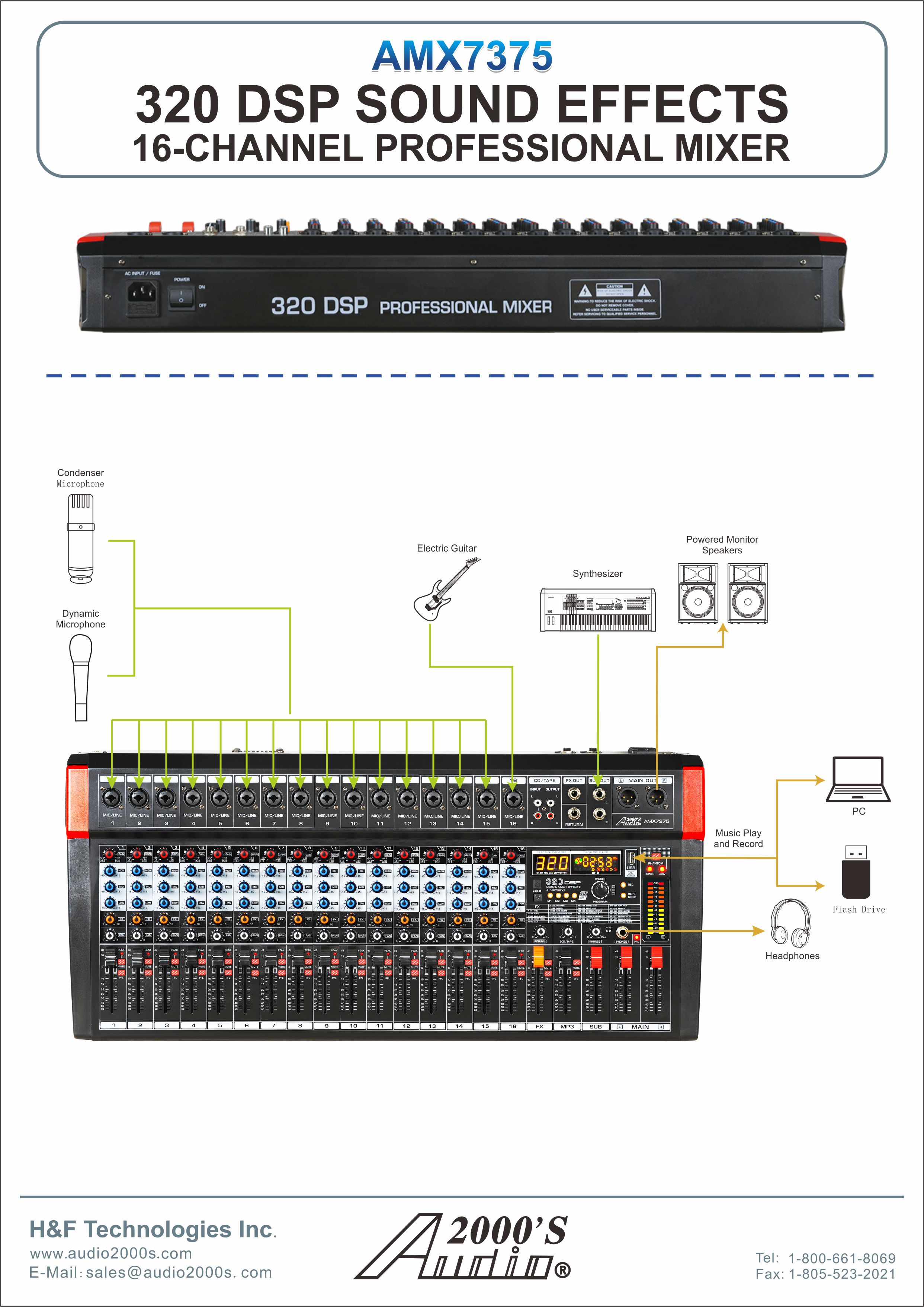

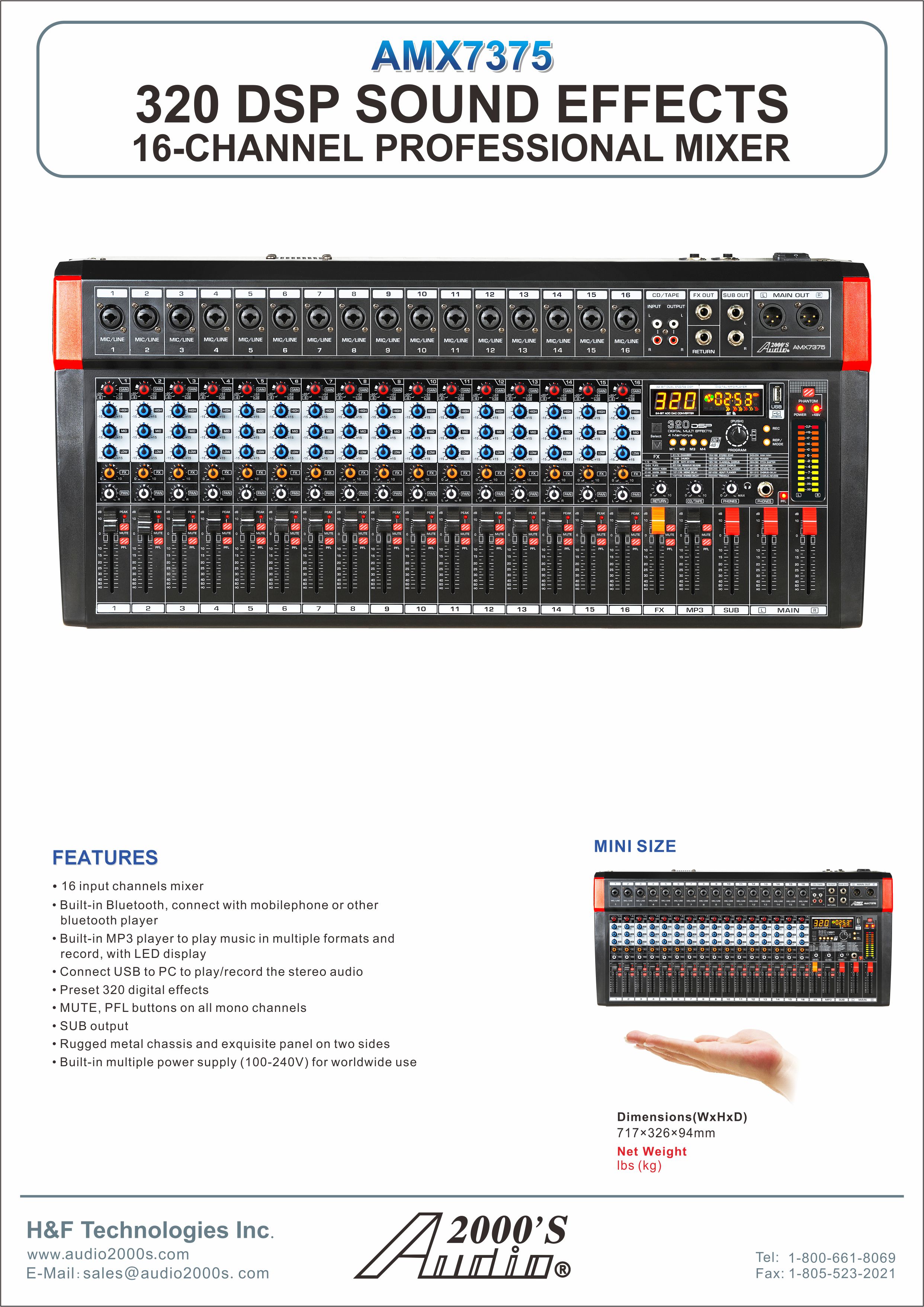

AMX7375 FUNCTIONS AND FEATURES DIAGRAM:

Click here to display or download the above diagram.

Back to Top



Click here to display or download the above diagram.



Back to Top

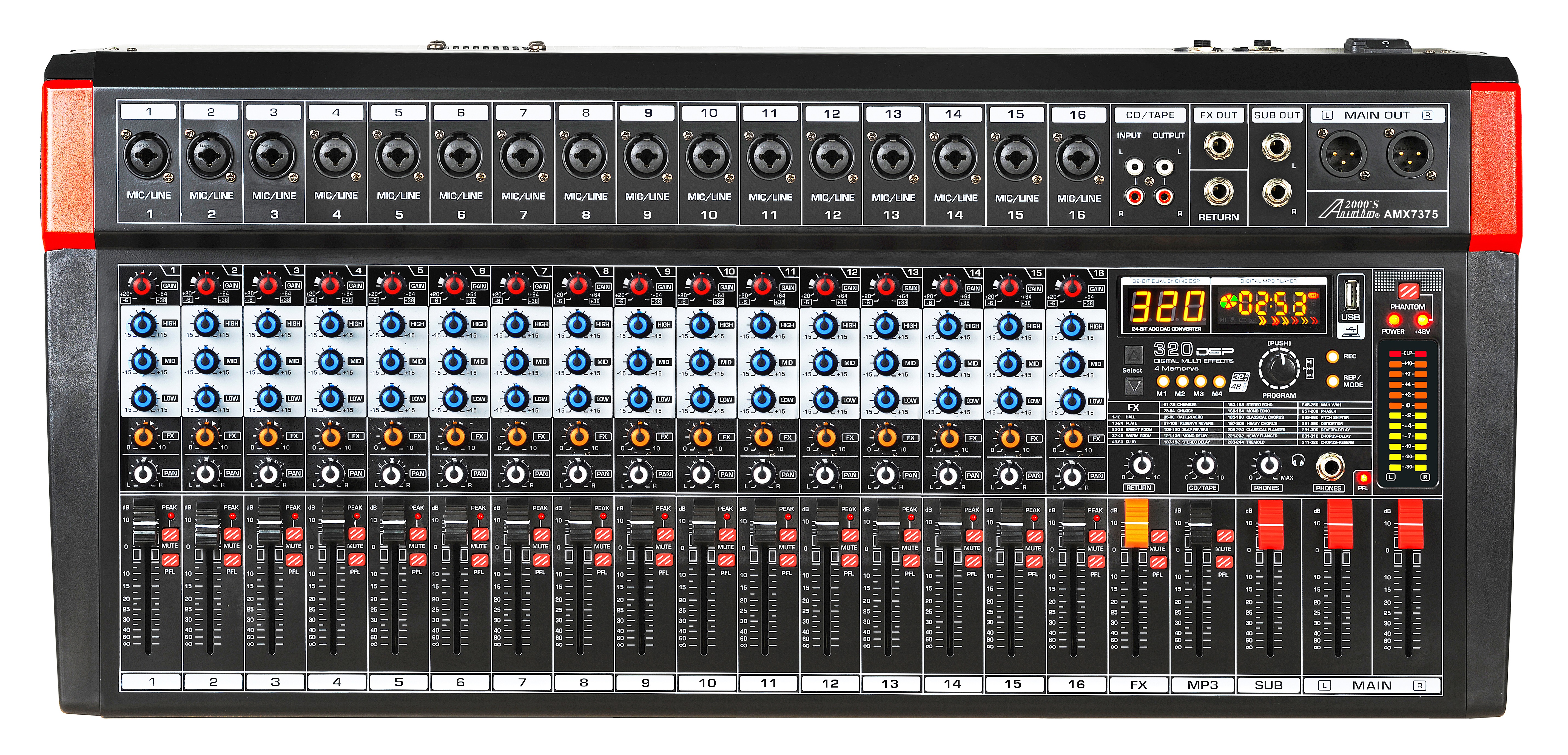

AMX7375 FRONT VIEW:

Click here to enlarge the above image.

Back to Top

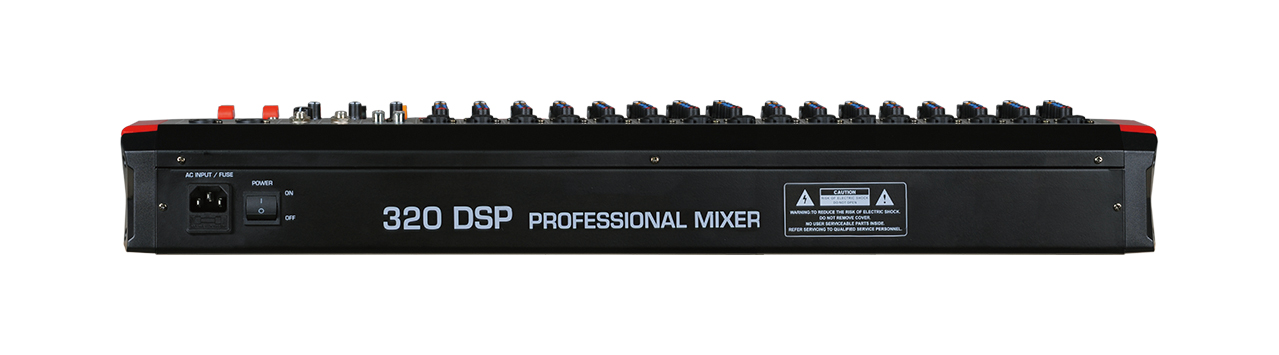

AMX7375 REAR VIEW:

Click here to enlarge the above image.

Back to Top

SPECIFICATIONS:

FREQUENCY RESPONSE

20Hz-20KHz ±1dB+4dBμ@1KHz

TOTAL HARMONIC DISTORTION

<0.5%@+4dBμ (22Hz-22KHz)

CHANNEL

16 CHANNELS

INPUT CHANNELS

MIC/LINE

16 (XLR + 1/4-inch JACKS)

MP3

1

USB SOUND CARD

2.0Type-A

BLUETOOTH

1

OUTPUT CHANNELS

REC/RCA

1

MAIN/XLR

L/R

PHONES (1/4-inch JACK)

1

SUB

L/R

AUXILIARY

FX (OUT)

1

RETURN (IN)

1

INPUT CHANNEL FUNCTION

MUTE/PFL

MUTE and PFL for EACH CHANNEL

EQ (3-BAND)

HIGH: GAIN/±15dB; FREQUENCY 12KHz shelving

MID: GAIN/±15dB; FREQUENCY 2.5KHz shelving

LOW: GAIN/±15dB; FREQUENCY 80Hz shelving

PEAK LED

LED turns on when post EQ signal reaches 3dB below clipping level.

LEVEL METER

2X12-segment LED meter (CLIP,+10,+7,+4,+2,0,-2,-4,-7,-10,-20,-30dB)

EFFECTS/FX

320 DIGITAL EFFECTS

PHANTOM POWER VOLTAGE

+48V

POWER SOURCE (50-60Hz)

AC 100-240V

POWER CONSUMPTION

35W



Back to Top

AMX7375 OWNER'S MANUAL:

Click here to extract the AMX7375 Owner's Manual.
