AKJ7050

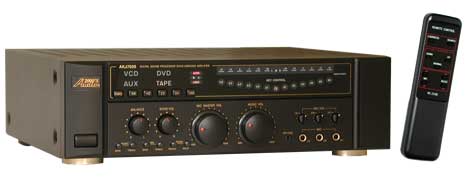

AKJ7050 - Professional Karaoke Mixing Amplifier with Digital Key Controls & Echo


The Audio2000'S^Ž AKJ7050 system is a truely powerful, yet pleasantly sounded, professional karaoke mixing amplifier. In order to provide a complete mastery on the control of a karaoke joy and karaoke performance, the AKJ7050 is configured with all the essential karaoke features: digital key control, echo volume control, echo repeat adjustment, echo speed adjustment, video input/output routing and a powerful, multiplex vocal canceling, simulated voice canceling and smooth vocal sound reinforcement capabilities.

In addition, the music balance/treble/bass controls and microphone treble/bass controls enable the users to master the music and microphone sound in a variety of acoustic environment. A cooling fan is added to effectively remove heat from the AKJ7050. Five microphone inputs on the AKJ7050 are intended to be plentiful for multiple users. The microphone effector loop is separated from the music effector loop in order to achieve delicate vocal sound effects and accompanying music characteristics for extraordinary karaoke enjoyment.

A true 180W + 180W acoustic energy delivery power from the AKJ7050 is carefully engineered to present a high-fidelity direct sound field in a small-room acoustic environment, in a large-room acoustic environment, or in a open performance field.

As a performance extension of the AKJ7000 system, the AKJ7050 enjoys the delicate engineering and the acoustic power of the market-proved AKJ7000 solid performance history. Also, the AKJ7050 inherits the Audio2000'S^{^Ž} product tradition of quality, reliability and versatility.

Features Configured To Be User Friendly

Remote Control
180W + 180W Max. Power Output (8 Ohms)
Five Microphone Inputs
Master Microphone Volume Control
Three (3) Individual Microphone Volume Controls
Microphone Tone Control (Treble/Bass)
Master Music Volume Control
Music Balance, Treble, and Bass Controls
Digital Key Controller (+/- 6 Steps)
Digital Echo Volume/Delay/Repeat Controls
Voice Canceling Function
VCM Automatic Control
Manual/automatic Input Channel Switching
Microphone Sound Effector Loop
Music Sound Effector Loop
Four Stereo Audio Inputs
Three Video Inputs and Outputs
Banana Speaker Output Jacks
Cooling Fan

SPECIFICATIONS

Max. Output 360W / 8 Ohms (EIAJ) (180W X 180W)

Total Harmonic Distortion 0.03% @ 1KHz, -3dB, 6 Ohms

Mic. Input Sensitivity 6mV / 600 Ohms

Input Sensitivity 300mV / 22 KOhms

Output Level (Pre-Out) 2.5V / 1 KOhms

Mic. Freq. Response 10 - 25,000 Hz

Music Freq. Response 10 - 40,000 Hz

Tone Control Char. (Bass) +/- 10 dB @ 100 Hz

Tone Control Char. (Treble) +/- 10 dB @ 10 KHz

Speaker Terminal Load 4 to 16 Ohms if use either terminal 1 or 2
6 to 16 Ohms if use both terminals 1 and 2

Key Control Range 13 steps, +/- 3 Tones

Video Input Sensitivity 1Vp-p @ 75 Ohms

Video Output Sensitivity 1Vp-p @ 75 Ohms

Power Consumption 185W

AC Power Outlets(Switched) One Outlet (100W Max)

AC Power Outlets(Unswitched) One Outlet (200W Max)

Dimensions (W X H X D) 420 X 130 X 398mm (16.5" X 5.1" X 15.7")

Weight 11.8 Kg (26.0 lb)

Accessories Remote Control Commander
