AKJ7405 - KARAOKE MIXING AMPLIFIER WITH DIGITAL ECHO AND KEY CONTROL






FEATURES

AKJ7405 FRONT PANEL

AKJ7405 REAR PANEL



REMOTE CONTROL



SPECIFICATIONS





FEATURES:

  • 600W max. (300W + 300W max.) Power Output (@ 4 Ω)
  • High Quality Dual Digital Echo Effects with VOL/LO/HI/RPT/DLY Controls

  • Seven Microphone Inputs (Four at the Front Panel and Three at the Rear Panel)

  • Two Audio Inputs and One USB/SD Card MP3 Data Interface
  • Subwoofer Output and Controls
  • Master Microphone Volume Control
  • Three Individual Microphone Volume Controls (MIC1, MIC2, and MIC3/MIC4)
  • Three Individual Microphone Tone (BAL/ECHO/LOW/MI/HI) Controls (MIC1, MIC2, and MIC3/MIC4)
  • Master Music Volume Control
  • Music Volume/BAL/ECHO/LOW/MI/HI Controls
  • 9-Step 32-Bit Digital Key Controller
  • Sound Effector Loop
  • Two DSP Music Effect Modes
  • Two Stereo Audio Inputs
  • One Video Input
  • Three Video Outputs
  • One Rec Output and One Line Output
  • Remote Control



Back to Top

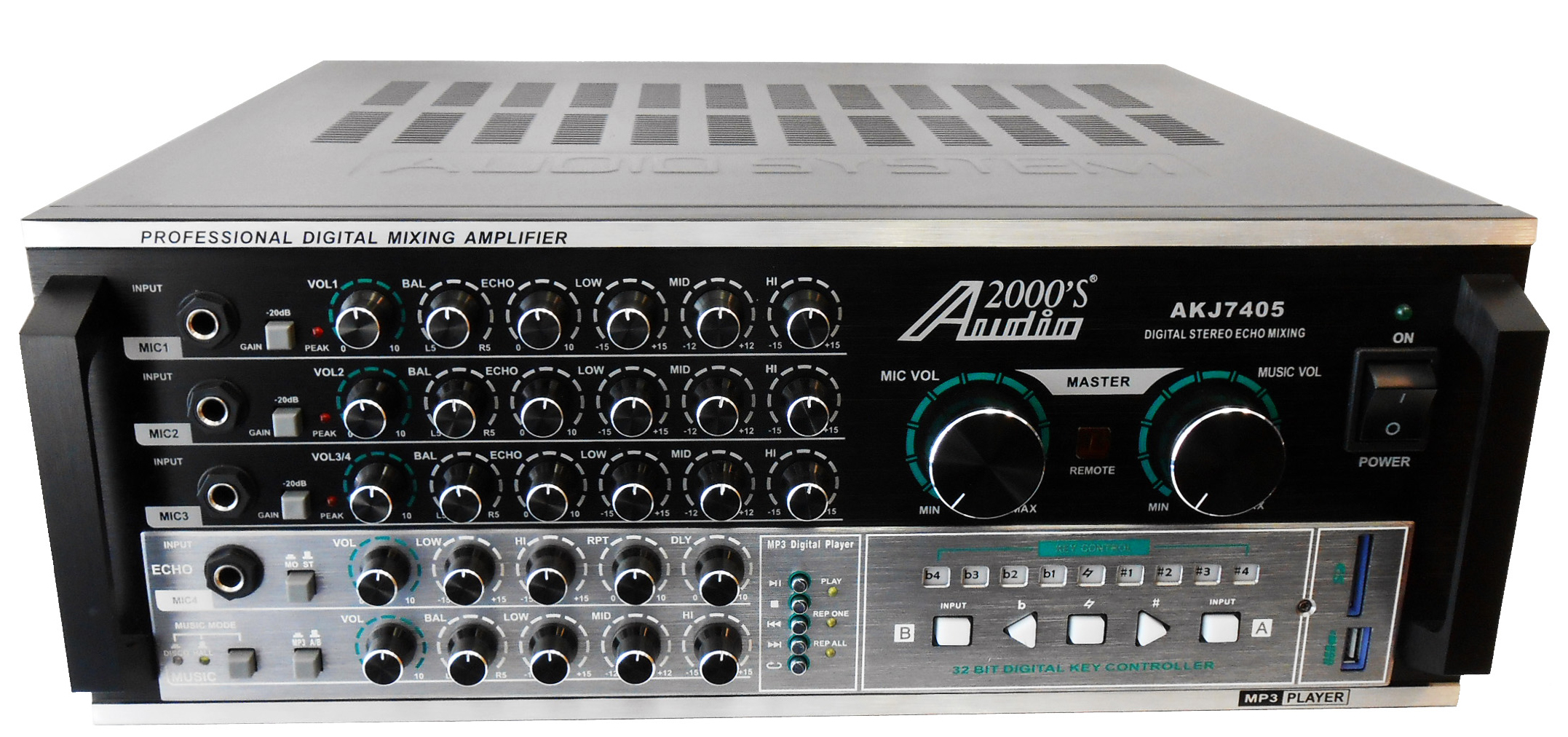

AKJ7405 FRONT PANEL:

Click here to enlarge the above image.

Back to Top

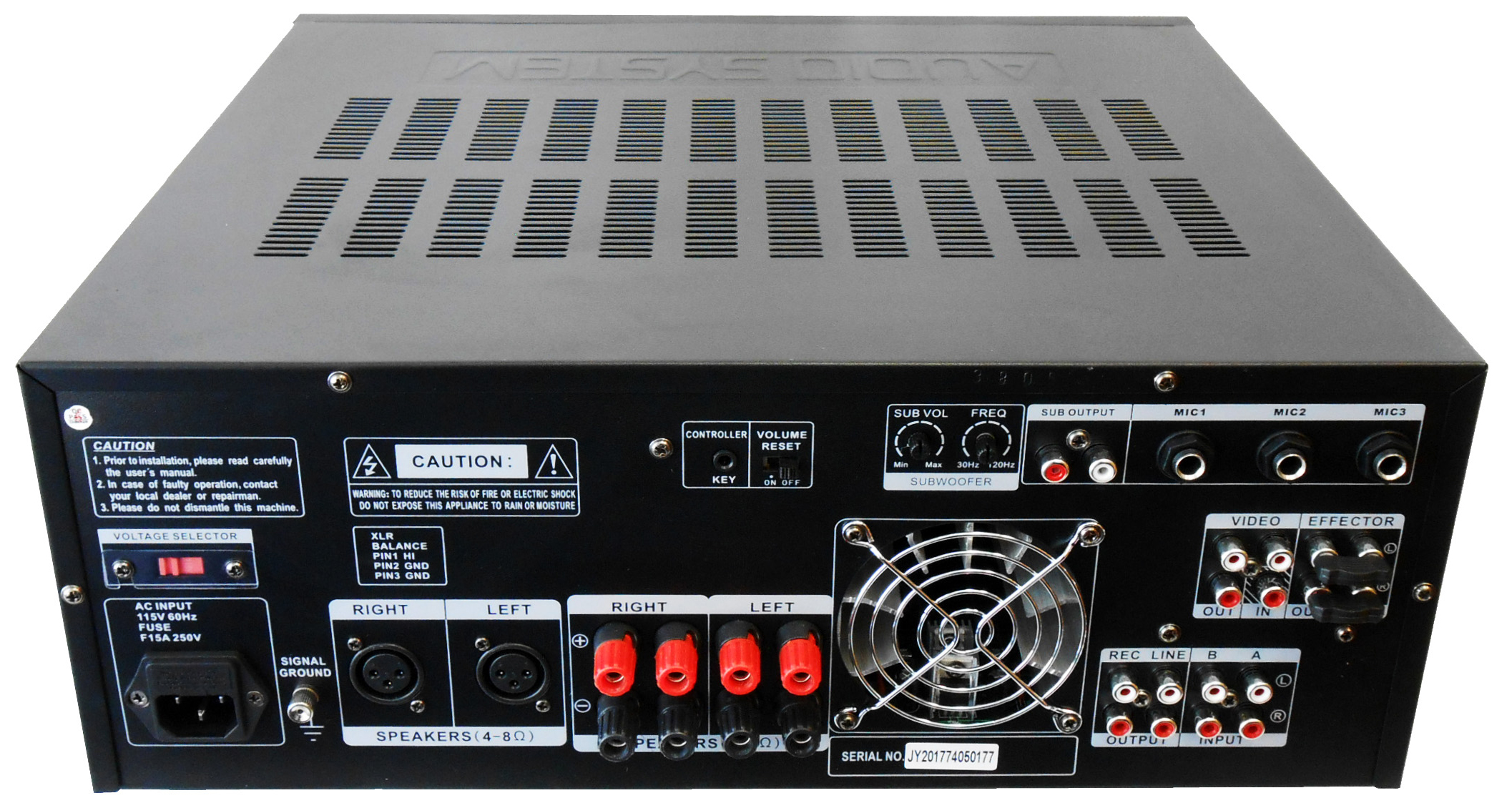

AKJ7405 REAR PANEL:

Click here to enlarge the above image.

Back to Top

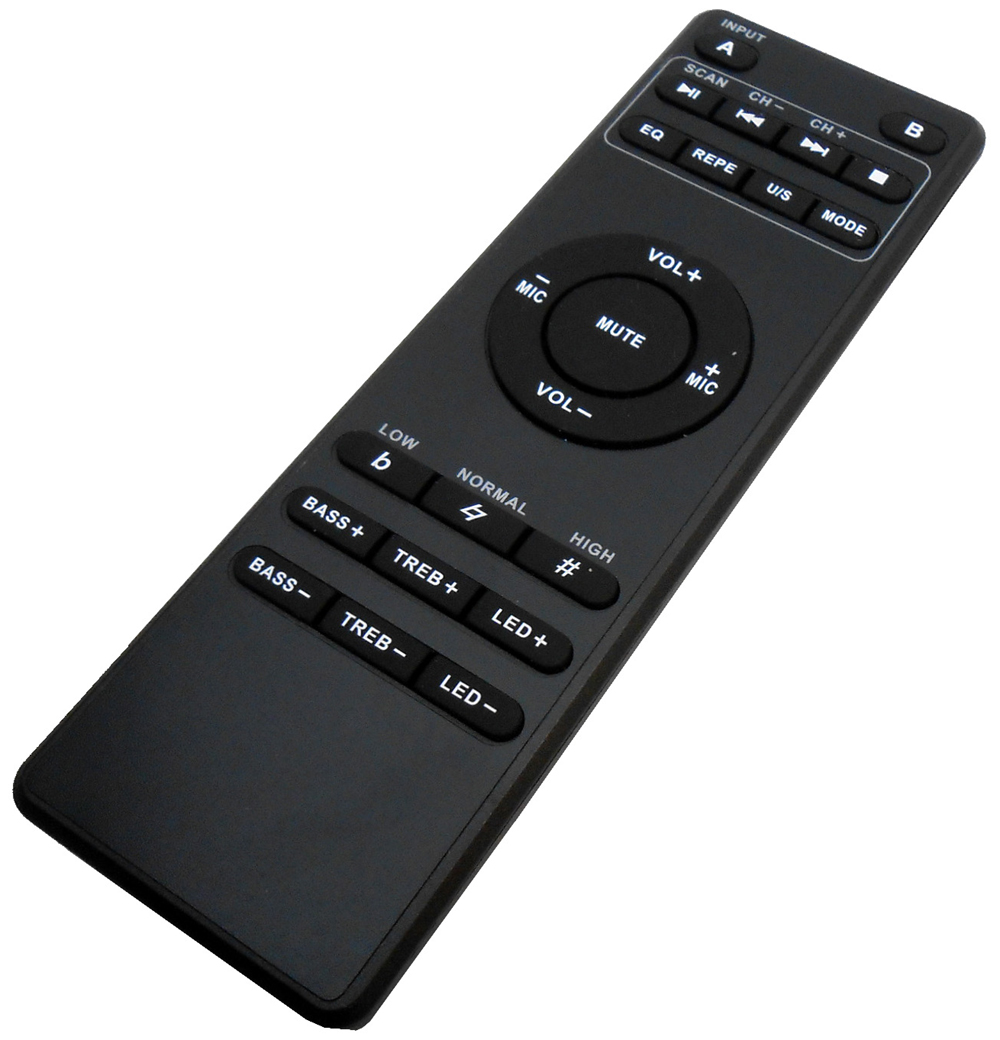

REMOTE CONTROL:

Click here to enlarge the above image.

Back to Top



SPECIFICATIONS:

OUTPUT POWER (4 Ω)

300W (L CH) + 300W (R CH)

OUTPUT POWER (8 Ω)

200W (L CH) + 200W (R CH)

MICROPHONE INPUT SENSITIVITY

10 mV

EXTERNAL DEVICE SENSITIVITY

200mV

S/N RATIO (with IHF A Filter)

≥80dB

T.H.D. (1KHz, 10W)

0.1%

FREQUENCY RESPONSE

20 20,000 Hz

MICROPHONE TONE CONTROL

LOW

MID

HI



80Hz 15dB

3.5KHz 12dB

12.0KHz 15dB

MUSIC TONE CONTROL

LOW

MID

HI



100Hz 15dB

1KHz 12dB

10KHz 15dB

ECHO TONE CONTROL

LOW

HI



80Hz 15dB

12.0KHz 15dB

POWER SOURCE

AC 115/230V, 60Hz

DIMENSION (W X H X D)

16.9 X 6.7 X 16.7
