AKJ7406

FEATURES

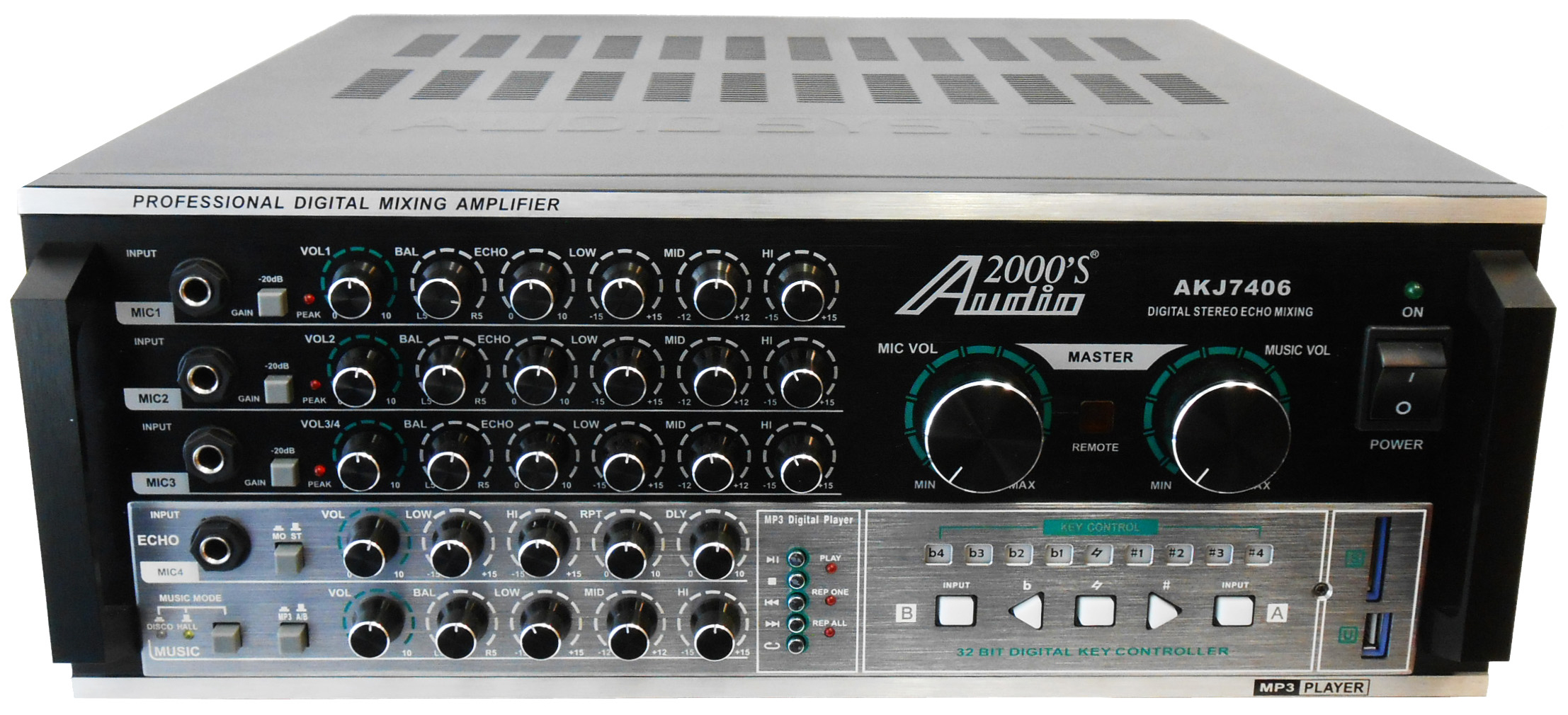

AKJ7406 FRONT PANEL

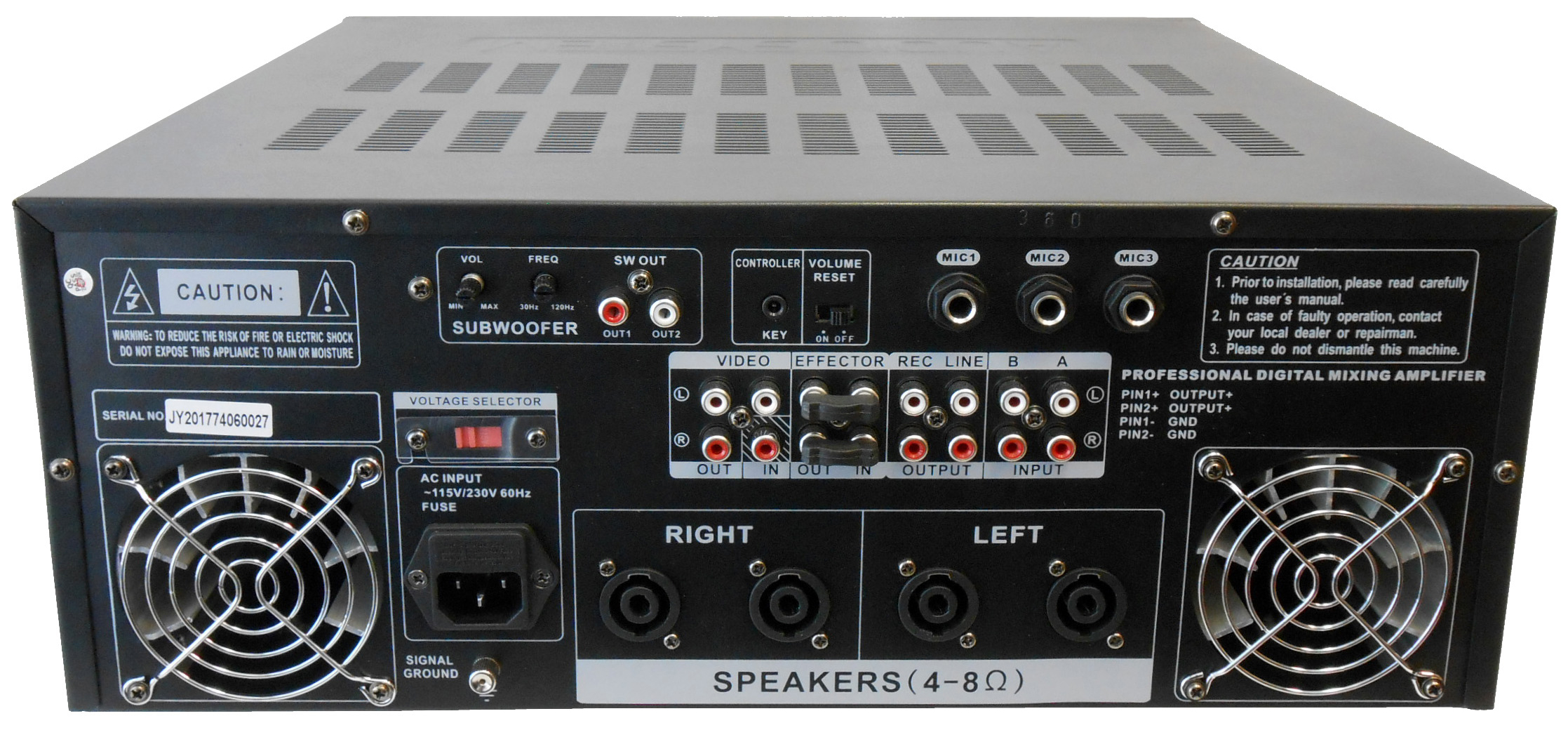

AKJ7406 REAR PANEL

REMOTE CONTROL

SPECIFICATIONS

1000W max. (500W + 500W max.) Power Output (@ 4 Ω)
High Quality Dual Digital Echo Effects with VOL/LO/HI/RPT/DLY Controls
Seven Microphone Inputs (Four at the Front Panel and Three at the Rear Panel)
Two Audio Inputs and One USB/SD Card MP3 Data Interface
Subwoofer Output and Controls
Master Microphone Volume Control
Three Individual Microphone Volume Controls (MIC1, MIC2, and MIC3/MIC4)
Three Individual Microphone Tone (BAL/ECHO/LOW/MI/HI) Controls (MIC1, MIC2, and MIC3/MIC4)
Master Music Volume Control
Music Volume/BAL/ECHO/LOW/MI/HI Controls
9-Step 32-Bit Digital Key Controller
Sound Effector Loop
Two DSP Music Effect Modes
Two Stereo Audio Inputs
One Video Input
Three Video Outputs
One Rec Output and One Line Output
Remote Control

OUTPUT POWER (4 Ω)	500W (L CH) + 500W (R CH)
OUTPUT POWER (8 Ω)	350W (L CH) + 350W (R CH)
MICROPHONE INPUT SENSITIVITY	10 mV
EXTERNAL DEVICE SENSITIVITY	200mV
S/N RATIO (with IHF A Filter)	≥80dB
T.H.D. (1KHz, 10W)	0.1%
FREQUENCY RESPONSE	20 – 20,000 Hz
MICROPHONE TONE CONTROL LOW MID HI	80Hz ± 15dB 3.5KHz ± 12dB 12.0KHz ± 15dB
MUSIC TONE CONTROL LOW MID HI	100Hz ± 15dB 1KHz ± 12dB 10KHz ± 15dB
ECHO TONE CONTROL LOW HI	80Hz ± 15dB 12.0KHz ± 15dB
POWER SOURCE	AC 115/230V, 60Hz
DIMENSION (W X H X D)	16.9” X 6.7” X 18.1”
