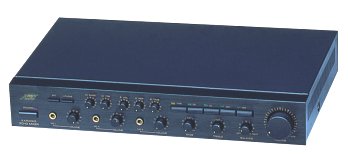

AKM701P - Digital Echo Karaoke Mixing Amplifier

The Audio2000'S® AKM701P digital echo karaoke mixing amplifier is an easy-to-use, yet sophisticated entertainment equipment designed and built with the goal of total entertainment.

The AKM701P digital echo karaoke mixing amplifier features three microphone inputs and five music source  inputs.  Up to three microphone inputs can be mixed with one of the five music sources. There is a master music volume control knob to control the music volume.  Three individual microphone volume control knobs are featured to adjust each microphone volume individually so that various loudness of individual voice can be compensated as desired.  Both the microphone input sound and the music source input sound can have the tone adjusted through a treble tone control knob and a bass tone control knob respectively.

The AKM701P digital echo karaoke mixing amplifier further features an echo control function,  and a voice canceling function.  The echo control function enables the users to control or adjust the echo volume, the echo delay, and/or the echo repeat. The voice canceling function enhances the users' entertainment capacity by allowing users to remove the multiplexed vocal sound from the background music as desired.

The AKM701P digital echo karaoke mixing amplifier has been engineered for high quality sound with a wide dynamic range, low noise level.  This is achieved with great attention to various product development stages, from the early product planning stage, through the high quality circuit design stage, to the final production stage with strict component selection. All of these make the AKM701P digital echo karaoke mixing amplifier an enjoyable karaoke entertainment vehicle for all the users.   Consequently, the AKM701P digital echo karaoke mixing amplifier has won a great acceptance in the industry.

Features Configured To Be User Friendly

Max. Power Output (8 Ohms):50W + 50W
Digital Echo Control
Vol/Repeat/Delay-time
Microphone Inputs:Three
Individual Microphone Volume Controls:Three
Microphone Tone Control (Treble/Bass):Yes
Master Music Volume Control:Yes
Music Balance, Bass, Treble Control:Yes
UTAOKE/AFT Voice Auto Control:Yes
Record Out, Pre-out & Main-In:Yes
Signal-to-Noise Ratio (IEC-A):95dB
Input Source Selections:Five

SPECIFICATIONS

Power Output 50W X 50 W (max) (30W X 30W RMS)
Total Harmonic Distortion 0.2% @ 1KHz, -3dB, 8 Ohms
Mic. Input Sensitivity 100mV @ 1KHz (T.H.D. 0.1%)
Music Input Sensitivity 150mV / 47 KOhms
Output Level 130mV / 50 KOhms
Freq. Response 25 - 80,000 Hz
Signal-To-Noise Ratio 95 dB
Tone Control Char. (Bass) +/- 10 dB @ 100 Hz
Tone Control Char. (Treble) +/- 10 dB @ 10 KHz
Speaker Terminal Load 8 to 16 Ohms
Power Consumption 120W
Dimensions (W X H X D) 420 X 65 X 250mm (16.5" X 2.6" X 9.8")
Weight 12.0 Kg (26.4 lb)
Accessories RCA cables
