AEQ8010S

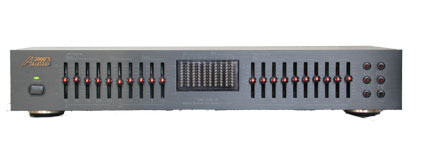

AEQ8010S - Dual 10-Band Graphic Equalizer with a Spectrum Display


The Audio2000'S^Ž AEQ8010S unit is a dual 10-band professional graphic equalizer to be utilized for home entertainment or professional sound applications.

The AEQ8010S graphic equalizer contains two channels, left channel and right channel. Each channel has ten EQ bands. Each EQ band can provide up to +/- 12dB audio boost/cut range. An audio spectrum analyzer display containing ten LED columns is located in-between the left channel EQ bands and the right channel EQ bands. Each LED column depicts the summation of the audio levels of the corresponding EQ bands in the right and left channels. At the center of the knob of each EQ band slide, there is a red LED light indicator to enhance the entertainment effectiveness.

With the built-in features of two tape inputs/outputs and the main line inputs/output, the AEQ8010S graphic equalizer is designed to be versatile and convenient by allowing the users not only to enable or disable the EQ function to the line inputs/output but also to "dub" between two tape decks with or without the EQ function. In addition, a tape monitor function is included.

As a result, the AEQ8010S graphic equalizer provides the users with not only the extraordinary sound EQ quality and the extreme application versatility, but also the pleasant display and entertainment effectiveness.

FEATURES

* No Power ON/OFF Popping Noise

* 2 Line Inputs / 2 Tape Inputs

* 1 Line Output / 2 Tape Outputs

* 10 Band Audio Spectrum Analyzer Display

* 10 Band Per Channel / Two Channels

* Tape 1-2 or Tape 2-1 Dubbing Function

* Tape Monitor Function

* EQ/Pass Function

* Record EQ Function

* Input Voltage Selection (120V / 240V)

APPLICATIONS

Karaoke; general sound entertainment and/or home stereo system

SPECIFICATIONS

Number of Channels Two

Number of Bands/Channel 10

Center Frequencies (Hz) 30, 60, 125, 250, 500, 1K, 2K, 4K, 8K, 16K Hz

Booth/Cut Range 12 +/- 2 dB

Input Input Impedance - 47K Ohms
Nominal Input Level - 0.3V

Output Impedance -1K Ohms
Nominal Load Impedance -10K Ohms

Maximum Output Level - 4V

Frequency Response 10 - 100K Hz, +/- 1dB

Total Harmonic Distortion 0.01%

Signal/Noise Ratio 85dB

Power Consumption 12W

Dimensions (W X D X H) 19.2" X 12.2" X 4.2" (420 X 200 X 65 mm)

Weight 6.2 lbs (2.8Kgs)
