AWM630AU - Professional UHF Wireless In-Ear Monitoring System
with 100 Adjustable Frequencies, Four Wireless Receivers, Ear Phones,
Carrying Case, and Rack-Mount Kit
FEATURES:
- UHF-Band Frequencies
- Frequency Agile over a 25 MHz
Bandwidth, with 100 preprogrammed Frequencies Available.
- Built-in Limiter Circuitry
Eliminating Distortion under Excessive Input Levels.
- Front Panel 1/4-inch Stereo Monitoring Headphone
Jack.
- Mono Mode or Stereo Mode
- LCD Display
- Low-Battery Indicator on the Receiver
- Two Balanced Combo Audio Inputs and Two Balanced
Audio Outputs on the Transmitter
- One Audio Level
Adjustment Knob
- Microcontroller (CPU) Controlled
- Including Four Wireless Receivers
with Ear Phones
- Including a Rack-Mount Kit and a
Hard PVC Carrying Case
- 13 – 15VDC Power
Supply
Back
to Top

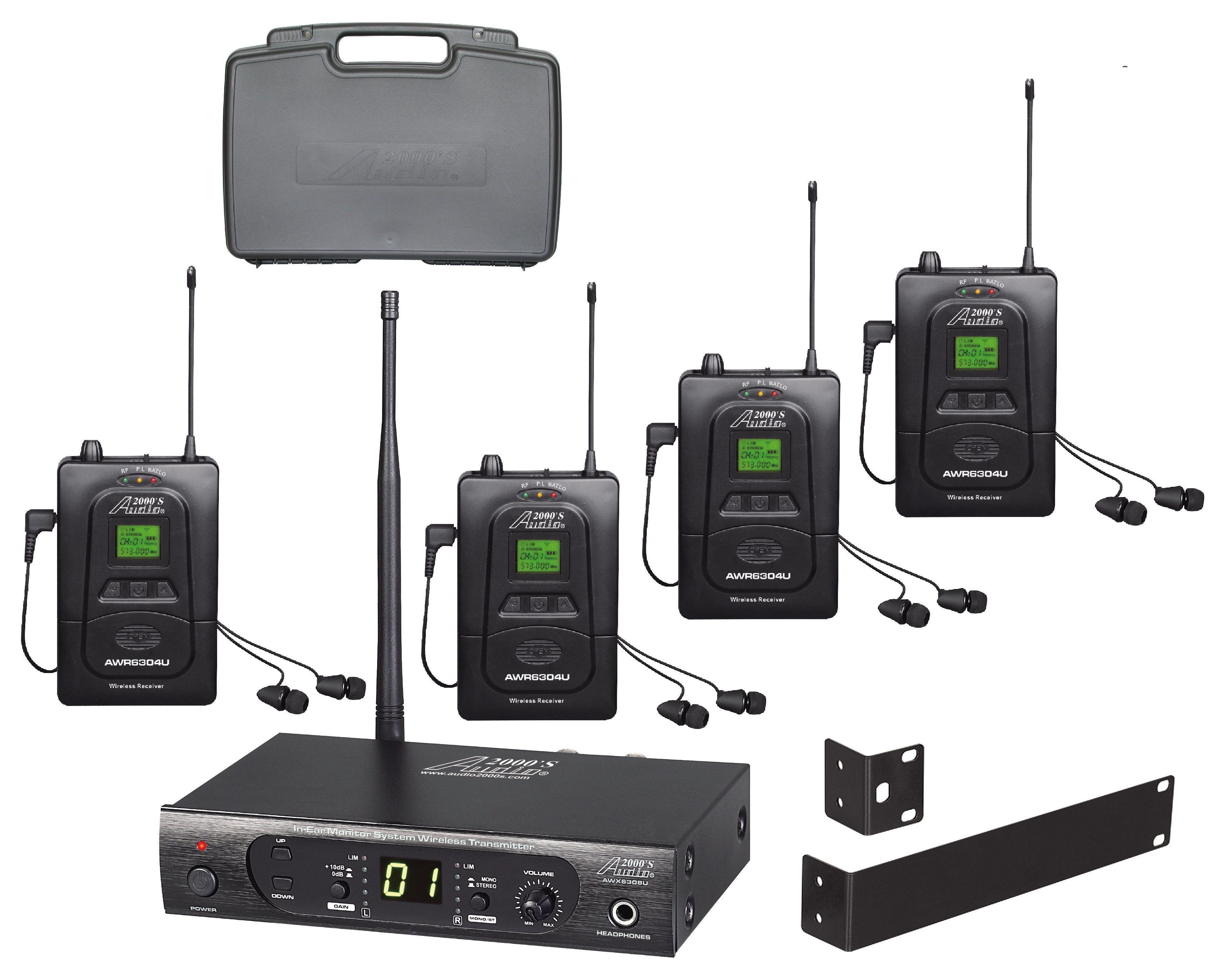

AWM630AU SYSTEM:
Click here
to enlarge the above image.
Back
to Top
AWX6308U TRANSMITTER:
Front View
Click here
to enlarge the above image.
Rear View
Click here
to enlarge the above image.
Back
to Top
AWR6304U RECEIVER:
Click here to enlarge the above image.
Back
to Top
SPECIFICATIONS:
Transmitter:
| Frequency Band |
571 - 598
MHz |
| Band Width |
25 MHz |
| Oscillation Mode |
PLL Synthesized |
| Frequency Stability |
±0.005% (32 - 122
Deg. F) |
| Modulation Mode |
FM Stereo Modulation |
| Output Power |
<10mW |
| Spurious Rejection |
-60 dBc |
| Max. Deviation Range |
75 KHz |
| Frequency Response |
50 - 15,000 Hz |
| T.H.D. |
<0.5% (@Max.
Deviation Range @ 1 KHz) |
| Audio Output |
Line Level X2, XLR |
| Audio Input |
1/4" Phone Jacks X 2 |
| Headphone Output |
1/4" Stereo Phone
Jack w/Adjustable Volume |
| Headphone Output
Impedance |
> 16 Ohms |
| Antenna Connector |
TNT (50 Ohms) |
| Dimensions |
9.4" X 5.4" X
2.0" |
Receiver:
| Frequency Band |
571 -
598 MHz |
| Band Width |
25 MHz |
| Oscillation
Mode |
PLL
Synthesized |
| Frequency
Stability |
±0.005% (32 -
122 Deg. F) |
| Modulation
Mode |
FM Stereo
Modulation |
| Max. Deviation
Range |
± 68 KHz |
| Receiving Mode |
Diversity
Receiving |
| Receiving
Sensitivity |
-107 dBm |
| Squelch Level |
-100 dBm
-90 dBm -70 dBm |
| T.H.D. |
1% |
| Max S/N Ratio |
94 dB |
| Frequency
Response |
80 - 15,000 Hz
(± 3 dB) |
| Stereo
Separation |
35 dB |
| Output Jack |
3.5mm Stereo
Headphone Jack |
| Output Power
(32 Ohms) |
2 X 50mW under
1KHz (T.H.D. 3%) |
| Headphone
Impedance |
> 16 Ohms |
| Power Supply |
2 X AA
Batteries |
| Current
Consumption |
150 mA |
| Dimensions |
4.2" X 2.6" X
1.1" |
Back
to Top
ACCESSORIES:
ITEMS QUANTITIES
AWR6304U Receiver
4
AWX6308U Transmitter
1
Antenna
1
1/4-inch to 1/4-inch Audio Cables
2
AC/DC Adaptor for AWX6304U
1
1.5V
AA Batteries
2
Rack-Mount Kit
1
Hard PVC Carrying Case
1
Owner's Manual
1
Back
to Top
OWNER'S MANUAL:
Click here to extract the AWM630AU
Owner's Manual.
