AWM6304DU - Professional UHF Diversity Stereo Wireless In-Ear Monitoring System with Adjustable Frequencies






FEATURES

AWX6304DU

AWR6304DU



SPECIFICATIONS



ACCESSORIES







FEATURES:

  • UHF-Band Frequencies
  • Dual-Antenna Diversity Reciever
  • Frequency Agile over a 25 MHz Bandwidth, with 48 Preprogrammed Frequencies Available.
  • Built-in Limiter Circuitry Eliminating Distortion under Excessive Input Levels.
  • Front Panel 1/4-inch Stereo Monitoring Headphone Jack.
  • Mono Mode or Stereo Mode
  • Squelch Setting
  • LCD Display
  • Low-Battery Indicator on the Receiver
  • Two Balanced Combo Audio Inputs and Two Balanced Audio Outputs on the Transmitter
  • One Audio Level Adjustment Knob
  • Microcontroller (CPU) Controlled
  • 13 15VDC Power Supply





Back to Top

AWX6304DU TRANSMITTER:

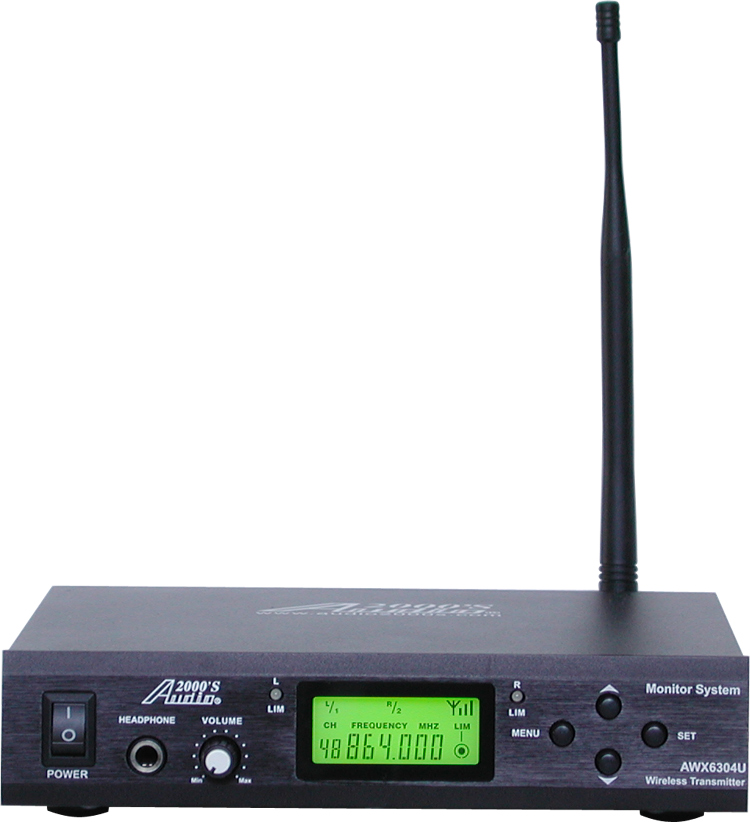

                                Front Panel


Click here to enlarge the above image.

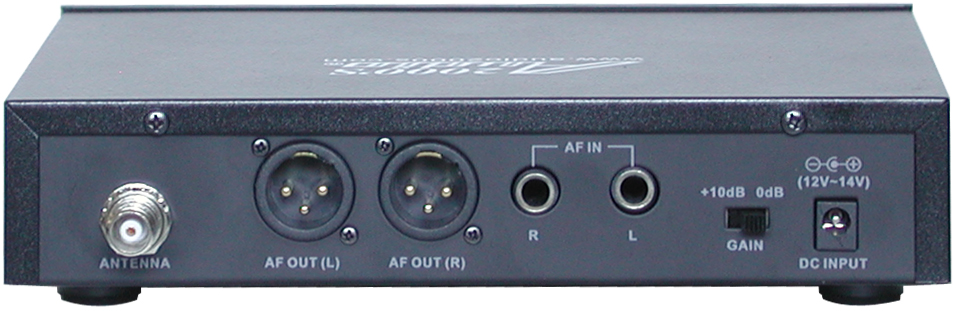

                                Rear Panel

Click here to enlarge the above image.



Back to Top

AWR6304DU RECEIVER:




Click here to enlarge the above image.




Back to Top

SPECIFICATIONS:


Transmitter:

Frequency Band UHF
Band Width 25 MHz
Oscillation Mode PLL Synthesized
Frequency Stability 0.005% (32 - 122 Deg. F)
Modulation Mode FM Stereo Modulation
Output Power <10mW
Spurious Rejection -60 dBc
Max. Deviation Range 75 KHz
Frequency Response 50 - 15,000 Hz
T.H.D. <0.5% (@Max. Deviation Range @ 1 KHz)
Audio Output Line Level X2, XLR
Audio Input 1/4" Phone Jacks X 2
Headphone Output 1/4" Stereo Phone Jack w/Adjustable Volume
Headphone Output Impedance > 16 Ohms
Antenna Connector TNT (50 Ohms)

Receiver:

Frequency Band UHF
Band Width 25 MHz
Oscillation Mode PLL Synthesized
Frequency Stability 0.005% (32 - 122 Deg. F)
Modulation Mode FM Stereo Modulation
Max. Deviation Range 68 KHz
Receiving Mode Diversity Receiving
Receiving Sensitivity -107 dBm
Squelch Level -100 dBm   -90 dBm   -70 dBm
T.H.D. 1%
Max S/N Ratio 94 dB
Frequency Response 80 - 15,000 Hz ( 3 dB)
Stereo Separation 35 dB
Output Jack 3.5mm Stereo Headphone Jack
Output Power (32 Ohms) 2 X 50mW under 1KHz (T.H.D. 3%)
Headphone Impedance > 16 Ohms
Power Supply 2 X AA Batteries



Back to Top

ACCESSORIES:

        ITEMS                                                  QUANTITIES
AWR6304DU Receiver                                          1
AWX6304DU Transmitter                                      1
Antenna                                                                1
1/4-inch to 1/4-inch Audio Cables                           2
AC/DC Adaptor for AWX6304DU                           1
1.5V AA Batteries                                                 2
Owner's Manual                                                    1
