AWM6502U - Professional Dual-Channel UHF Wireless System with 100 Adjustable Frequencies





FEATURES DESCRIPTIONS

AWR6502U FRONT VIEW

AWR6502U REAR VIEW

AWX6500 HANDHELD MICROPHONE

AWX6500M BODY-PACK TRANSMITTER

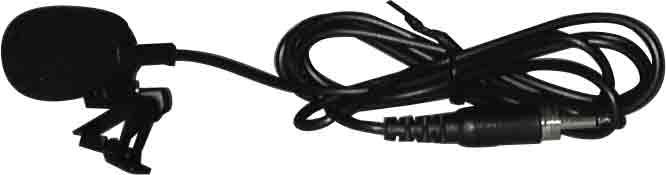

LAVALIER MICROPHONE

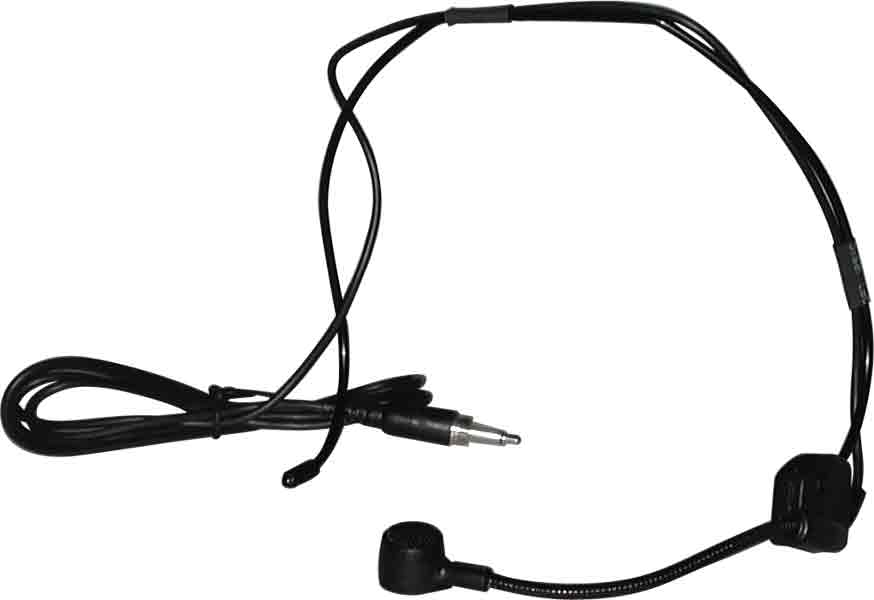

HEADSET MICROPHONE

SYSTEM CONFIGURATIONS

APPLICATIONS

 SPECIFICATIONS

AWM6502U OWNER'S MANUAL



FEATURES:

1.       UHF Band Frequencies

2.       Agile Frequencies with PLL (Phase-Lock Loop) 100 Adjustable Frequencies

3.       Including Two Wireless Transmitters (Comprising Combinations of Handheld Microphones, Lavaliere Microphones, Headset Microphones and/or the Guitar Transmitters)

4.       Two Independent Balanced XLR Outputs and One Mixed Unbalanced Output

5.       Microcontroller (CPU) Controlled

6.       Automatic Synchronizing the Receiver and Transmitter Frequency through Infrared Signal

7.       Two Independent Volume Control Knobs (One for Each Channel)

8.       Integrated Antenna for Effective RF Output and High Transmission Quality

9.       One Power Red LED Indicator, Two AF Red LED Indicators, and Two RF Green LED Indicators

10.   Rugged Mini Receiver Chassis

11.   Operating Range up to 100ft

12. 12VDC Power Supply



DESCRIPTIONS:

The Audio2000'S AWM6502U professional dual-channel UHF wireless system with  adjustable frequencies is a direct response to the needs and desires of  professionals as well as home users.  The advanced circuitry of the AWM6502U system provides reliable RF transmission and reception with a transmission range of about 100 feet.  With the exceptional RF transmission and reception, the AWM6502U system fully delivers all the reception and audio quality features that allow you to really enjoy the freedom of wireless.

Engineered For Dependable UHF Systems

The AWM6502U system has been engineered to be dependable UHF system with a wide audio frequency range, high S/N ratio, and outstanding performance equal to that of any professional wireless systems costing much more.  This is achieved through strict component selection and high quality circuit design.  A delicately designed silence circuit eliminates static noise when the transmitters are either turned off or out of transmission range.  An auto mute circuit is incorporated in these systems to effectively eliminate the popping noise when the switch is turned on or off.

Features Configured To Be User Friendly

To suit the needs of your application demands, the selection of the transmitters to be used with the AWM6502U system includes handheld microphone transmitter, lavalier microphone transmitter, and/or headset microphone transmitter.

System Designed For Accessibility

The AWM6502U system has been designed and manufactured to be dependable, problem free, versatile and easy to use.  The AWM6502U system is intended to be readily accessible to everyone with exceptional performance at a preferred and affordable price.





Back to Top

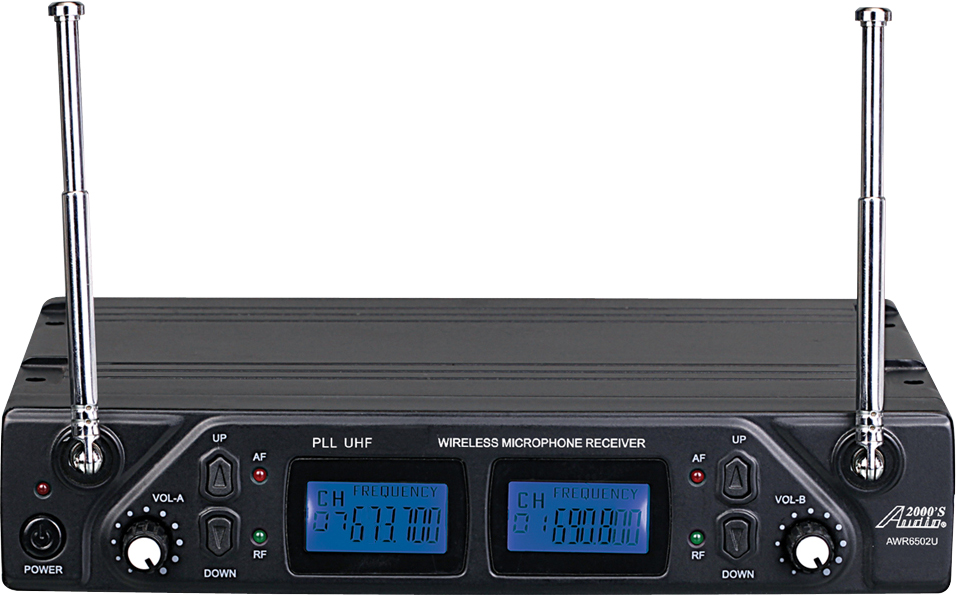

AWR6502U FRONT VIEW

Click here to enlarge the above image.

Back to Top

AWR6502U REAR VIEW



Back to Top

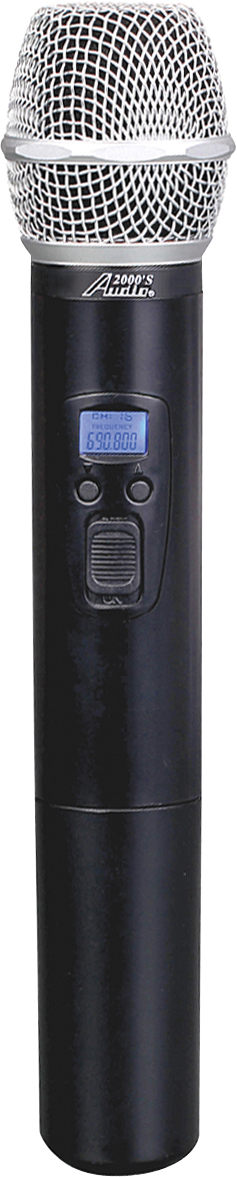

AWX6500 HANDHELD MICROPHONE

Click here to enlarge the above image.

Back to Top

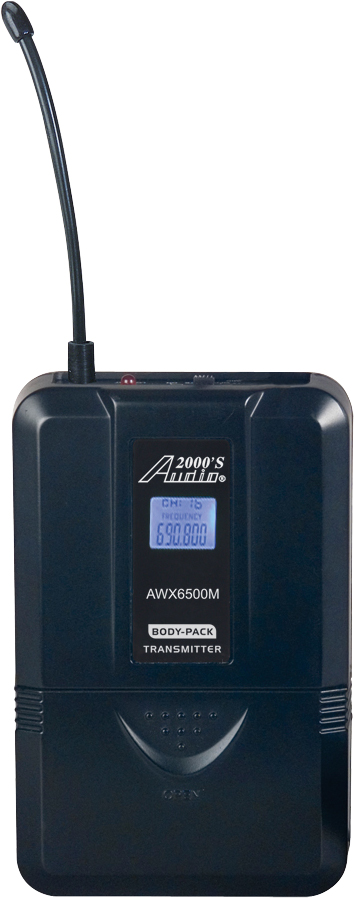

AWX6500M BODY-PACK TRANSMITTER

Click here to enlarge the above image.



Back to Top

SYSTEM CONFIGURATIONS:

Similar to the other Audio2000'S wireless systems, a variety of transmitter options are provided to the AWM6502U system users as follows:

(1) AWM6502U - Handheld Wireless Microphone System (AWR6502U + 2 X AWX6500's)



(2) AWM6502UL - Lavaliere (Lapel) & Handheld Wireless Microphone System (AWR6502U + 1 X AWX6500M + 1 X AEM6500M + 1 X AWX6500)



(3) AWM6502UM - Lavaliere (Lapel) Wireless Microphone System (AWR6502U + 2 X AWX6500M's + 2 X AEM6500M's)



(4) AWM6502UH - Headset Wireless Microphone System (AWR6502U + 2 X AWX6500H's + 2 X AEM6500H's)



  Back to Top

APPLICATIONS:

Musician; disc jockey (DJ); karaoke jockey (KJ); church; school; conference room; karaoke; home entertainment



Back to Top

SPECIFICATIONS:

AWR6502U RECEIVER

AC/DC ADAPTOR

120V AC with 2.1mm FEMALE PLUG

POWER REQUIREMENTS

13 - 15V DC Nominal, 300mA / 500mA

SIGNAL/NOISE RATIO

>85dB

BORDER UPON CHANNEL REJECTION

>70dB

IMAGE & SPURIOUS REJECTION

>70dB

AUDIO OUTPUT LEVEL

0 - 300 mV

RECEIVING SENSITIVITY

-105dBm

DIMENSIONS (W X D X H)

8.0 X 5.9 X 1.7 (204 X 150 X 42 mm)



AWX6500 HANDHELD TRANSMITTER

POWER REQUIREMENTS

1.5 V AA BATTERIES X 2

NOMINAL CURRENT DRAIN

< 100mA

MODULATION TYPE

FM

RF OUTPUT

10dBm

MAX. DEVIATION 70KHz

SPURIOUS EMISSION

>55dB

DIMENSIONS (W X D X H) 9.8 X 2.0 X 2.0 (250 X 51 X 51 mm)



AWX6500H/AWX6500M BODY-PACK TRANSMITTER

POWER REQUIREMENTS

1.5 V AA BATTERIES X 2

NOMINAL CURRENT DRAIN

< 100mA

MODULATION TYPE

FM

RF OUTPUT

10dBm

MAX. DEVIATION 70KHz

SPURIOUS EMISSION

>55dB

DIMENSIONS (W X D X H) 3.9 X 2.6 X 1.2 (100 X 65 X 30 mm)



AWM6502U SYSTEM

FREQUENCY RANGE

UHF

MODULATION MODE

FM

OSCILLATION MODE

VCO + PLL

DEVIATION

45KHz (COMPRESS-EXPAND and AUTOMATIC-VOLUME- LIMIT CIRCUIT)

CHANNEL WIDTH

30MHz

S/N RATIO

>85dB

TOTAL HARMONIC DISTORTION

<0.3% (1 KHz, A WEIGHTING)

FREQUENCY RESPONSE

80 15,000 Hz ( 3dB)

Back to Top

AWM6502U OWNER'S MANUAL:

Click here to extract the AWM6502U Owner's Manual.
