AWM6527U -
UHF 2-Channel Wireless Microphone
System with 100 Selectable Frequencies
PRODUCT FEATURES:
1.
UHF Band Frequencies (660
- 690 MHz)
2. Agile Frequencies with PLL (Phase-Lock Loop)
100 Selectable Frequencies
3. Including Two Wireless Transmitters (Comprising
Combinations of Handheld Microphones, Lavaliere Microphones,
and/or Headset Microphones)
4.
Two Independent Balanced XLR
Outputs and One Mixed Unbalanced ¼” Output
5.
Microcontroller (CPU) Controlled
6.
Automatic Synchronizing the Receiver and Transmitter
Frequency through Infrared Signal
7.
Two Independent Volume Control Knobs (One for Each
Channel)
8.
Integrated Antenna for Effective RF Output and High
Transmission Quality
9.
One Power Red LED Indicator,
Two AF Red LED Indicators, and Two RF Green LED
Indicators
10.
Rugged Mini Receiver Chassis
11.
Operating Range up to 100ft
12.
12VDC Power Supply
Back
to Top
PRODUCT DESCRIPTIONS:
The Audio2000'S®
AWM6527U
professional dual-channel UHF
wireless system with 100 adjustable frequencies
is a direct response to the needs and desires of professionals as well
as home users. The advanced circuitry of the AWM6527U system provides reliable RF
transmission and reception with a transmission range of about
100 feet. With the
exceptional RF transmission and reception, the AWM6527U system fully delivers all the
reception and audio quality features that allow you to really enjoy the freedom of
wireless.
Engineered For Dependable VHF Systems
The AWM6527U system has been engineered to be dependable
UHF system
with a wide audio frequency range, high S/N ratio, and outstanding performance equal to
that of any professional wireless systems costing much more. This is achieved
through strict component selection and high quality circuit design. A delicately
designed silence circuit eliminates static noise when the transmitters are either turned
off or out of transmission range. An auto mute circuit is incorporated in these
systems to effectively eliminate the popping noise when the switch is turned on or off.
Features Configured To Be User Friendly
To suit the needs of your application demands, the
selection of the transmitters to be used with the AWM6527U system includes handheld microphone transmitter, lavalier
microphone transmitter, and/or
headset
microphone transmitter.
System Designed For Accessibility
The AWM6527U system has been
designed and manufactured to be dependable, problem free, versatile and easy to
use. The AWM6527U system is intended
to be readily accessible to everyone with exceptional performance at a preferred and
affordable price.
Back
to Top
AWR6527U FRONT VIEW
Click here to enlarge the above image.
Back
to Top

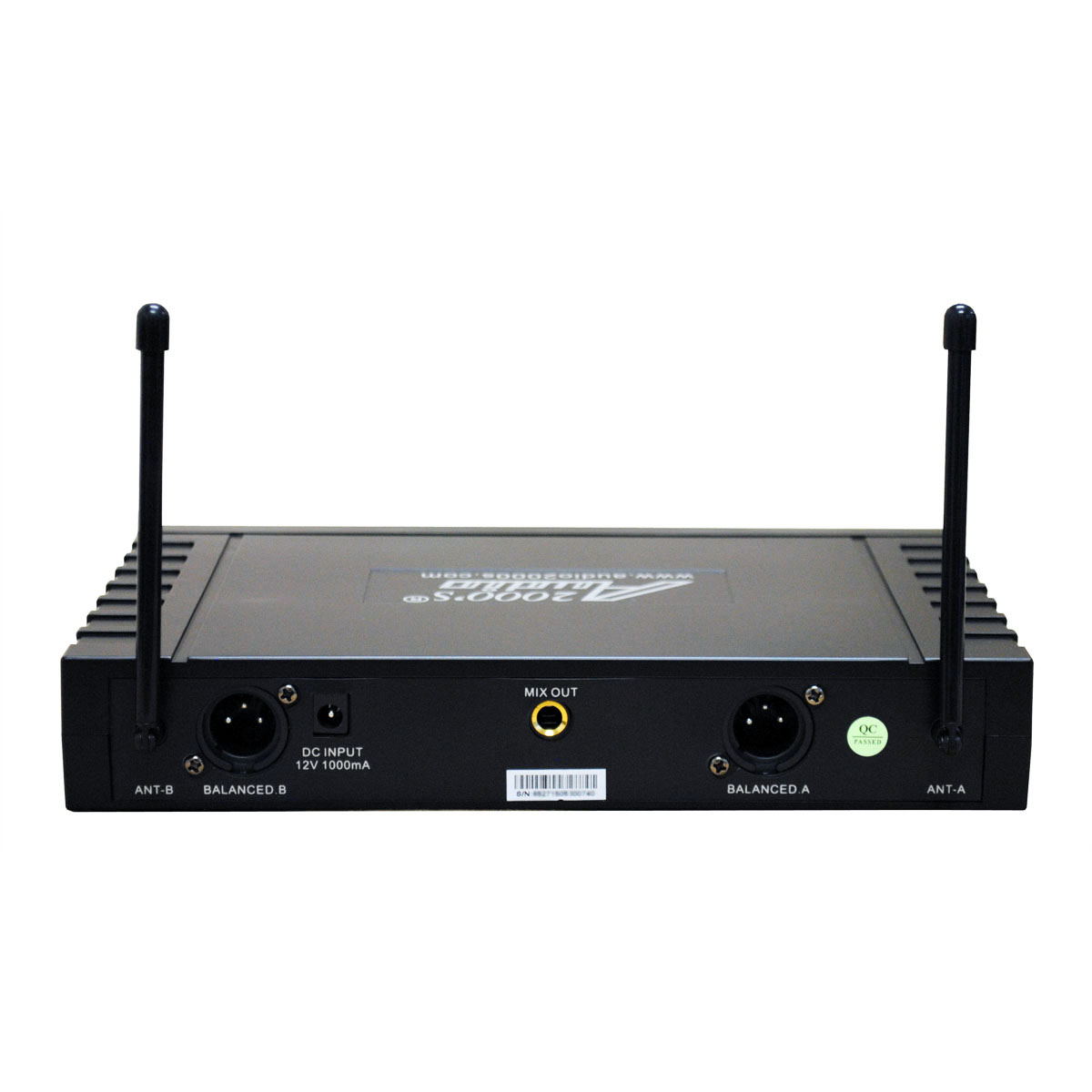

AWR6527U REAR VIEW
Click here to enlarge the above image.
Back
to Top

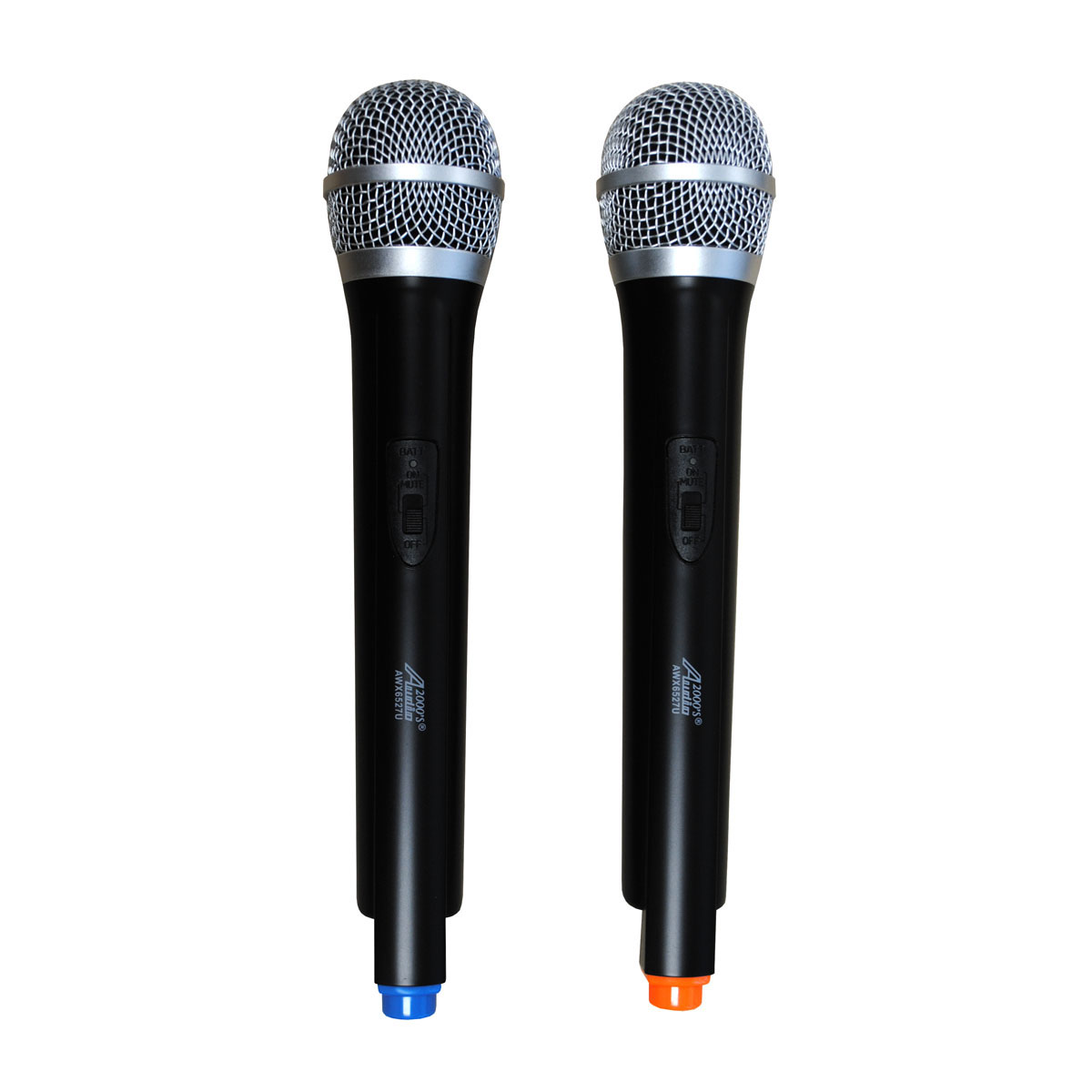

AWX6527U HANDHELD MICROPHONE
Click here to enlarge the above image.
Back
to Top

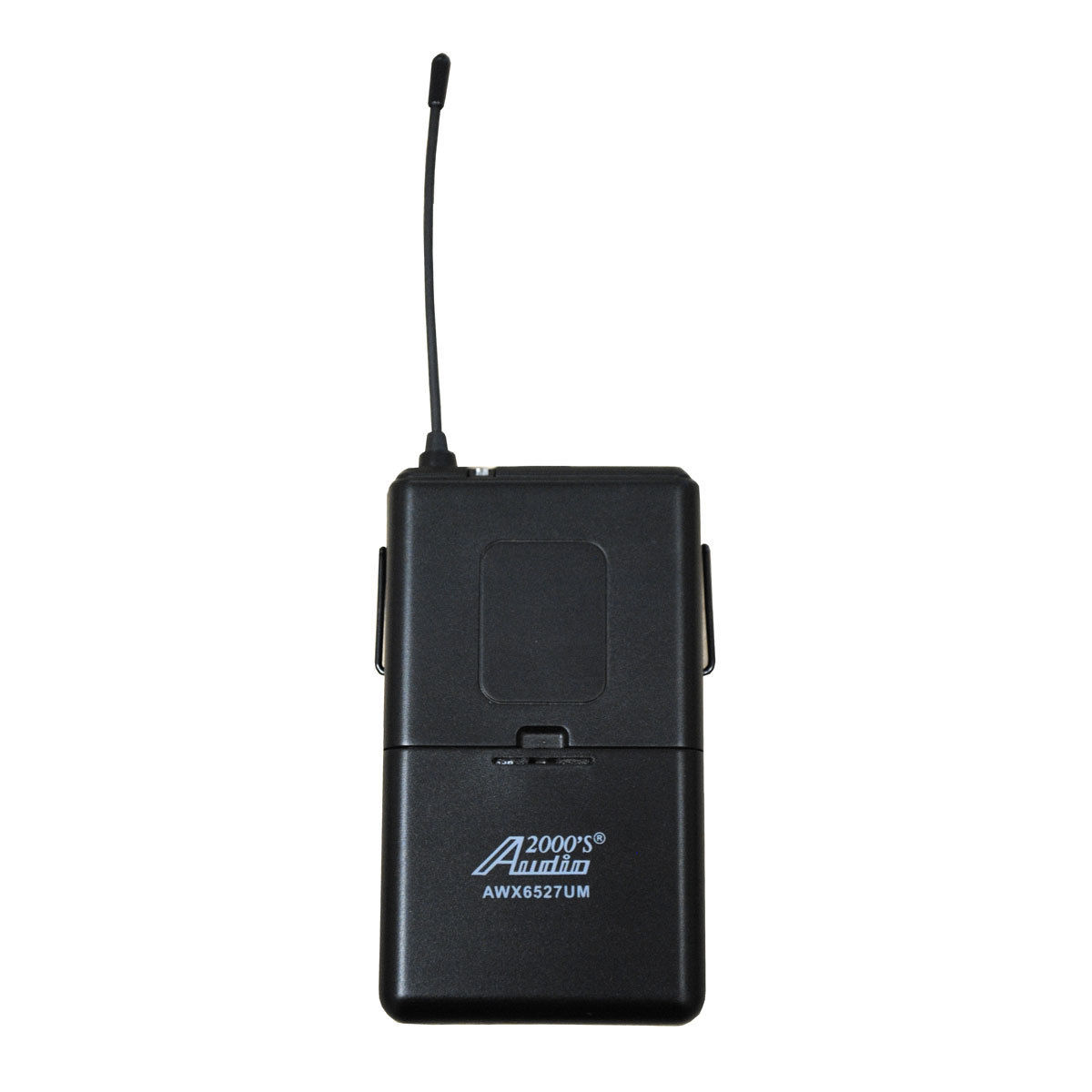

AWX6527U BODY-PACK TRANSMITTER
Click here to enlarge the above image.
Back
to Top
SYSTEM CONFIGURATIONS:
Similar to
the other Audio2000'S®
wireless systems, a variety of transmitter options are
provided to the AWM6527U system users as follows:

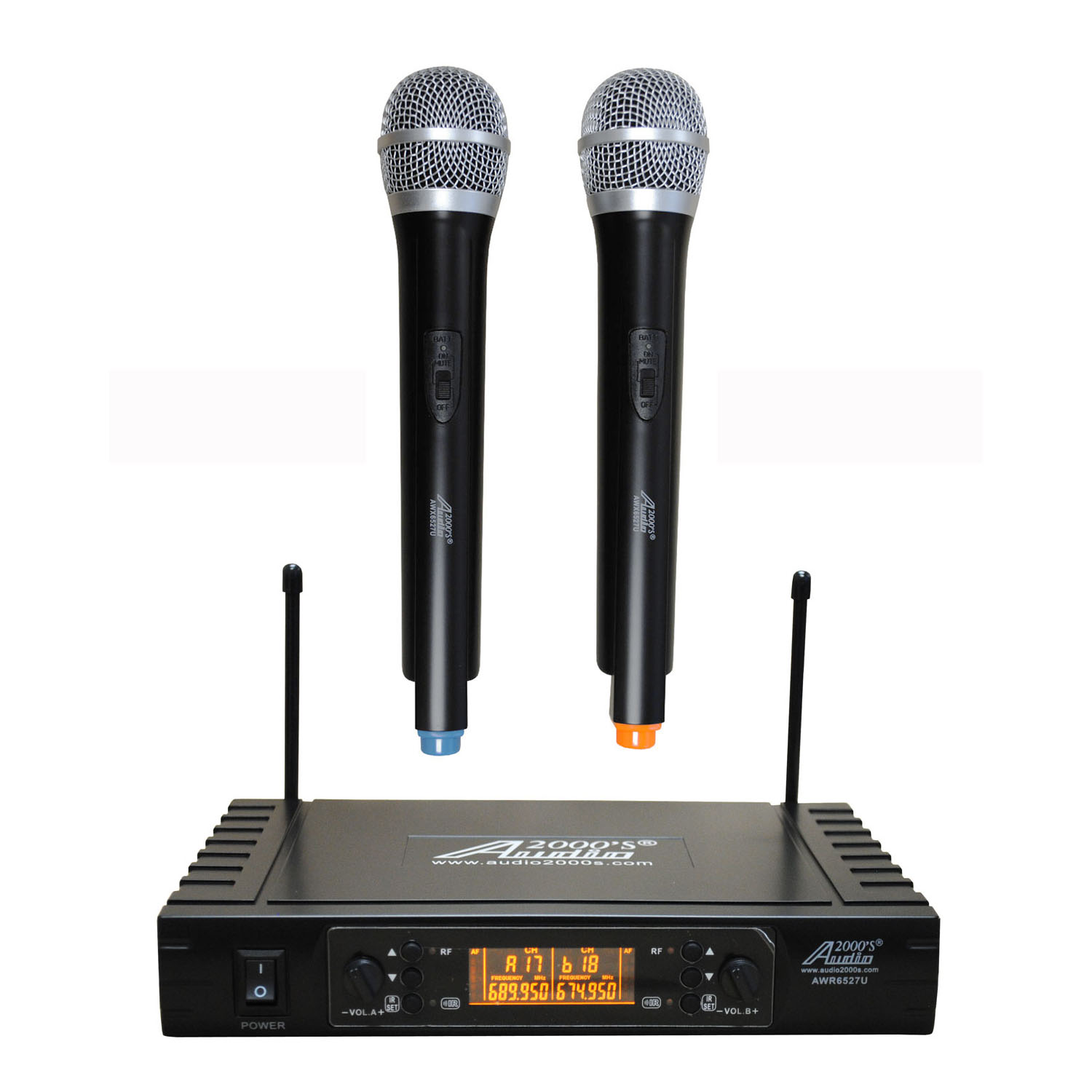

(1) AWM6527U
UHF 2-Channel Wireless Handheld Microphone System with 100
Selectable
Frequencies
(SKU# AWM6527U; UPC:
844565015990)
Back
to Top

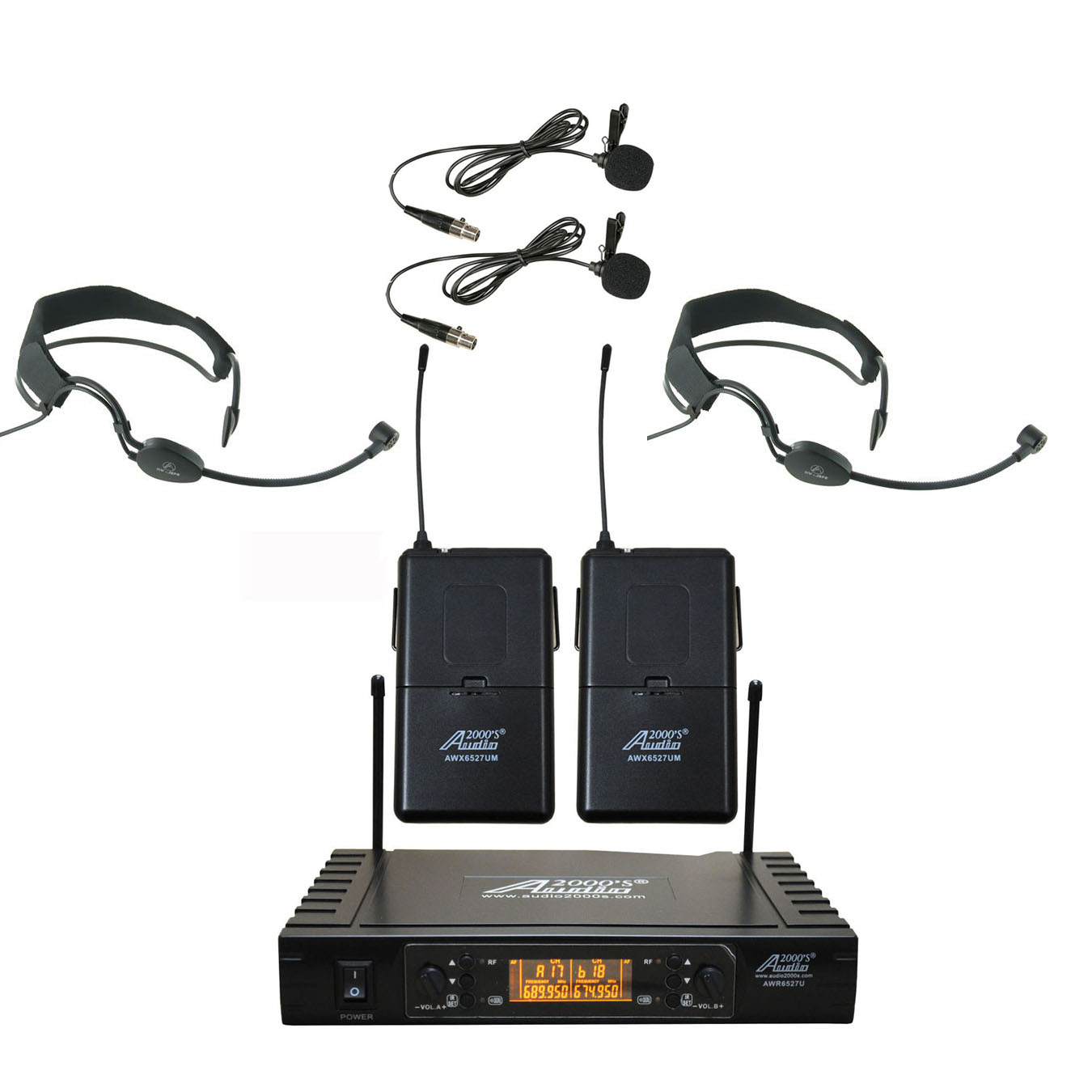

(2)
AWM6527UF
UHF 2-Channel
Wireless Microphone System with Headband Headset & Lapel
(SKU# AWM6527UF UPC:
844565016188)
Back
to Top

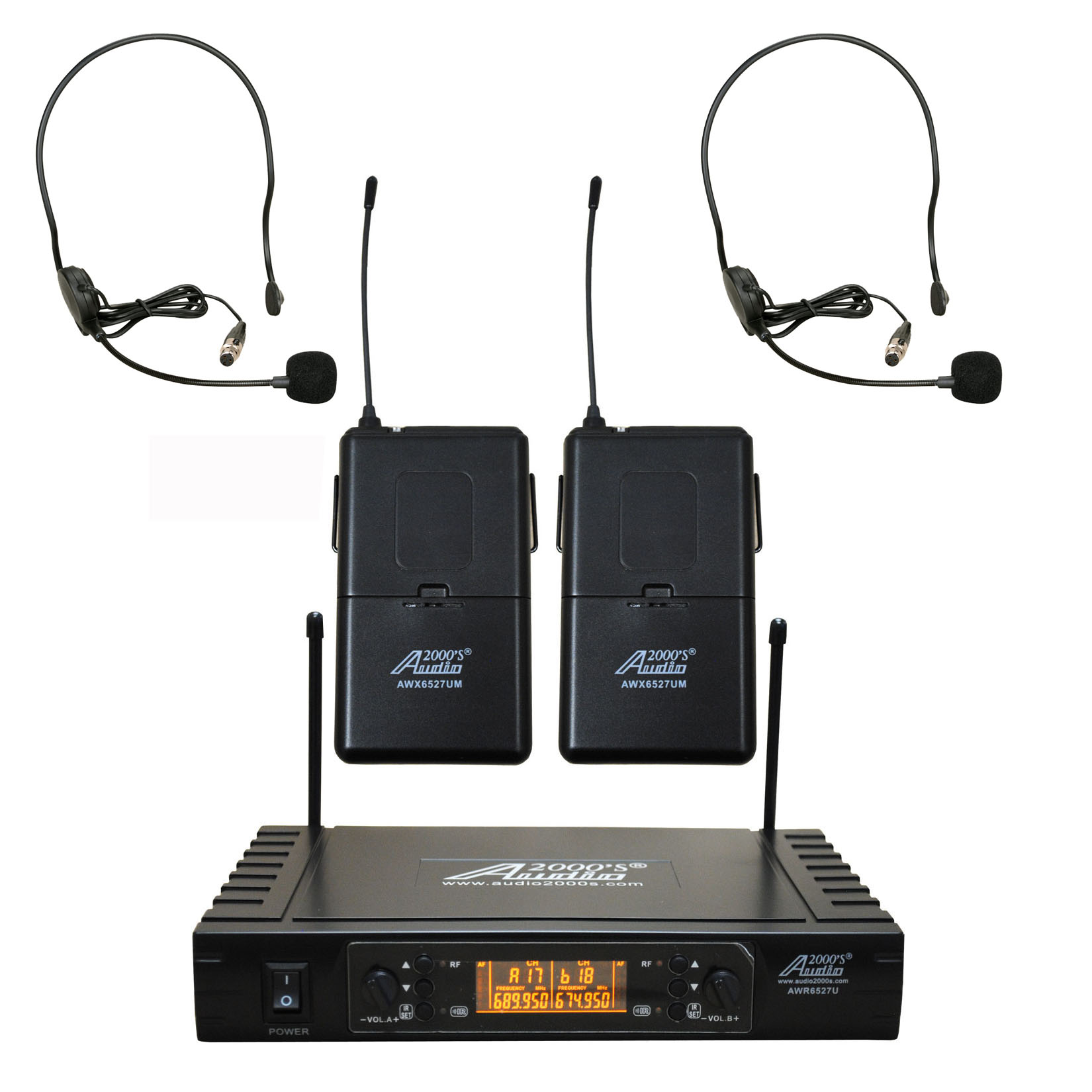

(3)
AWM6527UH
UHF Dual Channel
Headset Wireless Microphone System with 100 Selectable
Frequencies
(SKU# AWM6527UH UPC: 844565015969)
Back
to Top

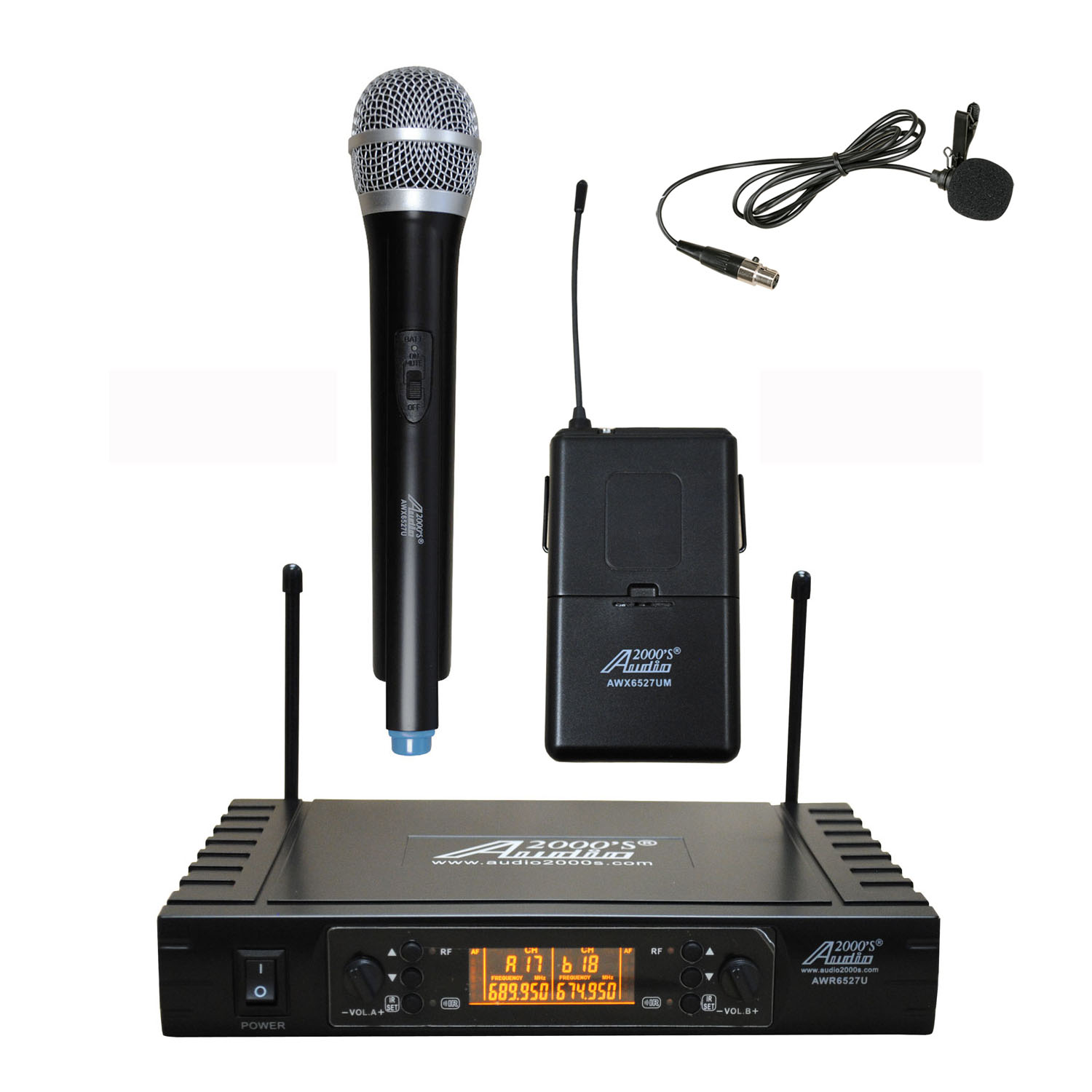

(4)
AWM6527UL
UHF 2-Channel
Selectable 100 Frequency Handheld & Lapel Wireless Microphone System
(SKU# AWM6527UL UPC:
844565015983)
Back
to Top

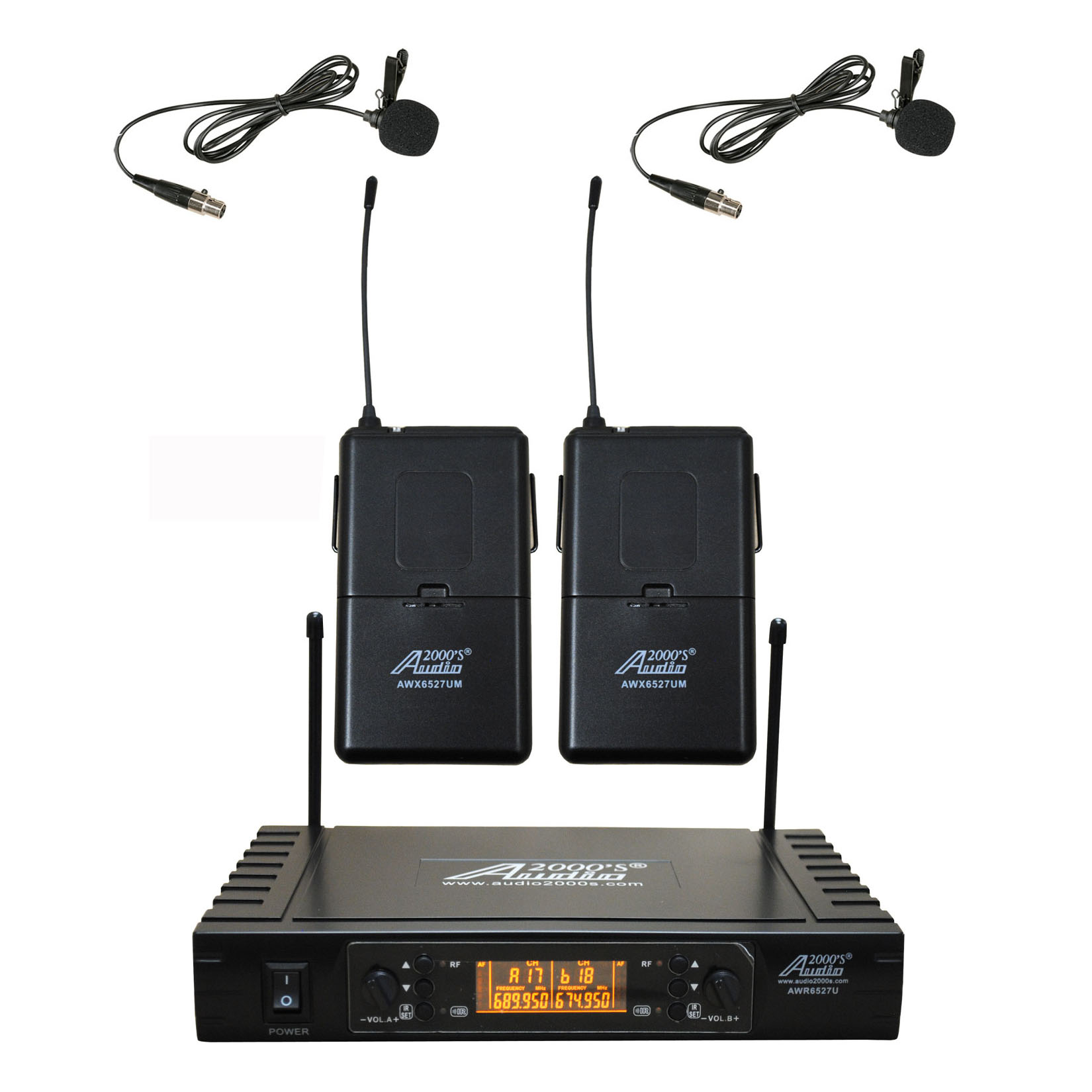

(5)
AWM6527UM
UHF 2-Channel
Wireless Lapel Microphone System with 100 Selectable
Frequencies
(SKU# AWM6527UM UPC:
844565015976)
Back
to Top
APPLICATIONS:
Musician; disc jockey (DJ); karaoke jockey (KJ); church; school;
conference room; karaoke; home entertainment
Back
to Top
SPECIFICATIONS:
AWR6527U
RECEIVER
|
RECEIVING MODE |
SUPERHETERODYNE DOUBLE CONVERSION |
|
|
110MHz, 10.7MHz |
|
ANTENNA INPUT |
TNC / 50Ω |
|
SENSITIVITY |
15dBuV |
|
SENSITIVITY REGULATING RANGE |
15-30dBuV |
|
RF SQUELCH |
>80dB |
AWX6527U TRANSMITTER
|
ANTENNA |
BUILT-IN ANTENNA, QUARTER-WAVE WHIP ANTENNA |
|
|
8mW |
|
MAX SPL |
130dB |
|
IMAGE SPURIOUS |
>70dB |
|
MICROPHONE
CARTRIDGE |
HANDHELD MICROPHONE: DYNAMIC
LAVALIER or HEADSET MICROPHONE : ELECTRET CONDENSER |
|
BATTERIES |
ALKALINE AA X 2
or RECHARGEABLE AA X 2 |
AWM6527U
SYSTEM
|
FREQUENCY RANGE |
660 - 690 MHz |
|
|
FM |
|
OSCILLATION MODE |
VCO + PLL |
|
DEVIATION |
±45KHz (COMPRESS-EXPAND and AUTOMATIC-VOLUME- LIMIT
CIRCUIT) |
|
CHANNEL WIDTH |
30MHz |
|
S/N RATIO |
>85dB |
|
TOTAL HARMONIC
DISTORTION |
<0.3% (1 KHz, A
WEIGHTING) |
|
FREQUENCY
RESPONSE |
80 – 15,000
Hz (±
3dB) |
