S6026U - Dual-Channel UHF Wireless Microphones













FEATURES S6026U RECEIVER FRONT VIEW

S6026U RECEIVER REAR VIEW

SYSTEM CONFIGURATIONS

APPLICATIONS

SPECIFICATIONS

S6026U OWNER'S MANUAL







FEATURES:

1.      UHF Band Dual Channel Handheld Wireless Microphones

2.     Including Two Handheld Wireless Microphones

3.    One Unbalanced Output

4.    Two Volume Control Knobs

5.     Integrated Antenna for Effective RF Output and High Transmission Quality

6. Two RF LED Indicators

7.    Rugged Receiver Chassis

8.   Operating Range up to 100ft

9. 5VDC USB Power Supply



Back to Top

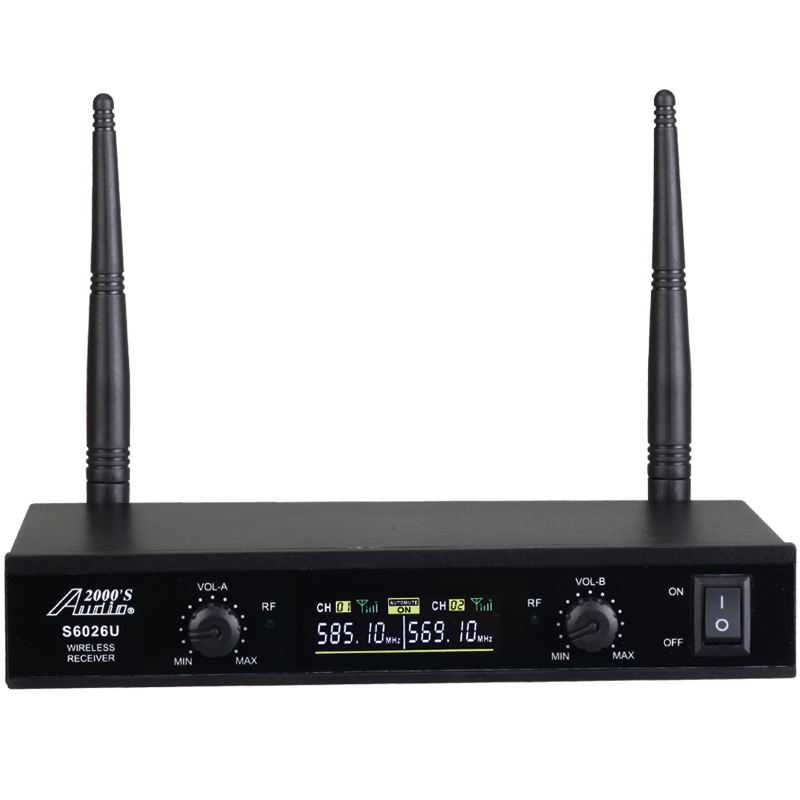

S6026U RECEIVER FRONT VIEW

Click here to enlarge the above image.

Back to Top

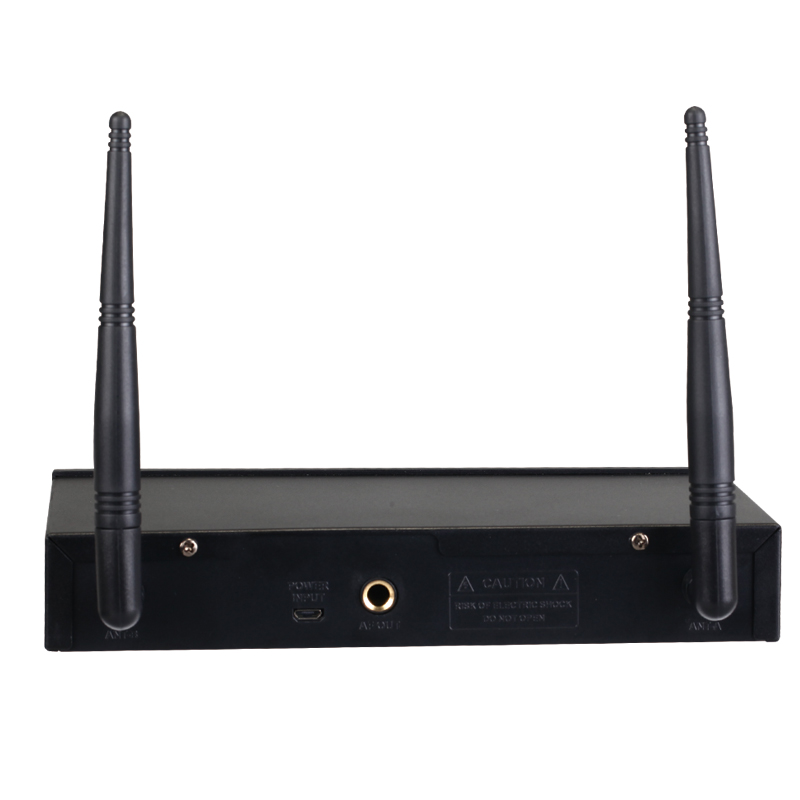

S6026U RECEIVER REAR VIEW

Click here to enlarge the above image.

Back to Top

SYSTEM CONFIGURATIONS:

The Audio2000'S S6026U wireless system is a UHF single-channel wireless microphone system.

Similar to the other Audio2000'S wireless systems, various transmitter options are provided to the

S6026U system users as follows:

(1) Handheld Wireless Microphones

Click here to enlarge the above image.





 Back to Top

APPLICATIONS:

Musician; disc jockey (DJ); karaoke jockey (KJ); church; school; conference room; karaoke; home entertainment



Back to Top

SPECIFICATIONS:

S6026U RECEIVER

CARRIER FREQUENCY RANGE

500 MHz Range

MODULATION MODEL

pi/4 DQPSK

S/N RATIO

96dB

SENSITIVITY

-96dBm

FREQUENCY RESPONSE 30 - 20,000 Hz

CHANNEL INTERVAL

600KHz

OUTPUT IMPEDANCE

600 Ω

TOTAL HARMONIC DISTORTION

0.03%

POWER SUPPLY

5V

POWER CONSUMPTION

< 85mA



S6026U HANDHELD MICROPHONE TRANSMITTER

POWER OUTPUT

10 dBm

FREQUENCY RESPONSE 30 - 20,000 Hz

POWER SUPPLY

3V



Back to Top

S6026U OWNER'S MANUAL:

Click here to extract the S6026U Owner's Manual.



Back to Top
