AWM6037U - Dual-Channel UHF Wireless Microphone Systems with 16 Selectable Frequencies









FEATURES AWR6037U FRONT VIEW

AWR6037U REAR VIEW

SYSTEM CONFIGURATIONS

APPLICATIONS

SPECIFICATIONS

AWM6037U OWNER'S MANUAL







FEATURES:

1.      UHF Band Dual Channel with 16 Selectable Frequencies

2.     Including Two Wireless Transmitters (Handheld Microphones and/or Body-pack Transmitters)

3.    Two Balanced XLR Outputs and One Unbalanced Output

4.    Two Volume Control Knobs

5.     Integrated Antenna for Effective RF Output and High Transmission Quality

6.    Two AF Level Meters

7.    Rugged Receiver Chassis

8.   Operating Range up to 100ft

9. 5VDC USB Power Supply



Back to Top

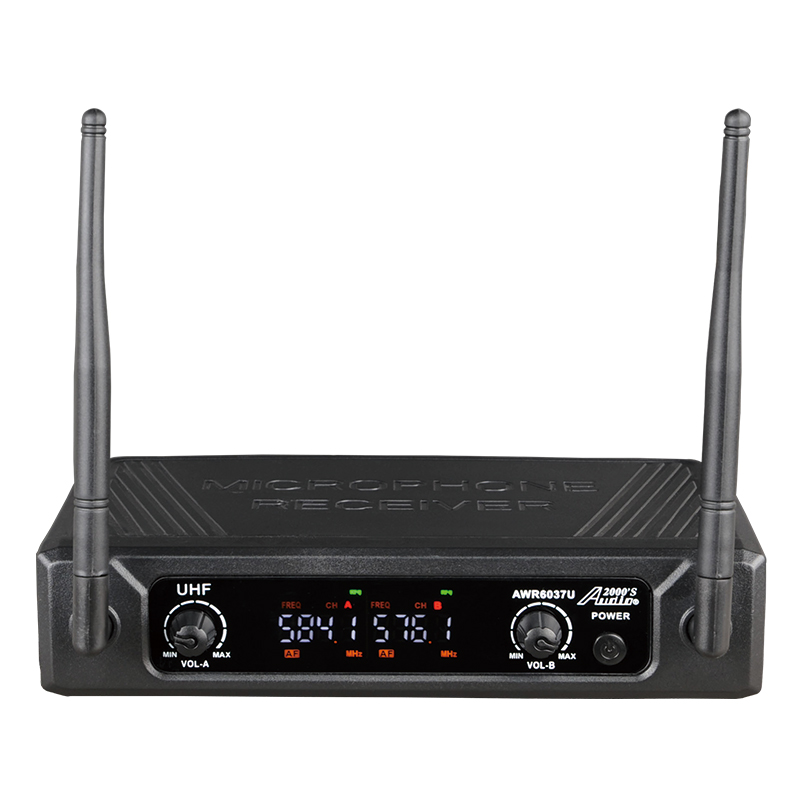

AWR6037U FRONT VIEW

Click here to enlarge the above image.

Back to Top

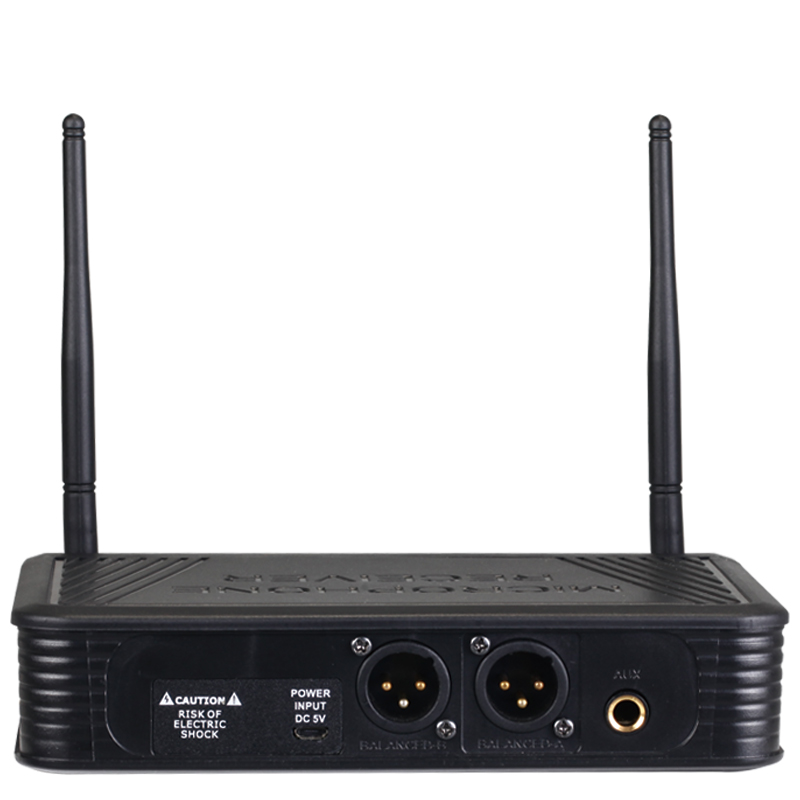

AWR6037U REAR VIEW

Click here to enlarge the above image.

Back to Top

SYSTEM CONFIGURATIONS:

The Audio2000'S AWM6037U wireless system is a UHF single-channel wireless microphone system.

Similar to the other Audio2000'S wireless systems, various transmitter options are provided to the

AWM6037U system users as follows:

(1) Handheld Wireless Microphone System - AWM6037U (AWR6037U + 2 x AWX6036's)

Click here to enlarge the above image.

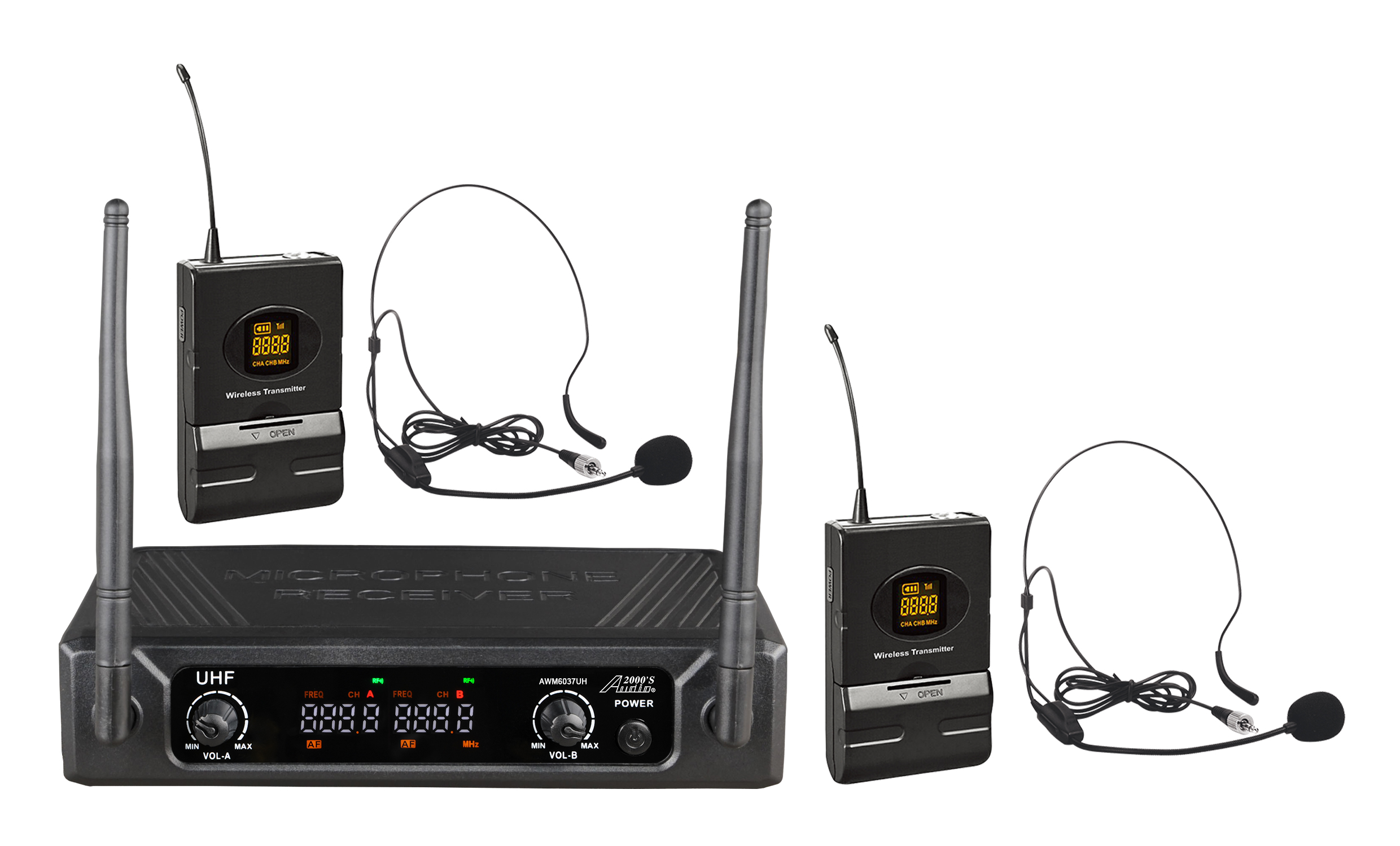

(2) Wireless System with Two Headset Microphones -
      AWM6037UH
(AWR6037U + 2 x AWX6036T's + 2 x Headset Microphones)

Click here to enlarge the above image.

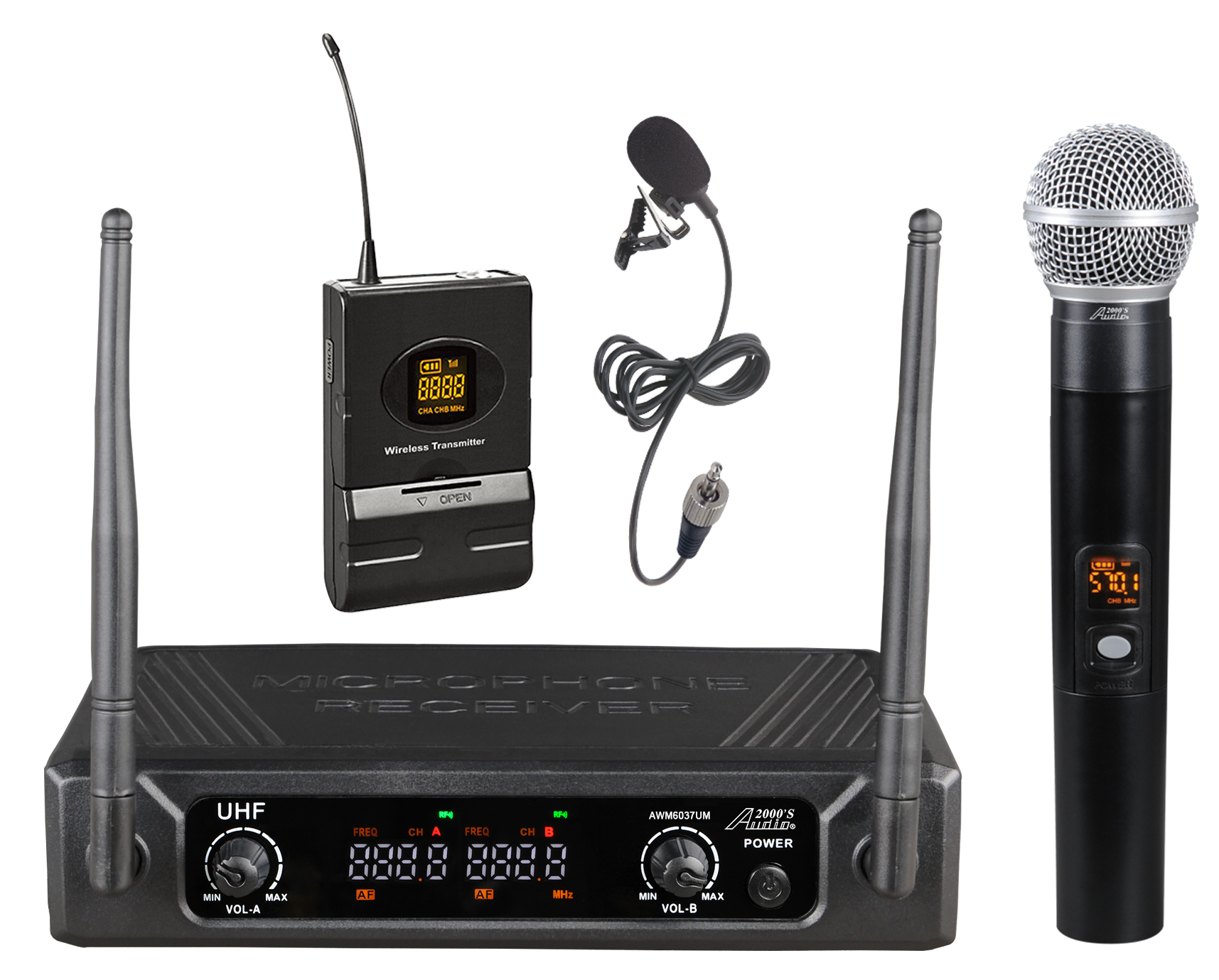

(3) Wireless System with One handheld Microphone + One Lavalier Microphone -
      AWM6037UL
(AWR6037U + AWX6036 + AWX6036T + Lavalier Microphone)

Click here to enlarge the above image.

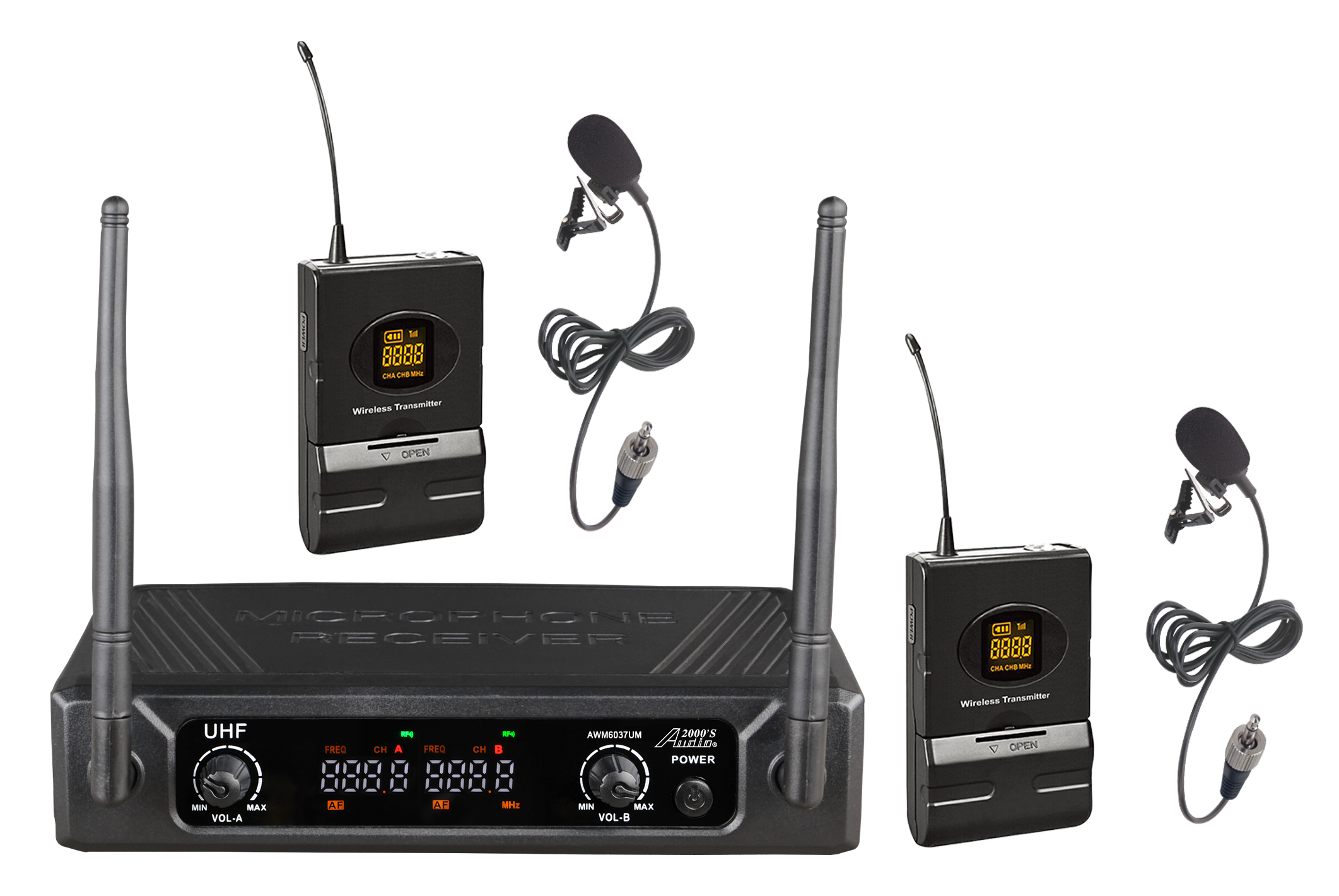

(4) Wireless System with Two lavalier Microphones -
      AWM6037UM
(AWR6037U + 2 x AWX6036T's + 2 x lavalier Microphones)

Click here to enlarge the above image.



 Back to Top

APPLICATIONS:

Musician; disc jockey (DJ); karaoke jockey (KJ); church; school; conference room; karaoke; home entertainment



Back to Top

SPECIFICATIONS:

AWR6037U RECEIVER

CARRIER FREQUENCY RANGE

500 MHz Range

SELECTABLE FREQUENCY CHANNEL 16

MODULATION MODEL

pi/4 DQPSK

S/N RATIO

96dB

SENSITIVITY

-96dBm

FREQUENCY RESPONSE 30 - 20,000 Hz

CHANNEL INTERVAL

600KHz

OUTPUT IMPEDANCE

600 Ω

TOTAL HARMONIC DISTORTION

0.03%

POWER SUPPLY

5V

POWER CONSUMPTION

< 85mA

DISPLAY LED DISPLAY



AWX6036 HANDHELD MICROPHONE TRANSMITTER

POWER OUTPUT

10 dBm

FREQUENCY RESPONSE 30 - 20,000 Hz

POWER SUPPLY

3V



AWX6036T BODY-PACK TRANSMITTER

POWER OUTPUT

10 dBm

FREQUENCY RESPONSE 30 - 20,000 Hz

POWER SUPPLY

3V



Back to Top

AWM6037U OWNER'S MANUAL:

Click here to extract the AWM6037U Owner's Manual.
