AWM6038U - Single-Channel UHF Wireless Microphone Systems with 16 Selectable Frequencies





FEATURES AWR6038U FRONT VIEW

AWR6038U REAR VIEW

SYSTEM CONFIGURATIONS

APPLICATIONS

SPECIFICATIONS

AWM6038U OWNER'S MANUAL







FEATURES:

1.      UHF Band Single Channel with 16 Selectable Frequencies

2.     Including One Wireless Transmitter (Handheld Microphone or Body-pack Transmitter)

3.    One Balanced XLR Output and One Unbalanced Output

4.    One Volume Control Knob

5.     Integrated Antenna for Effective RF Output and High Transmission Quality

6.    One AF level Meter and One RF Level Meter

7.  Infrared Frequency Synchronization

8.  Battery Capacity Indicator

9.    Rugged Receiver Chassis

10.   Operating Range up to 100ft

11. 5VDC USB Power Supply



Back to Top

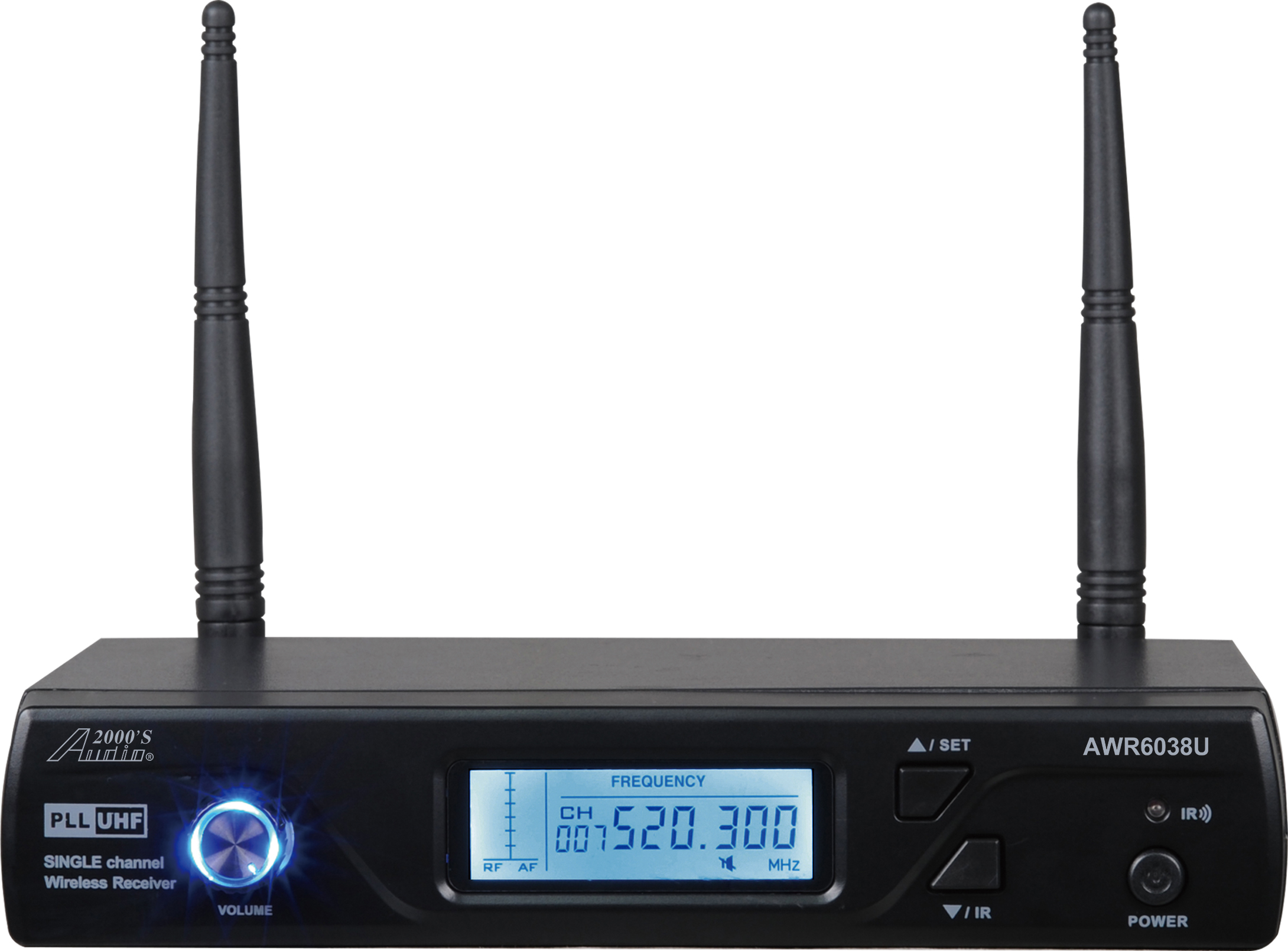

AWR6038U FRONT VIEW

Click here to enlarge the above image.

Back to Top

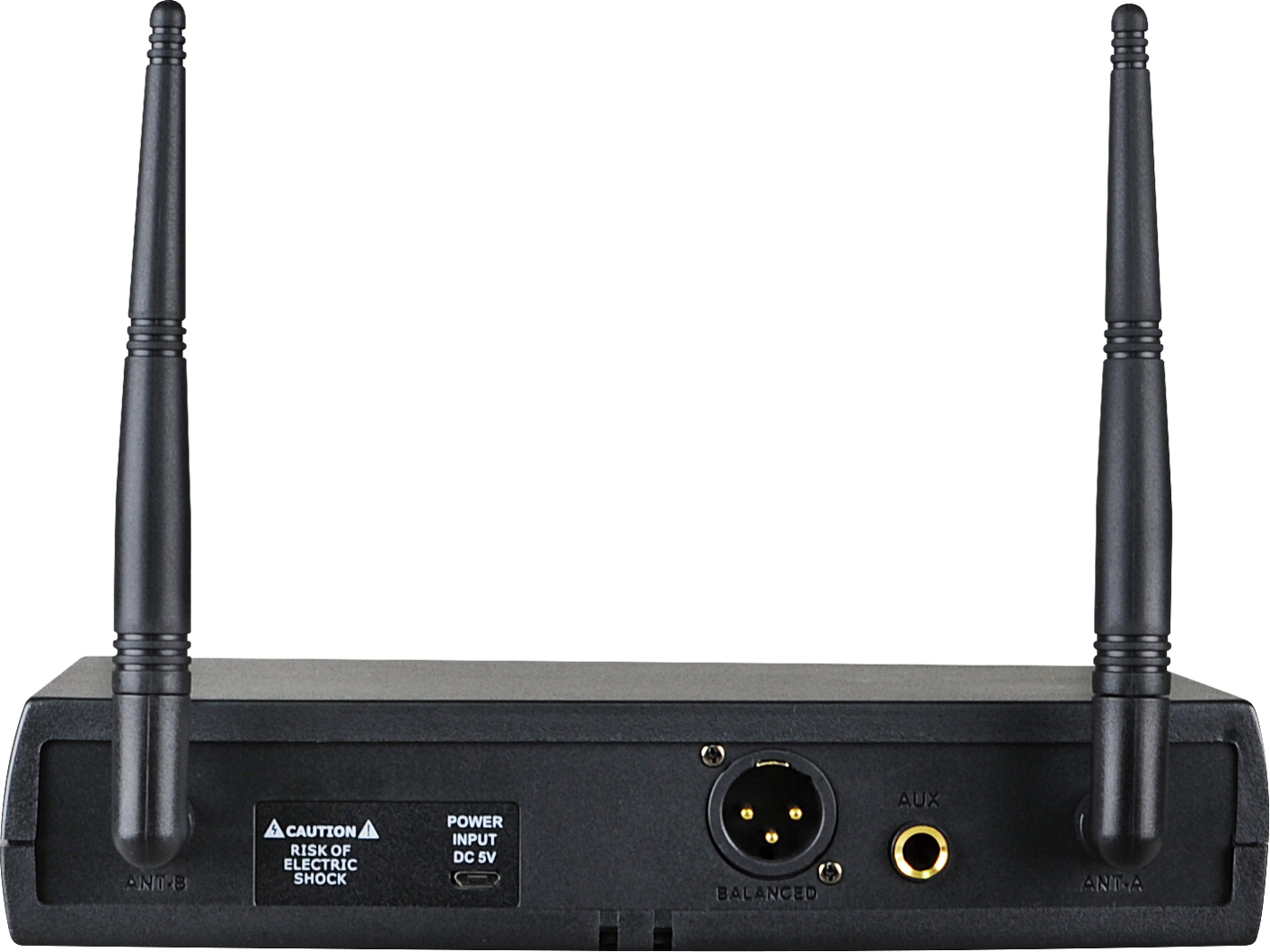

AWR6038U REAR VIEW

Click here to enlarge the above image.

Back to Top

SYSTEM CONFIGURATIONS:

The Audio2000'S AWM6038U wireless system is a UHF single-channel wireless microphone system.

Similar to the other Audio2000'S wireless systems, various transmitter options are provided to the

AWM6038U system users as follows:

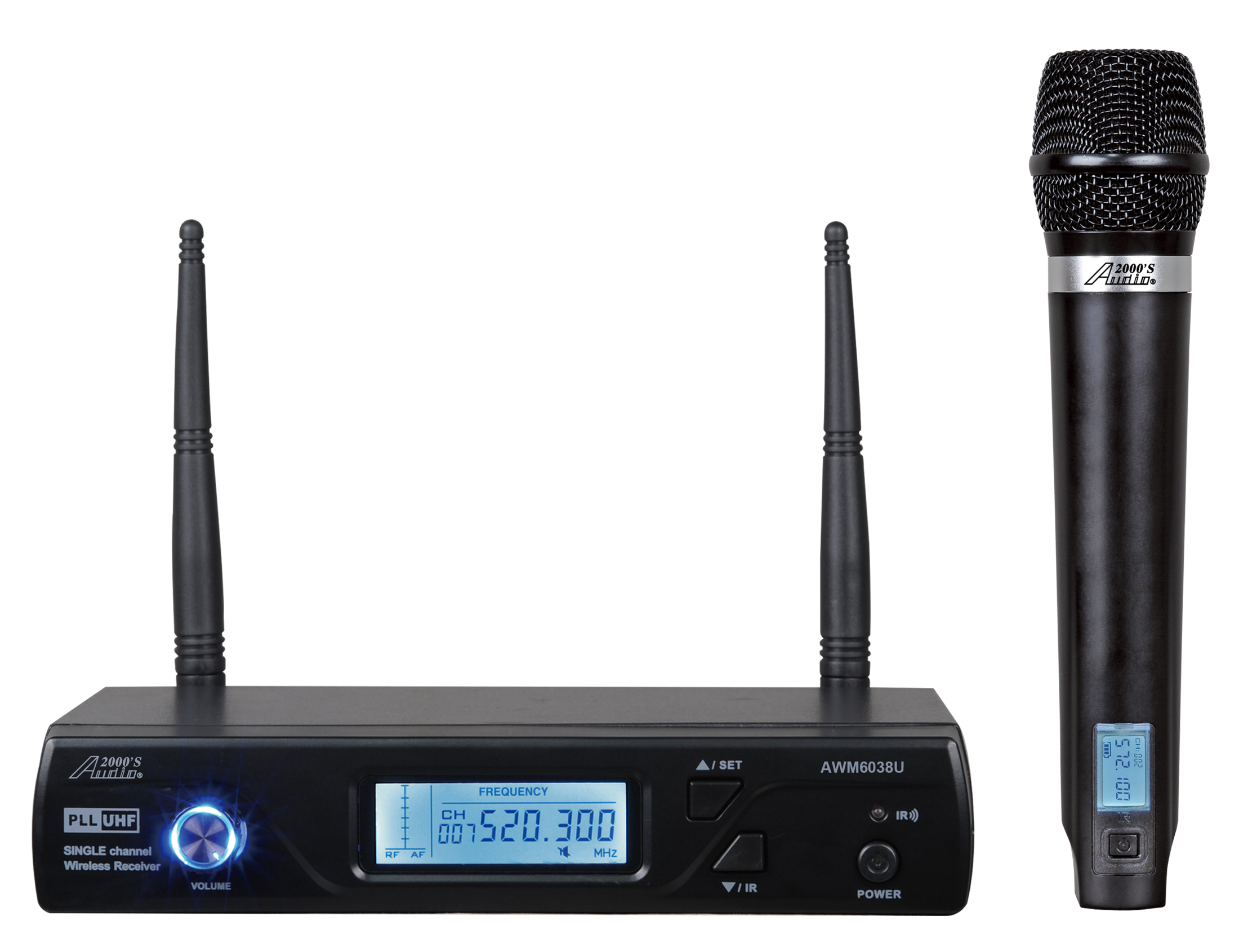

(1) Handheld Wireless Microphone System - AWM6038U (AWR6038U + AWX6038)



Click here to enlarge the above image.

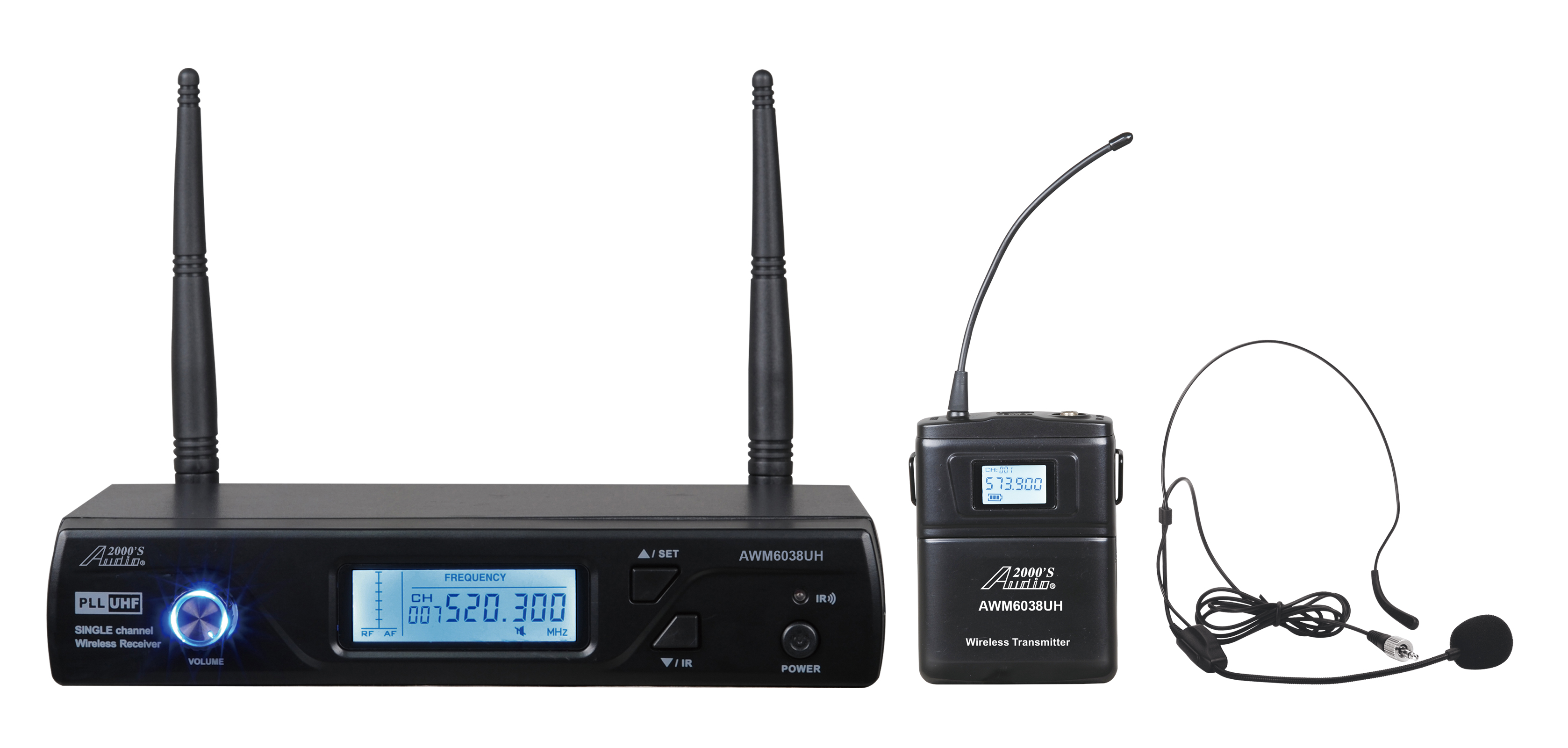

(2) Wireless System with One Headset Microphone -
      AWM6038UH
(AWR6038U + AWX6038T + Headset Microphone)

Click here to enlarge the above image.

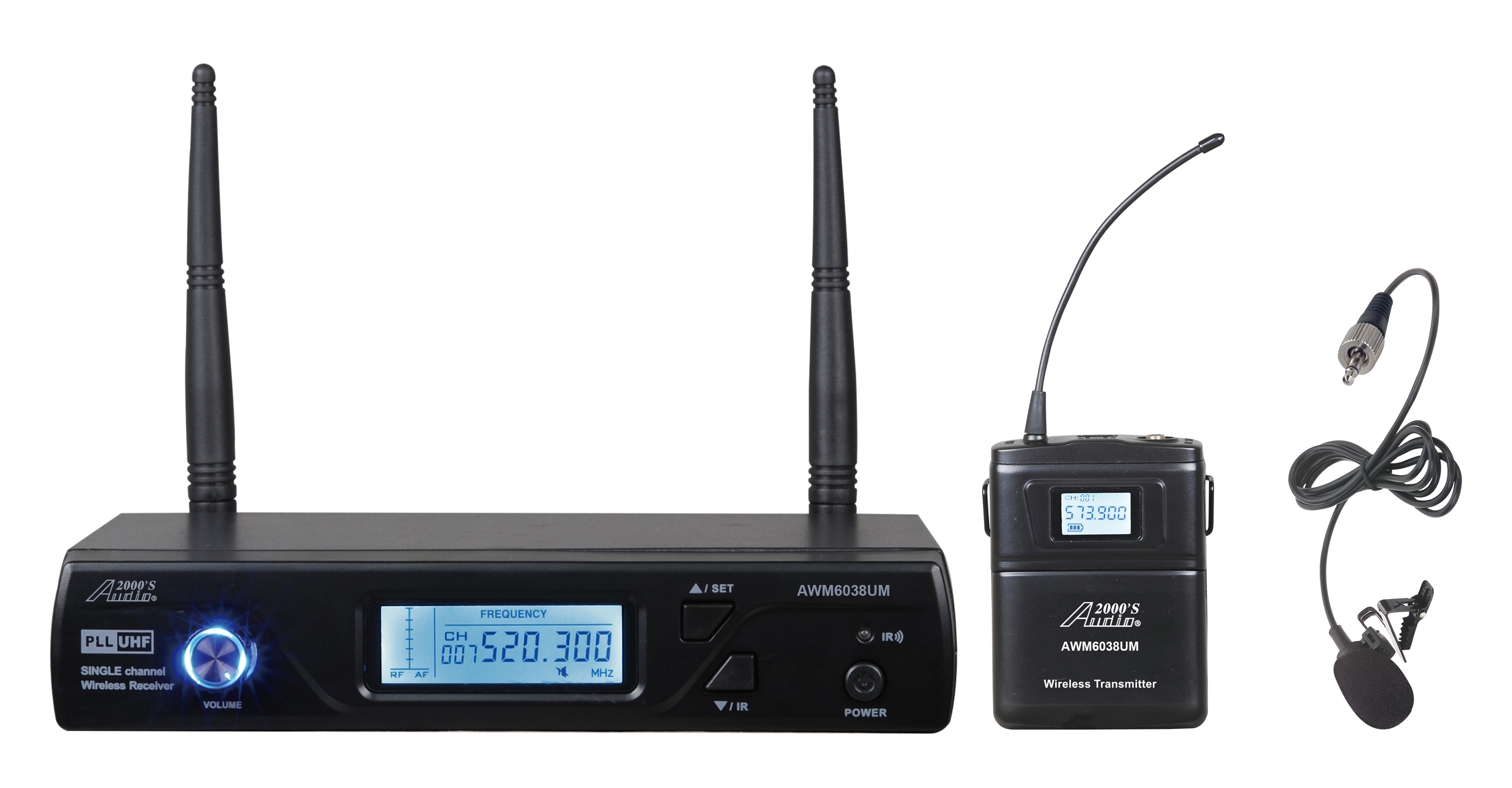

(3) Wireless System with One Lavalier Microphone -
      AWM6038UM
(AWR6038U + AWX6038T + Lavalier Microphone)



Click here to enlarge the above image.



 Back to Top

APPLICATIONS:

Musician; disc jockey (DJ); karaoke jockey (KJ); church; school; conference room; karaoke; home entertainment



Back to Top

SPECIFICATIONS:

AWR6038U RECEIVER

CARRIER FREQUENCY RANGE

500 MHz Range

SELECTABLE FREQUENCY CHANNEL 16

MODULATION MODEL

FM

S/N RATIO

90dB

SENSITIVITY

-90dBm

FREQUENCY RESPONSE 40 - 17,000 Hz

CHANNEL INTERVAL

300KHz

OUTPUT IMPEDANCE

600 Ω

TOTAL HARMONIC DISTORTION

< 1%

POWER SUPPLY

5V

POWER CONSUMPTION

< 300mA

DISPLAY LED DISPLAY



AWX6038 HANDHELD MICROPHONE TRANSMITTER

POWER OUTPUT

10 dBm

FREQUENCY RESPONSE 40 - 17,000 Hz

POWER SUPPLY

3V



AWX6038T BODY-PACK TRANSMITTER

POWER OUTPUT

10 dBm

FREQUENCY RESPONSE 40 - 17,000 Hz

POWER SUPPLY

3V



Back to Top

AWM6038U OWNER'S MANUAL:

Click here to extract the AWM6038U Owner's Manual.



Back to Top
