Audio2000'S Portable Tri-Trusses

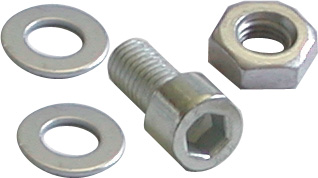

ATR4800-01
Bolts, Washers and Nut

8mm X 15mm

ATR4800-02
Bolts, Washers and Nut

8mm X 10mm

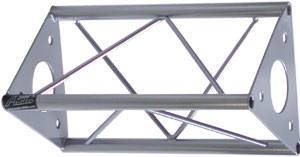

ATR4800/25
Versatile StructureTM Tri-Truss
150mm (6") Triangle
15mm (0.6") Steel Tubes (1.5mm Thick)
Length: 250mm (10")

ATR4800/50
Versatile StructureTM Tri-Truss
150mm (6") Triangle
15mm (0.6") Steel Tubes (1.5mm Thick)
Length: 500mm (20")

ATR4800/100
Versatile StructureTM Tri-Truss
150mm (6") Triangle
15mm (0.6") Steel Tubes (1.5mm Thick)
Length: 1,000mm (39.4")
|<== Total Length 39.4" ==>|

ATR4800/150
Versatile StructureTM Tri-Truss
150mm (6") Triangle
15mm (0.6") Steel Tubes (1.5mm Thick)
Length: 1,500mm (59.1")
|<== Total Length 59.1" ==>|

ATR4800/200
Versatile StructureTM Tri-Truss
150mm (6") Triangle
15mm (0.6") Steel Tubes (1.5mm Thick)
Length: 2,000mm (78.7")
|<== Total Length 78.7" ==>|

Back to Top

ATR4800/250
Versatile StructureTM Tri-Truss
150mm (6") Triangle
15mm (0.6") Steel Tubes (1.5mm Thick)
Length: 2,500mm (98.4")
|<== Total Length 98.4" ==>|

ATR4800/300
Versatile StructureTM Tri-Truss
150mm (6") Triangle
15mm (0.6") Steel Tubes (1.5mm Thick)
Length: 3,000mm (118.1")
|<== Total Length 118.1" ==>|

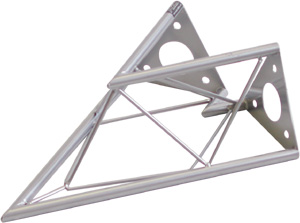

ATR4801
Versatile StructureTM Tri-Truss
150mm (6") Triangle
15mm (0.6") Steel Tubes (1.5mm Thick)
45Deg 2-Way Junction (400 + 400mm)

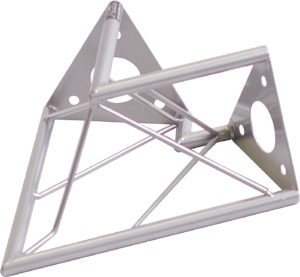

ATR4802
Versatile StructureTM Tri-Truss
150mm (6") Triangle
15mm (0.6") Steel Tubes (1.5mm Thick)
60Deg 2-Way Junction (300 + 300mm)

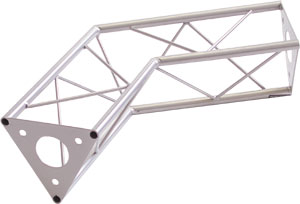

ATR4803
Versatile StructureTM Tri-Truss
150mm (6") Triangle
15mm (0.6") Steel Tubes (1.5mm Thick)
120Deg 2-Way Junction (300 + 300mm)

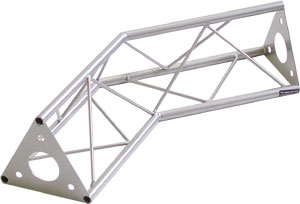

ATR4804
Versatile StructureTM Tri-Truss
150mm (6") Triangle
15mm (0.6") Steel Tubes (1.5mm Thick)
135Deg 2-Way Junction (300 + 300mm)

Back to Top

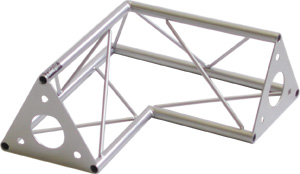

ATR4805
Versatile StructureTM Tri-Truss
150mm (6") Triangle
15mm (0.6") Steel Tubes (1.5mm Thick)
2-Way Junction (300 + 300mm)

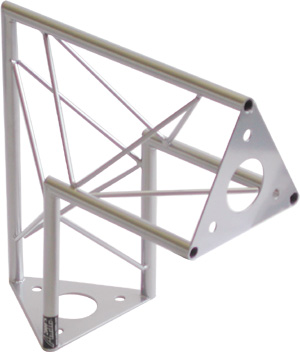

ATR4806
Versatile StructureTM Tri-Truss
150mm (6") Triangle
15mm (0.6") Steel Tubes (1.5mm Thick)
2-Way Junction (300 + 300mm)

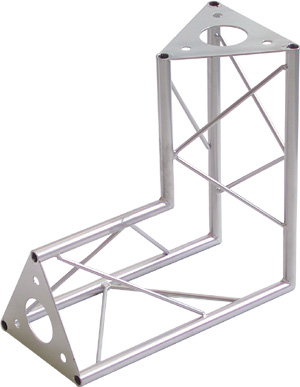

ATR4807
Versatile StructureTM Tri-Truss
150mm (6") Triangle
15mm (0.6") Steel Tubes (1.5mm Thick)
2-Way Junction (300 + 300mm)

Back to Top

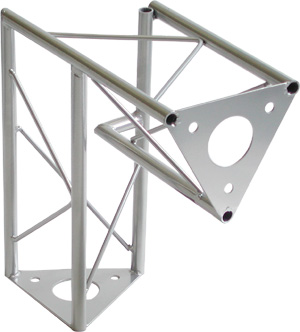

ATR4808
Versatile StructureTM Tri-Truss
150mm (6") Triangle
15mm (0.6") Steel Tubes (1.5mm Thick)
2-Way Junction (300 + 300mm)

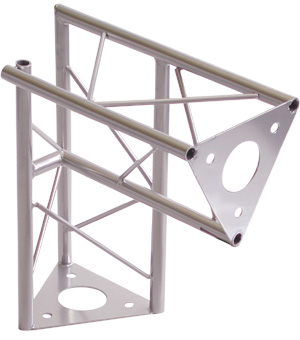

ATR4809
Versatile StructureTM Tri-Truss
150mm (6") Triangle
15mm (0.6") Steel Tubes (1.5mm Thick)
2-Way Junction (300 + 300mm)

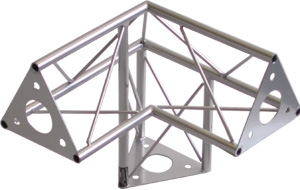

ATR480A
Versatile StructureTM Tri-Truss
150mm (6") Triangle
15mm (0.6") Steel Tubes (1.5mm Thick)
2-Way Junction w/Leg (300 + 300 + 300mm)

Back to Top

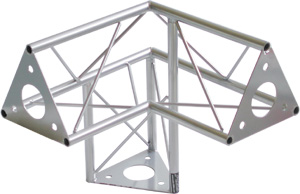

ATR480B
Versatile StructureTM Tri-Truss
150mm (6") Triangle
15mm (0.6") Steel Tubes (1.5mm Thick)
2-Way Junction w/Leg (300 + 300 + 300mm)

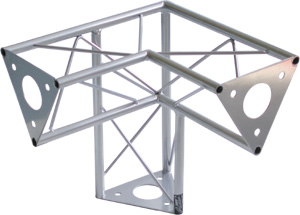

ATR480C
Versatile StructureTM Tri-Truss
150mm (6") Triangle
15mm (0.6") Steel Tubes (1.5mm Thick)
2-Way Junction w/Leg (300 + 300 + 300mm)

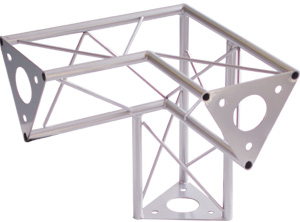

ATR480D
Versatile StructureTM Tri-Truss
150mm (6") Triangle
15mm (0.6") Steel Tubes (1.5mm Thick)
2-Way Junction w/Leg (300 + 300 + 300mm)

Back to Top

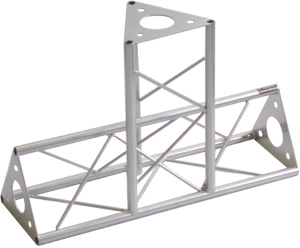

ATR480E
Versatile StructureTM Tri-Truss
150mm (6") Triangle
15mm (0.6") Steel Tubes (1.5mm Thick)
3-Way Junction (300 + 300 + 300mm)

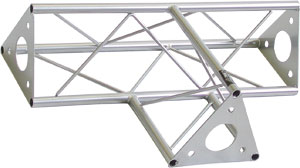

ATR480F
Versatile StructureTM Tri-Truss
150mm (6") Triangle
15mm (0.6") Steel Tubes (1.5mm Thick)
"T" Junction w/Leg (300 + 450mm)




ATR480G
Versatile StructureTM Tri-Truss
150mm (6") Triangle
15mm (0.6") Steel Tubes (1.5mm Thick)
4-Way Junction (450 + 450mm)

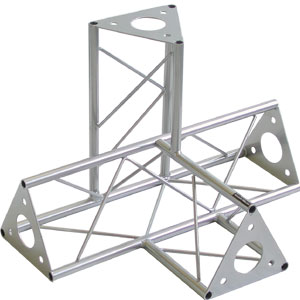

ATR480H
Versatile StructureTM Tri-Truss
150mm (6") Triangle
15mm (0.6") Steel Tubes (1.5mm Thick)
"T" Junction w/Leg (450 + 300 + 300 + 300mm)

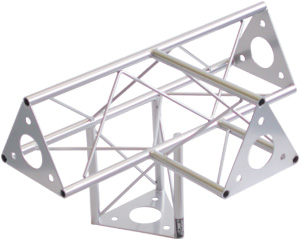

ATR480J
Versatile StructureTM Tri-Truss
150mm (6") Triangle
15mm (0.6") Steel Tubes (1.5mm Thick)
3-Way Junction w/ Leg (450 + 300 + 300mm)

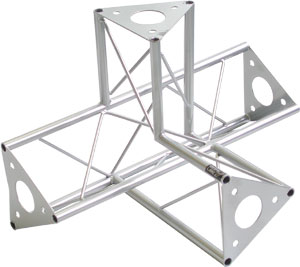

ATR480K
Versatile StructureTM Tri-Truss
150mm (6") Triangle
15mm (0.6") Steel Tubes (1.5mm Thick)
2-Way Junction w/2 Legs (450 + 300 + 300mm)

Back to Top

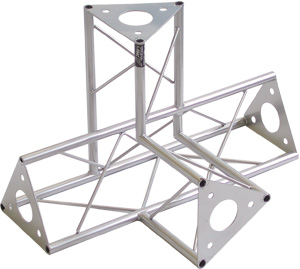

ATR480L
Versatile StructureTM Tri-Truss
150mm (6") Triangle
15mm (0.6") Steel Tubes (1.5mm Thick)
2-Way Junction w/2 Legs (450 + 300 + 300mm)

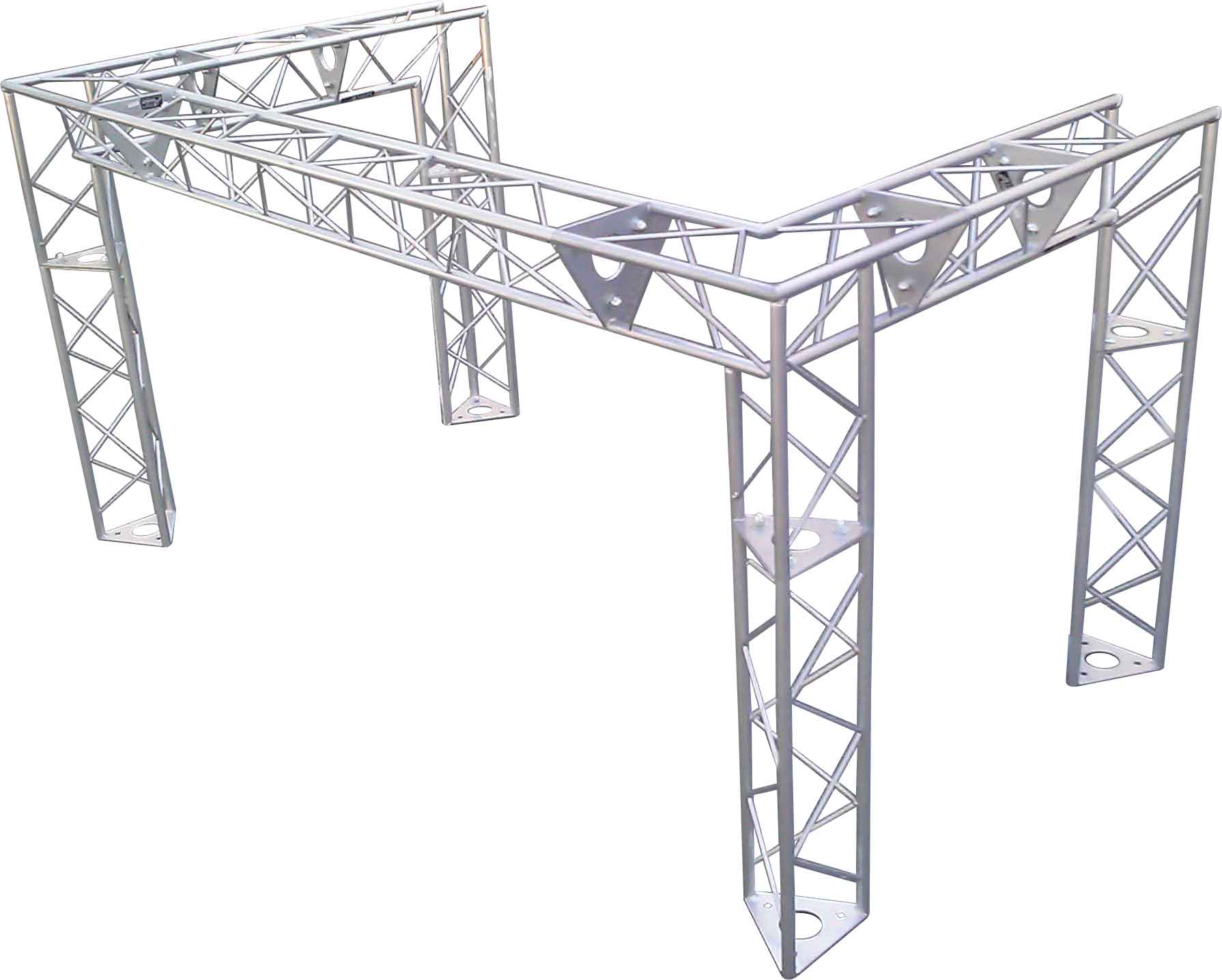

SETUP 1
