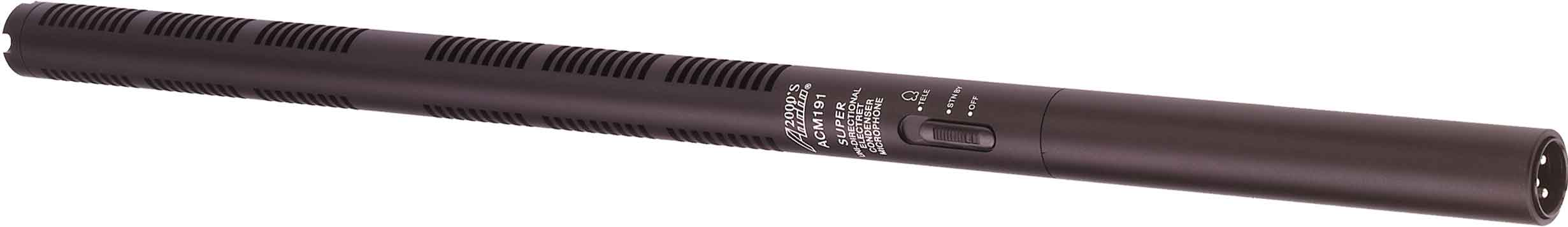

ACM191 - Professional Supercardioid Shotgun Condenser Microphone



The Audio2000'S ACM191 shotgun microphone is a premium  quality supercardioid condenser microphone.  The ACM191 retains a true supercardioid pickup pattern throughout its frequency range.  This uniform supercardioid pattern greatly reduces off-axis coloration, increases separation between adjacent sources, and reduces feedback.

The ACM191 also features an open-cage design for minimizing any disturbance to the smooth polar pattern.  Moreover, a newly designed internal shockmount effectively minimizes mechanically transmitted stand and handling noise.

The microphone's uniquely handsome and rugged mesh grille is precisely machined for extended life and durability.

PACKAGE

The standard ACM191 package includes an ACM191 condenser microphone, a microphone holder, a shotgun microphone windscreen, and a 20' low-impedance microphone cable in a deluxe PVC box with a cardboard cover.

SPECIFICATIONS

Type Condenser
Polar Pattern Supercardioid
Sensitivity 15mV/Pa @1KHz
Input Impedance 1KOhms (Balanced)
Frequency Response 80 - 15,000 Hz
Max. Input Level 120dB SPL, 1KHz @ 1% THD
Dynamic Range (typical) 100dB, 1KHz @ Max SPL
S/N Ratio 60dB 1KHz @1Pa
Phantom Power 9-52V DC (2.0mA typical)
Battery 1.5V AA Battery
