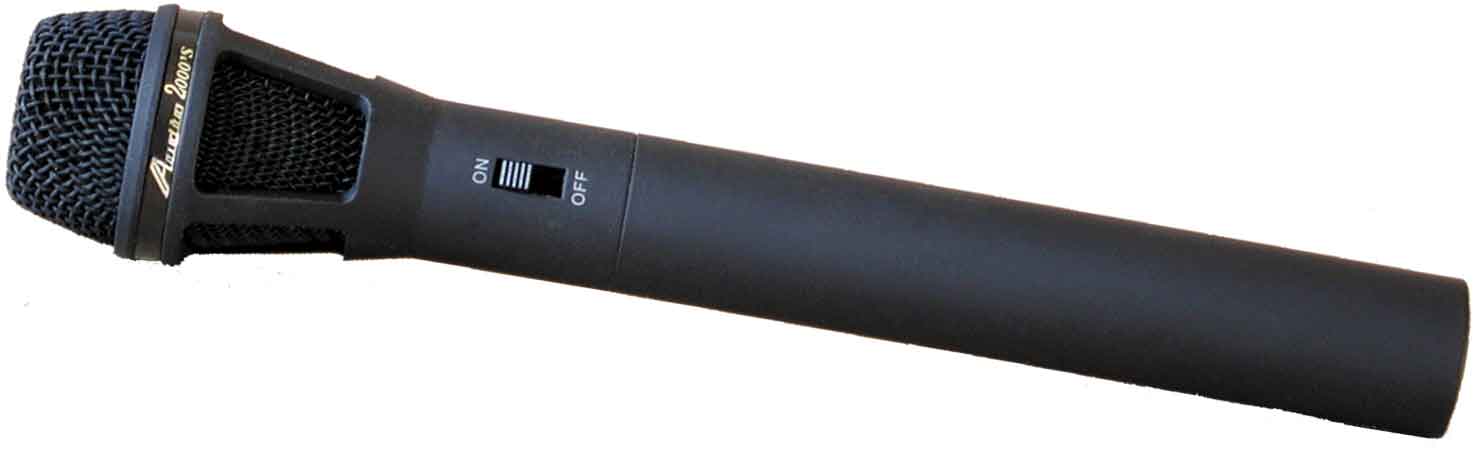

ACM193 - Professional Condenser Microphone



The Audio2000’S ACM193 is a versatile professional condenser microphone of exceptionally high quality.  A superefficient large diaphragm design provides maximum output level for improved signal-to-noise ratio for all sound reinforcement applications.

The advanced design in the shock-mounted ACM193 microphone element and the delicately finished leatherette-painting surface keep the handling noise extremely low.

The excellent transient response and the wide frequency range inhered by the ACM193 condenser microphone ensure a transparent presentation in any vocal and/or instrument sound amplification application.

Throughout the ACM193’s full frequency range, the cardioid pattern of the ACM193 stays uniform and symmetrical to significantly cut off any feedback and off-axis coloration.

The extraordinary features of sound clarity and transparency, high output, extremely low handling noise,
uniform cardioid pickup pattern, and delicately designed and finished surface  present the ACM193
condenser microphone with outstanding values in any critical vocal and instrument application.

PACKAGE

The standard ACM193 package includes an ACM193 microphone, a microphone holder, and a 20' low impedance microphone cable in a deluxe color cardboard box.

APPLICATIONS

Musician / drummers (drum set overhead mic.); disc jockey (DJ); karaoke jockey (KJ); church; school; conference room (quiet mic.); karaoke

SPECIFICATIONS

Element Electret Condenser
Polar Pattern Cardioid
Frequency Response 50 -18,000 Hz
Sensitivity -70 dB +/- 3 dB
Impedance 250 Ohms (Balanced)
Maximum Input Sound Level Phantom 115 dB SPL @1Khz, 1% T.H.D.

Battery 110 dB SPL@ 1KHz, 1% T.H.D.

Signal/Noise Ratio 60 dB @ 1Khz, 1pa*
Phantom Power 9-52V DC, 2.0 mA Typical
Battery Type AA 1.5V Battery
Battery Current 1.0 mA Typical
Connector XLRM, Internal
*1pa = 94 dB SPL = 10 dyne/cm2 = 10 microbars
