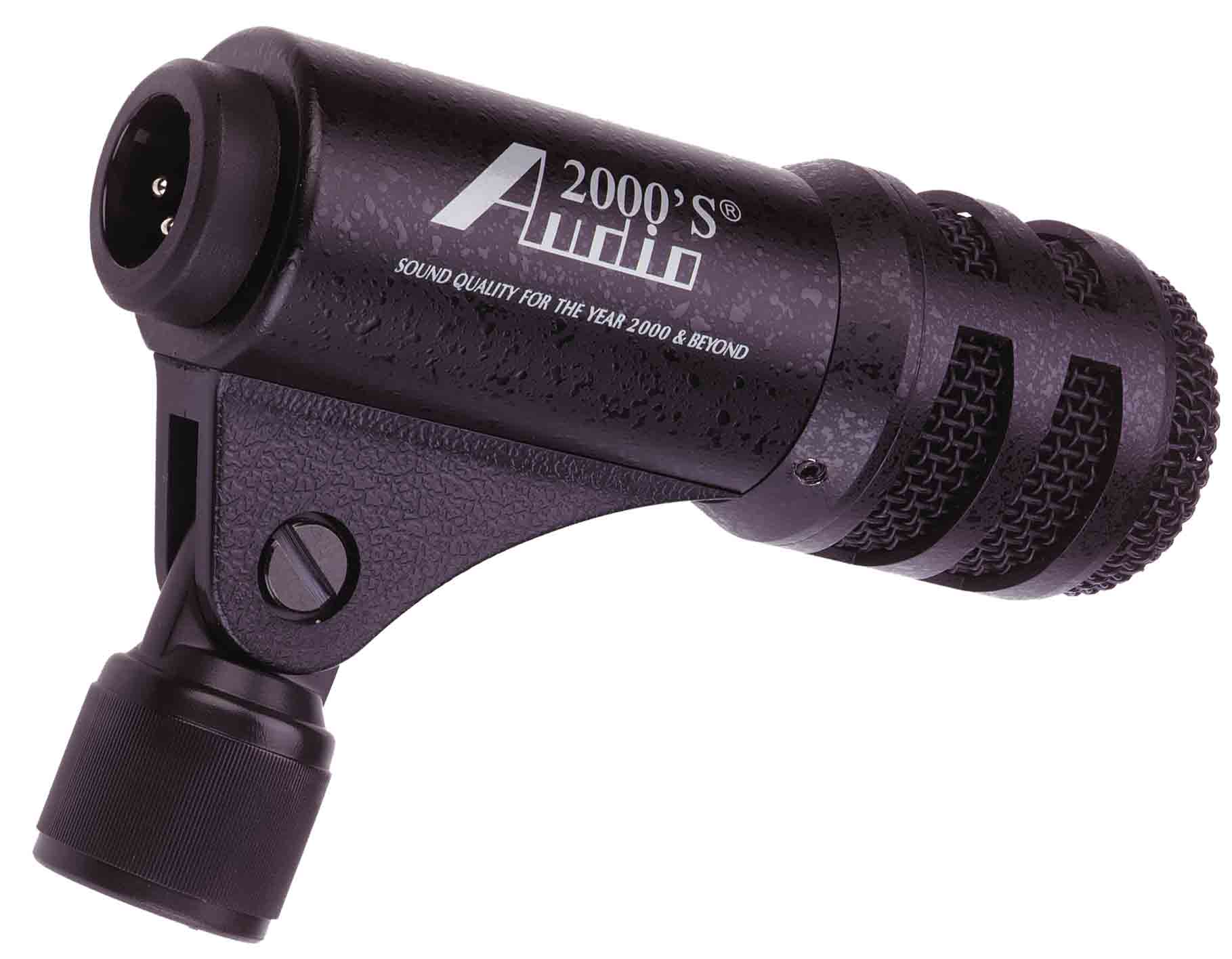

ADM135I - Professional Dynamic Drum Microphone

The Audio2000'S ADM135I instrument dynamic microphone is a professional bass drum microphone with outstanding performances exceeding the expectations from most of the professional.

In order to achieve an exceptional bass detail and clarity for the bass drum sound applications, the ADM135I has been designed to contain a low impedance capsule with a light weight diaphragm which not only inheres excellent transient response and a wide frequency range but also is capable of tolerating high sound pressure levels.

The ADM135I bass drum microphone also contains a rugged steel mesh grille and a precisely constructed metal casing for extended life and durability.

PACKAGE

The standard ADM135I package includes an ADM135I drum microphone in a deluxe professional cardboard box.

APPLICATIONS

Musician / drummer; school band

SPECIFICATIONS

Type Dynamic
Polar Pattern Cardioid
Sensitivity 1.6mV/Pa @1KHz (-76 +/- 3dB; 0dB = 1V/0.1Pa)
Output Impedance 400 Ohms
Frequency Response 40 - 18,000 Hz
Max. Sound Level 138dB (SPL)
Weight 8.7 oz. / 250g
