APM166ND -
Neodymium Dynamic Microphone (Chrome) with 20 ft. Hi-Z Cable
APM166ND-L - Neodymium Dynamic Microphone (Chrome) with 20 ft. Lo-Z Cable
APM166NDB - Neodymium Dynamic
Microphone (Black) with 20 ft. Hi-Z Cable
APM166NDB-L - Neodymium Dynamic Microphone (Black) with 20 ft. Lo-Z Cable

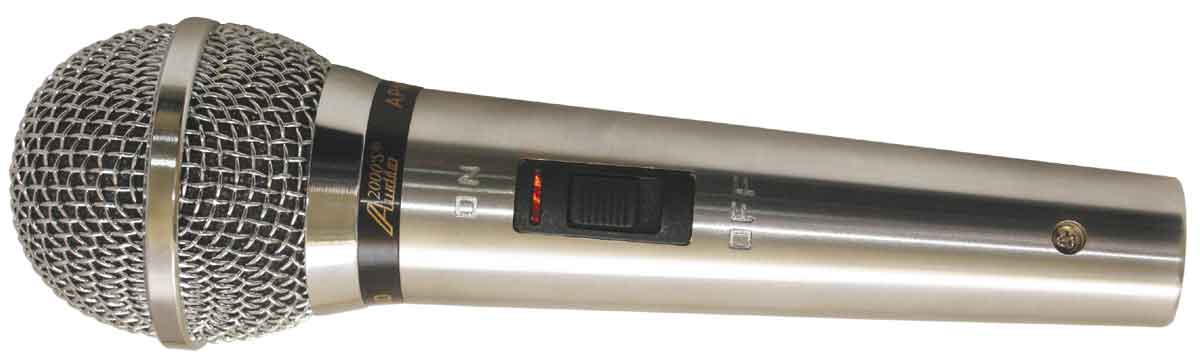

The Audio2000'S® APM166ND microphone is a
versatile professional dynamic microphone of exceptionally high quality. A super
efficient magnetic circuit design utilizing a neodymium magnet element provides maximum
output level for an improved signal-to-noise ratio for all vocal and sound reinforcement
applications.
Incorporated with an extremely light weight diaphragm,
the low impedance capsule inheres excellent transient responses and a wide frequency range
with the results of a transparent presentation of sound amplification.
The APM166ND's frequency response is optimized for
vocal application by controlling proximity effect through its low-frequency rolloff.
The APM166ND's extended frequency response provides a clarity normally found only in
condenser microphones.
Throughout the APM166ND's full frequency range, the
cardioid pattern of the APM166ND stays uniform and symmetrical to significantly cut off
any feedback and off-axis coloration. Advanced design in the shock-mounted
microphone element and delicately finished surface keep handling noise extremely low.
The extraordinary features of sound clarity and
transparency, high output, extremely low handling noise, uniform cardioid pickup pattern,
and delicately designed and finished surface make the APM166ND microphone an outstanding
value in any critical vocal application.
Features Configured To Be User Friendly
APM166ND comprises a low impedance element with
extremely light weight diaphragm for excellent transient response and a wide frequency
range with exceptional detail and clarity.
APM166ND contains a neodymium magnet element
precisely constructed in a housing having wide dynamic range for smoothly reproducing a
clear and uncolored sound.
With low-frequency rolloff and extended
high-frequency response, the APM166ND captures the original vocal sound with extraordinary
clarity.
Tight cardioid pattern stays uniform and symmetrical
throughout the APM166ND's entire frequency range to minimize feedback.
Advanced shockmount and microphone element design
effectively minimize handling and stand noise.
Rugged and durable nickel finished zinc casing.
A rugged dent-resistant steel mesh grille provides
extended life and durability.
PACKAGE
The standard APM166ND package includes an APM166ND
microphone and a 20' microphone cable in a cardboard box. The microphone cable can be a
low impedance balanced cable (XLRF-XLRM) or an XLR - 1/4" cable.
APPLICATIONS
Musician / lead singers; disc jockey (DJ); karaoke
jockey (KJ); church; school; conference room; karaoke; home entertainment
SPECIFICATIONS
Type |
Dynamic (Neodymium Magnet) |
Polar Pattern |
Super-Cardioid |
Sensitivity |
2.0mV/Pa @1KHz (-74 +/- 3dB; 0dB =
1V/0.1Pa) |
Output Impedance |
600 Ohms |
Frequency Response |
50 - 16,000 Hz |
Max.Input Level |
>130 dB (SPL) |
Weight |
10.1oz. / 283g |
