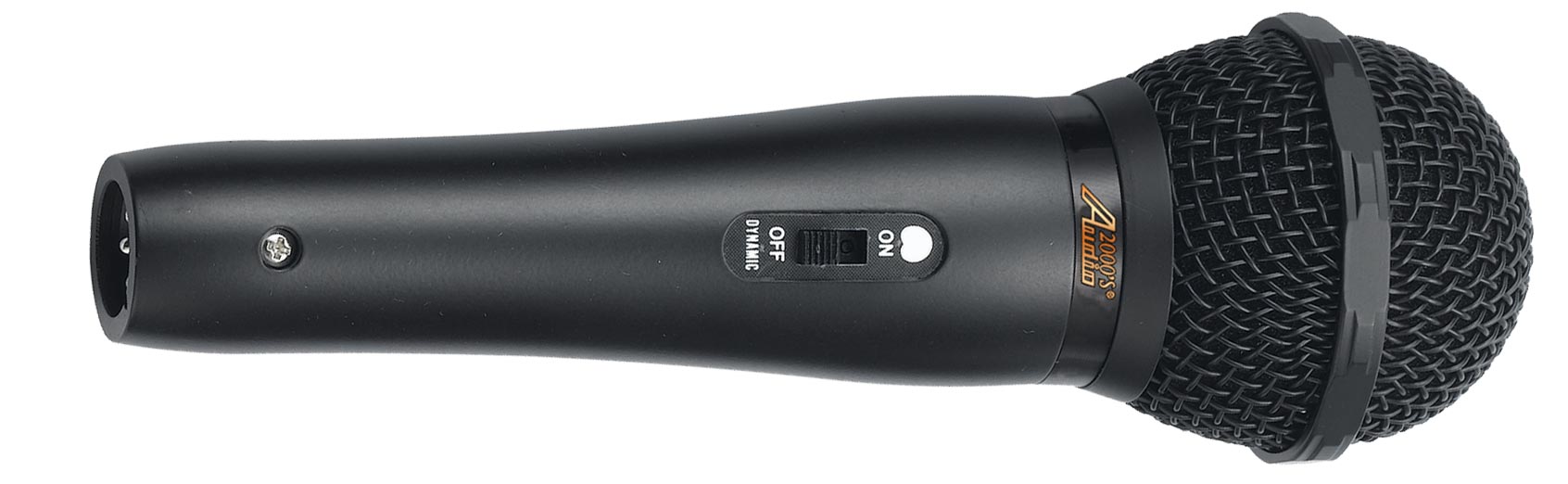

ADM101 -
Professional Super-Cardioid
Neodymium Dynamic Microphone with 20 ft. Hi-Z Cable
ADM101-L - Professional Super-Cardioid
Neodymium Dynamic Microphone with 20 ft. Lo-Z Cable
The Audio2000'S®
ADM101 is a versatile
professional dynamic microphone of exceptionally high quality. A super-efficient
magnetic circuit design utilizing neodymium magnet element provides maximum
output level for improved signal-to-noise ratio for all vocal and sound
reinforcement applications.
Incorporated with an extremely light weight diaphragm and an ultra-light
aluminum humbucking voice coil, the tranformerless low impedance capsule of the
ADM101 inheres excellent transient response and a wide
frequency range with the results of a transparent presentation of sound
amplification.
The ADM101’s
frequency response is optimized for vocal application by controlling proximity
effect through its low-frequency rolloff. The ADM101’s
extended high-frequency response provides a clarity normally found only in
condenser microphones.
Throughout the ADM101’s full frequency range, the
super-cardioid pattern of the ADM101
stays uniform and symmetrical to significantly cut off any feedback and off-axis
coloration. Advanced design in the shock-mounted microphone element and
delicately finished surface keep handling noise extremely low.
The
extraordinary features of sound clarity and transparency, high output,
extremely low handling noise, uniform super-cardioid
pickup pattern, and delicately designed and finished surface present the ADM101
microphone with outstanding values in any critical vocal application.
FEATURES:
1. ADM101
comprises a low impedance element with extremely light weight diaphragm
for excellent transient response and a wide frequency range with exceptional
detail and clarity.
2. ADM101 contains
a neodymium
magnet elements
precisely constructed in a housing having wide dynamic range for smoothly
reproducing a clear and uncolored sound.
3. With low-frequency rolloff and extended high-frequency response, the ADM101
captures the original vocal sound with extraordinary clarity.
4. Tight supercardioid pattern stays uniform and symmetrical throughout
the ADM101’s entire frequency range to minimize
feedback.
5. Advanced shockmount and microphone element design effectively minimizes
handling and stand noise.
6. Rugged and durable zinc casing.
7. A rugged dent-resistant steel mesh grille provides extended life and
durability.
PACKAGE
The standard ADM101 package includes an ADM101
microphone and a 20' microphone cable in a deluxe color
cardboard box. The microphone cable
can be a low impedance balanced cable (XLRF-XLRM) or an XLR - 1/4" cable.
APPLICATIONS
Musician/lead singer; disc jockey (DJ); karaoke jockey (KJ); church;
school; conference room; karaoke; home entertainment
SPECIFICATIONS
| Type |
Dynamic |
| Polar Pattern |
Super-Cardioid |
| Sensitivity |
2.0mV/Pa @1KHz (-74 +/- 3dB; 0dB = 1V/0.1Pa) |
| Output Impedance |
600 Ohms |
| Frequency Response |
50 - 16,000 Hz |
| Max.
Input Level |
>130 dB(SPL) |
|
Dimensions |
Head
Diameter: 1.93” / 49mm
Total Length: 6.7” / 171mm |
| Weight |
10.1
oz. / 283 g |
