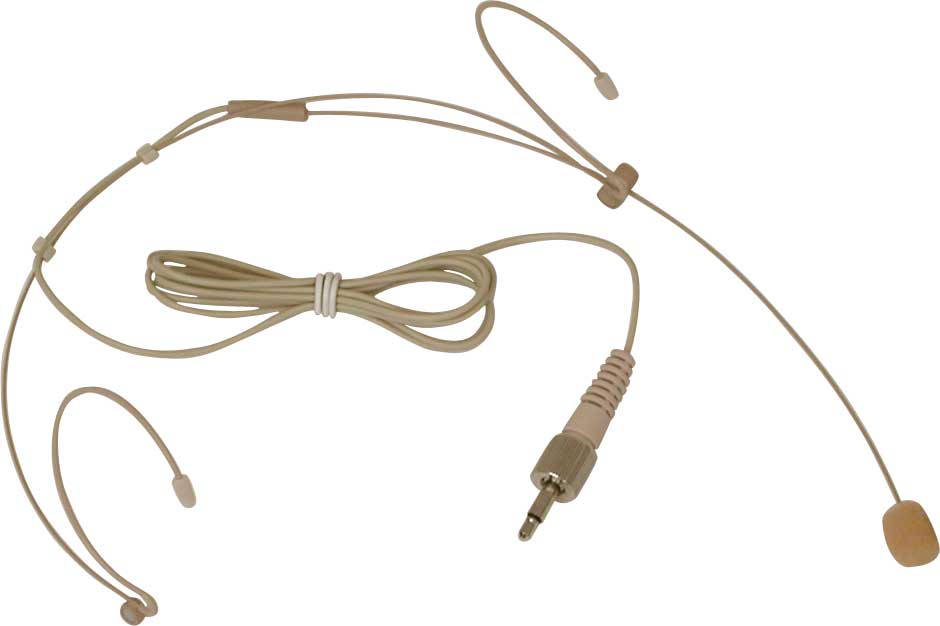

ACC6540H-02 - Professional Miniature Condenser Headset Microphone

The Audio2000'S^® ACC6540H-02 is a miniature condenser headset microphone featuring a micro-miniature construction for unobtrusive vocal pick-up.  Furthermore, a high quality back-electret condenser microphone element provides the ACC6540H-02 condenser microphone with excellent sensitivity and extremely wide frequency responses.

SPECIFICATIONS

Type	Electret Condenser
Polar Pattern	Cardioid
Sensitivity	-39 ± 3 dB (@ 1,000 Hz)
Output Impedance	< 680 Ohms
Frequency Response	50 - 12,000 Hz
Power Supply	DC 1.5V (External Power)
Connector	3.5mm with Threaded Sleeve
