AKJ7041 - Karaoke
Mixer
with Digital Key Control &
Echo

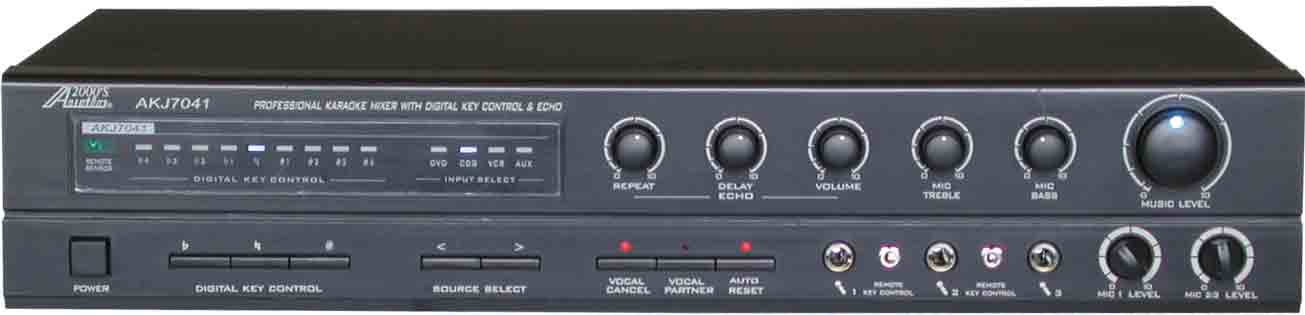

Front View

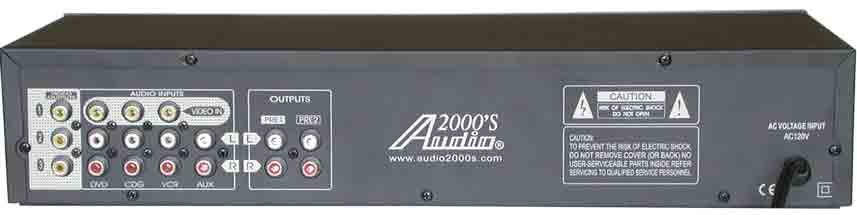

Rear
View
The Audio2000'S® AKJ7041
is a karaoke
mixer
with digital key control and echo.
The AKJ7041
digital key & echo karaoke
mixer contains three microphone inputs and
four music source inputs. Up to
three microphone inputs can be mixed with one of the
four music sources. There
is a music volume control knob to control
the music volume. There are two
microphone volume control knobs,
where one control knob is used to adjust the volume of the
Mic 1 input and the other is used to adjust the volume of
the Mic 2 and Mic 3 inputs.
The tone
of the microphone input sound can
be
adjusted through a MIC TREBLE control knob and a
MIC BASS control knob respectively.
The AKJ7041
digital key & echo karaoke
mixer further contains the echo control function, the key control function, and voice
canceling function. The echo control function enables the users to control or adjust
the echo volume, the echo delay, and/or the echo repeat.
The key control function allows the users to adjust the key
up to +4 or -4 steps. The voice canceling feature is
controlled by the Vocal Cancel Button and the Vocal Partner
button. The vocal cancel feature can be used to remove
the multiplexed vocal portion of a song while the vocal
partner feature allows the multiplexed vocal portion of the
song to be removed only when the microphone inputs are
present.
As can
be seen from the AKJ7041 rear panel, there are three video
inputs. Each video input is selected through the
corresponding audio input. There are two pre-amp. outputs
and three video outputs.
The AKJ7041
digital key & echo karaoke
mixer has been engineered for high
quality sound with a wide dynamic range, low noise level.
This is achieved with great attention to various product
development stages, from the early product planning stage,
through the high quality circuit design stage, to the final
production stage with strict component selection. All of
these make the AKJ7041
digital key & echo karaoke
mixer an enjoyable karaoke entertainment vehicle
for all the users.
Features Configured To Be User Friendly
Remote Control:
Yes
Key Control Steps:+/-4
Digital Key Control Display: Yes
Digital Echo Control: Volume/Repeat/Delay
Microphone Inputs :Three with Two Key Control Jacks
Individual Microphone Volume Controls:
Two
Microphone Tone Control (Treble/Bass):
Yes
Master Music Volume Control: Yes
Vocal Cancel and Vocal Partner
Two Pre-out
Audio Outputs and Three Video Outputs
Four Audio Inputs and Three Video Inputs
SPECIFICATIONS
Total Harmonic Distortion |
0.2% @ 1KHz, -3dB, 8 Ohms |
Microphone Input Sensitivity |
100mV @ 1KHz (T.H.D. 0.1%) |
Music Input Sensitivity |
150mV / 47K Ohms |
Output Level |
130mV / 50K
Ohms |
Freq. Response |
25 - 80,000 Hz |
Signal-To-Noise Ratio |
95 dB |
Tone Control Char. (Bass) |
+/- 10 dB @ 100 Hz |
Tone Control Char. (Treble) |
+/- 10 dB @ 10 KHz |
Speaker Terminal Load |
8 to 16 Ohms |
Power Consumption |
45W |
Dimensions (W X H X D) |
420 X 130 X 398mm (16.5" X
5.1" X 15.7") |
Weight |
8.0 Kg (17.6 lb) |
Accessories |

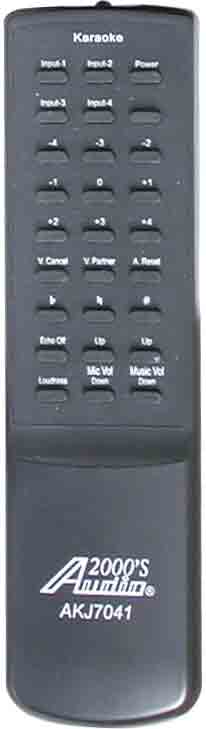

Remote Control Commander |
|
