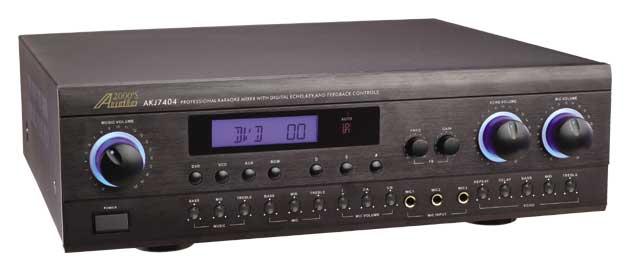

AKJ7404 - Professional Karaoke Mixer with Digital Echo, Key and Feedback Controls



FEATURES

AKJ7404 FRONT PANEL

AKJ7404 REAR PANEL



SPECIFICATIONS



ACCESSORIES



AKJ7404 OWNER'S MANUAL

FEATURES:

  • Utilizing the Quasi-Parametric Equalization Techniques Qua
  • Digital Echo Volume/Delay/Repeat/Treble/Mid/Bass Controls
  • Digital Feedback Control (Quasi-Parametric Equalization: Frequency Range: 80 - 7.5K Hz; Gain Boost/Cut Range: 12 dB)
  • Dual Echo Digital Sound Field Simulation
  • Five Microphone Inputs
  • Master Microphone Volume Control
  • Three (3) Individual Microphone Volume Controls
  • Microphone Tone Control (Treble/Mid/Bass)
  • Master Music Volume Control
  • Music Treble/Mid/Bass Controls
  • Digital Key Controller ( 6 Steps)
  • Microphone Sound Effector Loop
  • Music Sound Effector Loop
  • Four Stereo Audio Inputs
  • Four Video Inputs (DVD, VCD, AUX, BGM)
  • Four Video Outputs ( 1 - 4)
  • Two Pre-Outs
  • Input Level Controls

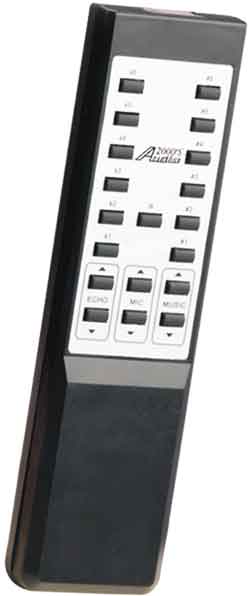

  • Remote Control

Back to Top

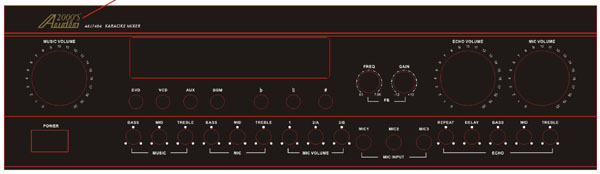

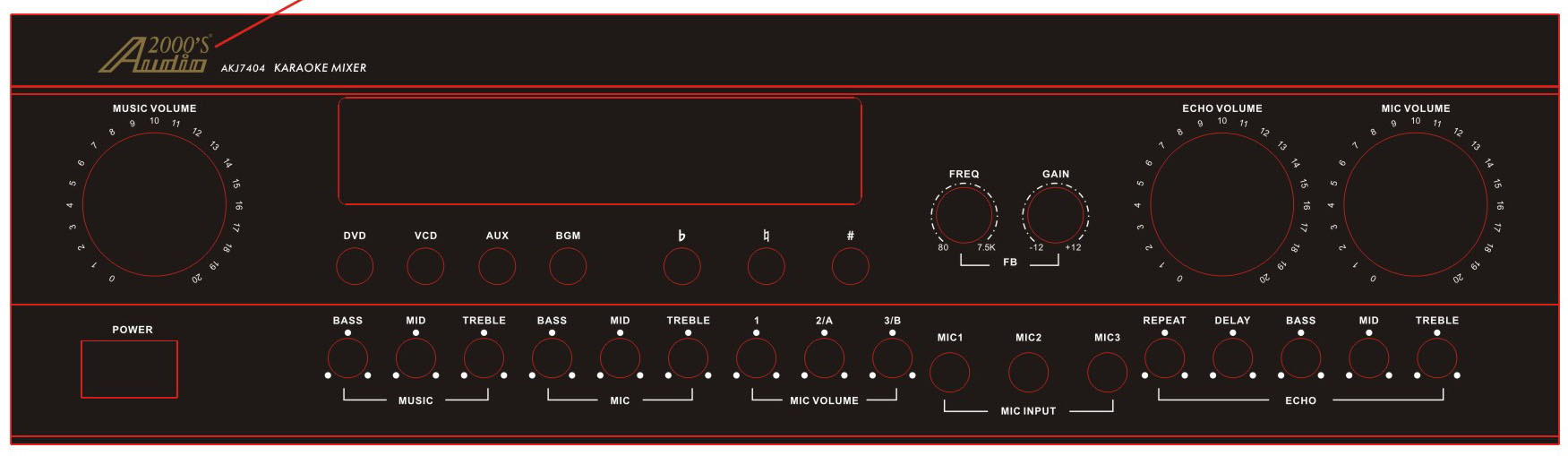

AKJ7404 FRONT PANEL:

Click here to enlarge the above image.

Back to Top

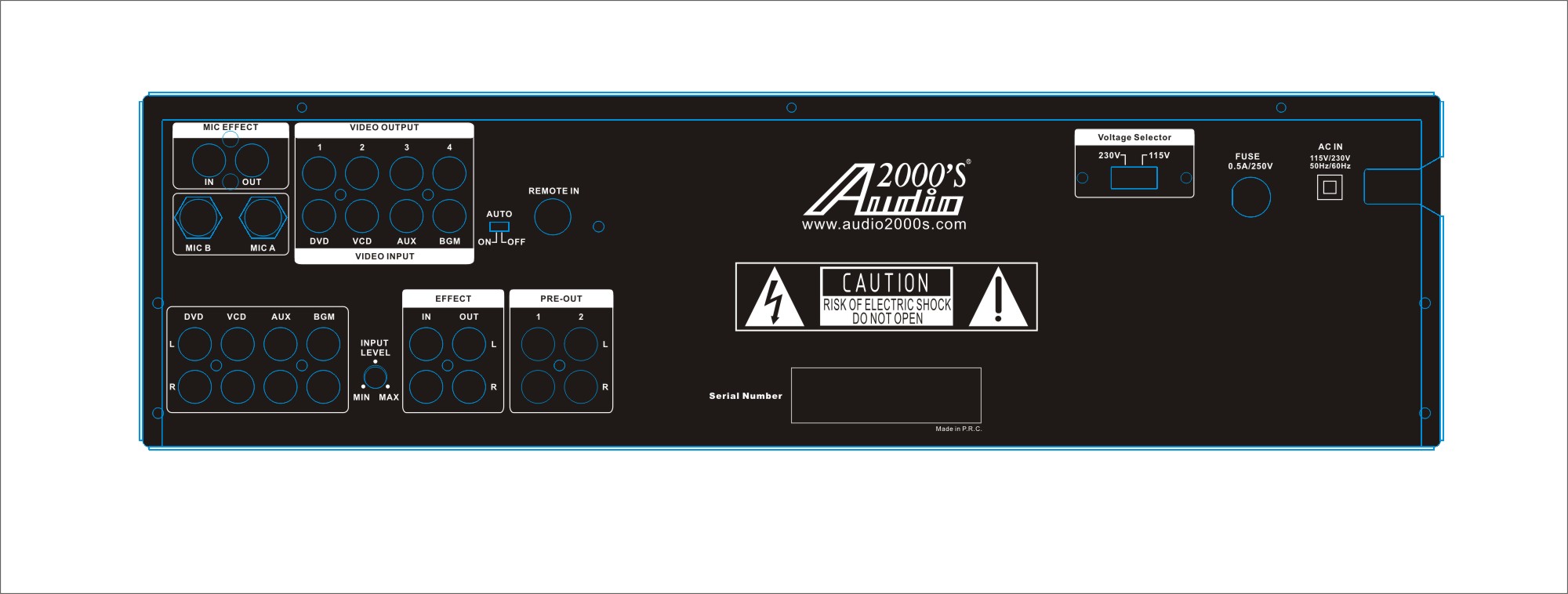

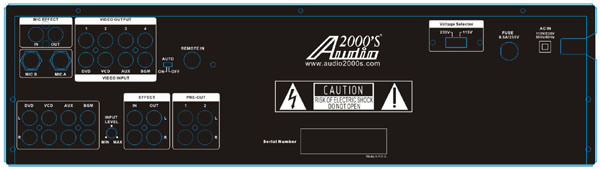

AKJ7404 REAR PANEL:

Click here to enlarge the above image.

Back to Top

SPECIFICATIONS:

Total Harmonic Distortion (THD) 0.03%
Mic. Input Sensitivity 3.5mV / 5 KOhms
Input Sensitivity 220mV / 23 KOhms
Output Level (Pre-Out) 2.0V / 150 Ohms
Mic. Freq. Response 20 - 25,000 Hz (+/- 3 dB)
Music Freq. Response 10 - 20,000 Hz (+/- 3 dB)
Music Tone Control Char. (Bass) +/- 7 dB @ 100 Hz
Music Tone Control Char. (Mid) +/- 5 dB @ 2 KHz
Music Tone Control Char. (Treble) +/- 7 dB @ 10 KHz
Mic. Tone Control Char. (Bass) +/- 10 dB @ 100 Hz
Mic. Tone Control Char. (Mid) +/- 5 dB @ 2 KHz
Mic. Tone Control Char. (Treble) +/- 10 dB @ 10 KHz
Key Control Range 13 steps, +/- 3 Tones
Video Input Sensitivity 1Vp-p @ 75 Ohms
Video Output Sensitivity 1Vp-p @ 75 Ohms
Power Consumption 30W
Dimensions (W X H X D) 17.0" X 5.2" X 17.1")
Weight 14.3 lbs

Back to Top

ACCESSORIES:

                ITEMS                                      QUANTITIES
        AKJ7404 Unit                                           1
        Remote Control                                        1
        Owner's Manual                                        1
        AAA Batteries                                          2
        Rack Mount Ears                                     2

Back to Top

AKJ7404 OWNER'S MANUAL:

Click here to extract the AKJ7404 Owner's Manual.
