AKJ7002 - Professional Karaoke Mixing Amplifier with Digital Echo & Key Controls






FEATURES

AKJ7002 FRONT PANEL

AKJ7002 REAR PANEL



SPECIFICATIONS



ACCESSORIES



AKJ7002 OWNER'S MANUAL



The Audio2000'S® AKJ7002 system is a truly powerful, yet pleasantly sounded, professional karaoke mixing amplifier.  In order to provide a complete mastery on the control of a karaoke joy and karaoke performance, the AKJ7002 is configured with all the essential karaoke features: 16-bit digital key controls, an echo volume control, echo high/low tone controls, an echo repeat adjustment, an echo speed adjustment, a video input/output routing, a powerful amplifier, and smooth vocal sound reinforcement  capabilities.

In addition, the music balance/treble/bass controls and microphone treble/bass controls enable the users to master  the music and microphone sound in a variety of acoustic environments.  A cooling fan is added to effectively remove heat from the AKJ7002. Three balanced/unbalanced microphone inputs on the AKJ7002 are intended to be plentiful for multiple users. Two MIC INSERT's at the rear panel allow the user to add various sound effects to the vocal sound through external sound effectors.

A true 200W + 200W acoustic energy delivery power from the AKJ7002 is carefully engineered to present a high-fidelity direct sound field in a small-room acoustic environment, in a large-room acoustic environment, or in a open performance field.

As a performance extension of the AKJ7403 system, the AKJ7002 enjoys the delicate engineering and the acoustic power of the market-proven AKJ7403 solid performance history.  Also, the AKJ7002 inherits the Audio2000'S® product tradition of quality, reliability and versatility.



Back to Top

FEATURES:

  • 200W + 200W Max. Power Output (@ 8 Ω)
  • Three Balanced/Unbalanced Combo Microphone Inputs
  • Master Microphone Volume Control
  • Two (2) Individual Microphone Volume\Balance\Echo Controls
  • Microphone Tone Controls (Low/Mid/High)
  • Master Music Volume Control
  • Music Volume, Balance, Low, Mid, and High Controls
  • 16-Bit Digital Key Controller (± 4 Steps)
  • Digital Echo Volume/Low/High/Delay/Repeat Controls
  • Music Sound Effector Loop
  • Two Stereo Audio Inputs
  • Two Video Inputs and Outputs
  • Three Audio Outputs (Mic/Rec/Line)
  • Two MIC INSERTS at the rear panel
  • Banana Speaker Output Jacks
  • Remote Control
  • Cooling Fan

Back to Top

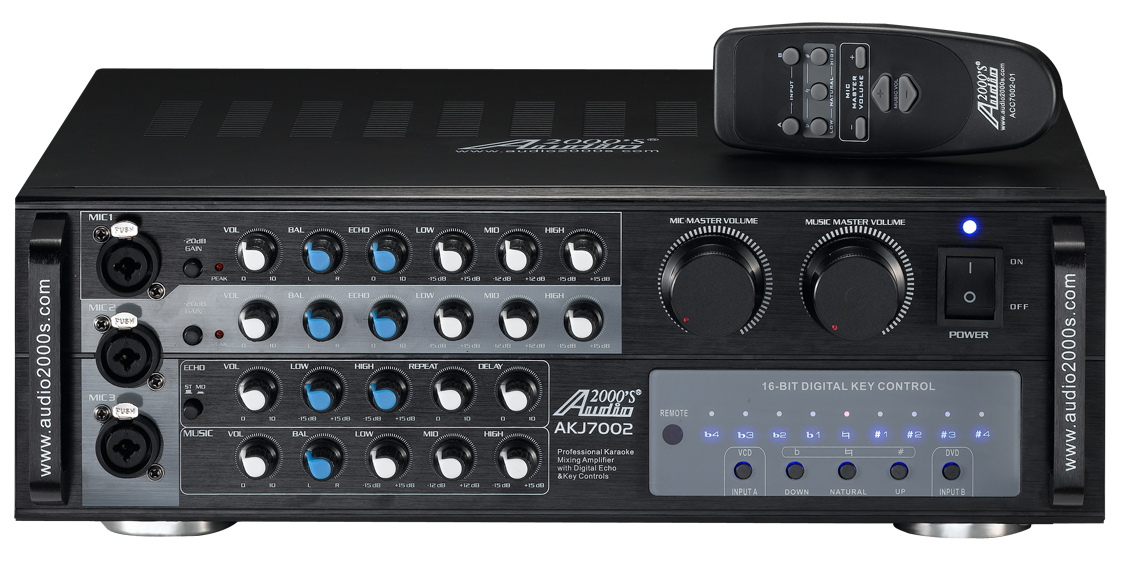

AKJ7002 FRONT PANEL:

Click here to enlarge the above image.

Back to Top

AKJ7002 REAR PANEL:

Click here to enlarge the above image.

Back to Top

SPECIFICATIONS:

Max. Output 400W / 8 Ohms (EIAJ) (200W X 200W)
Total Harmonic Distortion 0.03% @ 1KHz, -3dB, 6 Ohms
Mic. Input Sensitivity 6mV / 600 Ohms
Input Sensitivity 300mV / 22 KOhms
Output Level (Pre-Out) 2.5V / 1 KOhms
Mic. Freq. Response 10 - 25,000 Hz
Music Freq. Response 10 - 40,000 Hz
Tone Control Char. (Bass) +/- 10 dB @ 100 Hz
Tone Control Char. (Treble) +/- 10 dB @ 10 KHz
Speaker Terminal Load 4 to 16 Ohms
Key Control Range 9 steps, +/- 2 Tones
Video Input Sensitivity 1Vp-p @ 75 Ohms
Video Output Sensitivity 1Vp-p @ 75 Ohms
Power Consumption 500W
Dimensions (W X H X D) 16.5" X 5.4" X 14.6"
Weight 19.85 lbs
Accessories Remote Control Commander

Back to Top

ACCESSORIES:

                ITEMS                                      QUANTITIES
        AKJ7002 Unit                                           1
        Remote Control                                        1
        Owner's Manual                                        1
        AAA Batteries                                          2
        Rack Mount Ears                                     2

Back to Top

AKJ7002 OWNER'S MANUAL:

Click here to extract the AKJ7002 Owner's Manual.
