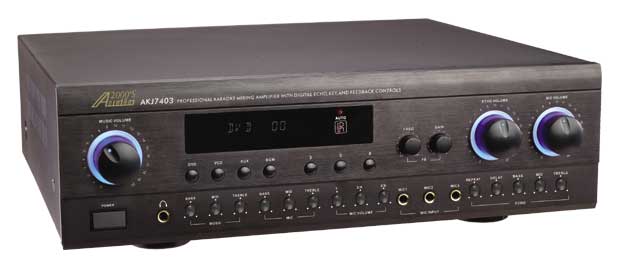

AKJ7403 - Prof. Karaoke Mixing Amplifier with Digital Echo, Key and Feedback Controls




FEATURES

AKJ7403 FRONT PANEL

AKJ7403 REAR PANEL



SPECIFICATIONS



ACCESSORIES



AKJ7403 OWNER'S MANUAL

FEATURES:

  • 1200W max. (600W + 600W max.) / 600W rms (300W + 300W rms) Power Output (@ 8 Ω)
  • Digital Echo Volume/Delay/Repeat/Treble/Mid/Bass Controls
  • Digital Feedback Control (Quasi-Parametric Equalization: Frequency Range: 80 - 7.5K Hz; Gain Boost/Cut Range: 12 dB)
  • Dual Echo Digital Sound Field Simulation
  • Five Microphone Inputs
  • Master Microphone Volume Control
  • Three (3) Individual Microphone Volume Controls
  • Microphone Tone Control (Treble/Mid/Bass)
  • Master Music Volume Control
  • Music Treble/Mid/Bass Controls
  • Digital Key Controller ( 6 Steps)
  • Microphone Sound Effector Loop
  • Music Sound Effector Loop
  • Four Stereo Audio Inputs
  • Four Video Inputs (DVD, VCD, AUX, BGM)
  • Four Video Outputs ( 1 - 4)
  • Two Pre-Outs
  • Input Level Controls
  • Remote Control

Back to Top

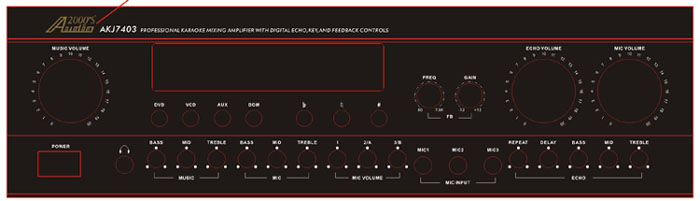

AKJ7403 FRONT PANEL:

Click here to enlarge the above image.

Back to Top

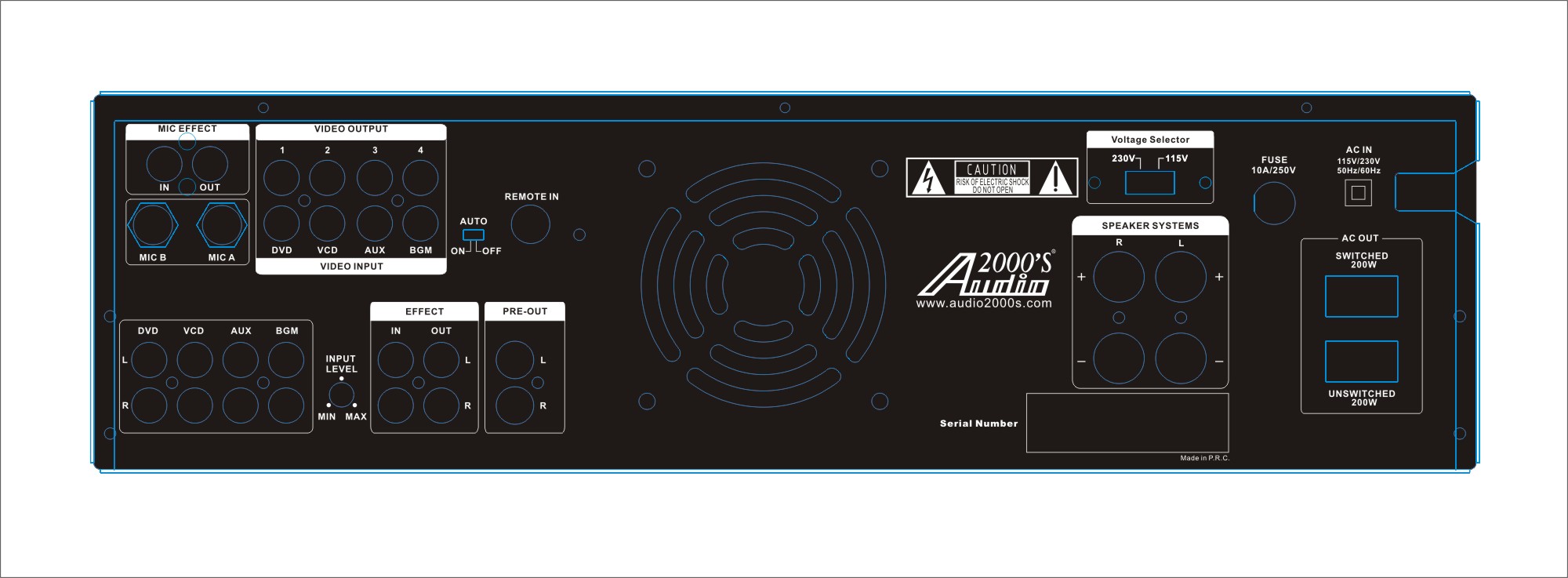

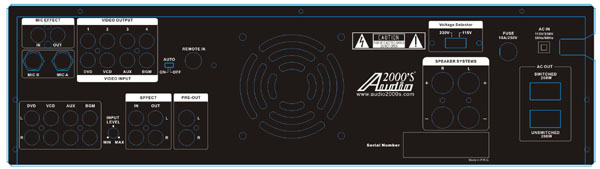

AKJ7403 REAR PANEL:

Click here to enlarge the above image.

Back to Top

SPECIFICATIONS:

Max. Output 1200W / 8 Ohms (EIAJ) (600W X 600W)
Total Harmonic Distortion 0.03% @ 1KHz, -3dB, 6 Ohms
Mic. Input Sensitivity 6mV / 600 Ohms
Input Sensitivity 300mV / 22 KOhms
Output Level (Pre-Out) 2.5V / 1 KOhms
Mic. Freq. Response 10 - 25,000 Hz
Music Freq. Response 10 - 40,000 Hz
Tone Control Char. (Bass) +/- 10 dB @ 100 Hz
Tone Control Char. (Treble) +/- 10 dB @ 10 KHz
Speaker Terminal Load 4 to 16 Ohms if use either terminal 1 or 2
6 to 16 Ohms if use both terminals 1 and 2
Key Control Range 13 steps, +/- 3 Tones
Video Input Sensitivity 1Vp-p @ 75 Ohms
Video Output Sensitivity 1Vp-p @ 75 Ohms
Power Consumption 1300 W
AC Power Outlets(Switched) One Outlet (100W Max)
AC Power Outlets(Unswitched) One Outlet (200W Max)
Dimensions (W X H X D) 17.0" X 5.2" X 17.1"
Weight 29.8 lbs

Back to Top

ACCESSORIES:

                ITEMS                                      QUANTITIES
        AKJ7403 Unit                                           1

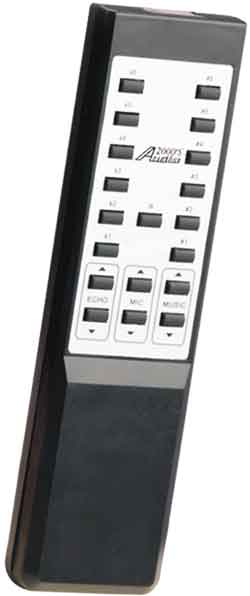

        Remote Control                                        1
        Owner's Manual                                        1
        AAA Batteries                                          2

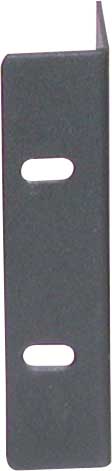

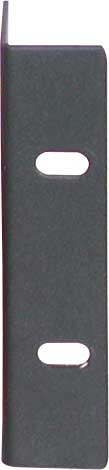

        Rack Mount Ears                                     2

Back to Top

AKJ7403 OWNER'S MANUAL:

Click here to extract the AKJ7403 Owner's Manual.
