AWP6040B - Portable All-In-One Wireless PA System with Rechargeable Battery

AWP6040B









AWP6040B-M






FEATURES

AWP6040B FRONT VIEW

AWP6040B REAR/SIDE VIEW



AWP6040B TOP VIEW



AWX6140 HANDHELD MICROPHONE



SPECIFICATIONS



ACCESSORIES





The Audio2000'S® AWP6040B portable all-in-one wireless PA system with a rechargeable battery is a portable self-contained PA system containing an 1.2AHr rechargeable battery, a wireless microphone system, a built-in amplifier, a 6.5" speaker, and a heavy-duty carrying bag.  The above wireless microphone system includes a belt-pack wireless transmitter, a headset microphone, a lavaliere microphone.  An AUX input connector and an AUX output connector are provided to have the AWP6040B be able to be used with any other PA or audio system.  An 1/4” connector is provided to be used as an electric guitar input or a microphone input.  The combination of the built-in amplifier and the speaker of the AWP6040B provides  25W maximum power output to achieve effective PA applications.  A carrying bag is provided for portability and mobility of the AWP6040B.  Overall, the AWP6040B is designed and manufactured to be a versatile, user-friendly, convenient and reliable system.

APPLICATIONS

School Teacher, Church, Hotel Conference Room, Aerobics Instructor, Sport Coach, Auction, Street Musician and Any Small Meeting Room

Back To Top

FEATURES

  • Built-in 12VDC 1.2AH Rechargeable Battery
  • 25W Max. Power Output
  • One Handheld Wireless Microphone and Built-in Wireless Receiver
  • Wireless Microphone Volume Control
  • One 1/4" Microphone Input
  • One 1/4" Microphone Volume Control
  • One 3.5mm Condenser Microphone Input
  • One 3.5mm Microphone Volume Control
  • One 3.5mm AUX Audio Input
  • AUX Audio Input Volume Control
  • One 3.5mm AUX Audio Output
  • Built-in 9VDC charger
  • Echo Control
  • Tone Control
  • One Heavy-Duty Back-Pack-Style Carrying Bag
  • One 12VDC Input



Back To Top

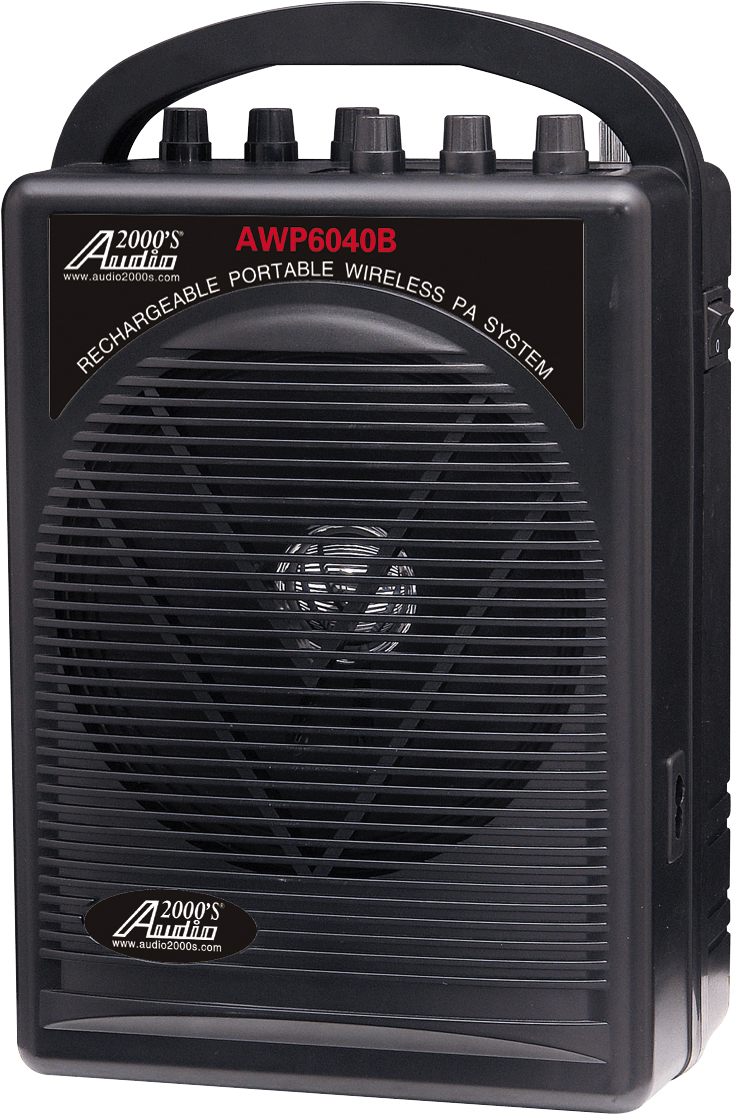

AWP6040B FRONT VIEW


Click here to enlarge the above image.

Back To Top

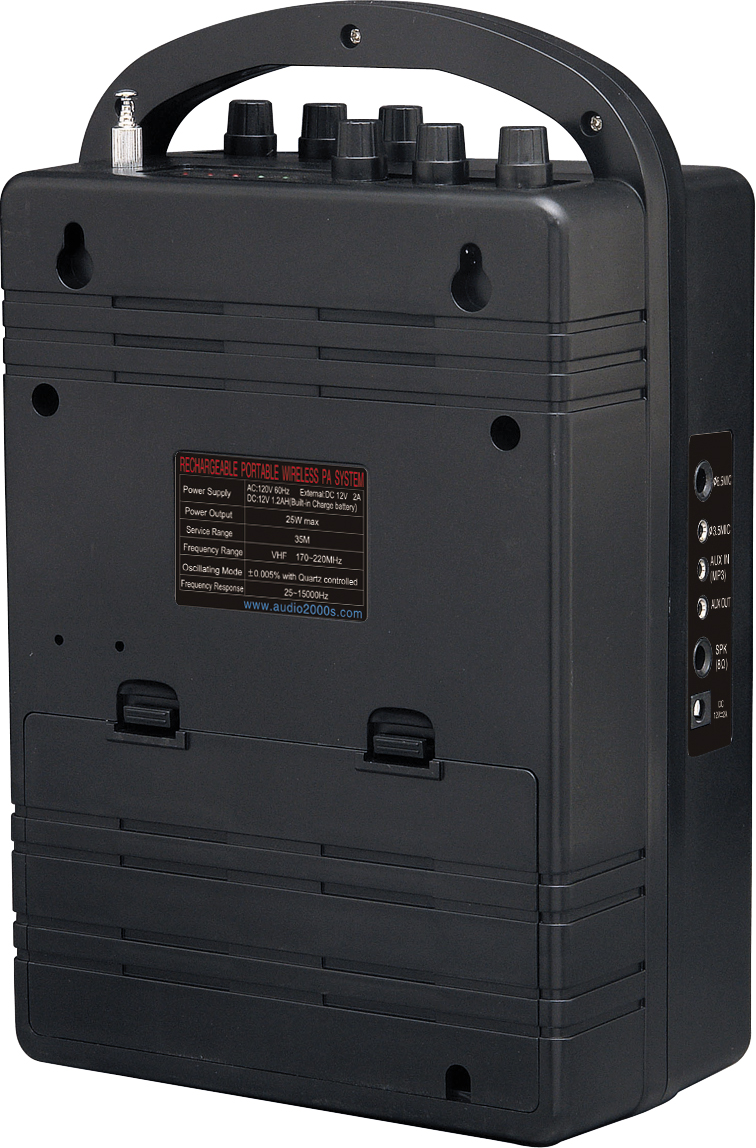

AWP6040B REAR/SIDE VIEW


Click here to enlarge the above image.

Back To Top

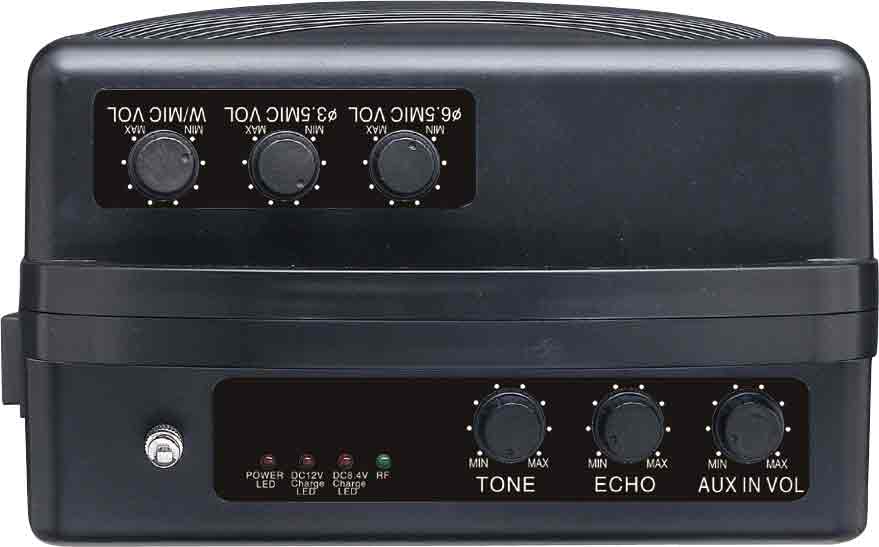

AWP6040B TOP VIEW


Click here to enlarge the above image.

Back To Top

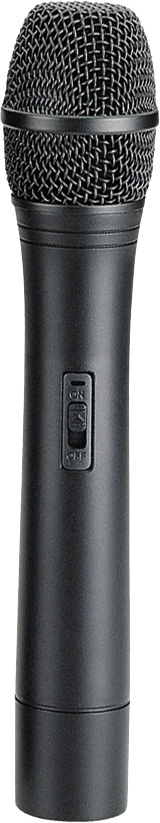

AWX6140 HANDHELD MICROPHONE

Back To Top

SPECIFICATIONS

Wireless Transmitter:

Carrier Frequency

VHF

Transmission Power Less Than 30mW

Transmission Mode

FM

Power Consumption

70mA, Max.

Battery

9V (or 8.4V Rechargeable Battery)

Wireless Receiver:

Audio Output Power

25W (Max.)

S/N Ratio

> 60dB

Frequency Response

100 - 12,000 Hz

Sensitivity

10dBuV

Recharge Time

8 Hrs

Battery Capacity

3 Hrs (12VDC, 1.2AH)

Service Range

100ft (30M)

Dimensions (W X D X H) 180 X 110 X 290mm (7.1" X 4.3" X 11.4")

Back To Top

ACCESSORIES

              ITEMS                                                                                        QUANTITIES
        AWP6040B Unit (Black)                                                                          1
        AWX6140 (for AWP6040B ONLY)                                                         1
        AWX6141 (Body-Pack Transmitter)  (for AWP6040B-M ONLY)        1
        AEM6141M (Lavaliere Microphone)  (for AWP6040B-M ONLY)        1
        AEM6141M (Headset Microphone)  (for AWP6040B-M ONLY)         1
        Owner's Manual                                                                                         1
        9V Battery                                                                                                  1
        Heavy-Duty Carrying Bag                                                                         1



Back To Top
