AWP6042 - Portable Wireless PA System with Rechargeable Battery



WIRELESS MICROPHONE OPTIONS (SELECT ONLY ONE):

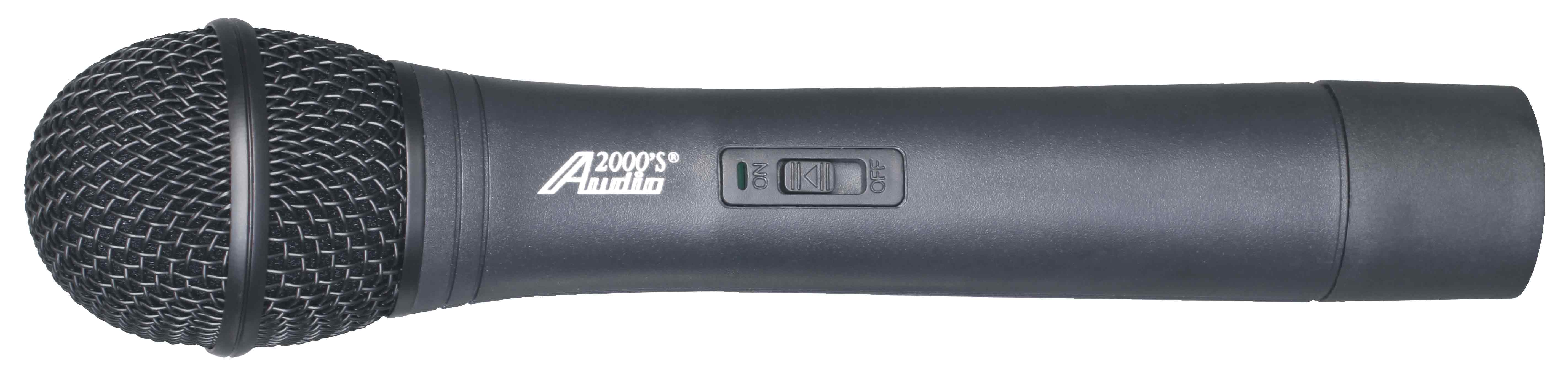

(1) Wireless Handheld Microphone


OR

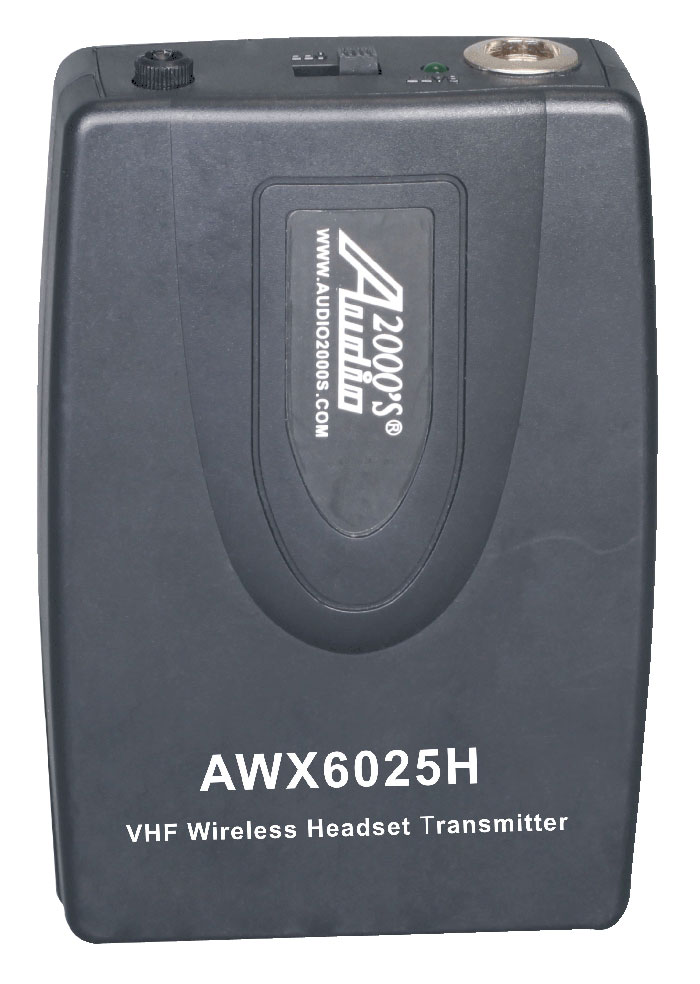

(2) Wireless Headset Microphone



OR

(3) Wireless Lavaliere Microphone





FEATURES

AWP6042 FRONT VIEW

AWP6042 REAR VIEW



SPECIFICATIONS





AWP6042 OWNER'S MANUAL

FEATURES:

  • Portable VHF Wireless PA System
  • USB/SD-Card Reader
  • One Microphone Input with a Volume Control
  • Master Volume & Tone Controls
  • One Stereo Line-Out
  • 6.5-Woofer & 3-Tweeter
  • Battery-Level LED Display
  • One-Channel VHF Wireless Microphone System
  • 50W, max
  • Very Light Weight with Loud Volume
  • 3.3AH 12VDC Lithium-Ion Rechargeable Batteries for High Battery Capacity and Extended Battery Life
  • One Line-In for iPOD or other Audio Device
  • Rugged and Durable Casing



Back to Top

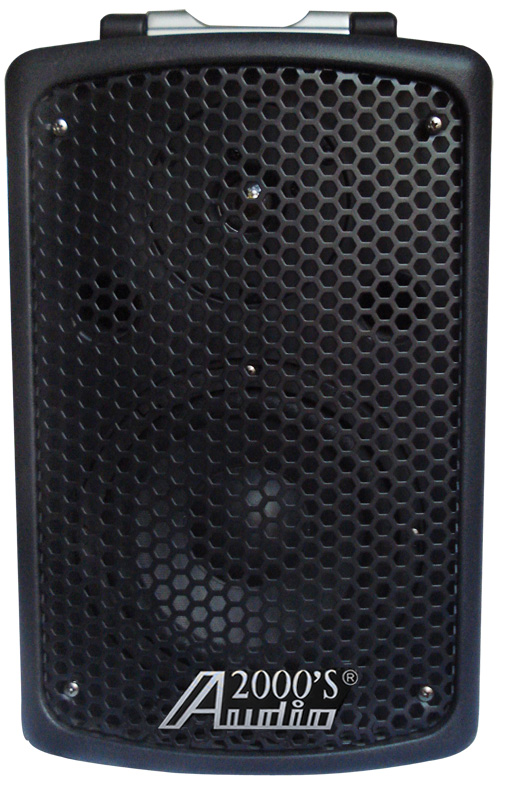

AWP6042 FRONT VIEW:

Click here to enlarge the above image.

Back to Top

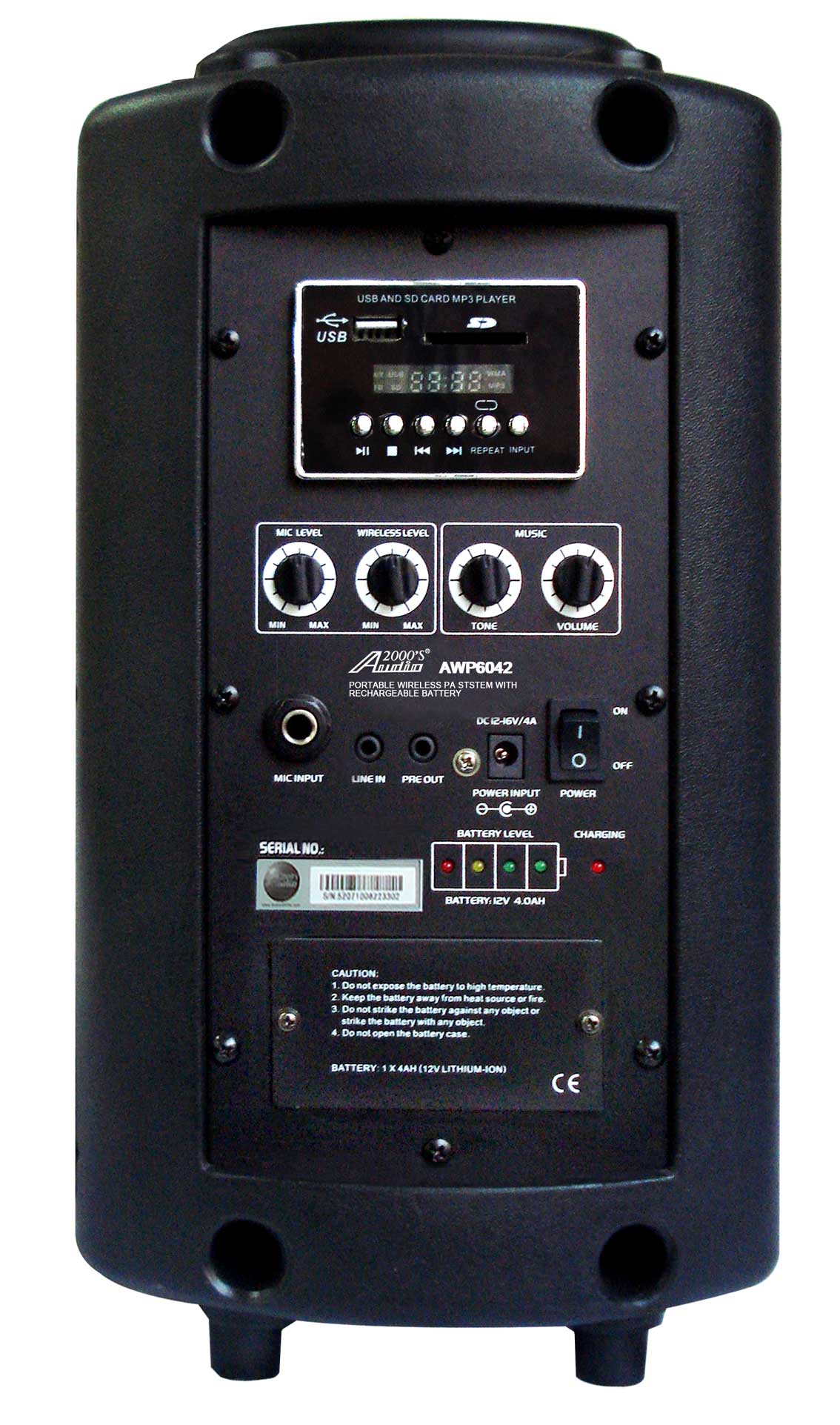

AWP6042 REAR VIEW:

Click here to enlarge the above image.

Back to Top

SPECIFICATIONS:

Power Rating  50W (peak to peak)
LINE IN Audio Input Sensitivity  200 mV
Microphone Input Sensitivity  5 mV
PRE-OUT Output Level  500 mV
S/N Ratio  90 dB
Dimensions (L X W X H)  9.2" X 9.5" X 15.2"
Weight  9.26 lbs

Back to Top

AWP6042 OWNER'S MANUAL:

Click here to extract the AWP6042 Owner's Manual.
