AWP6046
- Portable All-In-One Wireless PA
System with Rechargeable Battery

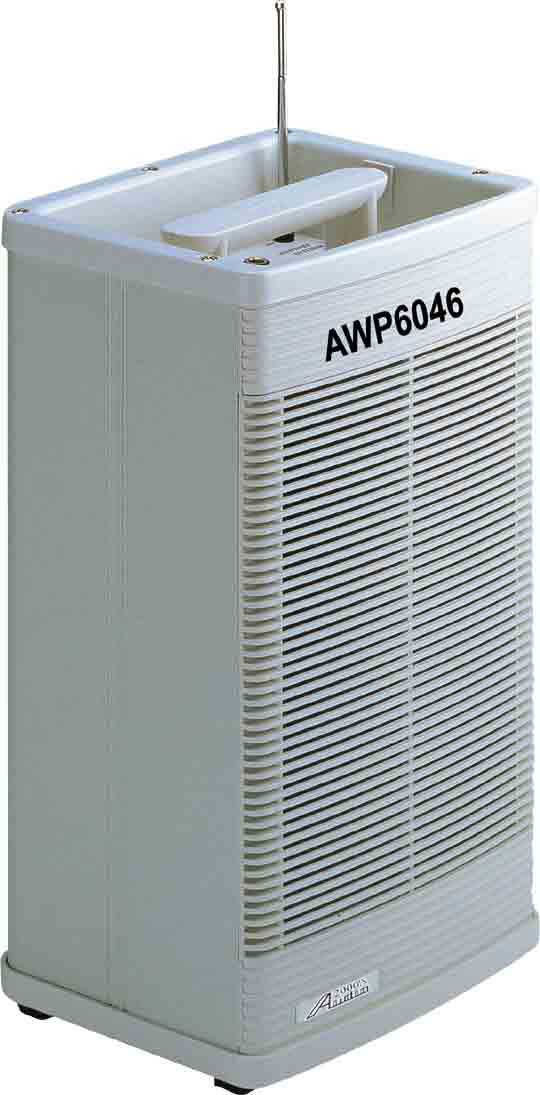

The Audio2000'S® AWP6046
portable all-in-one wireless PA system
with a rechargeable battery is a
portable self-contained PA system containing
a three-side aluminum case, a 5AH rechargeable battery, a wireless microphone system, a built-in amplifier and a
speaker. The above wireless microphone system
includes a belt-pack wireless transmitter, a
headset microphone, a lavaliere microphone, and a
heavy-duty carrying bag.
An AUX input connector and an AUX output connector are provided to have the
AWP6046 be able to be used with any other PA or audio system.
One 1/4 connector is provided to be used as
an electric guitar input or
a microphone input. The
combination of the built-in amplifier and the speaker of the AWP6046 provides 35W maximum
power output to achieve effective PA applications. A carrying
bag is provided for portability
and mobility of the AWP6046. Overall, the
AWP6046 is designed and manufactured to be a versatile, user-friendly, convenient and
reliable system.
APPLICATIONS
School Teacher, Church, Hotel Conference Room, Aerobics Instructor, Sport Coach,
Auction, Street Musician and Any Small Meeting Room
SPECIFICATIONS
Wireless Transmitter:
Carrier
Frequency |
VHF |
Transmission Power |
Less Than 30mW |
Transmission
Mode |
FM |
Power
Consumption |
70mA,
Max. |
Battery |
9V (or
8.4V Rechargeable Battery) |
Wireless Receiver:
Audio
Output Power |
35W
(Max.) |
S/N
Ratio |
> 60dB |
Frequency
Response |
100
- 12,000 Hz |
Sensitivity |
10dBuV |
Recharge
Time |
8
Hrs |
Battery
Capacity |
5 Hrs
(12VDC, 5AH) |
Service
Range |
100ft
(30M) |
Dimensions (W X D X H) |
180 X 145 X 300mm (7.1" X 5.7" X
11.8") |
