AWP6404 - Pull-N-Go All-In-OneTM Portable Wireless PA System with Rechargeable Batteries







PRODUCT DESCRIPTIONS FEATURES

APPLICATIONS



AWP6404 CONTROL PANEL



AWP6404 SIDE VIEW



AWP6404 BOTTOM VIEW



TRANSMITTERS & BAGS



SPECIFICATIONS



ACCESSORIES



Back To Top

PRODUCT DESCRIPTIONS

The Audio2000'S AWP6404 Pull-N-Go All-In-OneTM wireless PA system with rechargeable batteries is a portable self-contained PA system containing a retractable dolly, 20AHr rechargeable batteries, a vibration resistant CD player, a dual-channel wireless microphone system, a built-in amplifier and a speaker.  The above wireless microphone system includes a handheld microphone, a belt-pack wireless transmitter, a headset microphone, and a lavaliere microphone.  The built-in anti-shock CD player allows the users to play music or other sound effects for their particular applications.  An AUX input connector and an AUX output connector are provided to have the AWP6404 be able to be used with any other PA or audio system.  One 1/4” connector is provided to be used as an electric guitar input or a microphone input.  The combination of the built-in amplifier and the speaker of the AWP6404 provides 120W maximum power output to achieve effective PA applications.  A dust cover is provided for keeping the unit clean.  A heavy-duty accessory carrying bag is provided for storing all accessories. Overall, the AWP6404 is designed and manufactured to be a versatile, user-friendly, convenient and reliable system.



FEATURES

  • Built-in anti-shock CD player, USB and SD card readers

  • All-in-one design delivers 120W of power through a horn and a 12" woofer

  • Two built-in wireless microphones

  • Two built-in rechargeable batteries (Total capacity: 20 AH)

  • Built-in FM tuner

  • One -inch microphone input

  • One AUX audio input

  • One AUX audio output

  • Built-in casters and retractable dolly

  • Remote Control for the built-in CD player

  • Built-in internal-speaker-mounting top hat

  • Rugged and Durable Casing



Back To Top

APPLICATIONS

School Teacher, Church, Hotel Conference Room, Aerobics Instructor, Sport Coach, Auction, Recreational park and Any Small Meeting Room

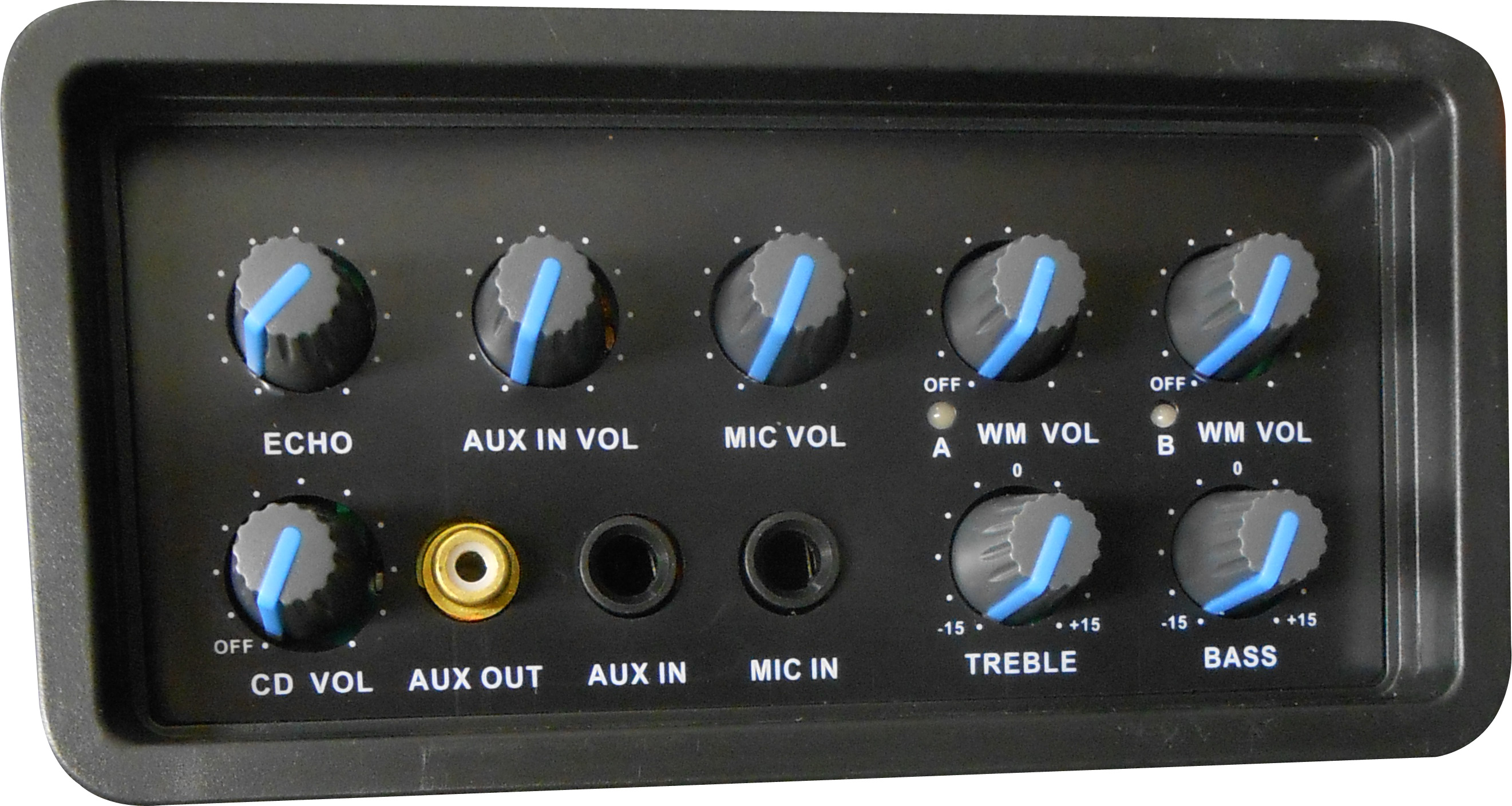

AWP6404 CONTROL PANEL



Back To Top

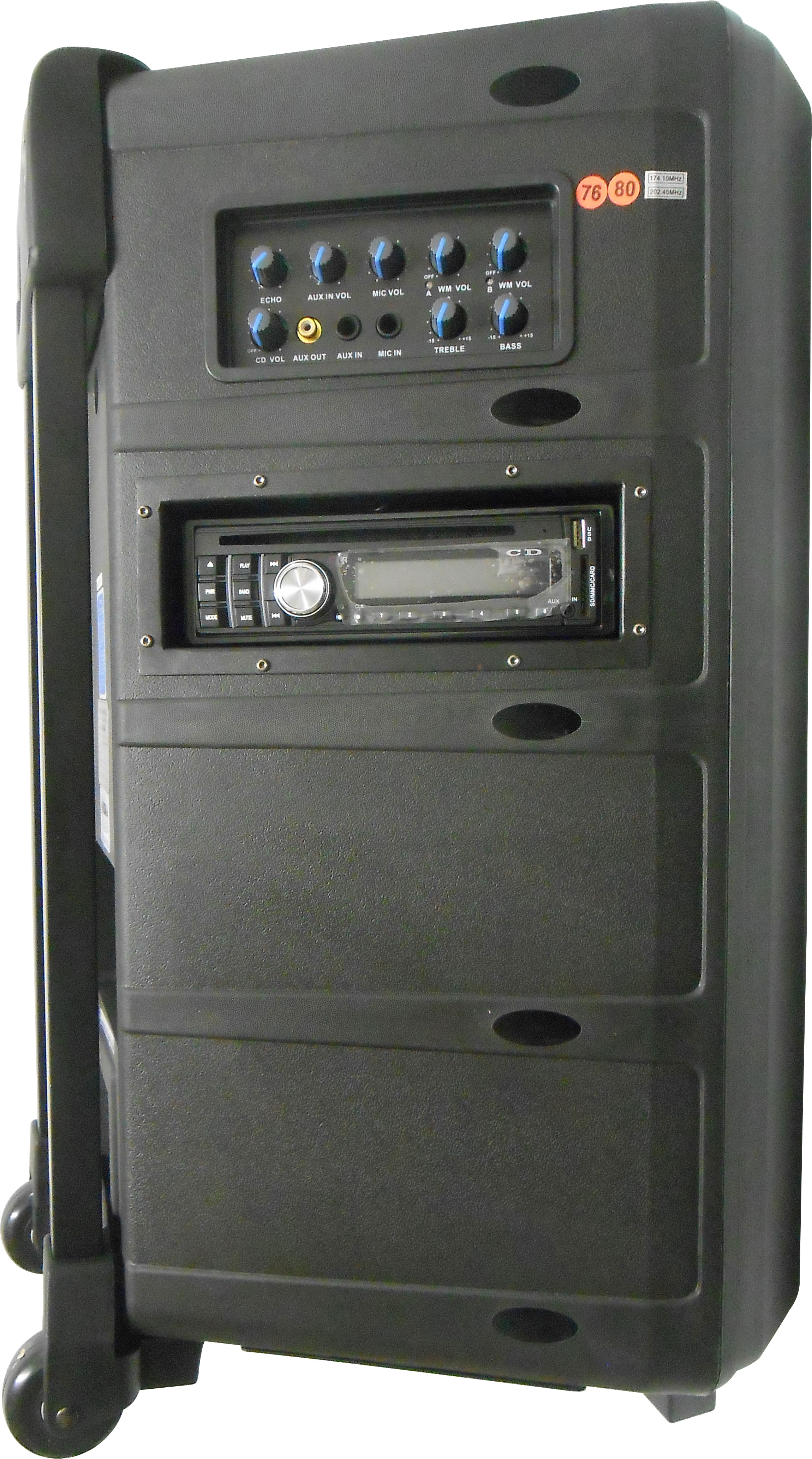

AWP6404 SIDE VIEW

Back To Top

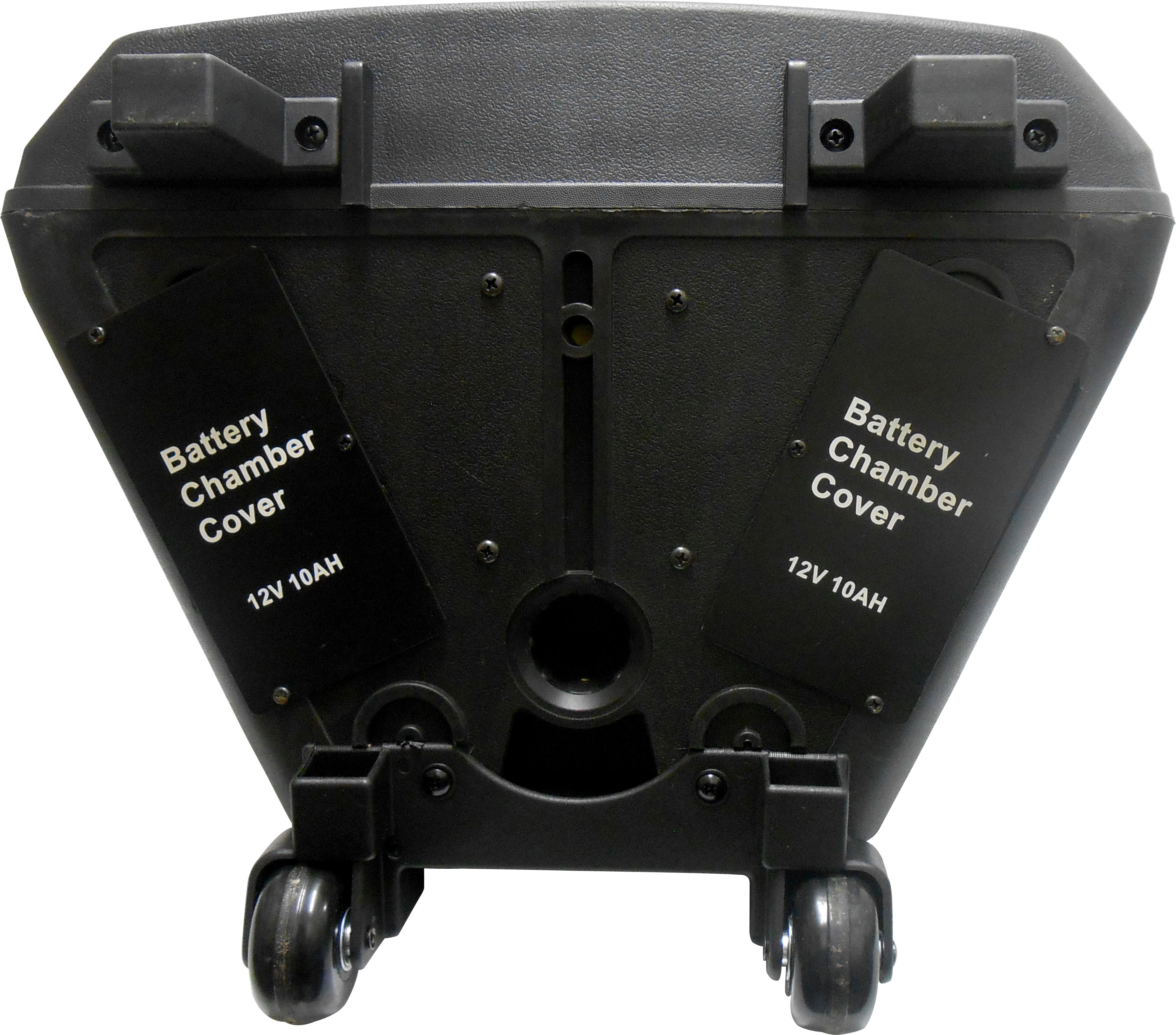

AWP6404 BOTTOM VIEW



Back To Top

TRANSMITTERS & BAGS



Back To Top

SPECIFICATIONS

Wireless Transmitter:

Carrier Frequency

VHF

Transmission Power Less Than 30mW

Transmission Mode

FM

Power Consumption

70mA, Max.

Battery

9V (or 8.4V Rechargeable Battery)

Wireless Receiver:

Audio Output Power

120W (Max.)

S/N Ratio

> 60dB

Wireless Channels Two

Frequency Response

100 - 12,000 Hz

Sensitivity

10dBuV

Recharge Time

8 Hrs

Battery Capacity

2 - 5 Hrs (12VDC, 20AH)

Service Range

100ft (30M)

Weight 65 lbs
Dimensions (W X D X H) 350 X 430 X 650mm (13.8" X 16.9" X 25.6")

Back To Top

ACCESSORIES

        ITEMS                                                  QUANTITIES
AWP6404 Unit                                                       1
AWX6140 Handheld Wireless Microphone       1
AWX6141 Belt-Pack Wireless Transmitter        1
AC Power Cord                                                     1
CD Player Remote Control                                  1
Accessory Carrying Bag                                      1
Dust Cover                                                             1
