AVC7504 - Divx MPEG4/DVD/CDG/JPEG/CD-R/CD-RW/Kodak CD/Audio CD Player
(Available Colors: Silver or Black)



FEATURES

AVC7504 FRONT PANEL

AVC7504 REAR PANEL



SPECIFICATIONS



AVC7504 OWNER'S MANUAL







The Audio2000'S AVC7504 Divx MPEG4/DVD/CDG/JPEG/CD-R/CD-RW/CD Player will play digital video discs conforming to the international MPEG4/DVD standard.



FEATURES:

  1. MULTI-ANGLE: You can view scenes from different angle when watching movie or other media with multiple angle playback available.

  2. Multi-Language: The AVC7504 Divx MPEG4/DVD player supports up to 8 different language tracks.

  3. Multi-Language Subtitles: The AVC7504 Divx MPEG4/DVD player supports up to 32 different language subtitles

  4. Karaoke Function (Support Digital Output): The karaoke function is included to allow users to sing along with karaoke discs or your favorite CD with the Echo and Vocal adjustment.

  5. Parent Lock: The parent lock function works in conjunction with the different censorship classes assigned to DVD's.  With the parental  lock capable discs, you can block access to material you feel is inappropriate for your children.

  6. JPEG Readable & CD-G Playback: The AVC7504 Divx MPEG4/DVD player can directly playback JPEG which is recorded in CD-R or CD-RW. You can rotate, reverse, zoom in/out, move and scan the photo and preview the photo menu.

  7. Last Screen Memory: You can continue viewing a disc from the point where you were watching before, even the disc is removed from the player.

  8. Video Adjustment: The video adjustment function can control the brightness, sharpness, and contrast of the video signal from the video output.

  9. Audio Equalizer (EQ): You can select the 7 preset modes of surround effects to personalize your AVC7504 Divx MPEG4/DVD player in video performances.

  10. Multi-Image Ratio Mode: There are two image ratio modes: wide screen TV (ratio - 16 : 9) and standard screen (ratio: 4 : 3).

  11. Dolby Digital (AC-3) Output & DTS: Delivers crisp, theater-like sound utilizing six discrete audio channels.  These six audio channels include: left front, center, right front, left surround, right surround and subwoofer.



Back to Top

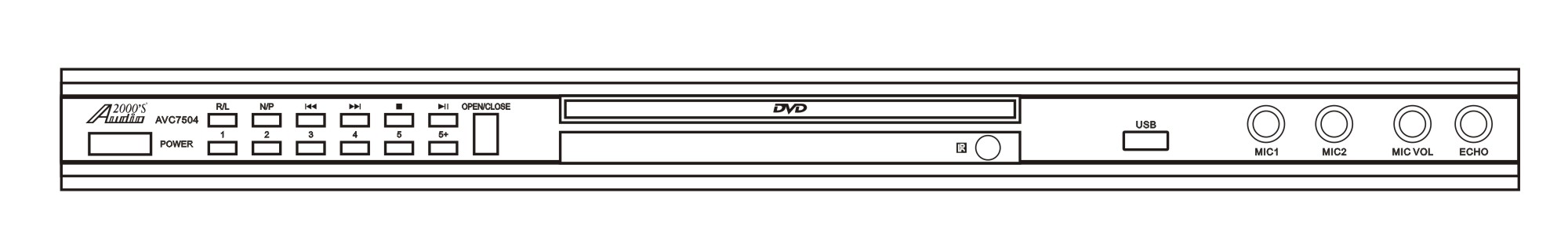

AVC7504 FRONT PANEL:


Click here to enlarge the above image.



Back to Top

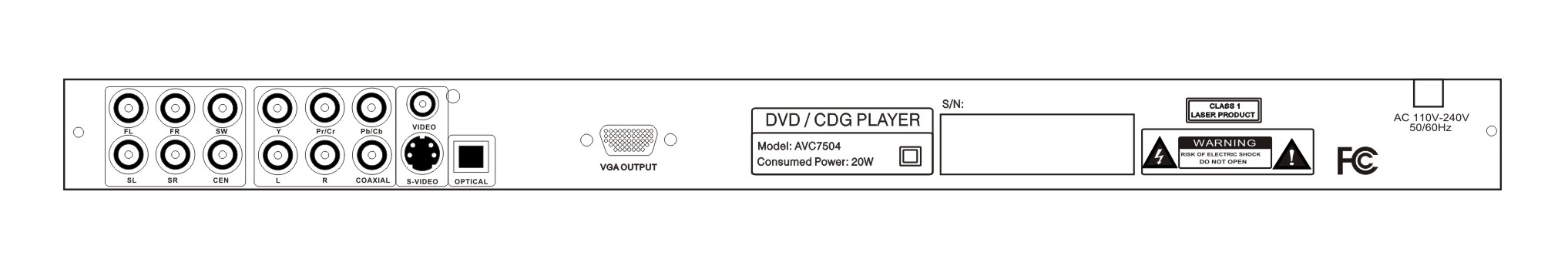

AVC7504 REAR PANEL:


Click here to enlarge the above image.



Back to Top


SPECIFICATIONS:

Video System NTSC / PAL
Optical Read-Out System Semiconductor AlGAAs Weam
Wave Length: 650nm, 780nm
Audio Frequency Response DVD Audio: Fs 48 KHz PCM 4 Hz - 22 KHz
                      Fs 96 KHz PCM 4 Hz - 44 KHz
Audio CD:    Fs 44.1 KHz  4 Hz - 20 KHz
Audio Dynamic Range > 90 dB
Video Output Level 1.0 V (peak to peak), 75 Ohms
S-Video Output Level (Y) 1.0 V (peak to peak), 75 Ohms
(C)
0.286 V (peak to peak), 75 Ohms
Audio Output Level (Analog) 2.0 V (rms)
S/N Ratio > 90 dB
AC Input Voltage 90 - 240V  50 / 60 Hz
Power Consumption 25 W
Dimension (W X H X D) 430 X 50 X 250 mm
(16.9" X 2.0" X 9.8")
Weight 3.1 Kg  (6.8 lbs)



Back to Top

AVC7504 OWNER'S MANUAL:

Click here to extract the AVC7504 Owner's Manual.



Back to Top
