AVC7505 - Recordable MP3+G Professional Karaoke Player with HDMI and VGA Outputs


The Audio2000'S^® AVC7505 recordable MP3+G professional karaoke player with HDMI and VGA outputs will play digital video discs conforming to the international MPEG4/DVD standard.

FEATURES:

The "REC" button at the front panel records the mixed music and microphone sound to the USB or the SD card. The "COPY" button at the front panel copies from CD or CDG to the USB or the SD card in MP3 or MP3+G format respectively. The "COPY" button at the front panel copies between the USB and the SD card. The built-in USB and SD card readers play VCD, WMA, AVI, MP4, DAT, MPG, and JPG files in USB or SD card. Digital key control and digital echo control. Two microphone inputs (MIC1 and MIC2) with individual volume controls. HDMI, VGA, SCART, Coaxial, S-Video, Optical, Component Video, Composite Video, 5.1 Audio and Mixed Audio outputs. Remote control. AC 100V-240V and NTSC-PAL compatible for worldwide use.

Back to Top

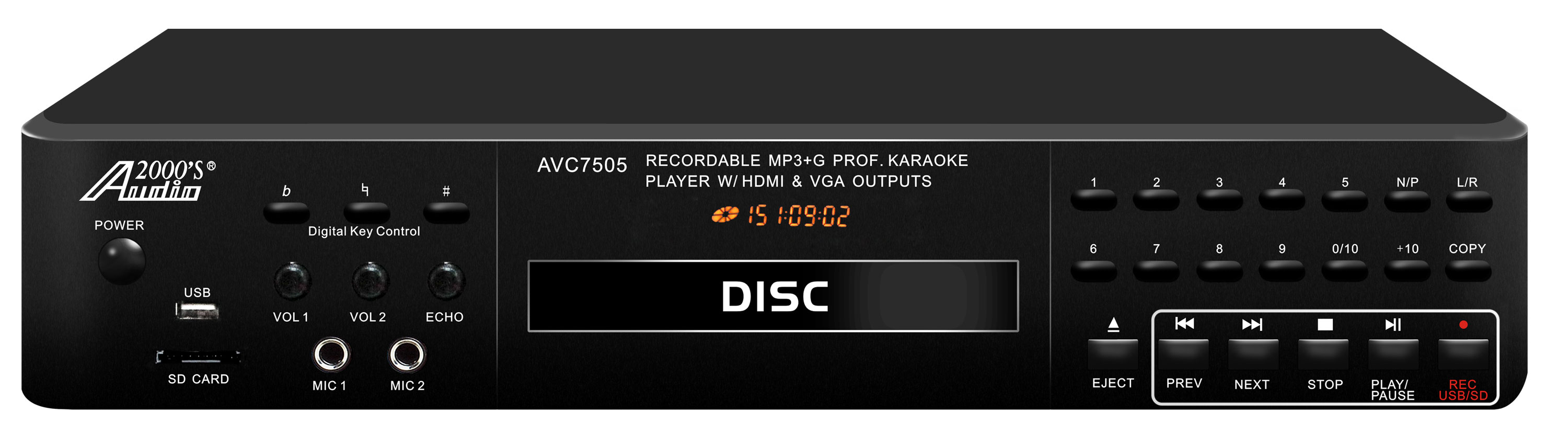

AVC7505 FRONT PANEL:

Click here to enlarge the above image.

Back to Top

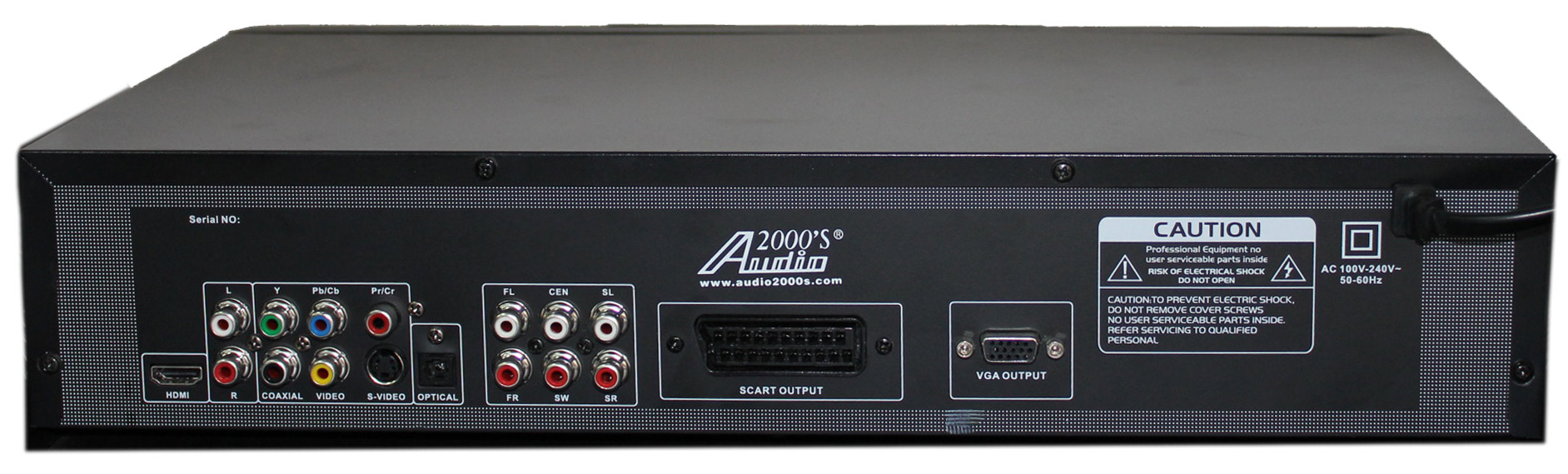

AVC7505 REAR PANEL:

Click here to enlarge the above image.

Back to Top

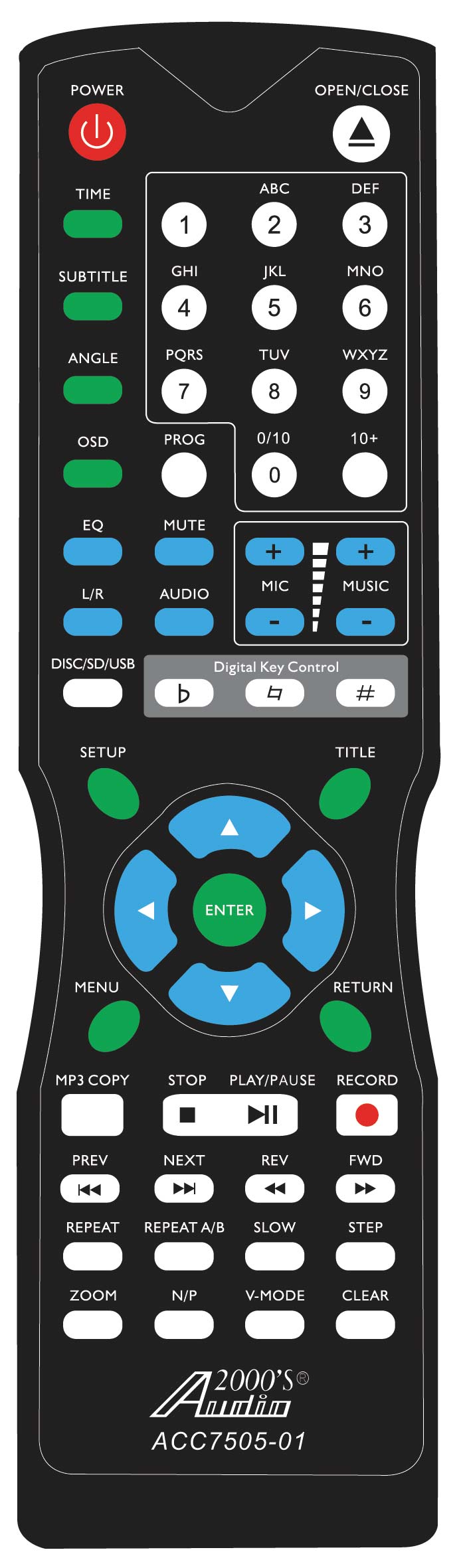

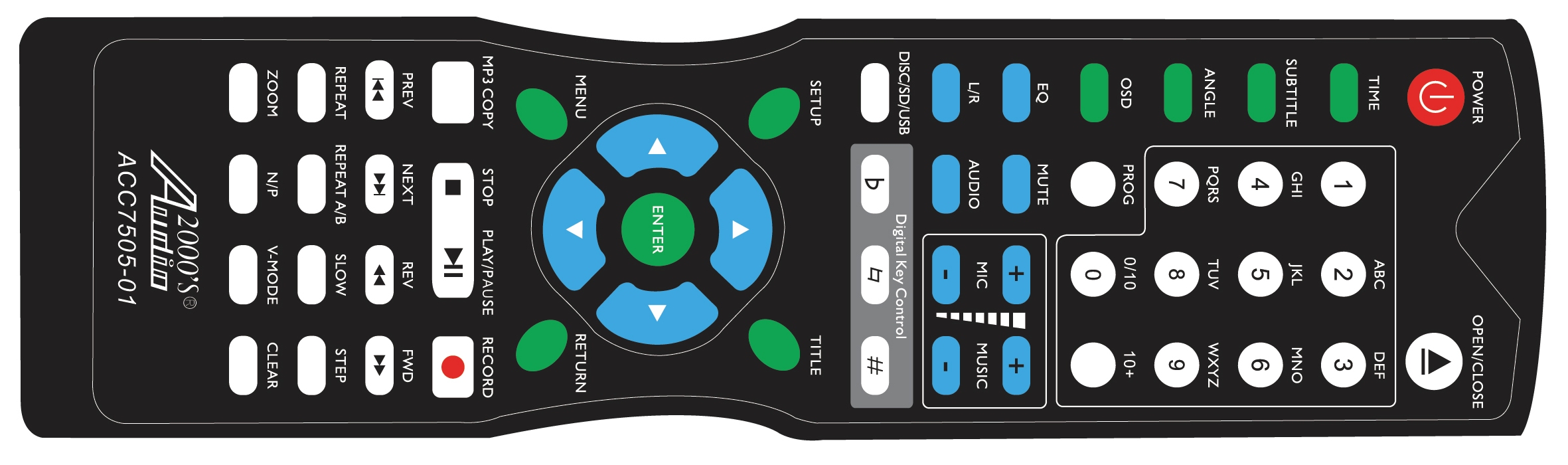

REMOTE CONTROL:

Click here to enlarge the above image.

Back to Top


SPECIFICATIONS:

Video System	NTSC / PAL
Video Input Sensitivity	1 V (peak to peak)
Microphone Input Sensitivity	8 mV
Video Output Level	1.0 V (peak to peak), 75 Ohms
Audio Output Level	500 mV
S/N Ratio	90 dB
Frequency Response	20 - 20,000 Hz (@ +/- 1 dB)
Dynamic Range	> 90 dB
AC Input Voltage	AC 100V - 240V  60 / 50 Hz
Dimension (L X W X H)	16.9" X 9.0" X 3.2"
Weight	5.5 lbs

Back to Top

AVC7505 OWNER'S MANUAL:

Click here to extract the AVC7505 Owner's Manual.
