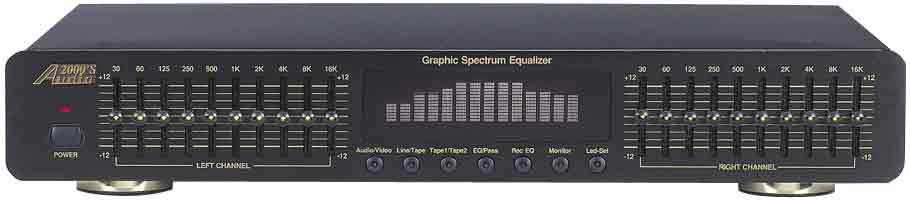

AEQ8110S - Dual 10-Band Graphic Equalizer with a Spectrum
Display
The Audio2000'S® AEQ8110S unit is a dual
10-band professional graphic equalizer to be utilized for home entertainment or
professional sound applications.
The AEQ8110S graphic equalizer contains two channels,
left channel and right channel. Each channel has ten EQ bands. Each EQ band can provide up to +/- 12dB audio boost/cut range. An audio
spectrum analyzer display containing ten LED columns is located in-between the left
channel EQ bands and the right channel EQ bands. Each LED column depicts the summation of
the audio levels of the corresponding EQ bands in the right and left
channels. At the center of the knob of each EQ band slide, there is a
green LED light
indicator. The lighting patterns of the green LED
lights are designed to be changeable by pressing the control knob. Totally five
LED lighting patterns are available to enhance the entertainment effectiveness.
With the built-in features of two tape inputs/outputs
and the main line inputs/output, the AEQ8110S graphic equalizer is designed to be
versatile and convenient by allowing the users not only to enable or disable the
EQ function to the line inputs/output but also to "dub" between two tape decks
with or without the EQ function. In addition, a tape monitor function is
included.
As a result, the AEQ8110S graphic equalizer provides
the users with not only the extraordinary sound EQ quality and the extreme application
versatility, but also the pleasant display and entertainment effectiveness.
FEATURES
* No Power
ON/OFF Popping Noise
* 2 Line Inputs / 2 Tape
Inputs
* 1 Line Output / 2 Tape
Outputs
* 10 Band
Audio Spectrum Analyzer Display
* 10 Band Per Channel / Two Channels
* Tape 1-2
or Tape 2-1 Dubbing Function
* Tape
Monitor Function
* EQ/Pass
Function
* Record
EQ Function
* Variable LED Lighting Patterns
* Input
Voltage Selection (120V / 240V)
APPLICATIONS
Karaoke; general sound entertainment and/or home stereo
system
SPECIFICATIONS
| Number of Channels |
Two |
| Number of Bands/Channel |
10 |
| Center Frequencies (Hz) |
30, 60, 125, 250, 500, 1K, 2K, 4K,
8K, 16K Hz |
| Booth/Cut Range |
12 +/- 2 dB |
| Input |
Input Impedance - 47K Ohms Nominal
Input Level - 0.3V |
| Output |
Impedance -1K Ohms Nominal
Load Impedance -10K Ohms
Maximum Output Level - 4V |
| Frequency Response |
10 - 100K Hz, +/- 1dB |
| Total Harmonic Distortion |
0.01% |
| Signal/Noise Ratio |
85dB |
| Power Consumption |
12W |
| Dimensions (W X D X H) |
19.2" X 12.2" X 4.2" (420 X 200 X 65 mm) |
| Weight |
6.6 lbs (3Kgs) |
