AWM6014U - Professional UHF Mobile Wireless System

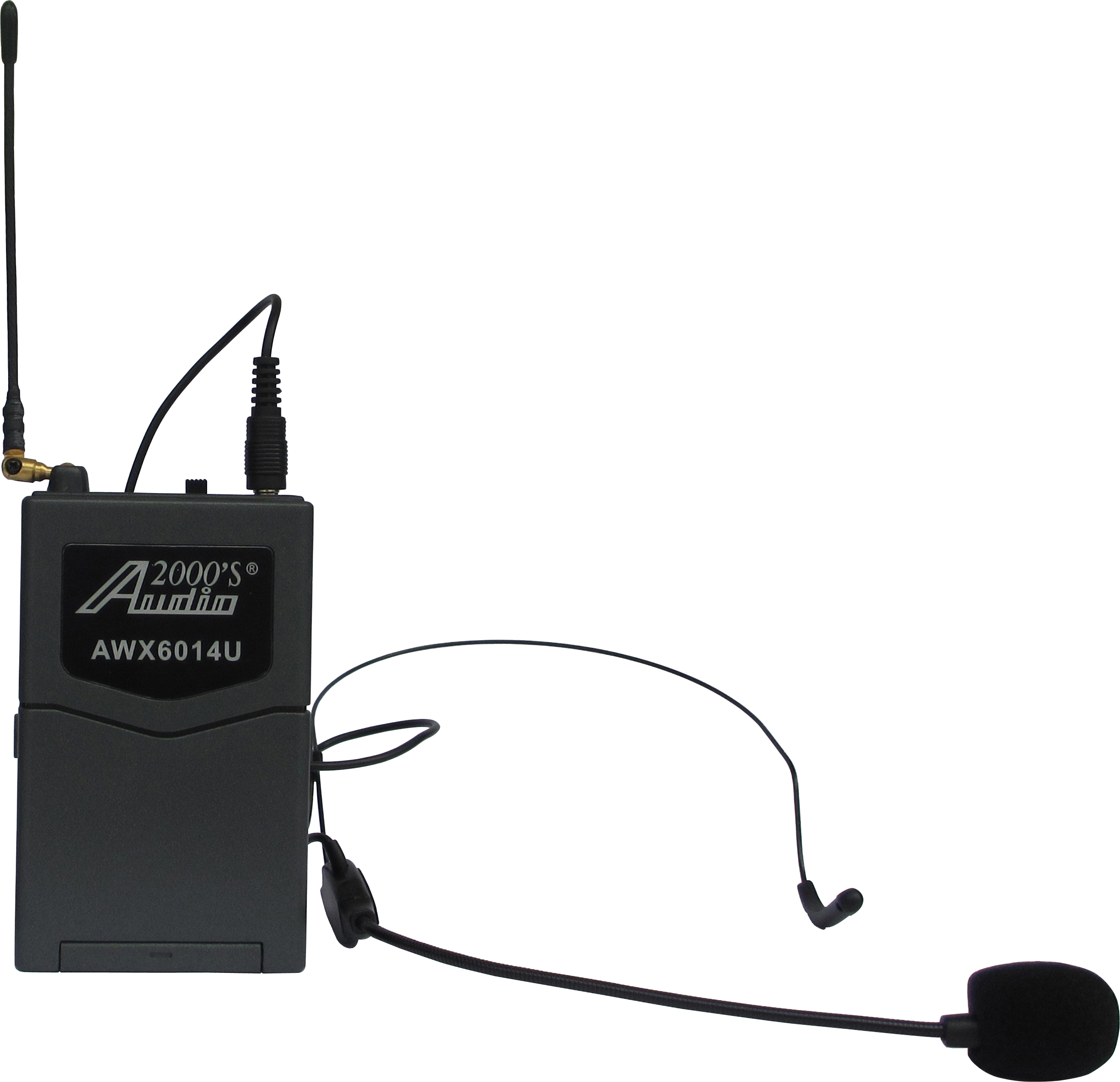

                                               AWX6014U Transmitter

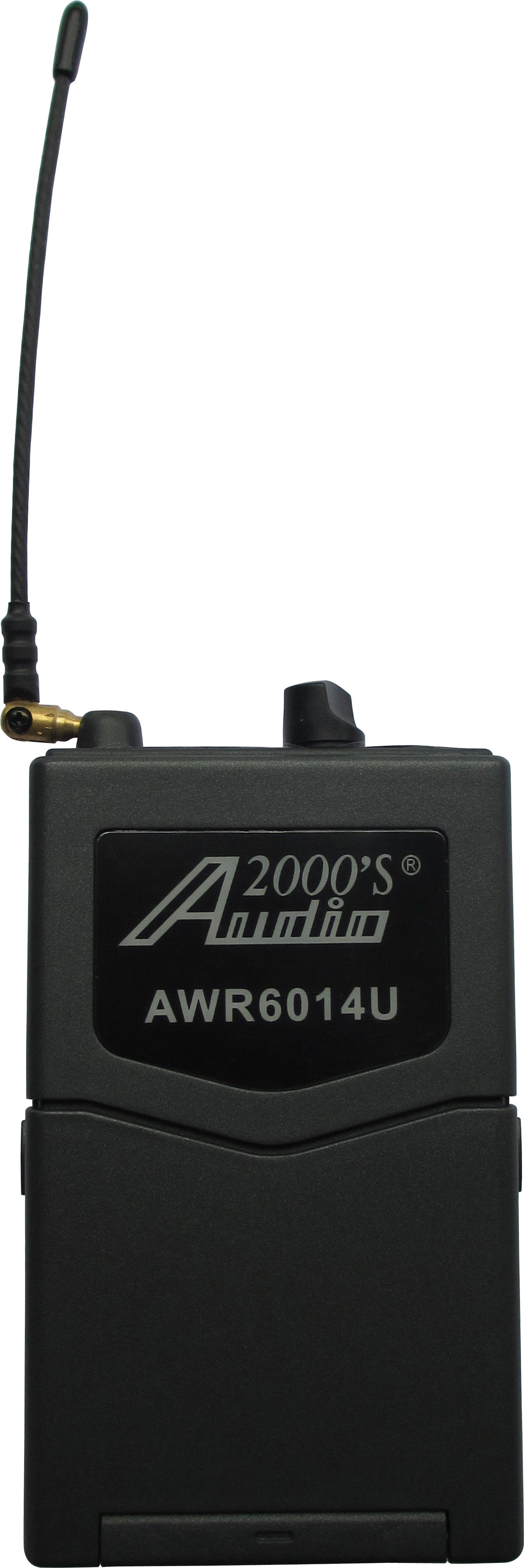

                                                AWR6014U Receiver (AWR6014U receiver available for separate purchase)





FEATURES

AWX6014U TRANSMITTER

AWR6014U RECEIVER



SYSTEM SPECIFICATIONS



ACCESSORIES



AWM6014U OWNER'S MANUAL

FEATURES:

  • Portable/Mobile UHF Wireless Microphone System
  • Including One AEM6014U Headset Microphone, One AWX6014U Wireless Transmitter,
    and One AWR6014U Wireless Receiver
  • One 3.5mm Microphone Input with Microphone Input Level/Gain Control on the AWX6014U
  • One 3.5mm Microphone Output with Microphone Output Volume Control on the AWR6014U
  • One 3.5mm Headphone Output with Headphone Output Volume Control on the AWR6014U
  • Power ON/OFF Switch and Headphone Output Level Control on the AWR6014U
  • Power LED Indicator, AF LED Indicator, and RF LED Indicator on the AWR6014U
  • One Low-Battery (LOW BATT) LED Indicator on the AWX6014U
  • Both AWX6014U and the AWR6014U Powered by Two AA Batteries (Not Included)
  • Omni-Directional Antenna with a 3-Dimensional 360 Swivel on AWX6014U and AWR6014U
  • Operating Range Greater Than 150 ft
  • Rugged and Durable Casing for Heavy-Duty Professional Use and High Mobility



Back to Top

AWX6014U TRANSMITTER:

Carrier Frequency Range  UHF Band
Frequency Stability  0.005%
Modulation  Frequency Modulation (FM)
Modulation Depth  48 KHz
RF Power Output  -3.0dBm
Batteries  2 X AA Batteries (Not Included)
Current Consumption  80mA

Click here to enlarge the above image.

Back to Top

AWR6014U RECEIVER:

Carrier Frequency Range  UHF Band
Frequency Stability  0.005%
Receiving Sensitivity  50dB (S/N Ratio 10dBu)
S/N Ratio  100dB
T.H.D.  < 1%
Power  2 X AA Batteries (Not Included)
 or DC 4.5V
Dimensions (L X W X H)  66 mm X 112 mm X 25 mm

Click here to enlarge the above image.

Back to Top

SYSTEM SPECIFICATIONS:

Carrier Frequency Range  UHF Band
Frequency Stability  0.005%
Audio Frequency Response  50 - 16,000 Hz
Image and Spurious Rejection  45dB Minimum
S/N Ratio  >80 dB
Max. SPL  >100 dB
T.H.D.  <5%
Service Area  >150ft
Operation Temperature  14 - 122F

Back to Top

ACCESSORIES:

  • AWX6014U Transmitter X 1
  • AWR6014U Receiver X 1
  • Connection Cable (3.5mm Stereo - 3.5mm Mono) X 1
  • Owner's Manual X 1
  • Headset Microphone X 1
  • Lanyards X 2



AWM6014U OWNER'S MANUAL:

Click here to extract the AWM6014U Owner's Manual.
