AWM6526U - Professional Four-Channel UHF Wireless System with 16 Adjustable Frequencies











PRODUCT FEATURES PRODUCT DESCRIPTIONS

AWR6526U FRONT VIEW

AWR6526U REAR VIEW

AWX6526U HANDHELD MICROPHONE

AWX6526U BODY-PACK TRANSMITTER



LAVALIER MICROPHONE

HEADSET MICROPHONE

SYSTEM CONFIGURATIONS

APPLICATIONS

 SPECIFICATIONS

AWM6526U OWNER'S MANUAL

Back to Top

PRODUCT FEATURES:

1.       UHF Band Frequencies

2.       Agile Frequencies with PLL (Phase-Lock Loop) 16 Adjustable Frequencies

3.       Including Four Wireless Transmitters (Comprising Combinations of Handheld Microphones, Lavaliere Microphones, Headset Microphones and/or the Guitar Transmitters)

4.       Four Independent Balanced XLR Outputs and One Mixed Unbalanced ¼” Output

5.       Microcontroller (CPU) Controlled

6.       Automatic Synchronizing the Receiver and Transmitter Frequency through Infrared Signal

7.       Four Independent Volume Control Knobs (One for Each Channel)

8.       Integrated Antenna for Effective RF Output and High Transmission Quality

9.       One Power Red LED Indicator, Four AF Red LED Indicators, and Four RF Green LED Indicators

10.   Rugged Metal Receiver Chassis

11.   Operating Range up to 100ft

12. 12VDC Power Supply

Back to Top

PRODUCT DESCRIPTIONS:

The Audio2000'S® AWM6526U professional four-channel UHF wireless system with 16 adjustable frequencies is a direct response to the needs and desires of  professionals as well as home users.  The advanced circuitry of the AWM6526U system provides reliable RF transmission and reception with a transmission range of about 100 feet.  With the exceptional RF transmission and reception, the AWM6526U system fully delivers all the reception and audio quality features that allow you to really enjoy the freedom of wireless.

Engineered For Dependable UHF Systems

The AWM6526U system has been engineered to be dependable UHF system with a wide audio frequency range, high S/N ratio, and outstanding performance equal to that of any professional wireless systems costing much more.  This is achieved through strict component selection and high quality circuit design.  A delicately designed silence circuit eliminates static noise when the transmitters are either turned off or out of transmission range.  An auto mute circuit is incorporated in these systems to effectively eliminate the popping noise when the switch is turned on or off.

Features Configured To Be User Friendly

To suit the needs of your application demands, the selection of the transmitters to be used with the AWM6526U system includes handheld microphone transmitter, lavalier microphone transmitter, headset microphone transmitter, and/or guitar transmitter.

System Designed For Accessibility

The AWM6526U system has been designed and manufactured to be dependable, problem free, versatile and easy to use.  The AWM6526U system is intended to be readily accessible to everyone with exceptional performance at a preferred and affordable price.



Back to Top

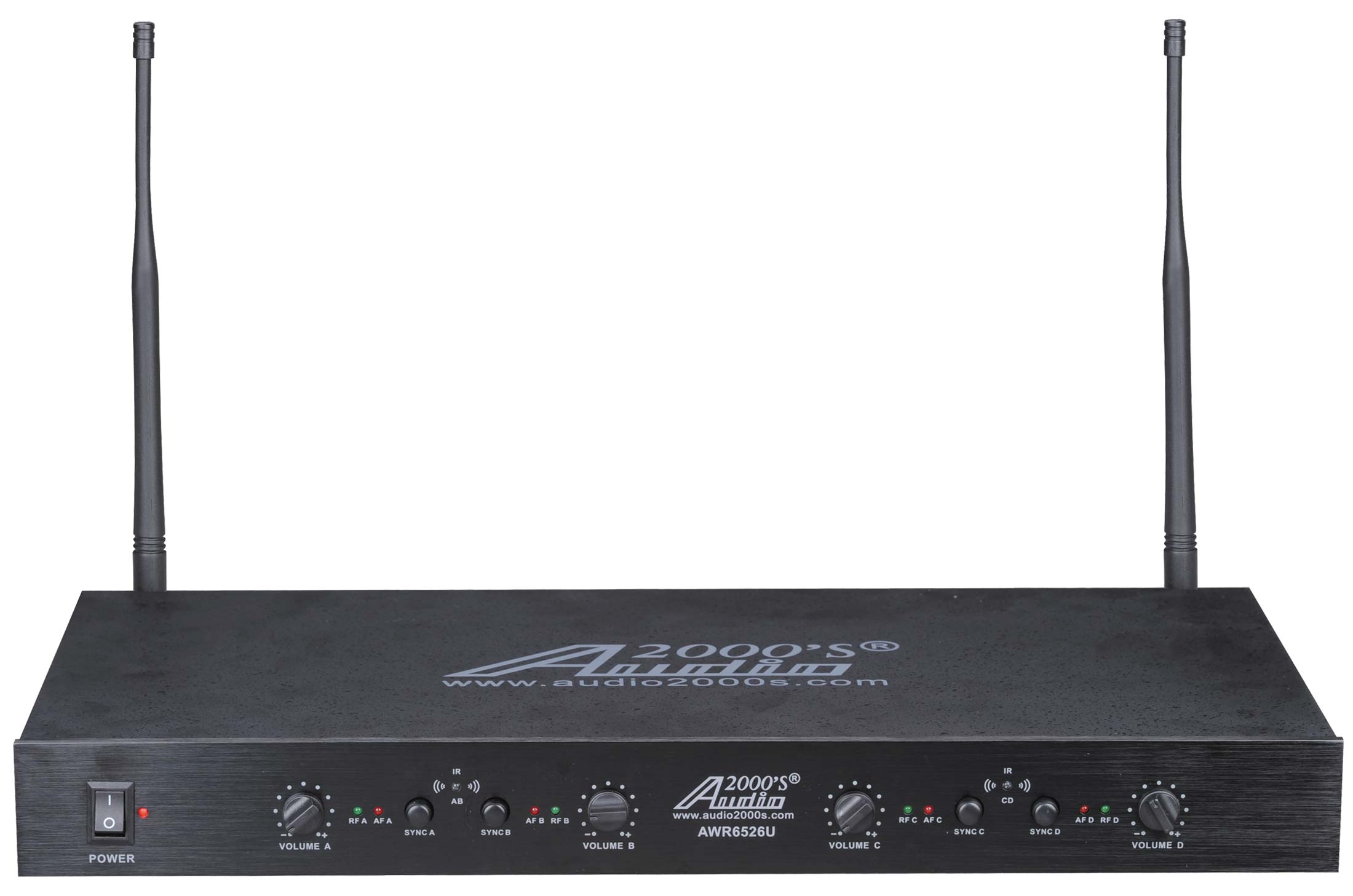

AWR6526U FRONT VIEW

Back to Top

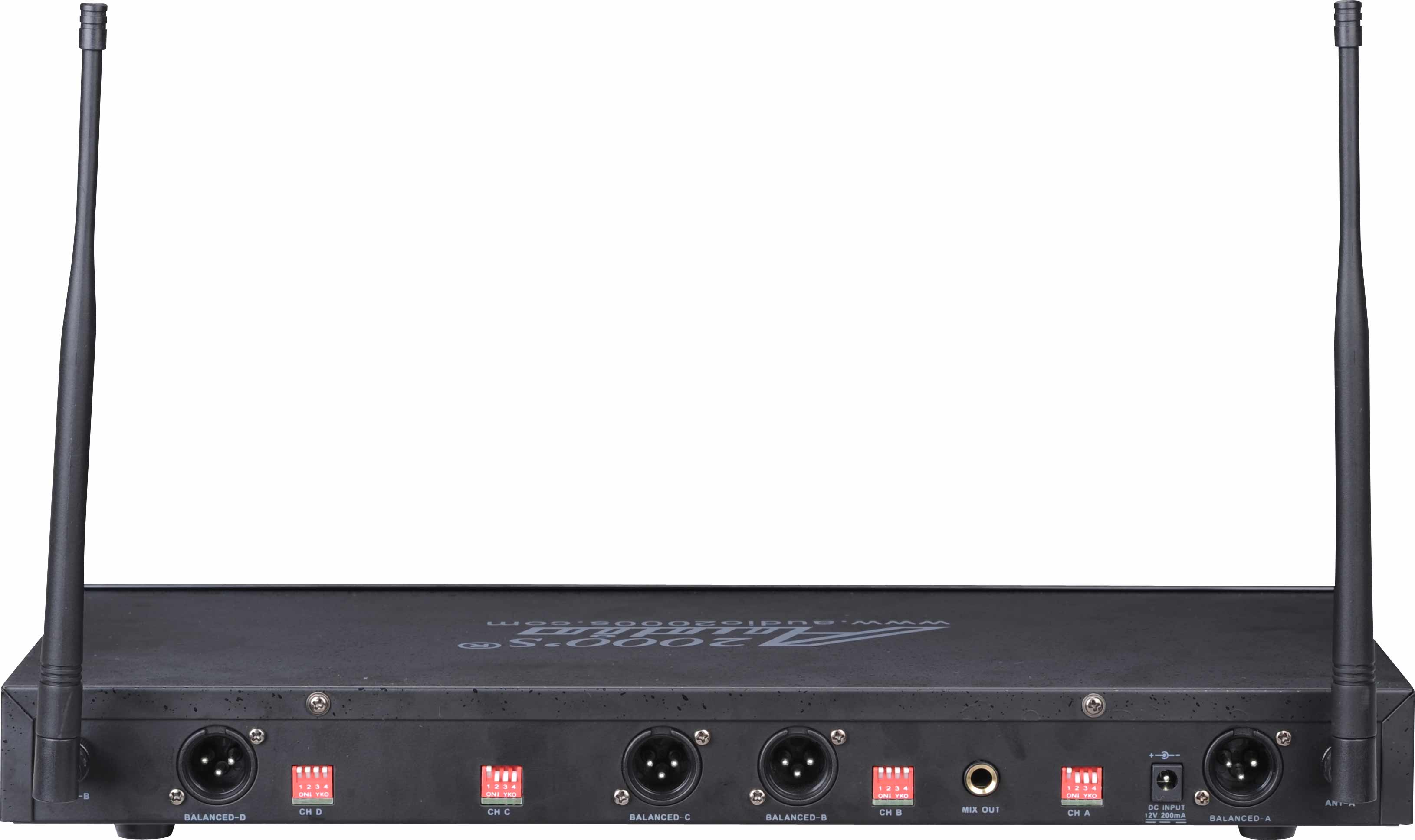

AWR6526U REAR VIEW

Back to Top

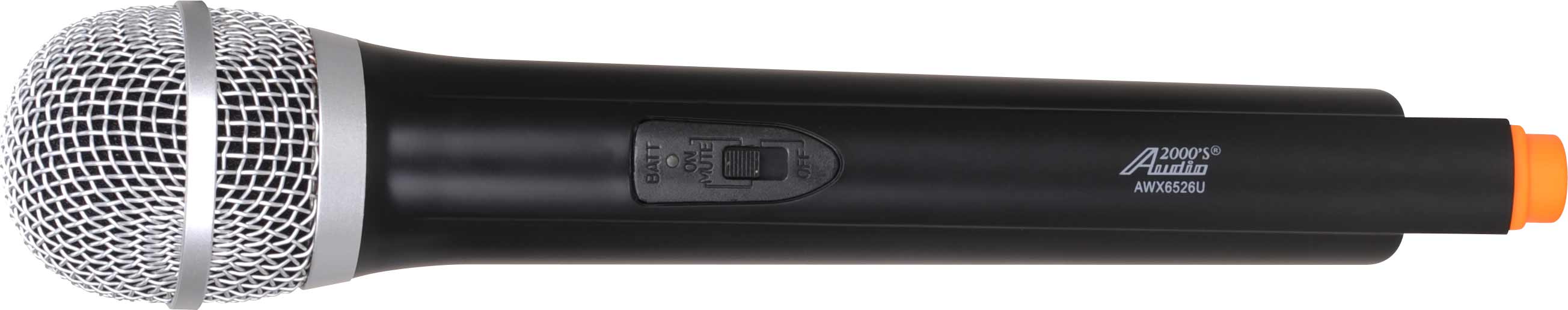

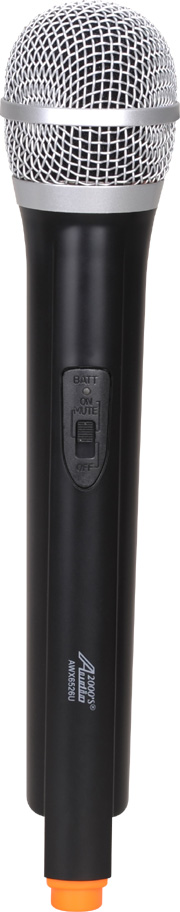

AWX6526U HANDHELD MICROPHONE

Back to Top

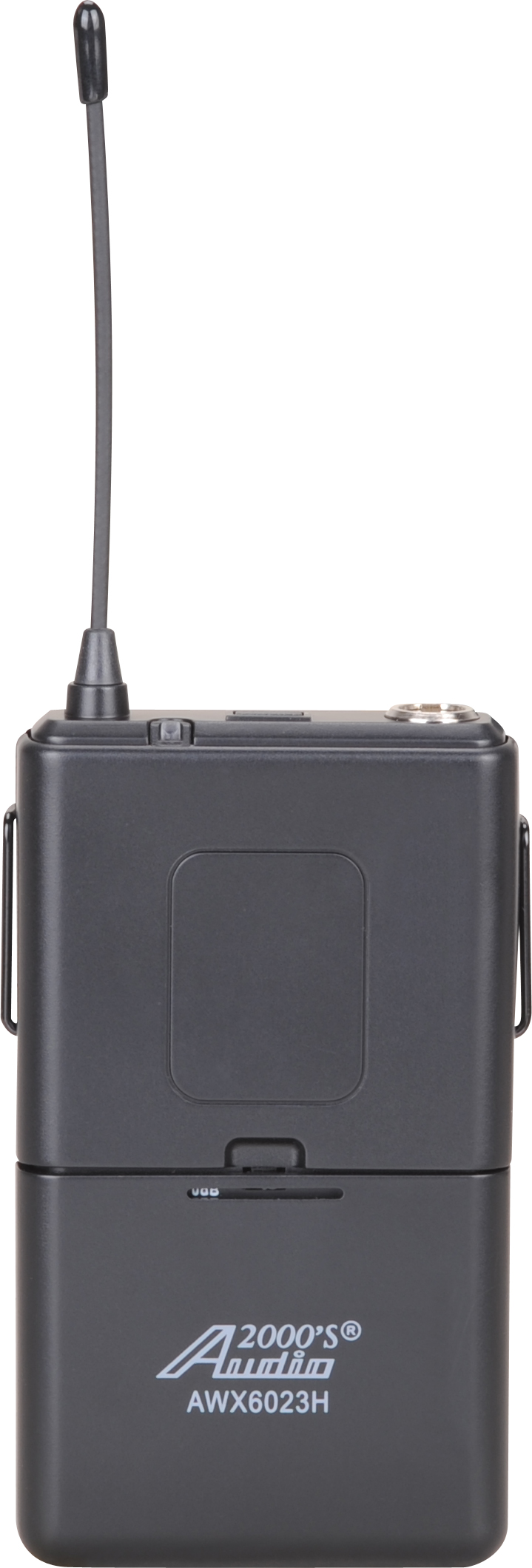

AWX6526U BODY-PACK TRANSMITTER

Back to Top

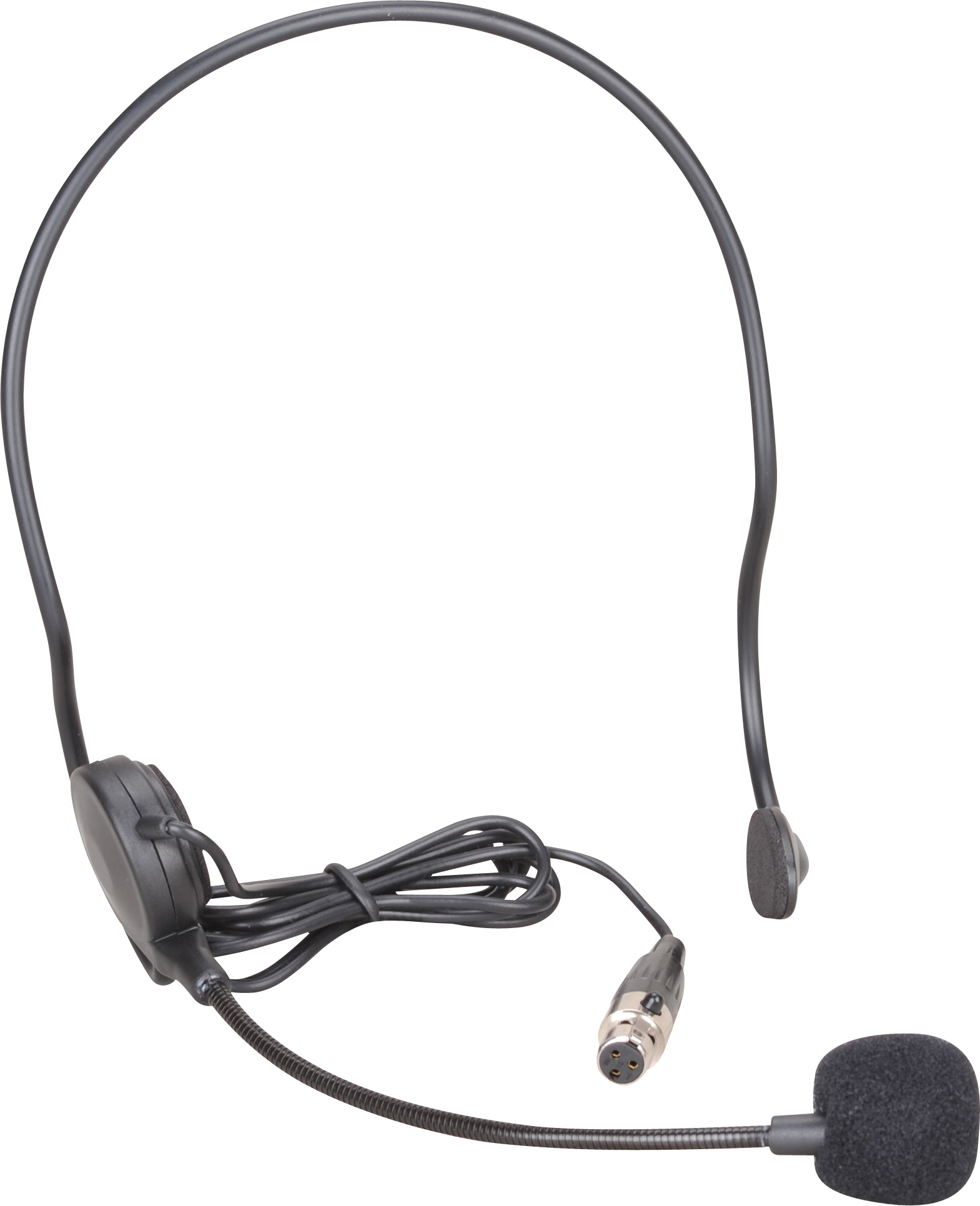

HEADSET MICROPHONE

Back to Top

LAVALIER MICROPHONE





Back to Top

SYSTEM CONFIGURATIONS:

Similar to the other Audio2000'S® wireless systems, various transmitter options are provided to the AWM6526U system users as follows:

(1) AWM6526U - Wireless Microphone System with Four Handheld Microphones (AWR6526U + 4 X AWX6526U's)





(2) AWM6526UL - Wireless Microphone System with One Lavaliere (Lapel) and Three Handheld Microphones (AWR6526U + 1 X AWX6526UM + 1 X AEM6526UM + 3 X AWX6526U)





(3) AWM6526UM - Wireless Microphone System with Four Lavaliere (Lapel) Microphones (AWR6526U + 4 X AWX6526UM's + 4 X AEM6526UM's)





(4) AWM6526UH - Wireless Microphone System with Four Headset Microphones (AWR6526U + 4 X AWX6526UH's + 4 X AEM6526UH's)





(5) AWM6526UX - Wireless Microphone System with One Headset and Three Handheld Microphones (AWR6526U + 1 X AWX6526UH + 1 X AEM6526UH + 3 X AWX6526U)





Back to Top

APPLICATIONS:

Professional musicians; disc jockey (DJ); karaoke jockey (KJ); church; school; conference room; karaoke; home entertainment



Back to Top

SPECIFICATIONS:

AWM6526U System

Carrier Frequency Range UHF Band
Frequency Stability ± 0.005%
Audio Frequency Response 50 - 15,000Hz
Image and Spurious Rejection 50 dB Minimum
S/N Ratio > 70 dB
Max. SPL 110 dB
Total Harmonic Distortion < 1%
Service Area 100ft (30.5M)
Operation Temperature 14 °F – 122 °F (-10 °C – +50 °C)



Back to Top

AWR6526U Receiver

Carrier Frequency Range UHF Band
Frequency Stability ± 0.002%
Receiving Sensitivity -95 dB (S/N: 12 dB)
S/N Ratio 80 dB
Total Harmonic Distortion < 1%
Audio Output Jack 1/4" Jack
Dimensions (W X H X D)



Transmitter

Carrier Frequency Range VHF Band
Frequency Stability ± 0.002%
Modulation Frequency Modulation (FM)
Modulation Depth 40KHz
Output Power 30mW, Max.
Spurious Emission > 55dB
Battery 9V Battery
Current Consuption < 40mA
Dimensions (W X H X D) Handheld:

Belt-Pack:



Back to Top

AWM6526U OWNER'S MANUAL:

Click here to extract the AWM6526U Owner's Manual.



Back to Top
