AWM6025VHF Dual-Channel Wireless Microphones





PRODUCT DESCRIPTIONS

SYSTEM CONFIGURATIONS

APPLICATIONS



SPECIFICATIONS





AWM6025 OWNER'S MANUAL



PRODUCT DESCRIPTIONS:

The Audio2000'S® AWM6025 super-value VHF dual-channel wireless system is a direct response to the needs and desires of  professionals as well as home users.  The advanced circuitry of the AWM6025 system provides reliable RF transmission and reception with a transmission range of about 100 feet.  With the exceptional RF transmission and reception, the AWM6025 system fully delivers all the reception and audio quality features that allow you to really enjoy the freedom of wireless.

Engineered For Dependable VHF Systems

The AWM6025 system has been engineered to be dependable VHF system with a wide audio frequency range, high S/N ratio, and outstanding performance equal to that of any professional wireless systems costing much more.  This is achieved through strict component selection and high quality circuit design.  A delicately designed silence circuit eliminates static noise when the transmitters are either turned off or out of transmission range.  An auto mute circuit is incorporated in these systems to effectively eliminate the popping noise when the switch is turned on or off.

Features Configured To Be User Friendly

To suit the needs of your application demands, the selection of the transmitters to be used with the AWM6025 system includes handheld microphone transmitter, lavaliere microphone transmitter, headset microphone transmitter, and/or guitar transmitter.

System Designed For Accessibility

The AWM6025 system has been designed and manufactured to be dependable, problem free, versatile and easy to use.  The AWM6025 system is intended to be readily accessible to everyone with exceptional performance at a preferred and affordable price.



Back to Top

SYSTEM CONFIGURATIONS:

Similar to the other Audio2000'S® wireless systems, various transmitter options are provided to the AWM6025 system users as follows:

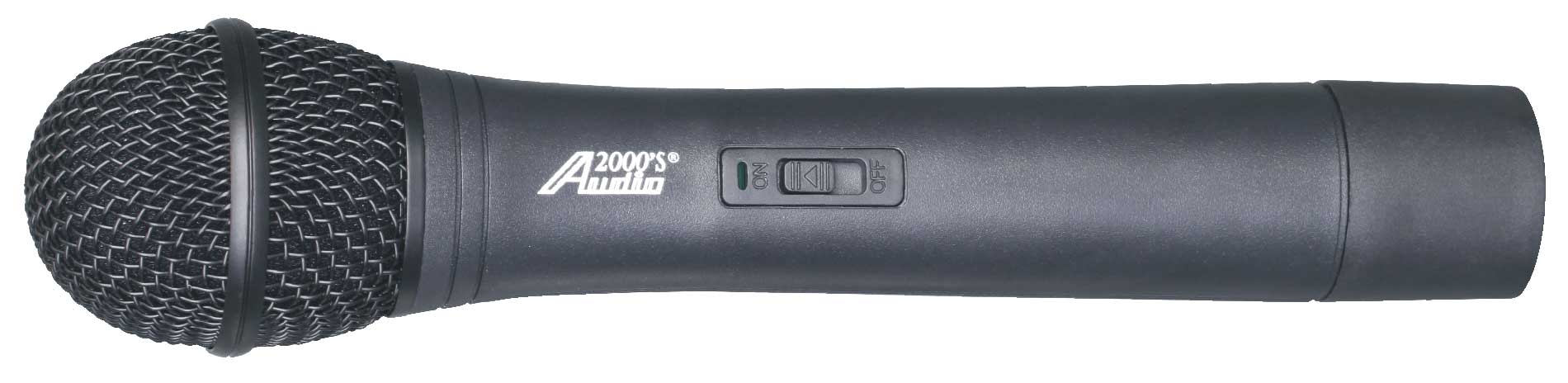

(1) AWM6025 - Handheld Wireless Microphone System (AWR6025 + 2 X AWX6025's)





(2) AWM6025L - Lavaliere (Lapel) & Handheld Wireless Microphone System (AWR6025 + 1 X AWX6025M's + 1 X AEM6023M's + 1 X AWX6025)

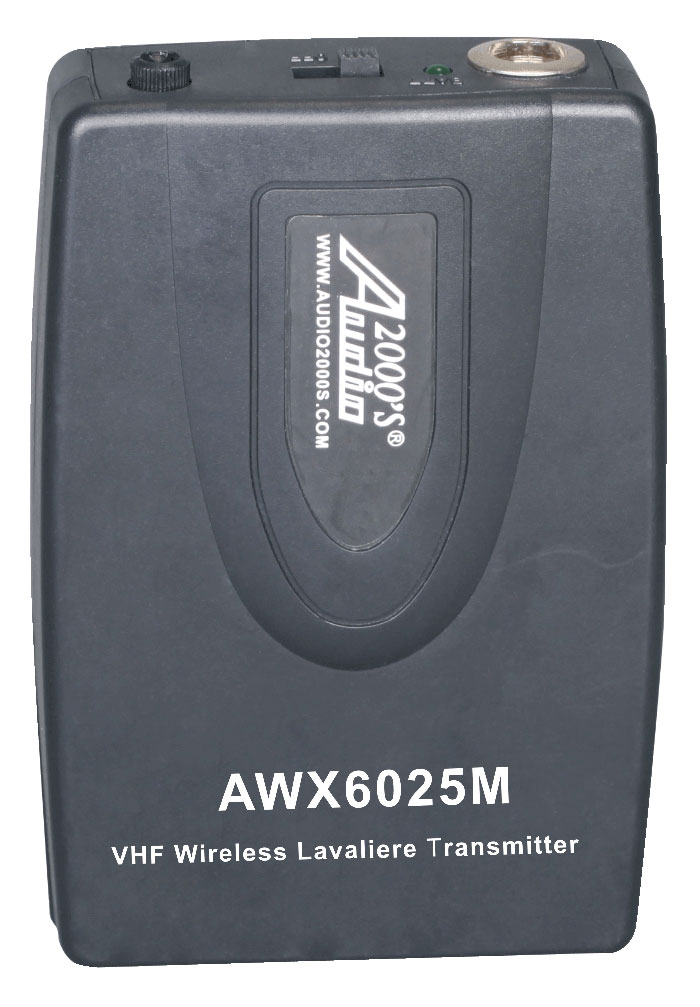

(3) AWM6025M - Lavaliere (Lapel) Wireless Microphone System (AWR6025 + 2 X AWX6025M's + 2 X AEM6023M's)





(4) AWM6025H - Headset Wireless Microphone System (AWR6025 + 2 X AWX6025H's + 2 X AEM6025H's)





(5) AWM6025X - Handheld & Headset Wireless Microphone System (AWR6025 + AWX6025 + AWX6025H + AEM6025H)





(6) AWM6025G - Guitar Wireless System (AWR6025 + 2 X AWX6025G's + 2 X AGC6025G's)





(7) AWM6025Q - Guitar & Handheld Wireless Microphone System (AWR6025 + AWX6025G + AGC6025G + AWX6025)





(8) AWM6025R - Guitar & Headset Wireless Microphone System (AWR6025 + AWX6025G  + AGC6025G + AWX6025H + AEM6025H)





APPLICATIONS:

Musician; disc jockey (DJ); karaoke jockey (KJ); church; school; conference room; karaoke; home entertainment



Back to Top

SPECIFICATIONS:

AWM6025 System

Carrier Frequency Range VHF Band
Frequency Stability ± 0.005%
Audio Frequency Response 50 - 15,000Hz
Image and Spurious Rejection 50 dB Minimum
S/N Ratio > 70 dB
Max. SPL 110 dB
Total Harmonic Distortion < 1%
Service Area 100ft (30.5M)
Operation Temperature 14 °F – 122 °F (-10 °C – +50 °C)

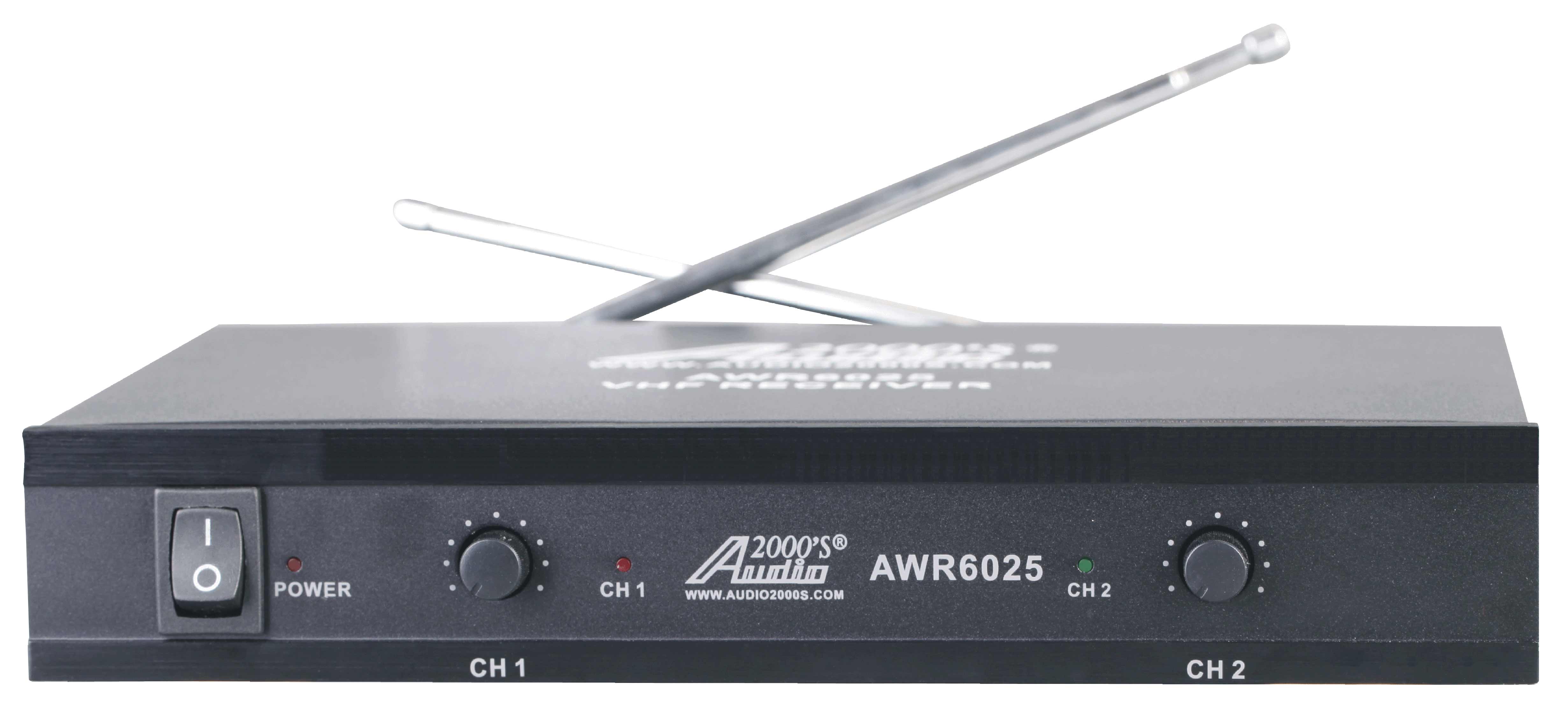

AWR6025 Receiver

Carrier Frequency Range VHF Band
Frequency Stability ± 0.002%
Receiving Sensitivity -95 dB (S/N: 12 dB)
S/N Ratio 80 dB
Total Harmonic Distortion < 1%
Audio Output Jack 1/4" Jack
Dimensions (W X H X D)



Transmitter

Carrier Frequency Range VHF Band
Frequency Stability ± 0.002%
Modulation Frequency Modulation (FM)
Modulation Depth 40KHz
Output Power 30mW, Max.
Spurious Emission > 55dB
Battery 9V Battery
Current Consuption < 40mA
Dimensions (W X H X D) Handheld:

Belt-Pack:



Back to Top

AWM6025 OWNER'S MANUAL:

Click here to extract the AWM6025 Owner's Manual.
