Audio2000'S Stage Cables (Snake Cables)

ADC2701 - 25ft
13mm Multiple Stage Balanced Cables
Eight XLR Female Connectors
Eight XLR Male Connectors

ADC2702
Cable Length: 20ft
13mm Multiple Stage Cables
Eight XLR Female Connectors
Eight 1/4" Male Mono (TS) Plugs

ADC2703
Cable Length: 20ft
13mm Multiple Stage Cables
Eight XLR Male Connectors
Eight 1/4" Male Mono (TS) Plugs

ADC2704
Cable Length: 20ft
13mm Multiple Stage Cables
Eight 1/4" Male Mono (TS) Plugs
Eight 1/4" Male Mono (TS) Plugs

Back to Top

ADC2704S
Cable Length: 20ft
13mm Multiple Stage Cables
Eight 1/4" Male Stereo (TRS) Plugs
Eight 1/4" Male Stereo (TRS) Plugs

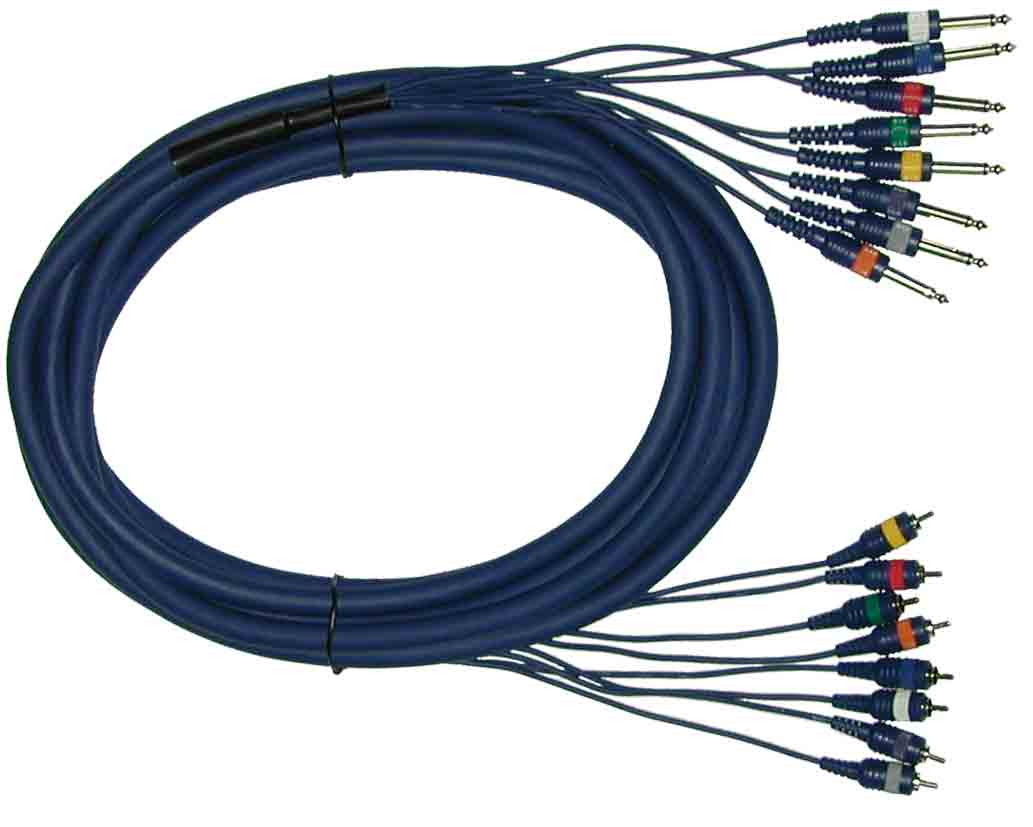

ADC2705
Cable Length: 20ft
13mm Multiple Stage Cables
Eight RCA Connectors
Eight 1/4" Male Mono (TS) Plugs

ADC2706
Stage Box and 15.5mm Multiple Stage Cables
Cable Length: 66ft
12 XLR Female Jacks on Stage Box
12 XLR Male Connectors


ADC2707
Stage Box and 15.5mm Multiple Stage Cables
Cable Length: 66ft
12 XLR Female Jacks & 4 XLR Male Jacks on Stage Box
12 XLR Male Connectors and 4 XLR Female Connectors


ADC2708
Stage Reel with 23mm Multiple Stage Cables
Cable Length: 100ft
20 XLR Female Jacks & 4 XLR Male Jacks on Stage Reel
20 XLR Male Connectors and 4 XLR Female Connectors

ADC2709
Stage Box
20 XLR Female Jacks & 4 XLR Male Jacks on Stage Box
72-Pin Multi-pin (Female) Connection Jack

Back to Top

ADC2710

23mm Fan-Out Cables
Cable Length: 3.3ft
72-Pin Multi-pin (Male) Connection Jack
20 XLR Male Connectors and 4 XLR Female Connectors

ADC2711

23mm Extension Cables
Cable Length: 100ft
72-Pin Multi-pin (Male) Connection Jack at One End
72-Pin Multi-pin (Female) Connection Jack at the Other End

ADC2709+ADC2711+ADC2710
Stage Box (20 XLR Female Jacks + 4 XLR Male Jacks)
100ft Extension Cables
3.3ft, 23mm Fan-out Cables ( 20 XLR Male Connectors + 4 XLR Female Connectors)

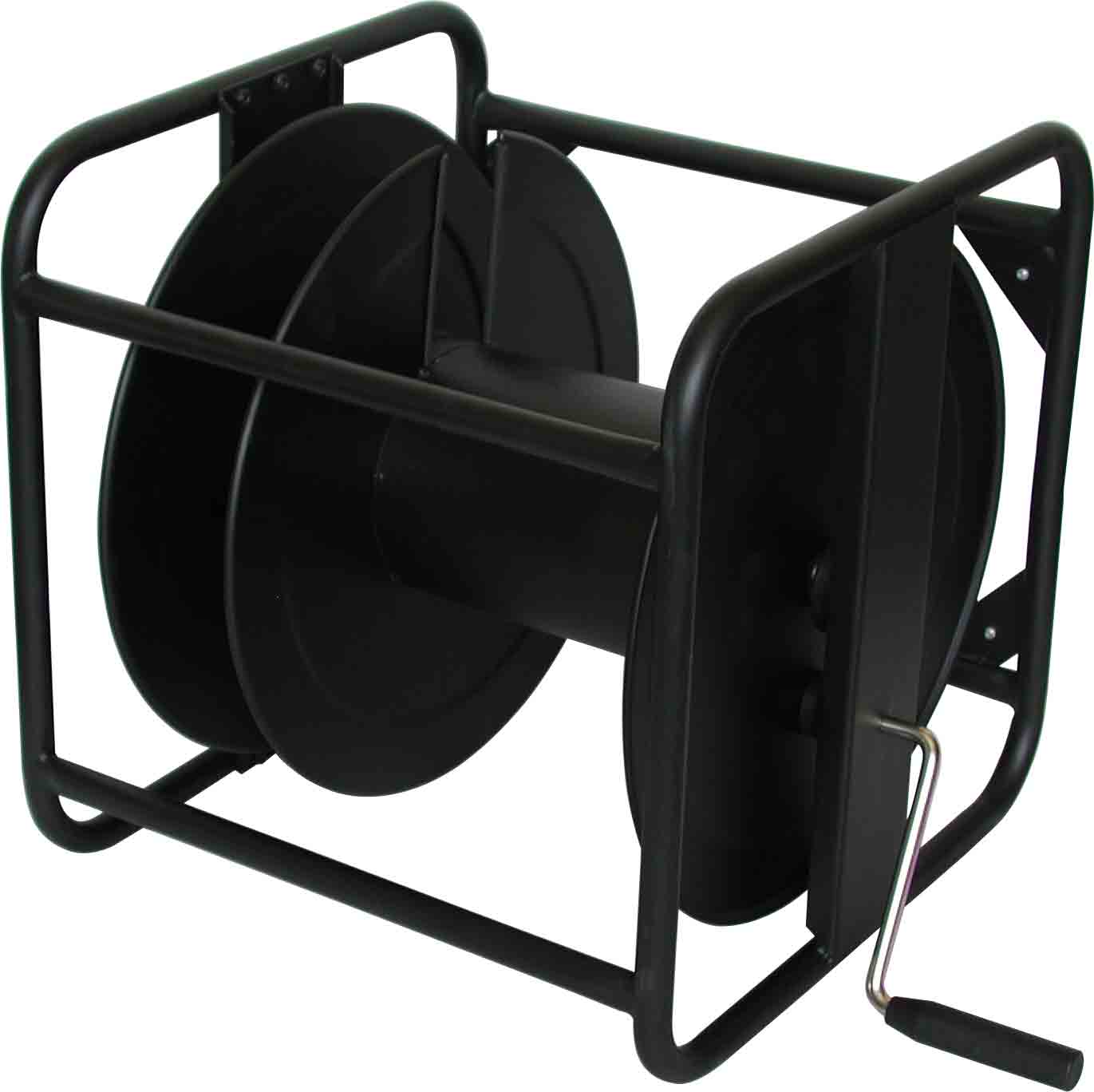

ADC270F - Cable Drum w/Axle       Bearing, Friction Brake, and Removable handles;  Drum Width: (3.5" + 19.0"); Drum Diameter: 15.5"; Drum Tube Diameter: 6.1"





ADC2712
Stage Reel with 20mm Multiple Stage Cables
Cable Length: 100ft
16 XLR Female Jacks & 4 XLR Male Jacks on Stage Reel
16 XLR Male Connectors and 4 XLR Female Connectors


ADC2713
Stage Reel with 24mm Multiple Stage Cables
Cable Length: 100ft
20 XLR Female Jacks & 8 XLR Male Jacks on Stage Reel
20 XLR Male Connectors and 8 XLR Female Connectors

Back to Top

ADC2714
Stage Reel with 24mm Multiple Stage Cables
Cable Length: 100ft
24 XLR Female Jacks & 4 XLR Male Jacks on Stage Reel
24 XLR Male Connectors and 4 XLR Female Connectors




ADC2715
Stage Reel with 27.5mm Multiple Stage Cables
Cable Length: 100ft
32 XLR Female Jacks & 8 XLR Male Jacks on Stage Reel
32 XLR Male Connectors and 8 XLR Female Connectors

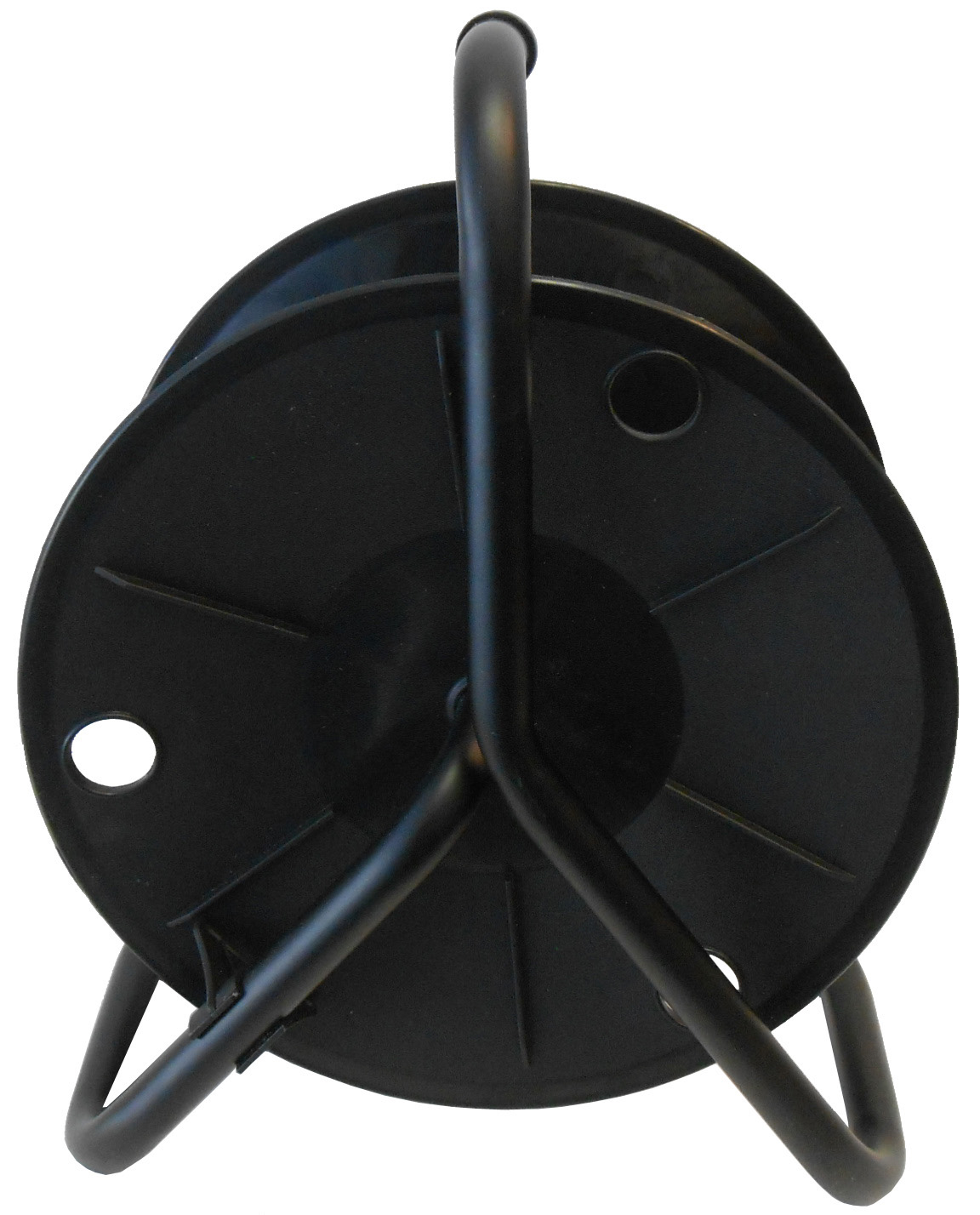

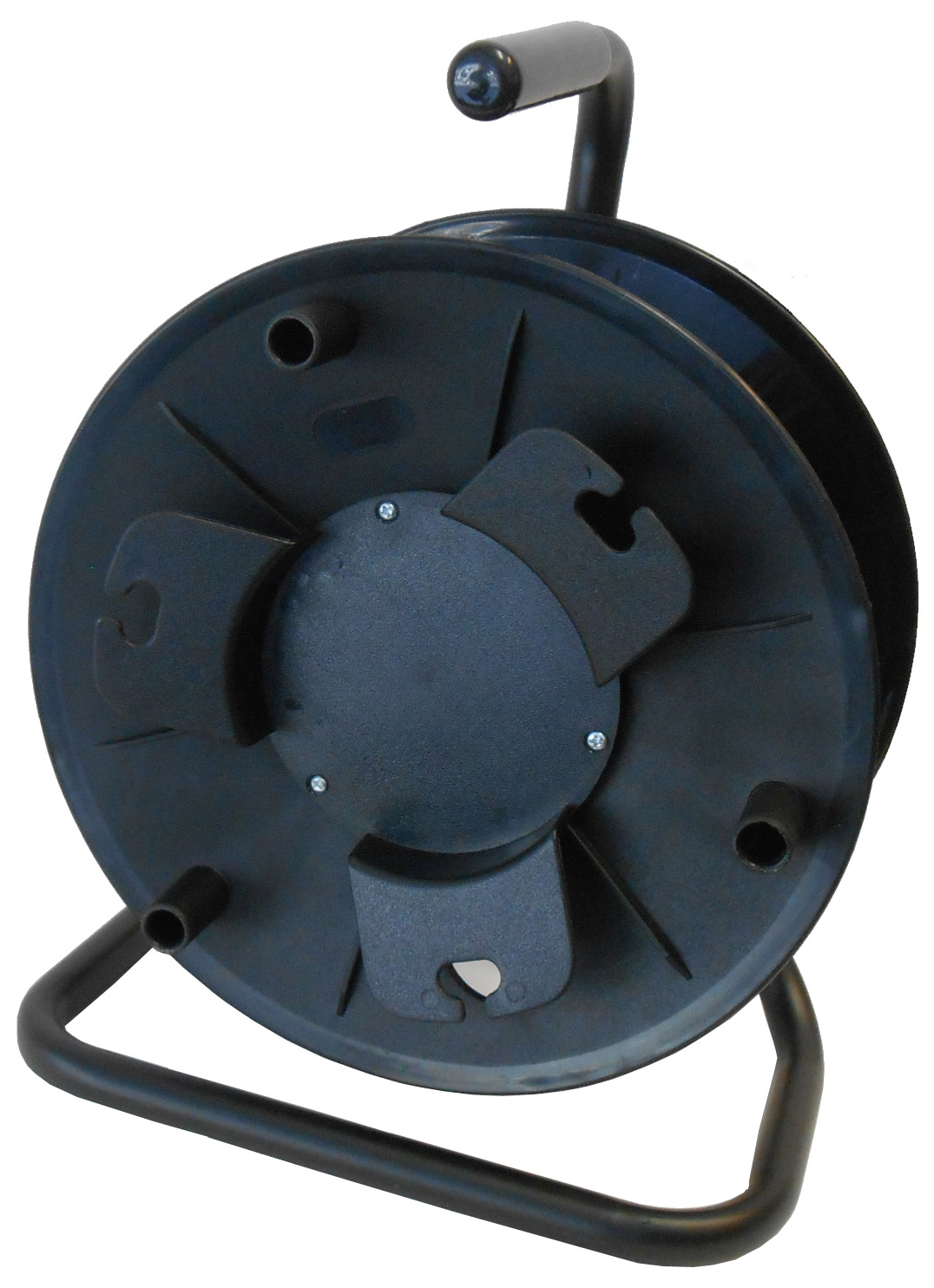

ADC2716B
Cable Reel (All Black)
Capacity: 330ft of 6mm Cable

Front View                             Rear View                         Side View


Click here to enlarge the FRONT VIEW.
Click here to enlarge the REAR VIEW.
Click here to enlarge the SIDE VIEW.

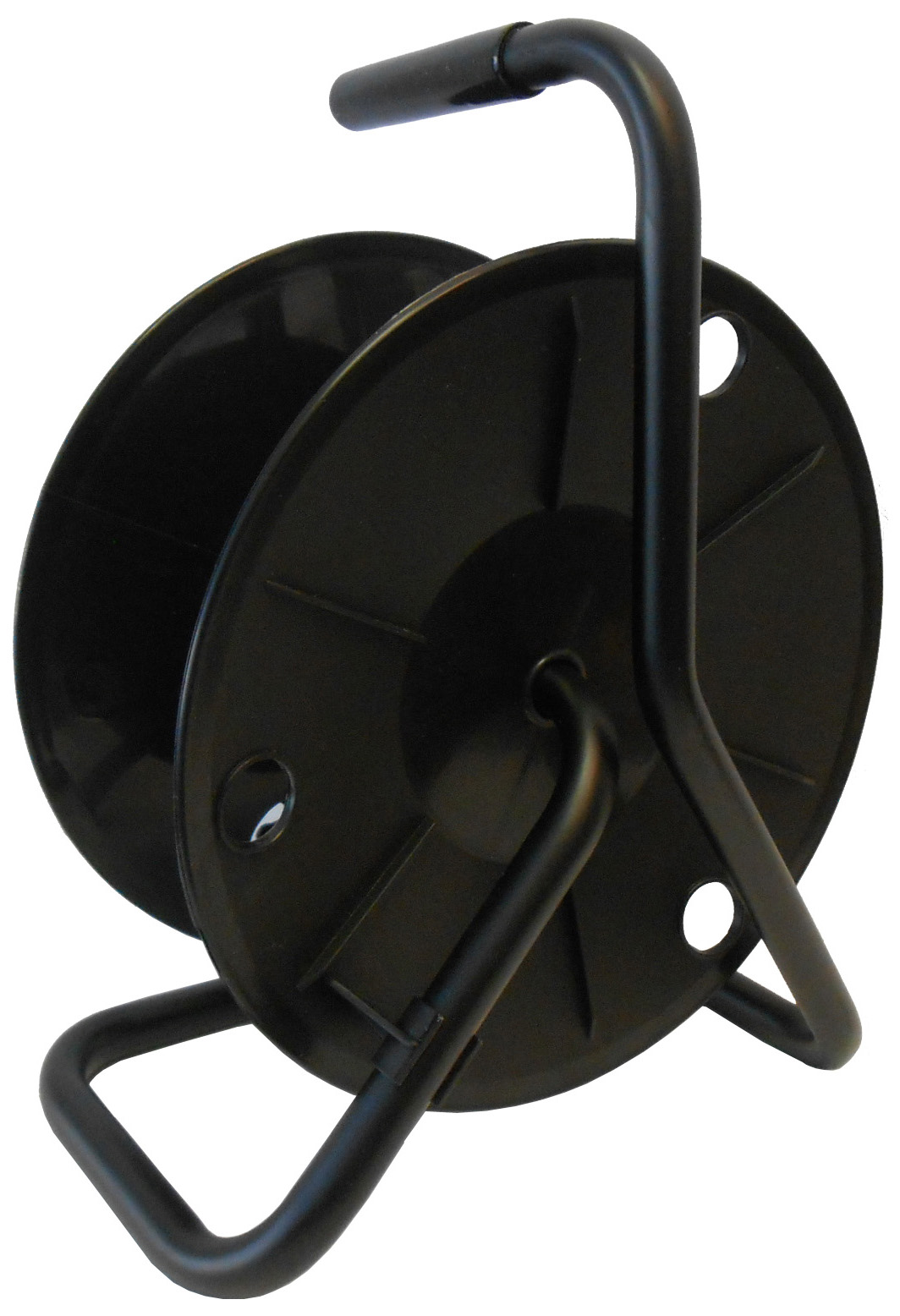

ADC2716
Cable Reel
Capacity: 330ft of 6mm Cable


ADC2717
Stage Box and 13.5mm Multiple Stage Cables
Cable Length: 100ft
8 XLR Female Jacks on One Stage Box
8 XLR Female Jacks on the Other Stage Box

ADC2718
Stage Box and 18mm Multiple Stage Cables
Cable Length: 100ft
16 XLR Female Jacks on Stage Box
16 XLR Male Connectors

ADC2719
. Stage Box and 20mm Multiple Stage Cables
Cable Length: 100ft
16 XLR Female Jacks & 4 XLR Male Jacks on Stage Box
16 XLR Male Connectors and 4 XLR Female Connectors





Back to Top

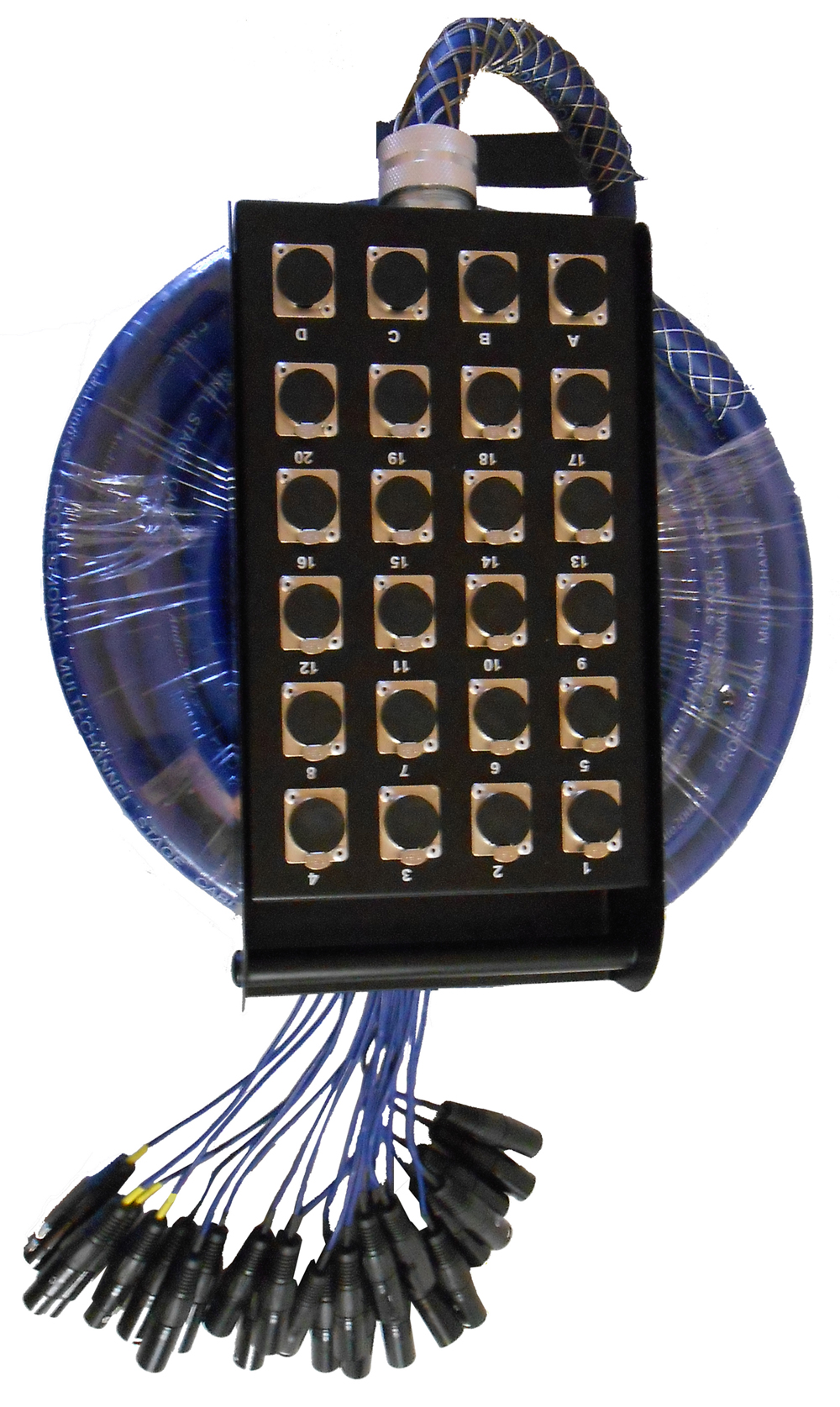

ADC271A
. Stage Box and 23mm Multiple Stage Cables
Cable Length: 100ft
20 XLR Female Jacks & 4 XLR Male Jacks on Stage Box
20 XLR Male Connectors and 4 XLR Female Connectors

ADC2720
. Stage Box and 24mm Multiple Stage Cables
Cable Length: 100ft
24 XLR Female Jacks & 4 XLR Male Jacks on Stage Box
24 XLR Male Connectors and 4 XLR Female Connectors

ADC2722
18mm Multiple Stage Balanced Cables
Cable Length: 25ft
16 XLR Female Connectors
16 XLR Male Connectors
