AKJ7004 - Professional Karaoke Mixer with Digital Echo & Key Controls





FEATURES

AKJ7004 FRONT PANEL

AKJ7004 REAR PANEL



SPECIFICATIONS



ACCESSORIES



AKJ7004 OWNER'S MANUAL



The Audio2000'S AKJ7004 system is a truly pleasantly sounded professional karaoke mixer.  In order to provide a complete mastery on the control of a karaoke joy and karaoke performance, the AKJ7004 is configured with all the essential karaoke features: 16-bit digital key controls, an echo volume control, echo high/low tone controls, an echo repeat adjustment, an echo speed adjustment, a video input/output routing, and smooth vocal sound reinforcement  capabilities.

In addition, the music balance/treble/bass controls and microphone treble/bass controls enable the users to master  the music and microphone sound in a variety of acoustic environments Three microphone inputs on the AKJ7004 are intended to be plentiful for multiple users. Two MIC INSERT's at the rear panel allow the user to add various sound effects to the vocal sound through external sound effectors.

The AKJ7004 is carefully engineered to present a high-fidelity direct sound field in a small-room acoustic environment, in a large-room acoustic environment, or in a open performance field.

As a performance extension of the AKJ7404 system, the AKJ7004 enjoys the delicate engineering and the acoustic power of the market-proven AKJ7404 solid performance history.  Also, the AKJ7004 inherits the Audio2000'S product tradition of quality, reliability and versatility.



Back to Top

FEATURES:

  • Remote Control
  • Three Unbalanced 1/4" Microphone Inputs
  • Master Microphone Volume Control
  • Two (2) Individual Microphone Volume\Balance\Echo Controls
  • Microphone Tone Controls (Low/Mid/High)
  • Master Music Volume Control
  • Music Volume, Balance, Low, Mid, and High Controls
  • 16-Bit Digital Key Controller (+/- 4 Steps)
  • Digital Echo Volume/Low/High/Delay/Repeat Controls
  • Music Sound Effector Loop
  • Two Stereo Audio Inputs
  • Two Video Inputs and Outputs
  • Three Audio Outputs (Mic/Rec/Line)
  • Two MIC INSERTS at the rear panel
  • Rack Mountable

Back to Top

AKJ7004 FRONT PANEL:

Click here to enlarge the above image.

Back to Top

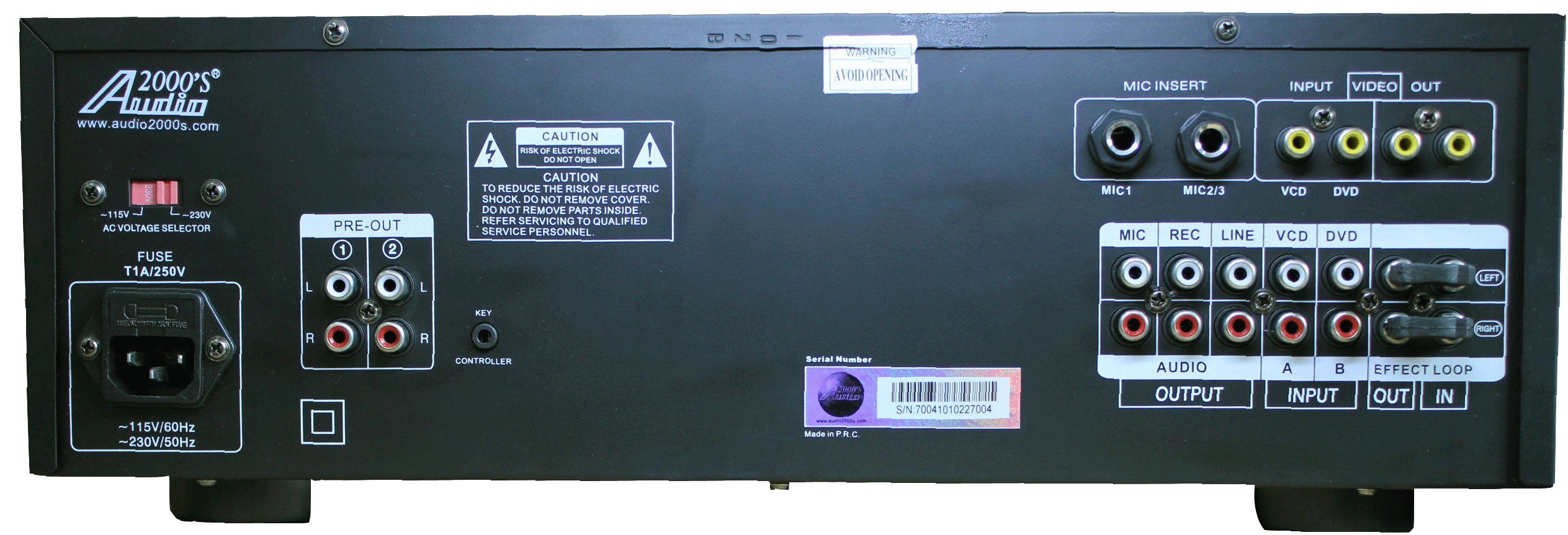

AKJ7004 REAR PANEL:

Click here to enlarge the above image.

Back to Top

SPECIFICATIONS

Total Harmonic Distortion 0.03% @ 1KHz, -3dB, 6 Ohms
Mic. Input Sensitivity 6mV / 600 Ohms
Input Sensitivity 300mV / 22 KOhms
Output Level (Pre-Out) 2.5V / 1 KOhms
Mic. Freq. Response 10 - 25,000 Hz
Music Freq. Response 10 - 40,000 Hz
Tone Control Char. (Bass) +/- 10 dB @ 100 Hz
Tone Control Char. (Treble) +/- 10 dB @ 10 KHz
Key Control Range 9 steps, +/- 2 Tones
Video Input Sensitivity 1Vp-p @ 75 Ohms
Video Output Sensitivity 1Vp-p @ 75 Ohms
Power Consumption 30 W
Dimensions (W X H X D) 16.5" X 5.4" X 14.6"
Weight 8.82 lbs
Accessories Remote Control Commander

Back to Top

ACCESSORIES:

                ITEMS                                      QUANTITIES
        AKJ7004 Unit                                           1
        Remote Control                                        1
        Owner's Manual                                        1
        AAA Batteries                                          2
        Rack Mount Ears                                     2

Back to Top

AKJ7004 OWNER'S MANUAL:

Click here to extract the AKJ7004 Owner's Manual.
