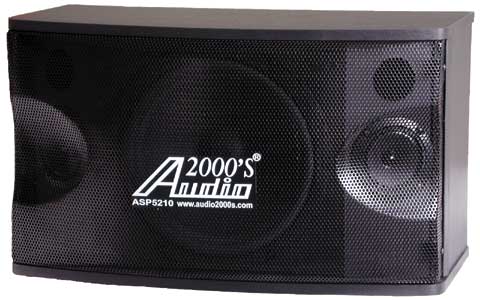

ASP5210 - 300W Full Range 10" 2-Way Loudspeaker






If you are looking for a pair of professional speakers for your karaoke applications, the Audio2000'S ASP5210 full range 10" two-way loudspeaker is the answer for you.  The reasons? Please look at the following product benefits for you:

Portability: Relatively light weight (20 lbs) for its sound level driving capability (Power: 300W, max; 150W, rms; Freq. Response: 40-20,000Hz; Sensitivity: 94dB @ 1W 1M).
Mountability: A built-in internal speaker mounting top hat makes it possible that a light-weight karaoke speaker can just be placed on the top of a speaker stand without using an external mounting device.
Connectability: A pair of banana jacks are utilized for connecting the speaker cables.
Sound Quality: A high efficiency 10” woofer, a pair of 3 ” tweeters and a built-in crossover circuitry are provided for smoothly transforming the electrical acoustic signal to full and transparent sound waves.
Affordability: Wow, what a price tag for such a wonderful sound drivng power!



As a result, the ASP5210 loudspeaker is specifically designed and developed for your karaoke applications at home or at a commercial locations.

ASP5210 Loudspeaker Features:

* 300Watts, 2-Way System
* 1 X 10"  Woofer + 2 X 3 1/2" Tweeters
* Banana Jacks for Speaker Cable Connection
* Internal Speaker Mounting Top Hat
* Acoustic-Tune Ports for Superior Sound Venting
* 12dB / Octave High-Pass Crossover Network

ASP5210 Loudspeaker Specifications

Impedance

8 Ohms, Nominal

Dimension (W X H X D)

20" X 11 5/8" X 10 1/2" (51 X 29.5 X 26.5 cm)

Frequency Response

40 - 20 KHz (+/- 3 dB)

Sensitivity

94 dB @ 1M, 1W

Weight 22 lbs (10 Kgs)

Power Output

300W Max; 150W RMS
